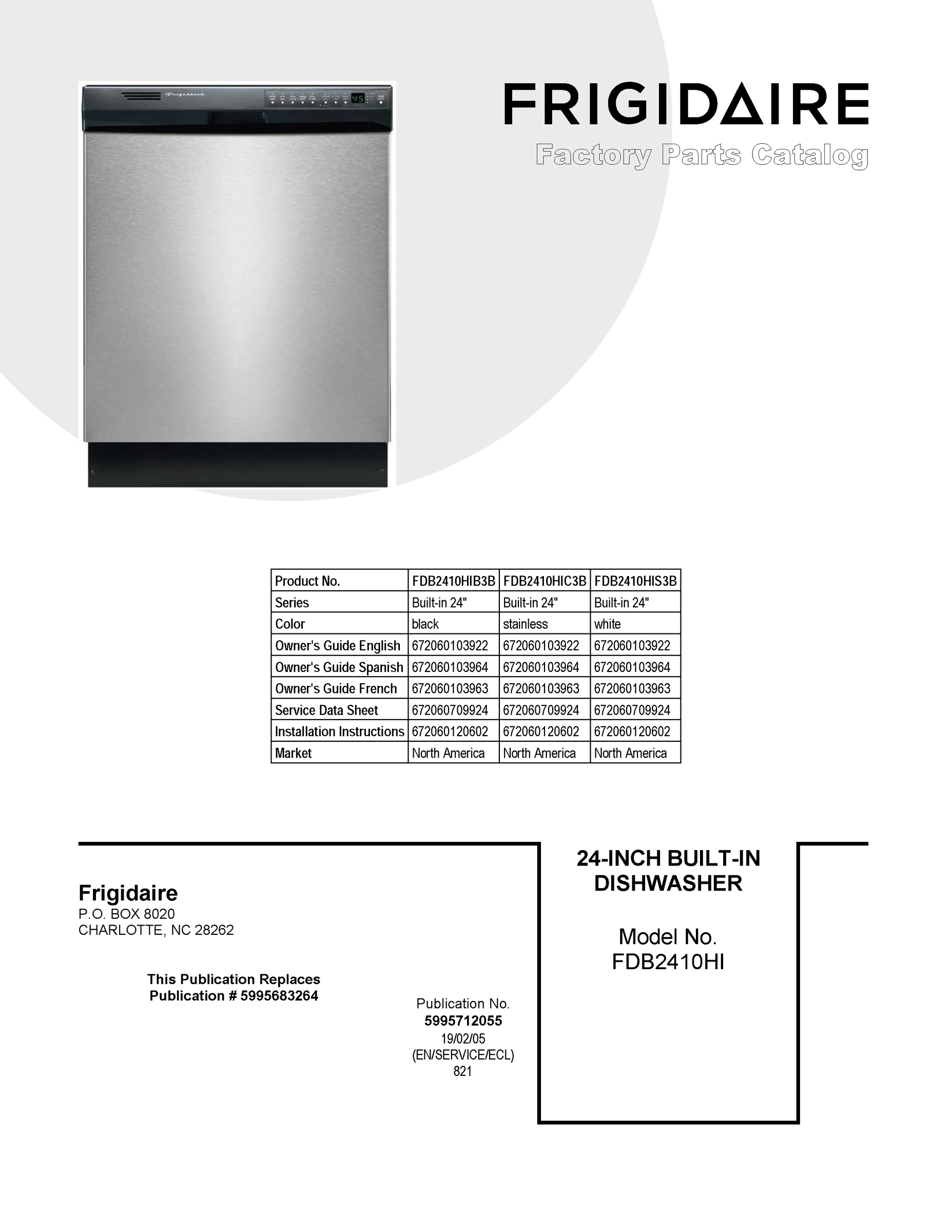

Model Electrolux FDB2410HIC3B DISHWASHER, BUILT-IN, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET

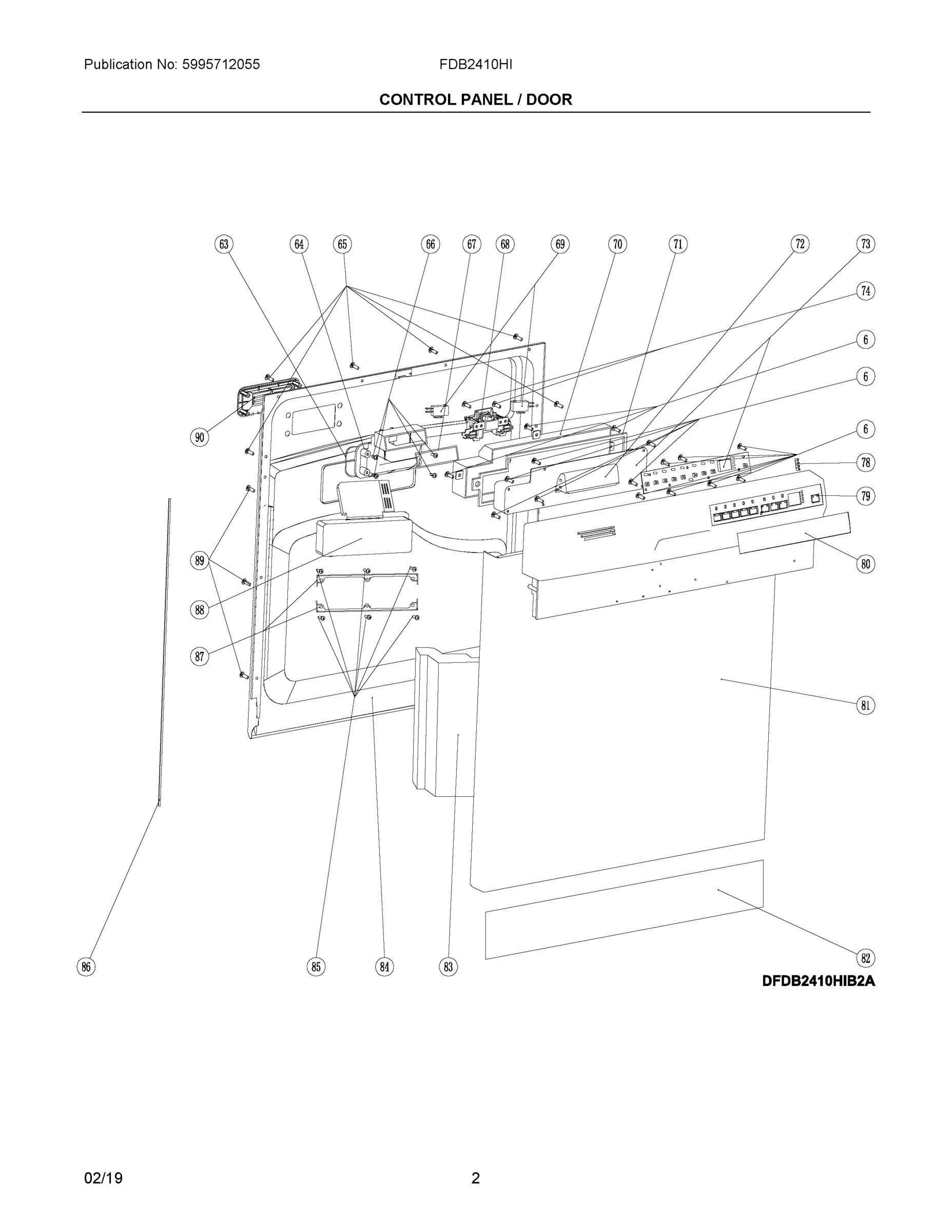

02 - CONTROL PANEL / DOOR
03 - TUB / WATER DELIVERY
04 - MOTOR AND PUMP
05 - RACKS / HINGES
Common parts from model Electrolux FDB2410HIC3B DISHWASHER, BUILT-IN, 24 INCH
2
O RING, DELIVERY TUBE, (2) WCI 5304482363 Contact Us For Availability
11
BLOCK, COUPLING, DOOR WCI 5304482374 Contact Us For Availability
12
HOOK, DOOR LOCK WCI 5304483485 Contact Us For Availability
15
CASING, DELIVERY TUBE, INLET WCI 5304482377 Contact Us For Availability
18
NUT, DELIVERY TUBE, INLET WCI 5304482382 Contact Us For Availability
23
BLOCK, GUIDE RAIL, FRONT, (2) WCI 5304482388 Contact Us For Availability
27
TUNNEL, WATER WCI 5304482392 Contact Us For Availability
28
BLOCK, GUIDE RAIL, REAR, (2) WCI 5304482393 Contact Us For Availability
29
GASKET, RING NUT WCI 5304482394 Contact Us For Availability
40
TOE PLATE, ADJUSTABLE, BLACK WCI 5304482404 Contact Us For Availability
45
FOOT, LEVELING, (4) WCI 5304509266 Contact Us For Availability
46
HOLDER, LEVELING FOOT, (4) WCI 5304482409 Contact Us For Availability
53
GASKET, TUB WCI 5304482415 Contact Us For Availability
57
WCI 5304522737 WCI 5304522737 Contact Us For Availability
58
CLAMP, HOSE, 12.9 X 1.8 WCI 5304482419 Contact Us For Availability
59
COVER, (2) WCI 5304482420 Contact Us For Availability
60
SPRAY ARM ASSEMBLY, UPPER WCI 5304482421 Contact Us For Availability
62
NUT, SPRAY ARM, UPPER WCI 5304482422 Contact Us For Availability
68
LATCH, DOOR WCI 5304512886 Contact Us For Availability
73
WCI 5304522738 WCI 5304522738 Contact Us For Availability
74
SCREW, REC TAP, ST3.5 X 12, (2) WCI 5304482434 Contact Us For Availability
79
CONSOLE ASSEMBLY, BLACK WCI 5304482437 Contact Us For Availability
80
INSERT, CONSOLE PANEL, BLACK WCI 5304482439 Contact Us For Availability
81
DOOR, OUTER, STAINLESS WCI 5304482442 Contact Us For Availability
84
LINER, DOOR, INNER WCI 5304482445 Contact Us For Availability
87
BRACKET, DISPENSER MTG., (2) WCI 5304482449 Contact Us For Availability
102
ELEMENT ASSEMBLY, HEATING WCI 5304470288 Contact Us For Availability
103
FILTER ASSEMBLY WCI 5304482463 Contact Us For Availability
104
FILTER ASSEMBLY, SCREEN, STAINLESS WCI 5304482464 Contact Us For Availability
105
FILTER ASSEMBLY, MICRO WCI 5304482465 Contact Us For Availability
106
NUT, SUMP MTG. WCI 5304482466 Contact Us For Availability
108
SUMP ASSEMBLY WCI 5304512883 No Longer Available
114
DUCT, CONNECTING, (2) WCI 5304482455 Contact Us For Availability
123
SCREW, REC, M5 X 6, (5) WCI 5304482478 Contact Us For Availability
124
SPRING, DOOR, (2) WCI 5304482479 Contact Us For Availability
126
WCI 5304522745 WCI 5304522745 Contact Us For Availability
127
RING, CLAMPING, (2) WCI 5304482482 Contact Us For Availability
128
HINGE, DOOR, LH WCI 5304482483 Contact Us For Availability
128A
HINGE, DOOR, RH WCI 5304482484 Contact Us For Availability
130
PIN, HINGE JOINT, (2) WCI 5304482485 Contact Us For Availability
131
BOLT, DOOR SPRING, (2) WCI 5304482486 Contact Us For Availability
132
SHELF, CUP, (2) WCI 5304482487 Contact Us For Availability
133
RACK ASSEMBLY, UPPER WCI 5304470264 Contact Us For Availability
134
DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE WCI 5304482489 Contact Us For Availability
135
DELIVERY TUBE, SPRAY ARM, MIDDLE WCI 5304482490 Contact Us For Availability
138
BLOCK, FASTENER, SPRAY ARM WCI 5304482492 Contact Us For Availability
× ![]()
