Model Electrolux FDB2410HIC2A DISHWASHER, BUILT-IN, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL / DOOR

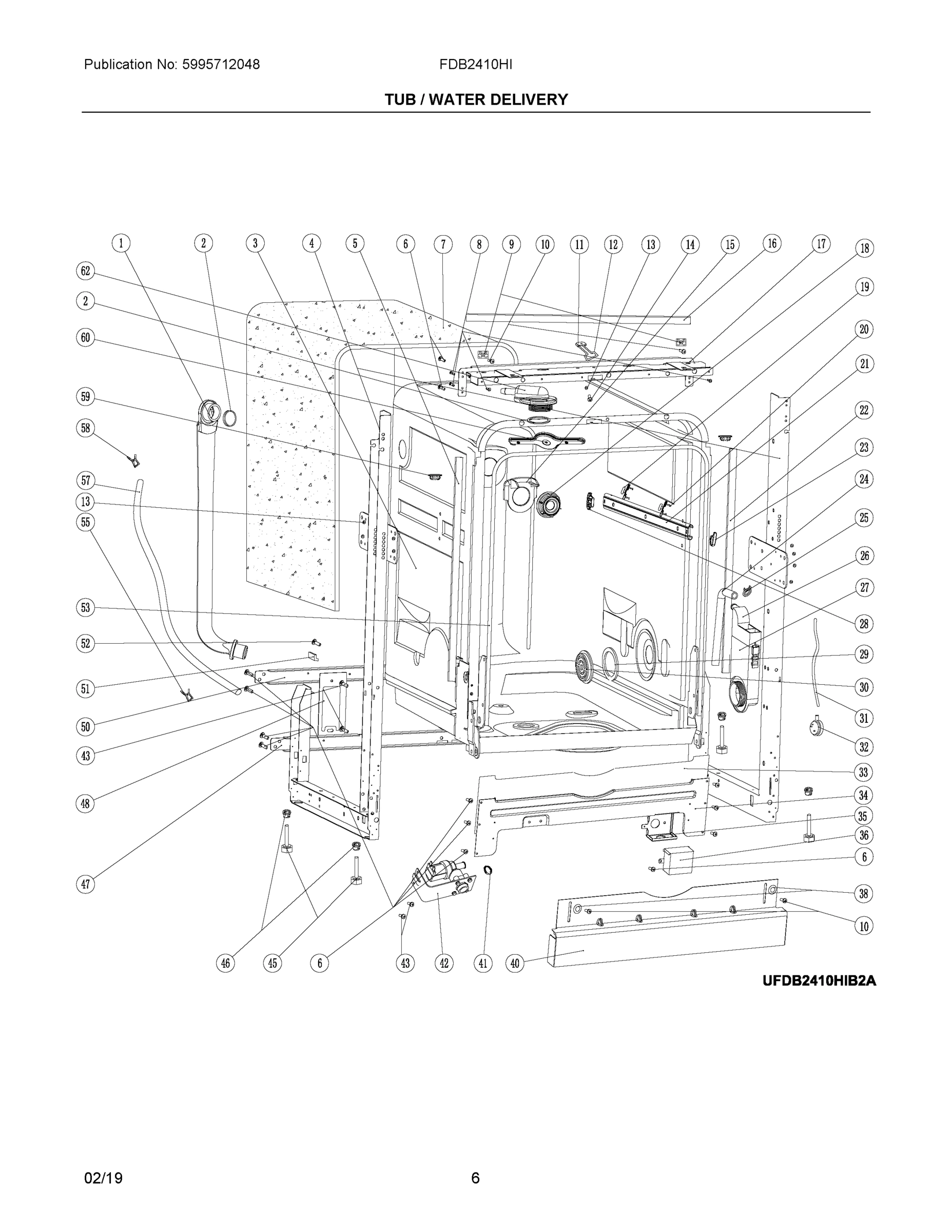

03 - TUB / WATER DELIVERY

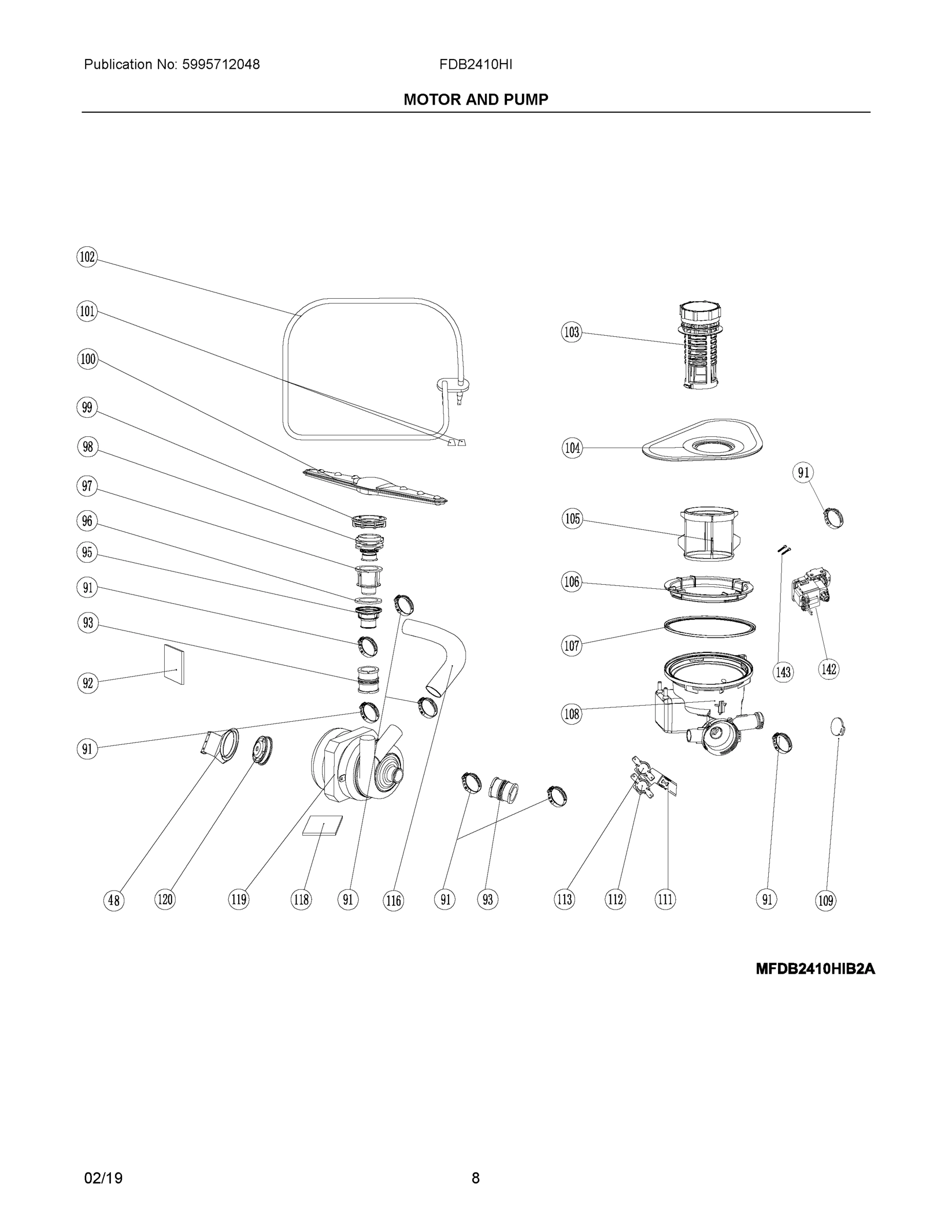

04 - MOTOR AND PUMP

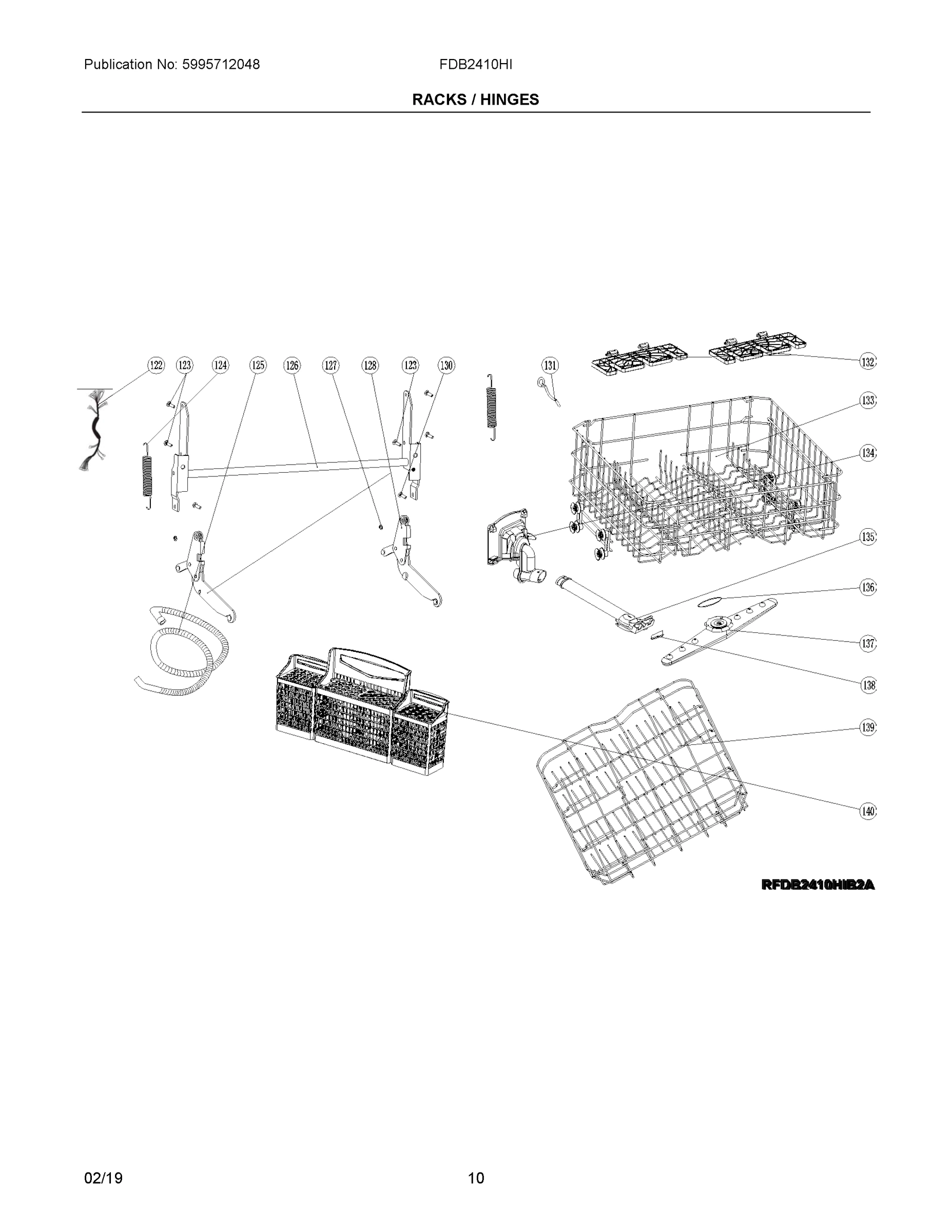

05 - RACKS / HINGES
Common parts from model Electrolux FDB2410HIC2A DISHWASHER, BUILT-IN, 24 INCH
1
DELIVERY HOSE, ASSEMBLY WCI 5304482253 Contact Us For Availability
2
O RING, DELIVERY TUBE, (2) WCI 5304482363 Contact Us For Availability
3
TUB ASSEMBLY WCI 5304482364 Contact Us For Availability
10
SCREW, REC TAPPING, ST 3.5 X 11, (2) WCI 5304482373 Contact Us For Availability
11
BLOCK, COUPLING, DOOR WCI 5304482374 Contact Us For Availability
12
HOOK, DOOR LOCK WCI 5304483485 No Longer Available
14
SCREW, REC CNTRSUNK HD, M4 X 16 WCI 5304482376 Contact Us For Availability
15
CASING, DELIVERY TUBE, INLET WCI 5304482377 Contact Us For Availability
18
NUT, DELIVERY TUBE, INLET WCI 5304482382 Contact Us For Availability
27
TUNNEL, WATER WCI 5304482392 Contact Us For Availability
28
BLOCK, GUIDE RAIL, REAR, (2) WCI 5304482393 Contact Us For Availability
29
GASKET, RING NUT WCI 5304482394 Contact Us For Availability
40
TOE PLATE, ADJUSTABLE, BLACK WCI 5304482404 Contact Us For Availability
45
FOOT, LEVELING, (4) WCI 5304482408 Contact Us For Availability
46
HOLDER, LEV WCI 5304482409 Contact Us For Availability
53
WCI 5304482415 WCI 5304482415 Contact Us For Availability
55
WCI 5304482417 WCI 5304482417 Contact Us For Availability
58
WCI 5304482419 WCI 5304482419 Contact Us For Availability
59
WCI 5304482420 WCI 5304482420 Contact Us For Availability
60
WCI 5304482421 WCI 5304482421 Contact Us For Availability
62
WCI 5304482422 WCI 5304482422 Contact Us For Availability
73
CONTROL ASSEMBLY, COMPLETE, W/DISPLAY BRD WCI 5304480587 Contact Us For Availability
74
SCREW, REC TAP, ST3.5 X 12, (2) WCI 5304482434 Contact Us For Availability
79
CONSOLE ASSEMBLY, BLACK WCI 5304482437 Contact Us For Availability
80
INSERT, CONSOLE PANEL, BLACK WCI 5304482439 Contact Us For Availability
84
LINER, DOOR, INNER WCI 5304482445 Contact Us For Availability
87
BRACKET, DISPENSER MTG., (2) WCI 5304482449 Contact Us For Availability
93
DUCT, CONNECTING, (2) WCI 5304482455 Contact Us For Availability
98
AXIS ASSEMBLY, SPRAY ARM, LOWER WCI 5304482459 Contact Us For Availability
99
NUT, SPRAY ARM, LOWER WCI 5304482460 Contact Us For Availability
103
FILTER ASSEMBLY WCI 5304482463 Contact Us For Availability
104
FILTER ASSEMBLY, SCREEN, STAINLESS WCI 5304482464 Contact Us For Availability
105
FILTER ASSEMBLY, MICRO WCI 5304482465 Contact Us For Availability
106
NUT, SUMP MTG. WCI 5304482466 Contact Us For Availability
107
GASKET, SUMP WCI 5304482467 Contact Us For Availability
108
SUMP ASSEMBLY WCI 5304482468 Contact Us For Availability
112
THERMISTOR WCI 5304482471 Contact Us For Availability
113
THERMOSTAT, 90 WCI 5304482472 Contact Us For Availability
116
DUCT, CONNECTING, EXTERNAL PIPE WCI 5304482473 Contact Us For Availability
124
SPRING, DOOR, (2) WCI 5304482479 Contact Us For Availability
125
HOSE, DRAIN WCI 5304482480 Contact Us For Availability
128
HINGE, DOOR, LH WCI 5304482483 Contact Us For Availability
128A
HINGE, DOOR, RH WCI 5304482484 Contact Us For Availability
130
PIN, HINGE JOINT, (2) WCI 5304482485 Contact Us For Availability
131
BOLT, DOOR SPRING, (2) WCI 5304482486 Contact Us For Availability
133
RACK ASSEMBLY, UPPER WCI 5304482488 Contact Us For Availability
134
DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE WCI 5304482489 Contact Us For Availability
135
DELIVERY TUBE, SPRAY ARM, MIDDLE WCI 5304482490 Contact Us For Availability
137
SPRAY ARM, ASSEMBLY, MIDDLE WCI 5304482491 Contact Us For Availability
138
BLOCK, FASTENER, SPRAY ARM WCI 5304482492 Contact Us For Availability
140B
COVER, BASKET, LARGE, MAIN WCI 5304482496 Contact Us For Availability
× ![]()
