Model Electrolux FCWS2727ABF WALL OVEN, ELECTRIC, SINGLE, 27 INCH – Common Parts & Diagrams
01 - COVER SHEET

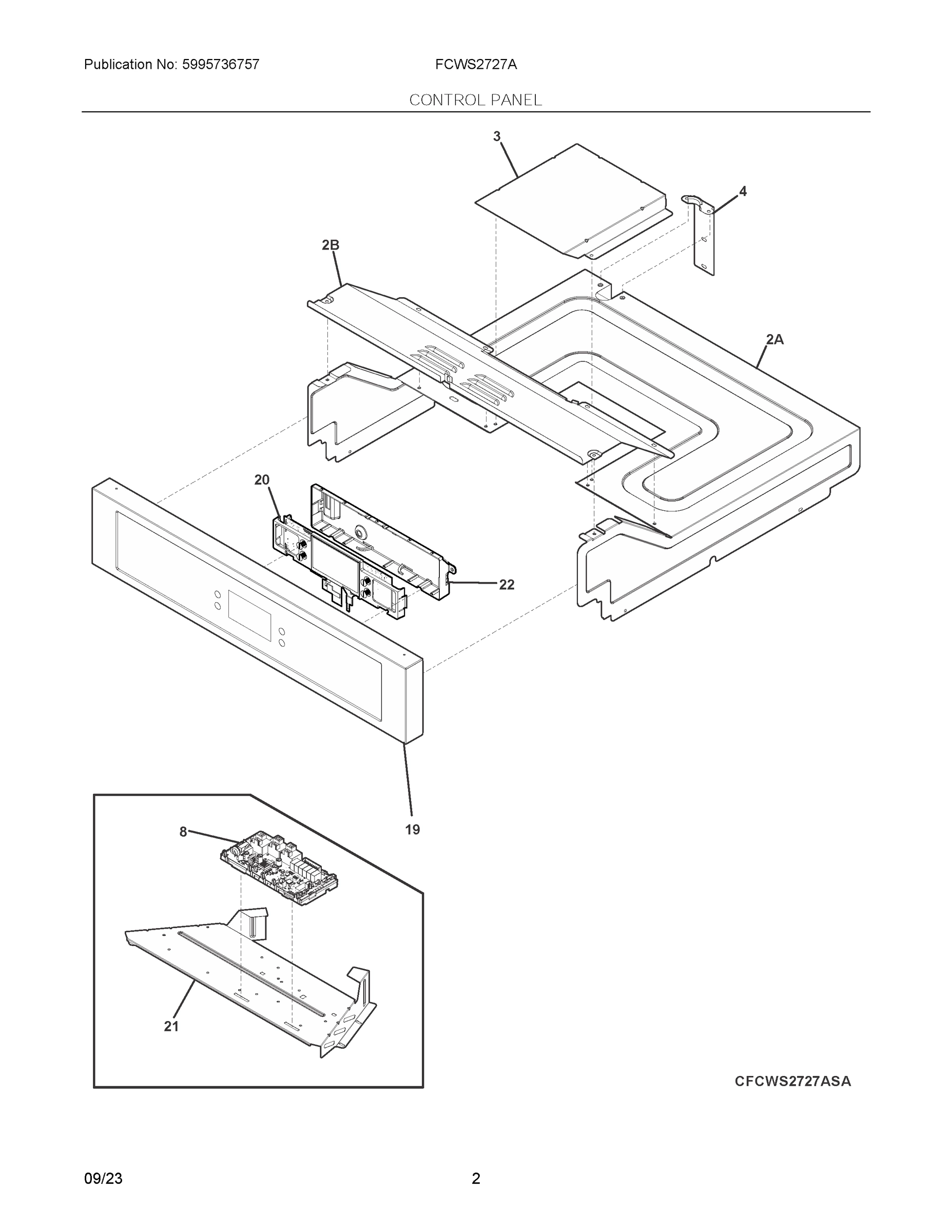

02 - CONTROL PANEL
03 - BODY
04 - DOOR
05 - WIRING DIAGRAM
06 - WIRING DIAGRAM
Common parts from model Electrolux FCWS2727ABF WALL OVEN, ELECTRIC, SINGLE, 27 INCH
3A
TRIM, DOOR, BLACK, SIDE WCI 5304525458 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011900 Contact Us For Availability
6
BAFFLE, DOOR WCI 139014203 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSULATION, 20.5 X 2.375, 1" THICK, (2) WCI 318372018 Contact Us For Availability
8
GLASS, DOOR, INNER, (2), EKO WCI 139085803 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139002917 Contact Us For Availability
10
SCREW, HANDLE MTG. WCI 5304414648 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545501 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, GLASS/STEEL, BLACK WCI 5304525468 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264735 Contact Us For Availability
23
HINGE, DOOR, BLUE, SOFT CLOSE WCI 808930405 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
39
HANDLE, DOOR, BLACK WCI 5304531834 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
62
TERMINAL BLOCK WCI 5304535277 Contact Us For Availability
66
ELEMENT, BROIL, 6 PASS, 4000W WCI 5304514924 Contact Us For Availability
67
ELEMENT, HIDDEN BAKE, 2500W WCI 5304506946 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
71
SHIELD, REAR WIRE, MAIN BACK WCI 139022001 Contact Us For Availability
80
BRACKET, SUPPORT, CHASSIS/FAN WCI 139021101 Contact Us For Availability
82
SHIELD, INSULATION, LOWER WCI 5304506947 Contact Us For Availability
83
SHIELD, BAKE ELEMENT, REAR WCI 5304506951 Contact Us For Availability
86
RECEPTACLE, HINGE, SOFT CLOSE WCI 808930503 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139021901 Contact Us For Availability
88
COVER, LATCH MOTOR WCI 5304506964 Contact Us For Availability
89
MOTOR, LATCH ASSEMBLY, 2 TERMINAL WCI 5304528835 Contact Us For Availability
90
TRIM, OVEN, BLACK, BOTTOM WCI 5304532551 Contact Us For Availability
91
BRACKET, SIDE CAVITY, SHORT, (2) WCI 5304500329 Contact Us For Availability
99
BRACKET, SIDE, BOTTOM, (2) WCI 318256201 Contact Us For Availability
107
COVER, CONVECTION FAN, MIDNIGHT BLACK WCI 5304527949 Contact Us For Availability
108
MOTOR ASSEMBLY, BLOWER WCI 5304529887 Contact Us For Availability
109
BLADE, FAN, CONVECTION WCI 5304525455 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
112
THERMOSTAT, SAFETY, 125C WCI 318578509 Contact Us For Availability
125
MOTOR, CONVECTION FAN, WCI 139008507 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
131
WCI 139027700 WCI 139027700 Contact Us For Availability
142
WCI 5304506953 WCI 5304506953 Contact Us For Availability
161
WCI 5304535278 WCI 5304535278 Contact Us For Availability
185
WCI 318531800 WCI 318531800 Contact Us For Availability
264
WCI 139003501 WCI 139003501 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
WCI 318165800 WCI 318165800 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NI
WCI 387856311 WCI 387856311 Contact Us For Availability
NI
WCI 387872717 WCI 387872717 Contact Us For Availability
NI
WCI 5304525449 WCI 5304525449 Contact Us For Availability
NI
WCI 5304531542 WCI 5304531542 Contact Us For Availability
NI
WCI 5304532392 WCI 5304532392 Contact Us For Availability
NI
WCI 5304532407 WCI 5304532407 Contact Us For Availability
NIA
WASHER, 3/4 OD X 1/4 ID, STEEL WCI 316008401 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316001017 WCI 316001017 Contact Us For Availability
× ![]()
