Model Electrolux FCWM3027ADC WALL OVEN, MICRO COMBO, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

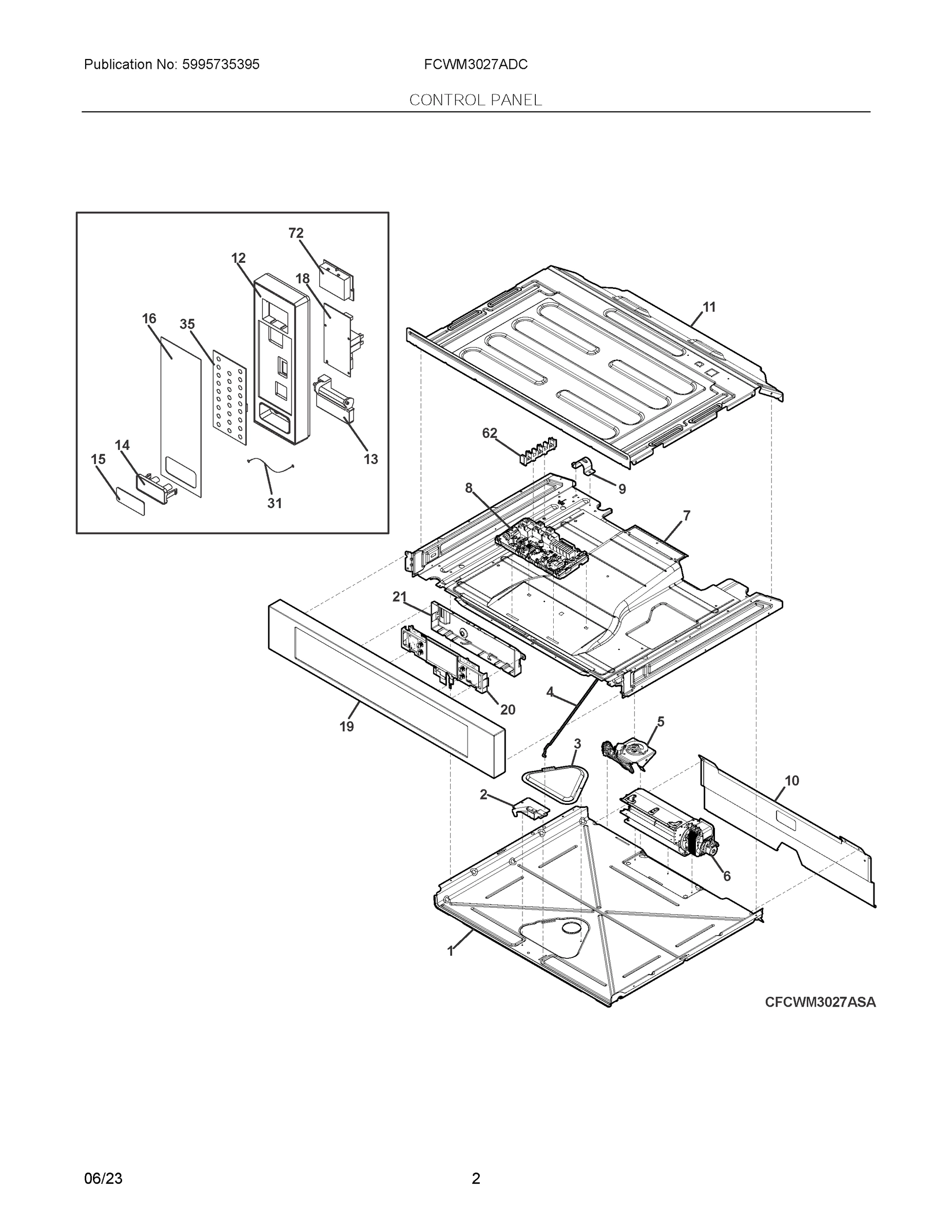

02 - CONTROL PANEL
03 - MICROWAVE OVEN
04 - LOWER OVEN
05 - DOORS
06 - WIRING DIAGRAM
Common parts from model Electrolux FCWM3027ADC WALL OVEN, MICRO COMBO, 30 INCH
1
TRANSFORMER, HIGH VOLTAGE WCI 5304513457 Contact Us For Availability
1
FRAME ASSEMBLY, DOOR WCI 5304520033 Contact Us For Availability
2
LATCH ASSEMBLY, DOOR WCI 5304519330 Contact Us For Availability
3
THERMOSTAT, 120/80H WCI 5304520011 Contact Us For Availability
3
SPRING, LATCH WCI 5304520034 Contact Us For Availability
4
DOOR ASSEMBLY, OUTER, STEEL/GLASS, BLACK STAI WCI 5304526642 Contact Us For Availability
5
BRACKET, DOOR PROTECTION, LOWER WCI 5304530443 Contact Us For Availability
6
FOOT, CABINET SUPPORT, RUBBER WCI 5304505674 Contact Us For Availability
6
SHIELD, WOOL, DOOR WCI 5304526282 Contact Us For Availability
7
DIODE, HIGH VOLTAGE WCI 5304513459 Contact Us For Availability
7
TRAY, HIDDEN BAKE WCI 5304528326 Contact Us For Availability
7
INSULATION, DOOR, TOP WCI 5304526656 Contact Us For Availability
7A
INSULATION, DOOR, BOTTOM WCI 5304526655 Contact Us For Availability
7B
INSULATION, FOIL, DOOR WCI 5304526530 Contact Us For Availability
8
HINGE, DOOR, LOWER WCI 5304519320 Contact Us For Availability
8
GLASS, DOOR, INNER, SHR, PF WCI 5304526387 Contact Us For Availability
9
CAPACITOR, HIGH VOLTAGE WCI 5304520013 Contact Us For Availability
9
LINER, OVEN DOOR, MIDNIGHT BLACK WCI 5304530464 Contact Us For Availability
10
COUPLER, TURNTABLE TRAY WCI 5304520014 Contact Us For Availability
10
SCREW, TRUS T20, 10-44 X 1.870, BLACK, HANDLE WCI 316433305 Contact Us For Availability
11
SCREEN, DOOR WCI 5304520037 Contact Us For Availability
11
SEAL, OVEN DOOR, CHARCOAL WCI 5304526242 Contact Us For Availability
12
GASKET, DOOR WCI 5304520035 Contact Us For Availability
13
LEVER, DOOR OPENING WCI 5304520026 Contact Us For Availability
13
HINGE, DOOR, UPPER WCI 5304519333 Contact Us For Availability
14
PANEL, DOOR WCI 5304520038 Contact Us For Availability
14
BLADE, FAN WCI 5304519350 Contact Us For Availability
15
MOTOR, COOLING FAN WCI 5304509471 Contact Us For Availability
15
FILM, DOOR, INNER WCI 5304520036 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V WCI 5304530343 Contact Us For Availability
16
MOTOR, TURNTABLE WCI 5304518905 Contact Us For Availability
16
MEMBRANE, TOUCH PAD WCI 5304520029 Contact Us For Availability
17
BRACKET, GLASS PACK, VERTICLE WCI 5304526284 Contact Us For Availability
17A
BRACKET, GLASS PACK, HORIZONTAL WCI 5304526285 Contact Us For Availability
18
COVER, WAVEGUIDE WCI 5304505675 Contact Us For Availability
18
PC BOARD, CONTROL WCI 5304520031 Contact Us For Availability
20
LAMP, ASSEMBLY WCI 5304514246 Contact Us For Availability
21
SUPPORT, TURNTABLE, WITH ROLLERS WCI 5304505673 Contact Us For Availability
22
TRAY, TURNTABLE WCI 5304509621 Contact Us For Availability
23
MAGNETRON, HIGH VOLTAGE WCI 5304513456 Contact Us For Availability
24
SENSOR, ASSEMBLY WCI 5304520018 Contact Us For Availability
25
BRACKET, LATCH WCI 5304519341 Contact Us For Availability
26
MICROSWITCH WCI 5304520019 Contact Us For Availability
27
LEVER, LATCH WCI 5304519342 Contact Us For Availability
28
MICROSWITCH, MONITOR WCI 5304520021 Contact Us For Availability
29
HARNESS, WIRING, MAIN WCI 5304520022 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
30
THERMOSTAT, ASSEMBLY, W/BRACKET WCI 5304515183 Contact Us For Availability
31
WRAPPER, OUTER CABINET WCI 5304520023 Contact Us For Availability
32
COVER, WIND GUIDE WCI 5304520024 Contact Us For Availability
34
FUSE WCI 5304509451 Contact Us For Availability
37
PROBE, OVEN SENSOR WCI 5304526310 Contact Us For Availability
39
HANDLE, DOOR, BLACK STAINLESS, 39 WCI 5304529980 Contact Us For Availability
56
SCREW, M4, 2 X 10, SHEET METAL, BLACK WCI 5304526234 Contact Us For Availability
58
INSULATION, OVEN, WRAPPER WCI 5304530429 Contact Us For Availability
58A
INSULATION, OVEN, REAR WCI 5304530428 Contact Us For Availability
59
TUBE, VENT CATALYST WCI 5304526450 Contact Us For Availability
67
ASM-HIDDEN BAKE SYS WCI 5304535245 Contact Us For Availability
70
PANEL, SIDE, EXTERIOR WCI 5304526314 Contact Us For Availability
71
SHIELD, REAR WIRE WCI 5304526329 Contact Us For Availability
72
COVER, CONVECTION MTR WCI 5304526588 Contact Us For Availability
83
BRACKET, BASE PANEL, MOUNT WCI 5304530453 Contact Us For Availability
84
OUTLET ASSEMBLY, ELECTRICAL, W/HARNESS WCI 5304527954 Contact Us For Availability
86
HINGE, DOOR, PINK, 2 SPRING WCI 5304526280 Contact Us For Availability
109
BLADE, FAN, CONVECTION WCI 5304525455 Contact Us For Availability
111
NUT, FAN BLADE WCI 561231207 Contact Us For Availability
125
MOTOR, CONVECTION FAN WCI 5304526375 Contact Us For Availability
400
TRIM ASSEMBLY, MICROWAVE, BLACK STAINLESS, FR WCI 5304530372 Contact Us For Availability
401
SHIELD, TOP COVER WCI 5304532474 Contact Us For Availability
402
SUPPORT, SIDE, RH WCI 5304527950 Contact Us For Availability
403
SUPPORT, SIDE, LH WCI 5304527951 Contact Us For Availability
404
SUPPORT, BACK WCI 5304527952 Contact Us For Availability
406
COVER, CABLE GUARD WCI 5304527953 Contact Us For Availability
411A
BRACKET-FUSE HOLDER, 411 # WCI 5304535246 Contact Us For Availability
412
FUSE HOLDER, ASSEMBLY, 412 #, 20A, W/FUSE WCI 318647300 Contact Us For Availability
NI
SCREW, 4.2 X 10 WCI 387856311 Contact Us For Availability
NI
SCREW, M4, 2 X 10, BLACK, W/WASHER WCI 387872717 Contact Us For Availability
NI
SCREW, SHEET METAL, 4.2 X 10 WCI 387872810 Contact Us For Availability
NI
HARNESS, WIRING, MAIN WCI 5304526515 Contact Us For Availability
NI
SCREW, T20, 8-18 X .79 WCI 5304528293 Contact Us For Availability
NI
WCI 5304530450 WCI 5304530450 Contact Us For Availability
NI
WCI 5304530471 WCI 5304530471 Contact Us For Availability
NI
WCI 5304532099 WCI 5304532099 Contact Us For Availability
NI
WCI 5304533451 WCI 5304533451 Contact Us For Availability
NIA
WCI 5304526532 WCI 5304526532 Contact Us For Availability
NIA
WCI 5304535247 WCI 5304535247 Contact Us For Availability
NIB
NUT, HEX FLANGE, 3/8 10-32 WCI 316205500 Contact Us For Availability
× ![]()
