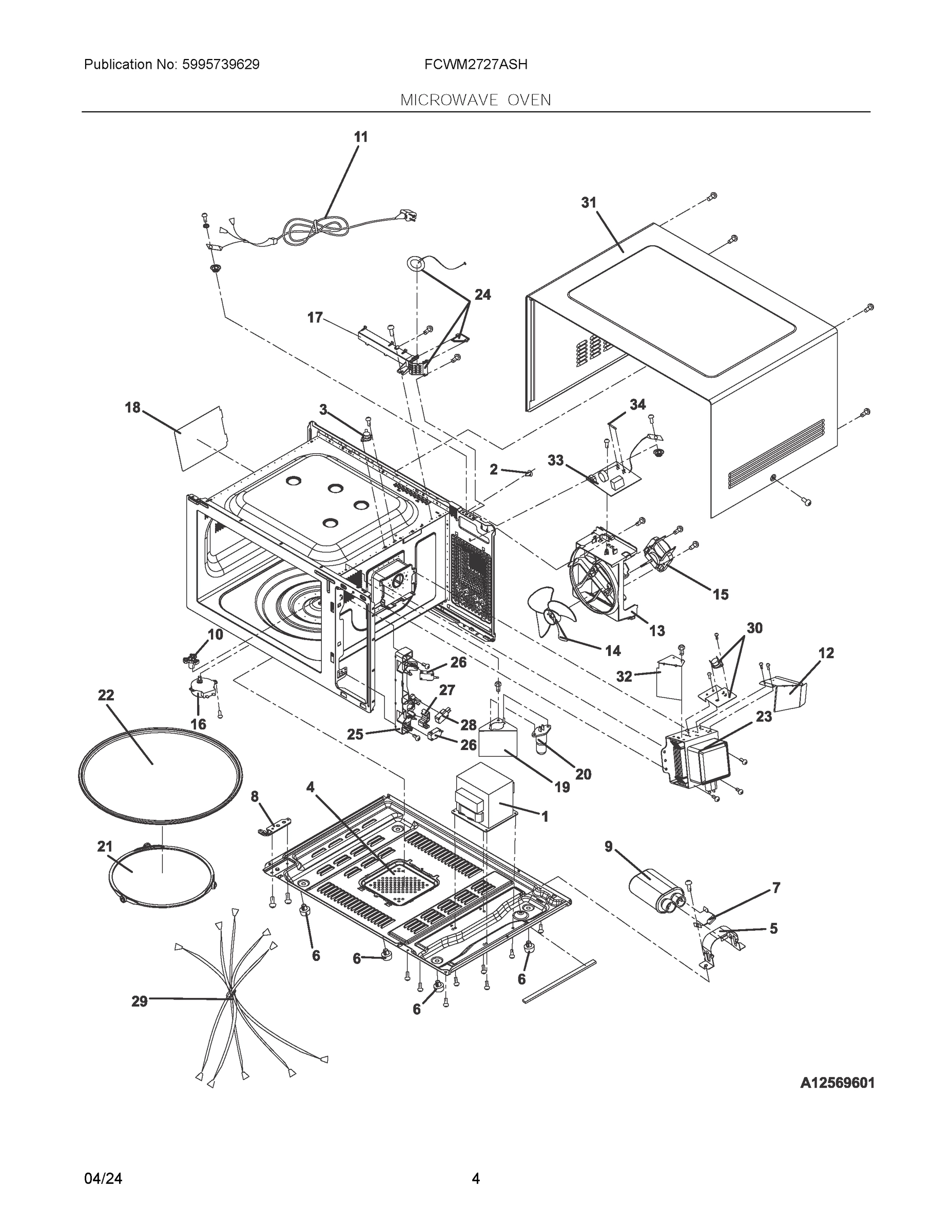

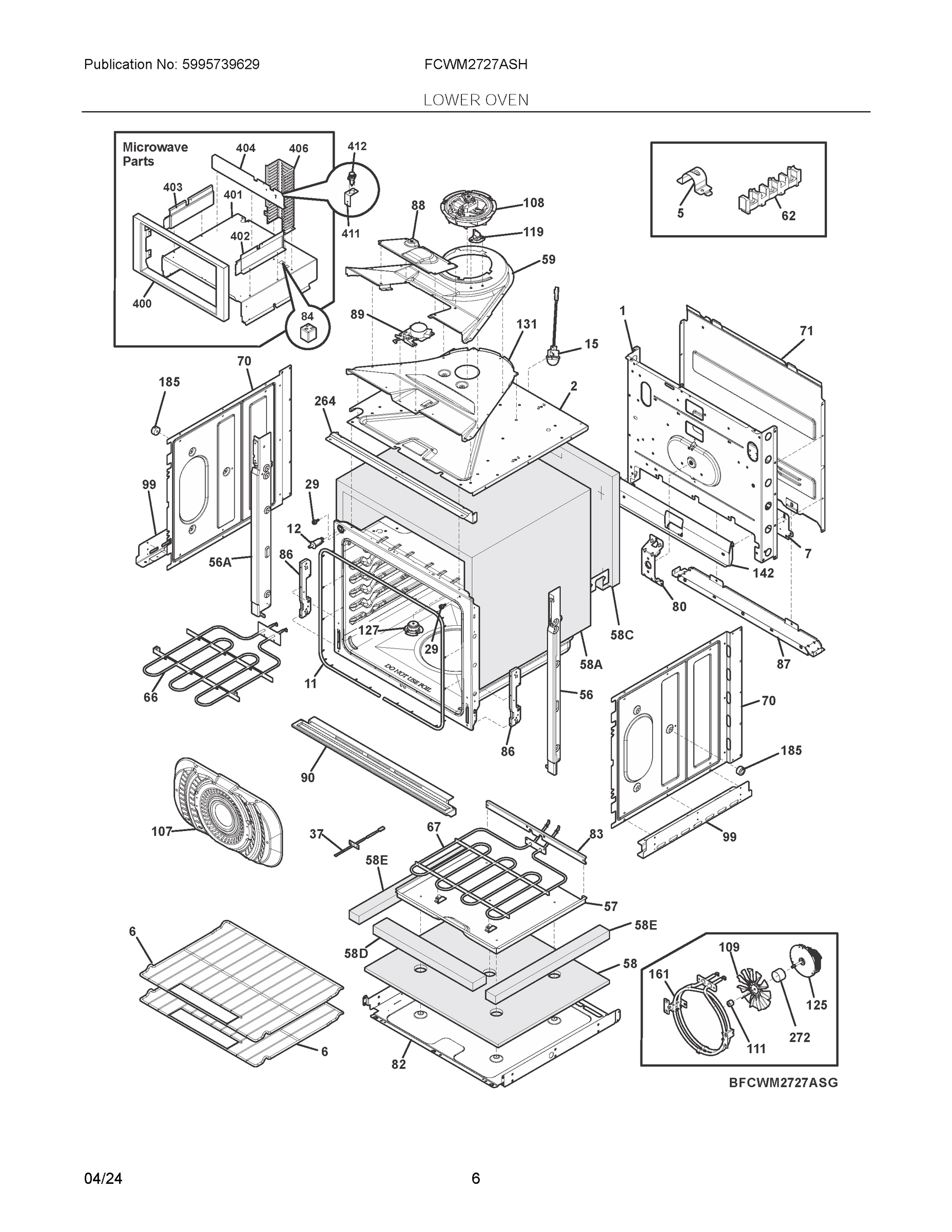

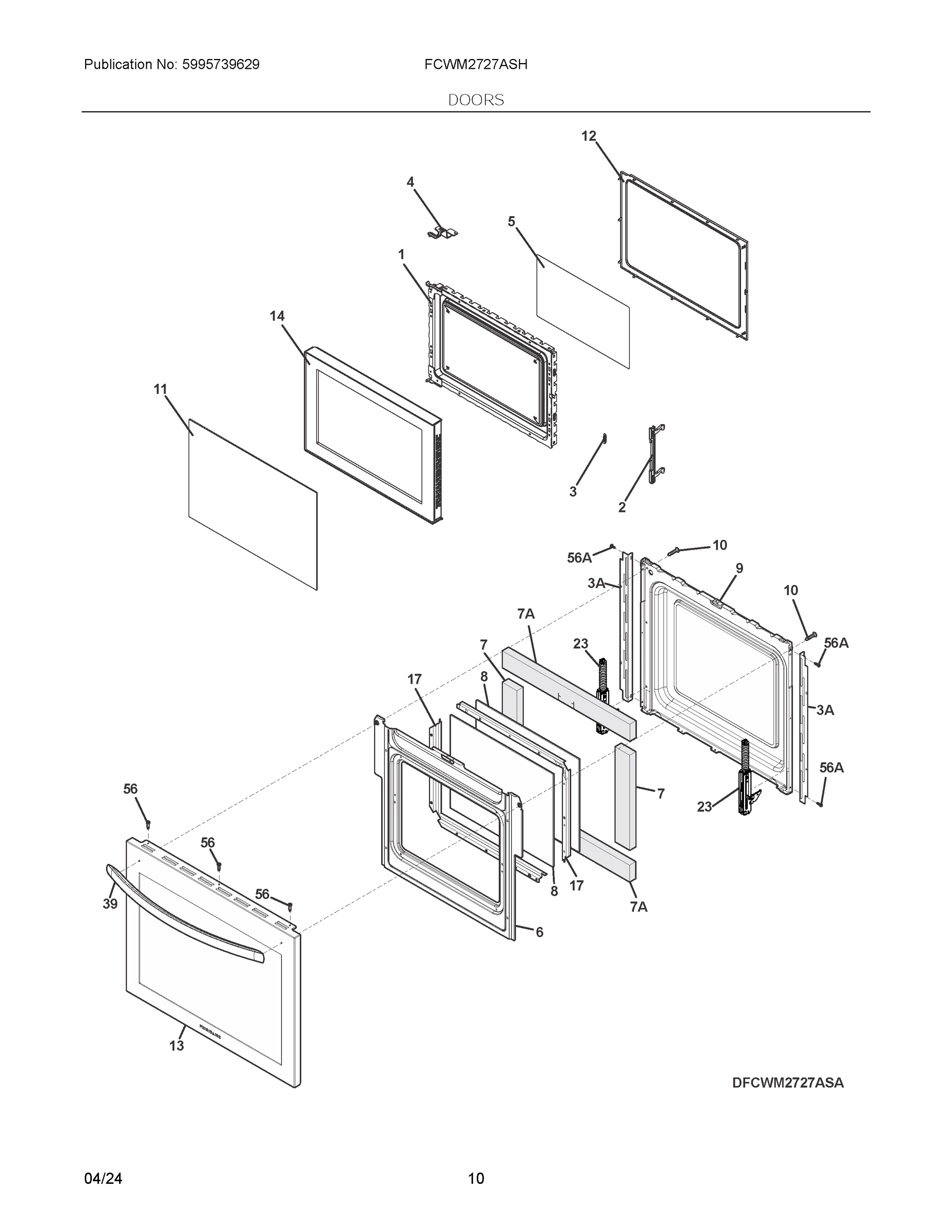

Model Electrolux FCWM2727ASH WALL OVEN, MICRO COMBO, 27 INCH – Common Parts &amp; Diagrams

1

5304520033 Frigidaire Microwave Frame Assembl Backorder WCI 5304520033 $78.91

2

5304519330 Frigidaire Microwave Latch Assembl Backorder WCI 5304519330 $7.69

3

5304520011 Frigidaire Microwave Thermostat Backorder WCI 5304520011 $10.84

3

5304520034 Frigidaire Microwave Spring Backorder WCI 5304520034 $3.18

3A

5304525458 Frigidaire Trim Assembly Backorder WCI 5304525458 $23.85

4

5304519333 Frigidaire Microwave Hinge Backorder WCI 5304519333 $15.42

5

5304520036 Frigidaire Microwave Film Backorder WCI 5304520036 $7.69

6

139011900 Frigidaire Oven Rack Backorder WCI 139011900 $35.76

6

139014203 Frigidaire Oven Baffle Backorder WCI 139014203 $72.59

6

5304505674 Frigidaire Microwave Foot Backorder WCI 5304505674 $7.25

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $10.39

7

DIODE, HIGH VOLTAGE WCI 5304513459 Contact Us For Availability

7A

318372018 Frigidaire Insulation Backorder WCI 318372018 $9.04

8

139085803 Frigidaire Glass Backorder WCI 139085803 $64.09

8

5304519320 Frigidaire Microwave Hinge Backorder WCI 5304519320 $10.13

9

5304520013 Frigidaire Microwave Capacitor Backorder WCI 5304520013 $75.50

9

LINER, OVEN DOOR WCI 139002917 Contact Us For Availability

10

5304414648 Frigidaire Oven Screw In Stock WCI 5304414648 $9.06

10

5304520014 Frigidaire Microwave Coupler Backorder WCI 5304520014 $20.38

11

5304520037 Frigidaire Microwave Glass Backorder WCI 5304520037 $76.69

11

807545501 Frigidaire Oven Seal Backorder WCI 807545501 $47.07

12

5304520035 Frigidaire Microwave Gasket Backorder WCI 5304520035 $19.65

13

5304520026 Frigidaire Microwave Lever Backorder WCI 5304520026 $11.11

13

5304525464 Frigidaire Door Assembly Backorder WCI 5304525464 $126.46

14

5304519350 Frigidaire Microwave Blade Backorder WCI 5304519350 $10.59

14

5304520038 Frigidaire Microwave Panel Backorder WCI 5304520038 $61.75

15

5304509471 Frigidaire Microwave Motor In Stock WCI 5304509471 $90.74

16

5304518905 Frigidaire Microwave Motor Backorder WCI 5304518905 $35.17

17

318264735 Frigidaire Spacer Backorder WCI 318264735 $40.78

18

5304505675 Frigidaire Microwave Stirrer Blade In Stock WCI 5304505675 $7.25

18

5304520031 Frigidaire Microwave Control Board Backorder WCI 5304520031 $141.57

22

5304509621 Frigidaire Microwave Glass Tray In Stock WCI 5304509621 $96.49

23

5304513456 Frigidaire Microwave Magnetron In Stock WCI 5304513456 $166.25

23

808930405 Frigidaire Hinge Assembly Backorder WCI 808930405 $59.29

25

5304519341 Frigidaire Microwave Bracket In Stock WCI 5304519341 $16.18

27

5304519342 Frigidaire Microwave Lever Backorder WCI 5304519342 $4.55

28

5304520021 Frigidaire Microwave Microswitch In Stock WCI 5304520021 $10.45

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

29

5304520022 Frigidaire Microwave Harness Backorder WCI 5304520022 $72.96

30

5304515183 Frigidaire Microwave Thermostat Backorder WCI 5304515183 $18.51

33

5304525109 Frigidaire Microwave Filter Backorder WCI 5304525109 $52.78

34

5304509451 Frigidaire Microwave Fuse In Stock WCI 5304509451 $10.56

39

5304512968 Frigidaire Oven Handle Backorder WCI 5304512968 $74.83

56A

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $54.23

66

5304514924 Frigidaire Element Backorder WCI 5304514924 $72.16

67

5304506946 Frigidaire Oven Element Backorder WCI 5304506946 $70.82

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $42.55

72

5304519365 Frigidaire Microwave Control Panel Backorder WCI 5304519365 $263.16

87

BRACKET, CABLE MTG. WCI 139021901 Contact Us For Availability

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $15.40

89

5304528835 Frigidaire Motor Backorder WCI 5304528835 $45.94

90

5304531543 Frigidaire Oven Trim Backorder WCI 5304531543 $77.55

99

318256201 Frigidaire Oven Bracket Backorder WCI 318256201 $36.22

107

5304527949 Frigidaire Cover Backorder WCI 5304527949 $114.45

108

5304529887 Frigidaire Motor Assembly Backorder WCI 5304529887 $106.85

109

5304525455 Frigidaire Blade In Stock WCI 5304525455 $8.60

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.20

112

318578509 Frigidaire Range/Wall Oven Thermost Backorder WCI 318578509 $35.32

125

139008507 Frigidaire Motor Assembly In Stock WCI 139008507 $60.21

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $27.62

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $46.16

142

SHEILD, AIR DEFLECTOR, BACK WCI 5304506953 Contact Us For Availability

161

BRACKET, BLOWER COVER WCI 5304535278 Contact Us For Availability

185

318531800 Frigidaire Oven Spacer Backorder WCI 318531800 $8.14

264

139003501 Frigidaire Oven Trim Assembly Backorder WCI 139003501 $23.61

272

139021700 Frigidaire Oven Tube Backorder WCI 139021700 $11.32

400

5304527955 Frigidaire Trim Assembly Backorder WCI 5304527955 $178.77

401

SUPPORT, PLATE WCI 5304527959 Contact Us For Availability

402

SUPPORT, SIDE, RH WCI 5304527950 Contact Us For Availability

403

SUPPORT, SIDE, LH WCI 5304527951 Contact Us For Availability

404

SUPPORT, BACK WCI 5304527952 Contact Us For Availability

406

COVER, CABLE GUARD WCI 5304527953 Contact Us For Availability

411

BRACKET-FUSE HOLDER, 411 # WCI 5304535246 Contact Us For Availability

412

318647300 Frigidaire Microwave Fuse and Holde In Stock WCI 318647300 $130.20

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.06

387856311 Frigidaire Screw Backorder WCI 387856311 $1.83

5304470882 Frigidaire Oven Screw Backorder WCI 5304470882 $8.60

5304525449 Frigidaire Harness Backorder WCI 5304525449 $32.21

5304526533 Frigidaire Screw Backorder WCI 5304526533 $1.37

5304535368 Frigidaire Harness Backorder WCI 5304535368 $86.19

SCREW, T20, 8-18 X .79 WCI 5304528293 Contact Us For Availability

INSTALL KIT, WOOD BRACING, W/SCREWS WCI 5304531542 Contact Us For Availability

HARNESS, WIRING, LOW VOLTAGE WCI 5304525448 Contact Us For Availability

HARNESS, WIRING, MAIN WCI 5304527960 Contact Us For Availability

316001017 Frigidaire Screw Backorder WCI 316001017 $1.83

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $9.06

5304509460 Frigidaire Microwave Door Switch In Stock WCI 5304509460 $33.36

SCREW, M4, 2 X 10, BLACK, W/WASHER WCI 387872717 Contact Us For Availability

HARNESS-POWER SUPPLY MC, 84 # WCI 5304535247 Contact Us For Availability

NIB

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25
