Model Electrolux FCWM2727ASG WALL OVEN, MICRO COMBO, 27 INCH – Common Parts & Diagrams
01 - COVER SHEET

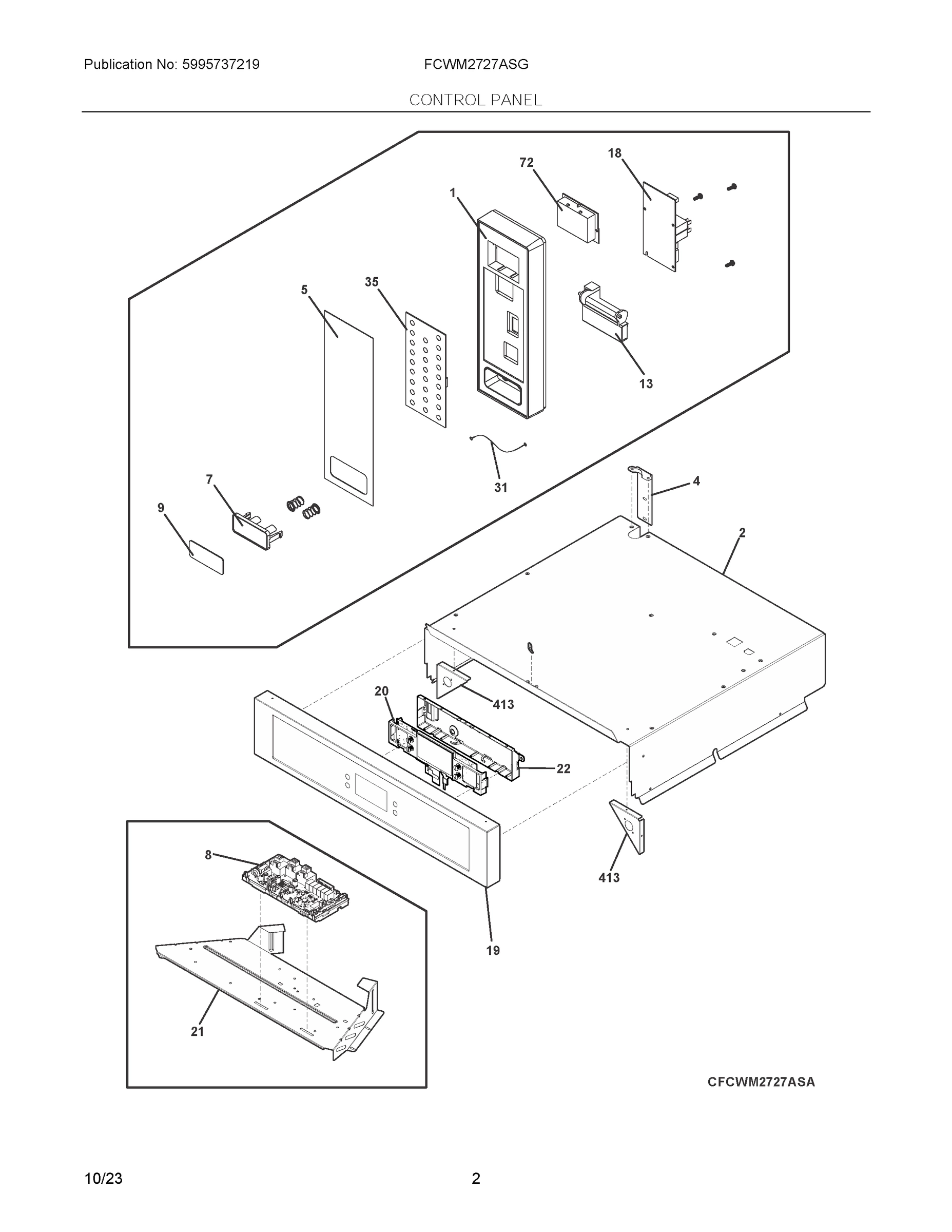

02 - CONTROL PANEL
03 - MICROWAVE OVEN
04 - LOWER OVEN
05 - DOORS
Common parts from model Electrolux FCWM2727ASG WALL OVEN, MICRO COMBO, 27 INCH
1
TRANSFORMER, HIGH VOLTAGE WCI 5304513457 Contact Us For Availability
1
FRAME ASSEMBLY, DOOR WCI 5304520033 Contact Us For Availability
2
LATCH ASSEMBLY, DOOR WCI 5304519330 Contact Us For Availability
3
THERMOSTAT, 120/80H WCI 5304520011 Contact Us For Availability
3
SPRING, LATCH WCI 5304520034 Contact Us For Availability
3A
TRIM, DOOR, BLACK, SIDE WCI 5304525458 Contact Us For Availability
4
HINGE, DOOR, UPPER WCI 5304519333 Contact Us For Availability
5
FILM, DOOR, INNER WCI 5304520036 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011900 Contact Us For Availability
6
FOOT, CABINET SUPPORT, RUBBER WCI 5304505674 Contact Us For Availability
6
BAFFLE, DOOR WCI 139014203 Contact Us For Availability
7
DIODE, HIGH VOLTAGE WCI 5304513459 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSULATION, 20.5 X 2.375, 1" THICK, (2) WCI 318372018 Contact Us For Availability
8
HINGE, DOOR, LOWER WCI 5304519320 Contact Us For Availability
8
GLASS, DOOR, INNER, (2), EKO WCI 139085803 Contact Us For Availability
9
CAPACITOR, HIGH VOLTAGE WCI 5304520013 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139002917 Contact Us For Availability
10
SCREW, HANDLE MTG. WCI 5304414648 Contact Us For Availability
10
COUPLER, TURNTABLE TRAY WCI 5304520014 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545501 Contact Us For Availability
11
SCREEN, DOOR WCI 5304520037 Contact Us For Availability
12
GASKET, DOOR WCI 5304520035 Contact Us For Availability
13
LEVER, DOOR OPENING WCI 5304520026 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, GLASS/STEEL, STAINLESS, WCI 5304525464 Contact Us For Availability
14
PANEL, DOOR WCI 5304520038 Contact Us For Availability
14
BLADE, FAN WCI 5304519350 Contact Us For Availability
15
MOTOR, COOLING FAN WCI 5304509471 Contact Us For Availability
16
MOTOR, TURNTABLE WCI 5304518905 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264735 Contact Us For Availability
18
COVER, WAVEGUIDE WCI 5304505675 Contact Us For Availability
18
PC BOARD, CONTROL WCI 5304520031 Contact Us For Availability
22
TRAY, TURNTABLE WCI 5304509621 Contact Us For Availability
23
MAGNETRON, HIGH VOLTAGE WCI 5304513456 Contact Us For Availability
23
HINGE, DOOR, BLUE, SOFT CLOSE WCI 808930405 Contact Us For Availability
25
BRACKET, LATCH WCI 5304519341 Contact Us For Availability
27
LEVER, LATCH WCI 5304519342 Contact Us For Availability
28
MICROSWITCH, MONITOR WCI 5304520021 Contact Us For Availability
29
HARNESS, WIRING, MAIN WCI 5304520022 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
30
THERMOSTAT, ASSEMBLY, W/BRACKET WCI 5304515183 Contact Us For Availability
34
FUSE WCI 5304509451 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 5304512968 Contact Us For Availability
56
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
56A
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
66
ELEMENT, BROIL, 6 PASS, 4000W WCI 5304514924 Contact Us For Availability
67
ELEMENT, HIDDEN BAKE, 2500W WCI 5304506946 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139021901 Contact Us For Availability
88
COVER, LATCH MOTOR WCI 5304506964 Contact Us For Availability
89
MOTOR, LATCH ASSEMBLY, 2 TERMINAL WCI 5304528835 Contact Us For Availability
99
BRACKET, SIDE, BOTTOM, (2) WCI 318256201 Contact Us For Availability
107
COVER, CONVECTION FAN, MIDNIGHT BLACK WCI 5304527949 Contact Us For Availability
108
MOTOR ASSEMBLY, BLOWER WCI 5304529887 Contact Us For Availability
109
BLADE, FAN, CONVECTION WCI 5304525455 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
112
THERMOSTAT, SAFETY, 125C WCI 318578509 Contact Us For Availability
125
MOTOR, CONVE WCI 139008507 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
131
WCI 139027700 WCI 139027700 Contact Us For Availability
142
WCI 5304506953 WCI 5304506953 Contact Us For Availability
161
WCI 5304535278 WCI 5304535278 Contact Us For Availability
185
WCI 318531800 WCI 318531800 Contact Us For Availability
264
WCI 139003501 WCI 139003501 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
400
WCI 5304527955 WCI 5304527955 Contact Us For Availability
401
WCI 5304527959 WCI 5304527959 Contact Us For Availability
402
WCI 5304527950 WCI 5304527950 Contact Us For Availability
403
WCI 5304527951 WCI 5304527951 Contact Us For Availability
404
WCI 5304527952 WCI 5304527952 Contact Us For Availability
406
WCI 5304527953 WCI 5304527953 Contact Us For Availability
411
WCI 5304535246 WCI 5304535246 Contact Us For Availability
412
WCI 318647300 WCI 318647300 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NI
WCI 387856311 WCI 387856311 Contact Us For Availability
NI
WCI 5304525448 WCI 5304525448 Contact Us For Availability
NI
WCI 5304525449 WCI 5304525449 Contact Us For Availability
NI
WCI 5304526533 WCI 5304526533 Contact Us For Availability
NI
WCI 5304527960 WCI 5304527960 Contact Us For Availability
NI
WCI 5304528293 WCI 5304528293 Contact Us For Availability
NI
WCI 5304531542 WCI 5304531542 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316001017 WCI 316001017 Contact Us For Availability
NIA
WCI 387872717 WCI 387872717 Contact Us For Availability
NIA
WCI 5304535247 WCI 5304535247 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
