Model Electrolux FCWD2727ABF WALL OVEN, ELECTRIC, DOUBLE – Common Parts & Diagrams
01 - COVER SHEET

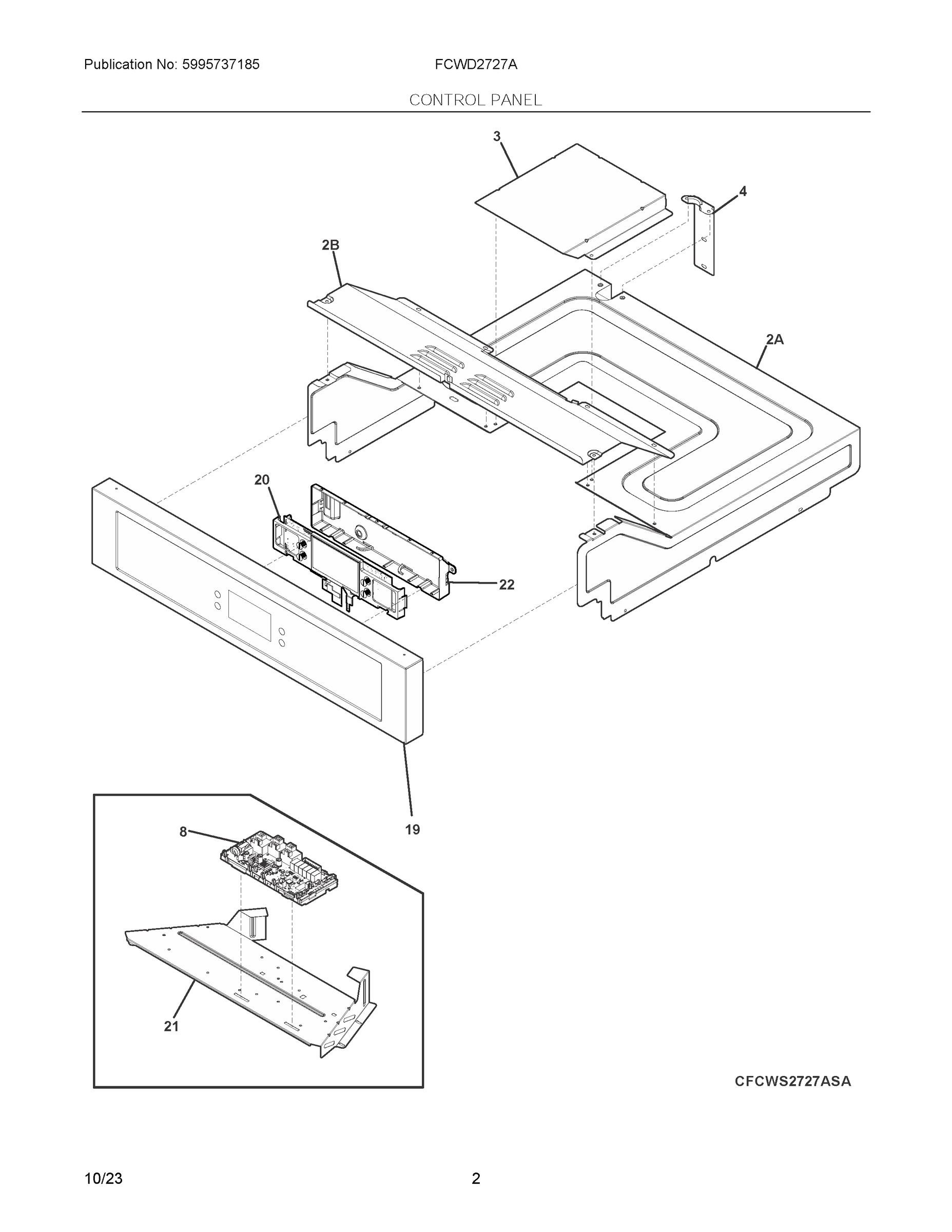

02 - CONTROL PANEL
03 - UPPER OVEN
04 - LOWER OVEN
05 - DOORS
Common parts from model Electrolux FCWD2727ABF WALL OVEN, ELECTRIC, DOUBLE
1
PANEL, MAIN BACK WCI 5304506959 Contact Us For Availability
2
SHIELD, INSULATION, TOP WCI 139027805 Contact Us For Availability
2A
SHIELD, FAN, CROSS FLOW WCI 139015900 Contact Us For Availability
2B
HOUSING, FAN, AIR DIVERTER WCI 139038901 Contact Us For Availability
3A
TRIM, DOOR, BLACK, SIDE WCI 5304525458 Contact Us For Availability
5
BRACKET, CONDUIT MTG. WCI 5304530364 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011900 Contact Us For Availability
6
BAFFLE, DOOR WCI 139014203 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7
PANEL, SERVICE, MAIN BACK WCI 5304506960 Contact Us For Availability
7A
INSULATION, 20.5 X 2.375, 1" THICK, (2) WCI 318372018 Contact Us For Availability
8
GLASS, DOOR, INNER, (2), EKO WCI 139085803 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139002917 Contact Us For Availability
10
SCREW, HANDLE MTG. WCI 5304414648 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545501 Contact Us For Availability
12A
SHIELD, DOOR SWITCH WCI 807641201 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, GLASS/STEEL, BLACK WCI 5304525468 Contact Us For Availability
13A
DOOR ASSEMBLY, OUTER, GLASS/STEEL, BLACK WCI 5304525469 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V WCI 5304530343 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264735 Contact Us For Availability
23
HINGE, DOOR, BLUE, SOFT CLOSE WCI 808930405 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
37
PROBE, TEMP WCI 5304525427 Contact Us For Availability
39
HANDLE, DOOR, BLACK WCI 5304531834 Contact Us For Availability
56
TRIM, SIDE, BLACK, RH WCI 5304525443 Contact Us For Availability
56A
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
56A
TRIM, SIDE, BLACK, LH WCI 5304525444 Contact Us For Availability
57
BOX, BAKE ELEMENT WCI 5304506949 Contact Us For Availability
58
INSULATION, BAKE ELEMENT, LOWER WCI 5304506952 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER, 27", TOP & SIDES WCI 139001701 Contact Us For Availability
58C
INSULATION, OVEN, BACK WCI 5304506954 Contact Us For Availability
58D
INSULATION, BAKE ELEMENT, FRONT WCI 5304506965 Contact Us For Availability
58E
INSULATION, BAKE ELEMENT, SIDE WCI 5304506966 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
59
DUCT, COOLING, LOWER OVEN WCI 139015700 Contact Us For Availability
62
TERMINAL BLOCK WCI 5304535277 Contact Us For Availability
66
ELEMENT, BROIL, 6 PASS, 4000W WCI 5304514924 Contact Us For Availability
67
ELEMENT, HIDDEN BAKE, 2500W WCI 5304506946 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
71
SHIELD, REAR WIRE, MAIN BACK WCI 139022001 Contact Us For Availability
80
BRACKET, SUPPORT, CHASSIS/FAN WCI 139021101 Contact Us For Availability
82
SHIELD, INSULATION, LOWER WCI 5304506947 Contact Us For Availability
83
SHIELD, BAKE ELEMENT, REAR WCI 5304506951 Contact Us For Availability
86
RECEPTACLE, HINGE, SOFT CLOSE WCI 808930503 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139021901 Contact Us For Availability
88
COVER, LATCH MOTOR, LOWER OVEN WCI 5304506963 Contact Us For Availability
89
MOTOR, LATCH ASSEMBLY, 2 TERMINAL WCI 5304528835 Contact Us For Availability
90
TRIM, OVEN, BLACK, BOTTOM WCI 5304532551 Contact Us For Availability
99
BRACKET, SIDE, BOTTOM, (2) WCI 318256201 Contact Us For Availability
107
COVER, CONVECTION FAN, MIDNIGHT BLACK WCI 5304527949 Contact Us For Availability
108
BLOWER ASSEMBLY, COOLING, CROSS FLOW, W/BAFFL WCI 139038303 Contact Us For Availability
109
BLADE, WCI 5304525455 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
119
THERMOSTAT, SAFETY, 125C WCI 318578509 Contact Us For Availability
125
WCI 139008507 WCI 139008507 Contact Us For Availability
127
TUBE ASSEMBLY, VENT, W/CATALYST WCI 139042600 Contact Us For Availability
131
DUCT, COOLING FAN, LOWER WCI 139027700 Contact Us For Availability
142
WCI 5304506953 WCI 5304506953 Contact Us For Availability
161
WCI 5304535278 WCI 5304535278 Contact Us For Availability
185
WCI 318531800 WCI 318531800 Contact Us For Availability
264
TRIM, VENT, BLACK, WCI 139003501 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 5304528293 WCI 5304528293 Contact Us For Availability
NI
WCI 5304532405 WCI 5304532405 Contact Us For Availability
NI
WCI 387856311 WCI 387856311 Contact Us For Availability
NI
WCI 5304526533 WCI 5304526533 Contact Us For Availability
NI
WCI 5304531542 WCI 5304531542 Contact Us For Availability
NI
WCI 5304532392 WCI 5304532392 Contact Us For Availability
NI
WCI 5304532408 WCI 5304532408 Contact Us For Availability
NI
WCI 5304532410 WCI 5304532410 Contact Us For Availability
NI
WCI 5304532411 WCI 5304532411 Contact Us For Availability
NIA
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIA
WCI 387872717 WCI 387872717 Contact Us For Availability
NIA
WCI 139022101 WCI 139022101 Contact Us For Availability
NIA
WCI 316001017 WCI 316001017 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
