Model GE FCM25SUDWW Freezer – Common Parts & Diagrams
DOOR
CABINET

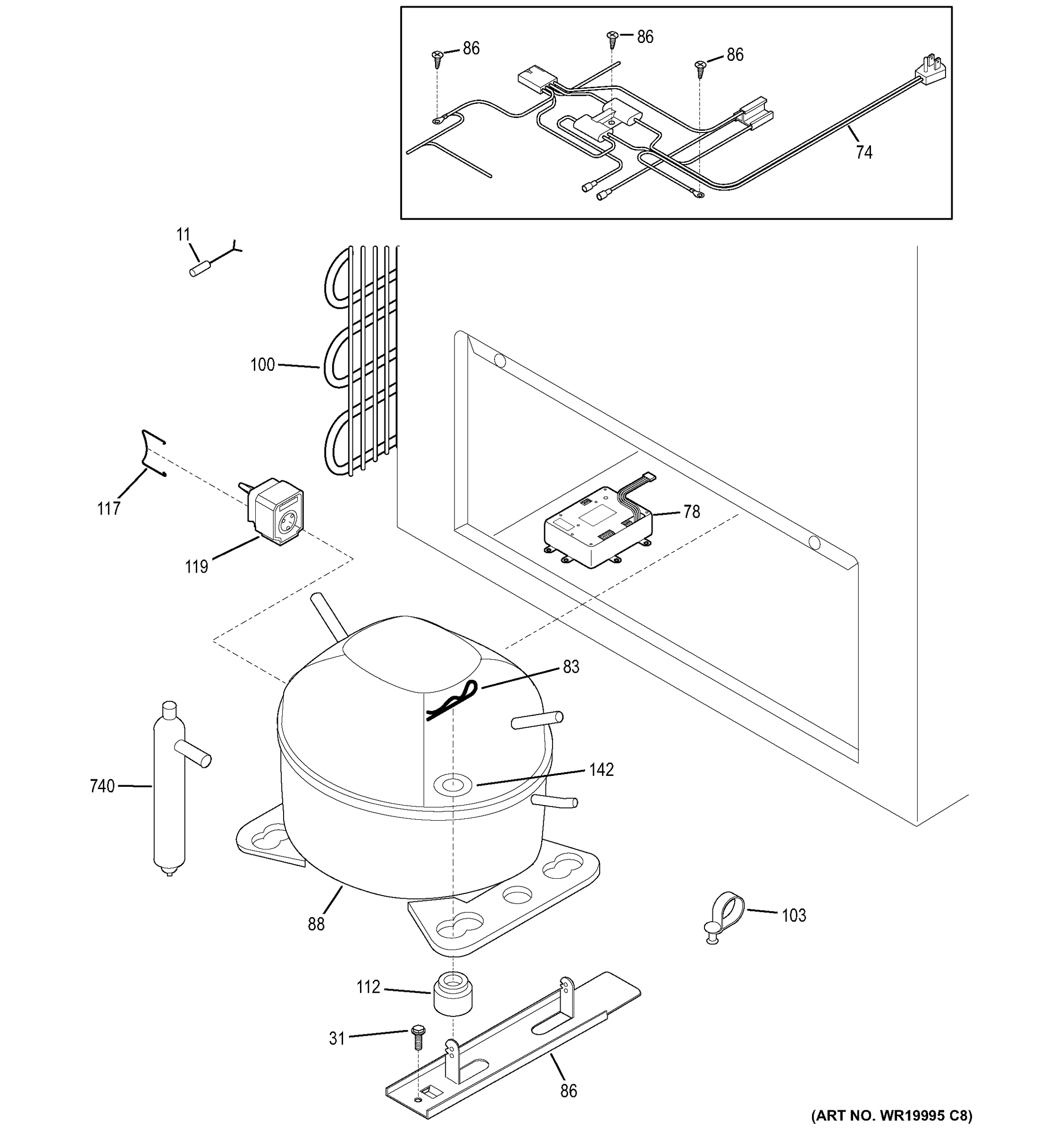

MACHINE COMPARTMENT
Common parts from model GE FCM25SUDWW Freezer
7
BREAKER STRIP ENDS GEN WR40X10055 Contact Us For Availability
8
BREAKER,LOCK SIDE GEN WR40X10050 Contact Us For Availability
9
BREAKER, HINGE SIDE WH GEN WR40X10057 Contact Us For Availability
10
BREAKER STRIP CORNERS GEN WR40X10004 Contact Us For Availability
19
BASKET, BLUE GEN WR21X10132 Contact Us For Availability
20
BASKET,BLUE/GRAY ,LOWER GEN WR21X10133 Contact Us For Availability
32
PANEL OUTER DOOR WH GEN WR78X12039 Contact Us For Availability
37
NAMEPLATE GEN WR04X10159 Contact Us For Availability
42
KEY GEN WR05X10005 Contact Us For Availability
47
GASKET GEN WR24X10001 Contact Us For Availability
51
PLUG DRAIN GEN WR02X10073 Contact Us For Availability
54
LIGHT BULB/LAMP GEN PURCHLOCAL2 Contact Us For Availability
57
OVERLAY GEN WR04X10162 Contact Us For Availability
73
DIVIDER/DRAIN PAN GEN WR21X10134 Contact Us For Availability
74
HARNESS-MAIN GEN WR23X10542 Contact Us For Availability
76
SUPPORT,DIVIDER GEN WR02X12325 Contact Us For Availability
78
ASM-HIGH VOLTAGE GEN WR09X10160 Contact Us For Availability
79
CONTROL TEMP GEN WR09X10159 Contact Us For Availability
83
CLIP-COMPRESSOR MTG GEN WR01X10761 Contact Us For Availability
86
SCREW,RWHD ,8-32A X 0.50 GEN WR02X12764 Contact Us For Availability
86
SUPPORT, COMPRESSOR GEN WR17X12503 Contact Us For Availability
88
COMPRESSOR KIT, W/ELECT GEN WR87X10219 Contact Us For Availability
103
CLAMP GEN WR01X5218 Contact Us For Availability
112
GROMMET GEN WR01X5134 Contact Us For Availability
119
CONTROLLER GEN WR07X10148 Contact Us For Availability
142
WASHER, FLAT GEN WR01X10836 Contact Us For Availability
151
TRACK-BASKET GEN WR17X12170 Contact Us For Availability
× ![]()
