Model GE FCM22DJBWW – Common Parts & Diagrams

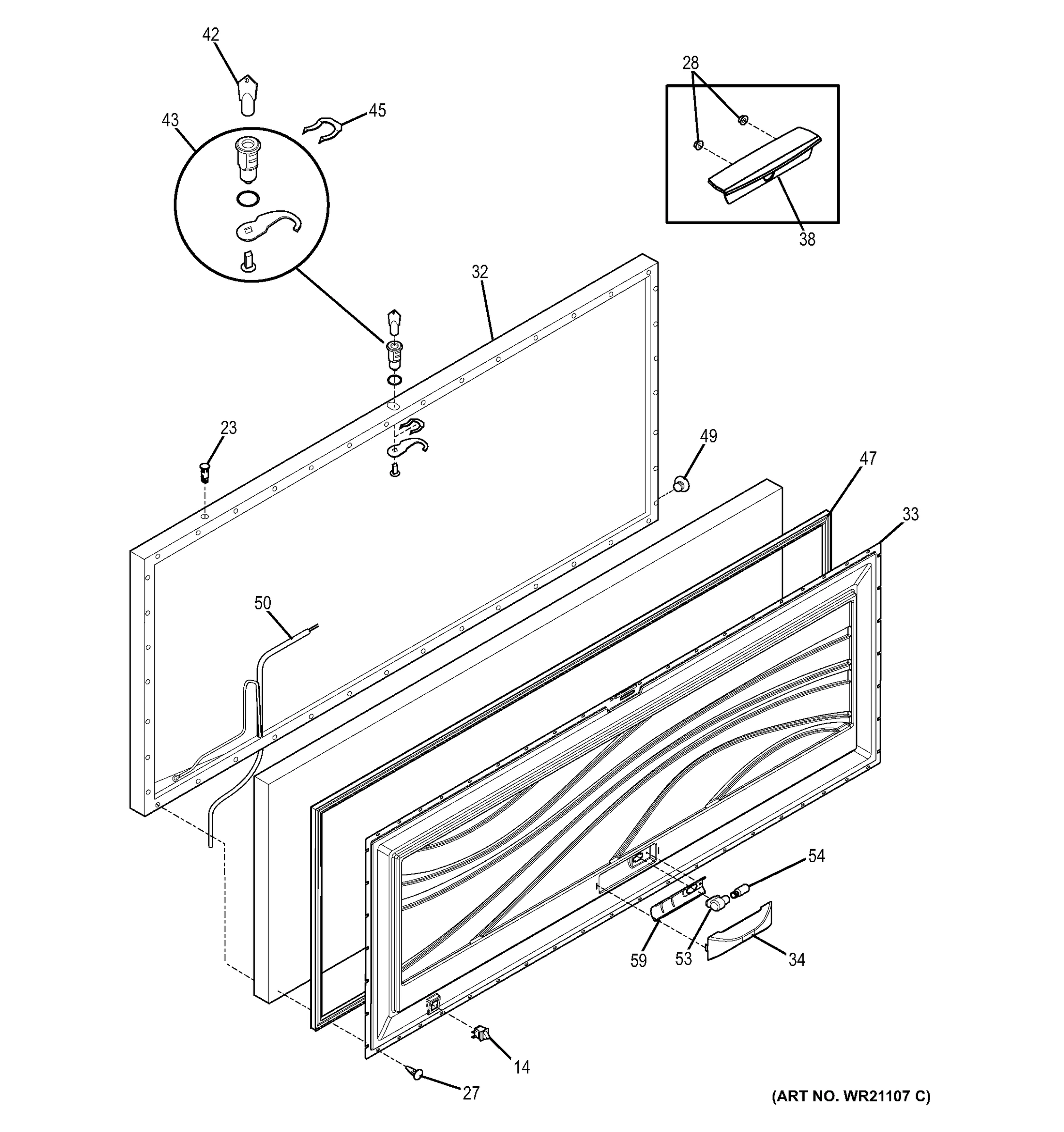

DOOR

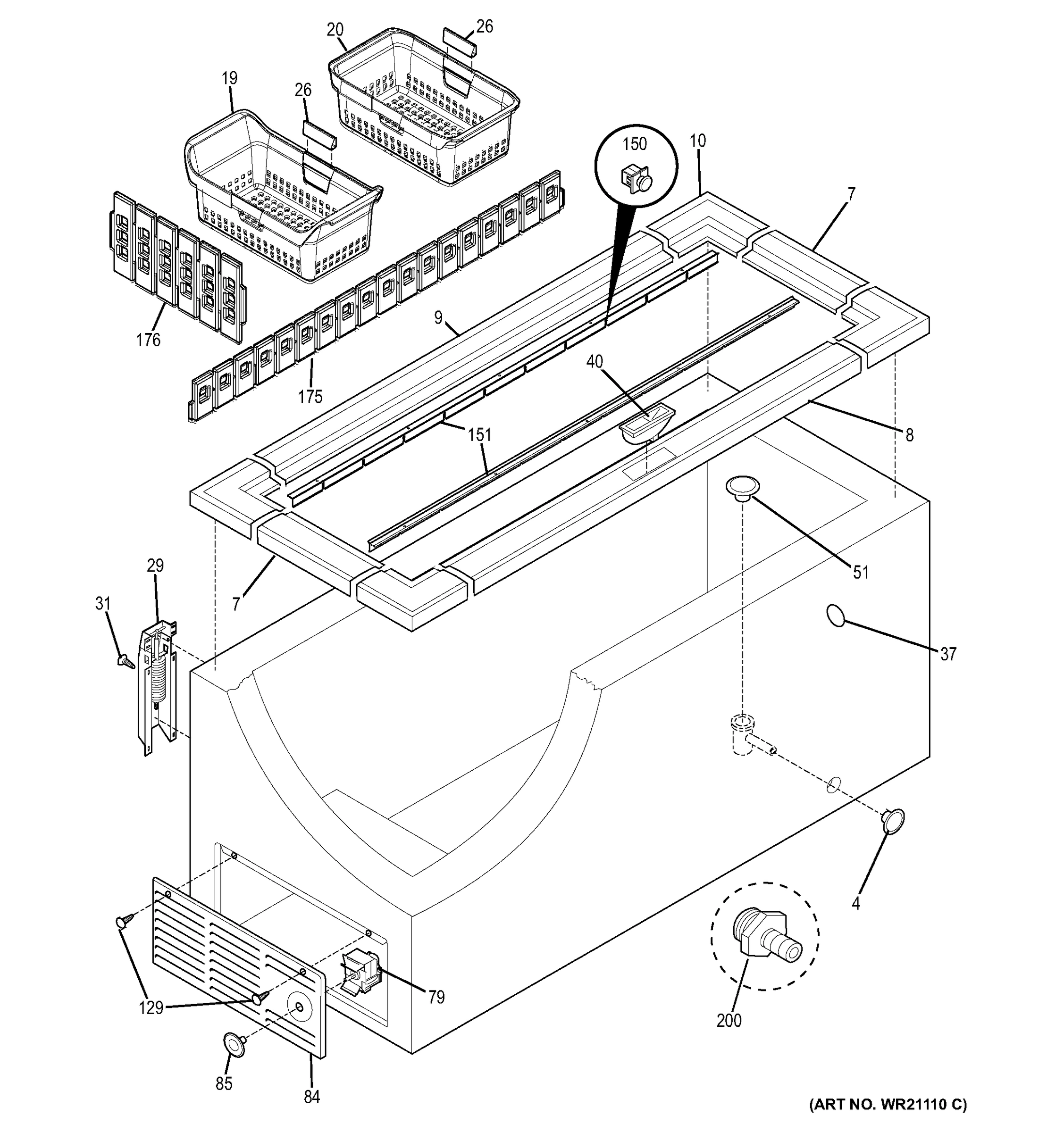

CABINET
MACHINE COMPARTMENT
Common parts from model GE FCM22DJBWW
9
BREAKER GEN WR40X25353 Contact Us For Availability
10
BREAKER STRIP CORNERS, W GEN WR40X25335 Contact Us For Availability
14
SWITCH LIGHT GEN WR23X10303 Contact Us For Availability
26
CLIP, HANDLE GREY GEN WR01X25355 Contact Us For Availability
29
HINGE, ASSY" GEN WR13X10937 Contact Us For Availability
37
NAMEPLATE GEN WR04X23538 Contact Us For Availability
40
CATCH-LOCK WH GEN WR02X12337 Contact Us For Availability
42
KEY GEN WR05X10005 Contact Us For Availability
45
CLIP SPRING GEN WR01X10679 Contact Us For Availability
51
PLUG DRAIN GEN WR02X10073 Contact Us For Availability
53
LIGHT SOCKET GEN WR23X10690 Contact Us For Availability
54
LIGHT, LED GEN WR01X25347 Contact Us For Availability
59
SHIELD, HEAT GEN WR02X25350 Contact Us For Availability
74
HARNESS, MAIN GEN WR23X25345 Contact Us For Availability
79
CONTROL-TEMPERATURE GEN WR09X25341 Contact Us For Availability
83
CLIP-COMPRESSOR MTG GEN WR01X25338 Contact Us For Availability
86
SCREW,RWHD ,8-32A X 0.50 GEN WR02X12764 Contact Us For Availability
87
SUPPORT, COMPRESSOR GEN WR17X12503 Contact Us For Availability
103
CLIP HARNESS GEN WR1X2173 Contact Us For Availability
112
GROMMET,COMPRESSOR GEN WR01X10378 Contact Us For Availability
112
GROMMET FOR COMPRESOR MO GEN WR1X5134 Contact Us For Availability
112
GROMMET GEN WR2X7531 Contact Us For Availability
117
CLIP,CONTROLLER GEN WR02X12032 Contact Us For Availability
119
CONTROLLER,COMPRESSOR GEN WR07X23521 Contact Us For Availability
129
SCREW TOE GR GEN WR1X1978 Contact Us For Availability
142
WASHER, FLAT GEN WR01X10836 Contact Us For Availability
150
SUPPORT,TRACK-BASKET GEN WR02X12326 Contact Us For Availability
175
DIVIDER,CHEST GEN WR21X25358 Contact Us For Availability
176
DIVIDER,CHEST GEN WR21X25359 Contact Us For Availability
200
HOSE ADAPTER GEN WR1X1538 Contact Us For Availability
200
HOSE ADAPTER GEN WR1X1965 Contact Us For Availability
× ![]()
