Model GE FCM22DHBWW – Common Parts & Diagrams

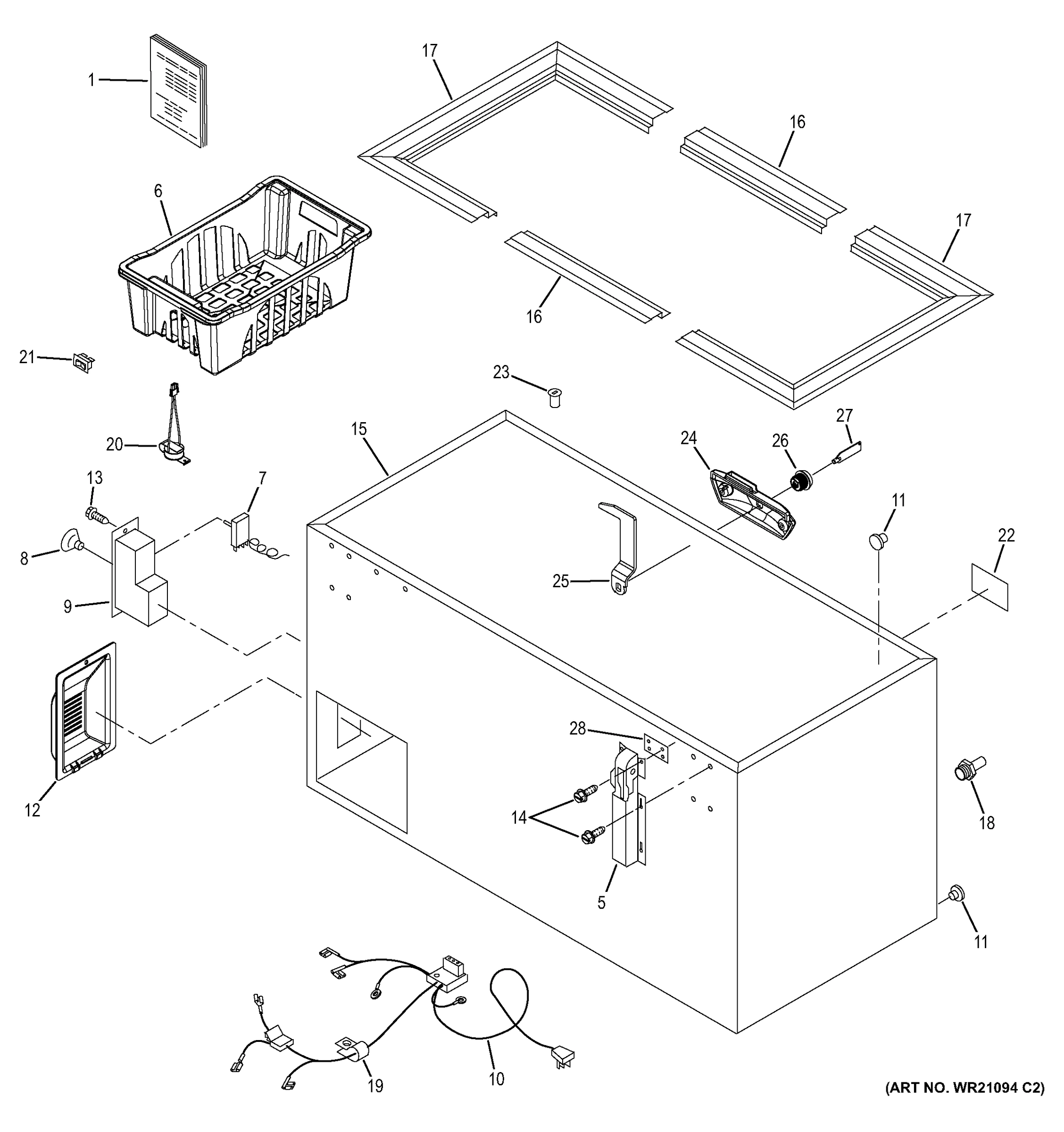

5
HINGE ASSEMBLY
HINGE ASSEMBLY GEN WR13X23697 Contact Us For Availability
View on Model
6
BASKET
BASKET GEN WR21X23657 Contact Us For Availability
View on Model
7
THERMOSTAT
THERMOSTAT GEN WR50X23692 Contact Us For Availability
View on Model
8
KNOB, THERMOSTAT
KNOB, THERMOSTAT GEN WR85X23677 Contact Us For Availability
View on Model
9
CONTROL BOX
CONTROL BOX GEN WR09X23665 Contact Us For Availability
View on Model
10
HARNESS, WIRING
HARNESS, WIRING GEN WR23X23673 Contact Us For Availability
View on Model
11
DRAIN PLUG
DRAIN PLUG GEN WR02X23666 Contact Us For Availability
View on Model
12
ACCESS PANEL
ACCESS PANEL GEN WR17X23653 Contact Us For Availability
View on Model
13
SCREW
SCREW GEN WR01X23690 Contact Us For Availability
View on Model
14
SCREW
SCREW GEN WR01X23689 Contact Us For Availability
View on Model
16
REAR BREAKERSTRIP
REAR BREAKERSTRIP GEN WR40X23699 Contact Us For Availability
View on Model
17
END BREAKERSTRIP
END BREAKERSTRIP GEN WR40X23668 Contact Us For Availability
View on Model
18
ADAPTOR, DRAIN
ADAPTOR, DRAIN GEN WR01X23654 Contact Us For Availability
View on Model
20
LOCK HOUSING
LOCK HOUSING GEN WR02X23684 Contact Us For Availability
View on Model
21
LOCK LATCH
LOCK LATCH GEN WR05X23685 Contact Us For Availability
View on Model
22
LOCK BARREL
LOCK BARREL GEN WR05X23683 Contact Us For Availability
View on Model
23
KEY
KEY GEN WR05X23676 Contact Us For Availability
View on Model
25
INDICATOR LIGHT
INDICATOR LIGHT GEN WR23X23675 Contact Us For Availability
View on Model
26
NAME BADGE
NAME BADGE GEN WR04X23686 Contact Us For Availability
View on Model
27
BUZZER
BUZZER GEN WR23X23658 Contact Us For Availability
View on Model
28
ALARM SWITCH
ALARM SWITCH GEN WR23X23655 Contact Us For Availability
View on Model
31
SCREW HOLE COVERS
SCREW HOLE COVERS GEN WR02X23691 Contact Us For Availability
View on Model

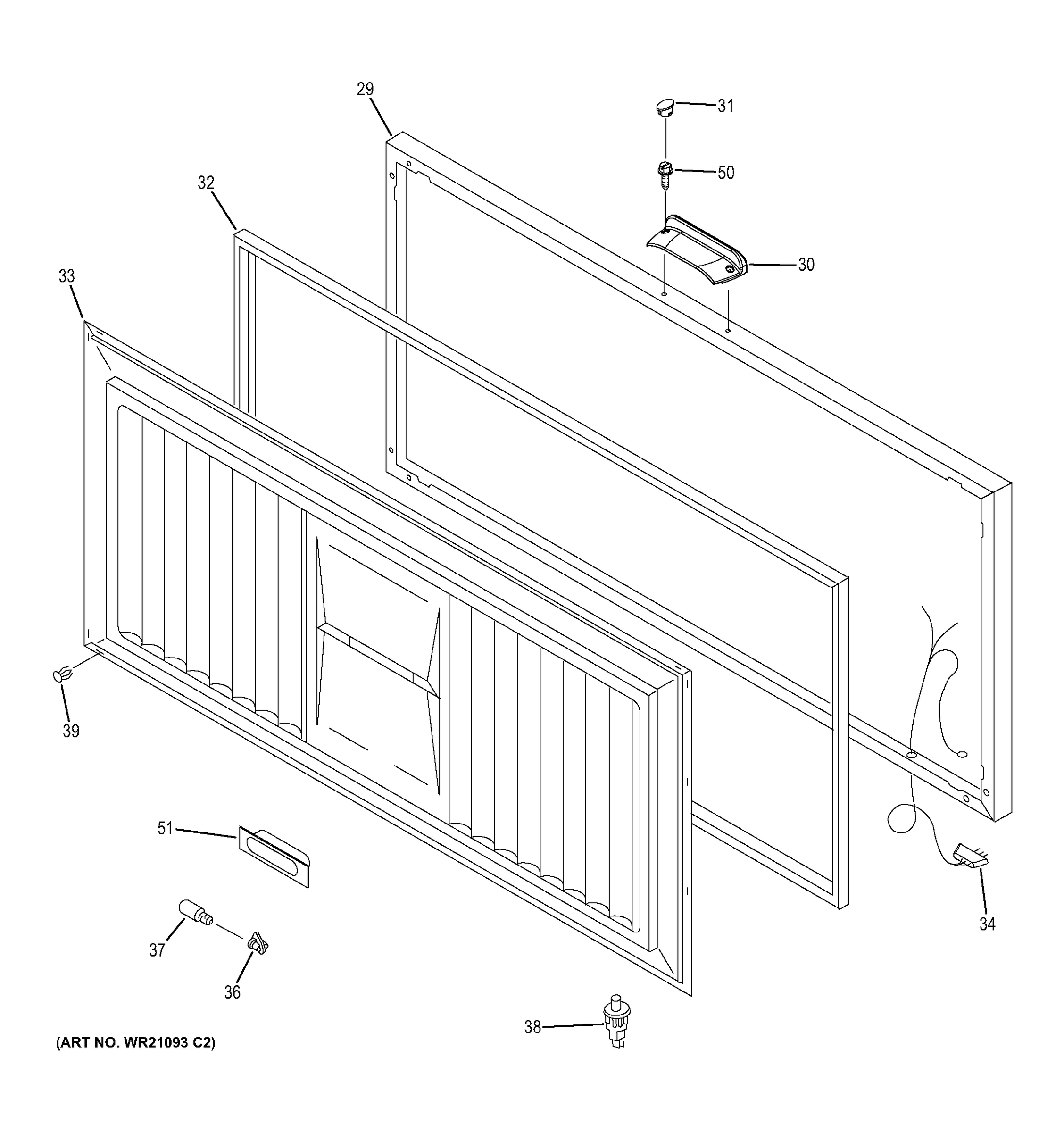

32
GASKET
GASKET GEN WR24X23696 Contact Us For Availability
View on Model
33
LID LINER
LID LINER GEN WR77X23698 Contact Us For Availability
View on Model
34
LIGHT WIRE ASSEMBLY
LIGHT WIRE ASSEMBLY GEN WR23X23682 Contact Us For Availability
View on Model
36
LIGHT SOCKET
LIGHT SOCKET GEN WR23X23680 Contact Us For Availability
View on Model
38
LIGHT SWITCH
LIGHT SWITCH GEN WR23X23681 Contact Us For Availability
View on Model
39
FASTENER DARTS
FASTENER DARTS GEN WR01X23669 Contact Us For Availability
View on Model

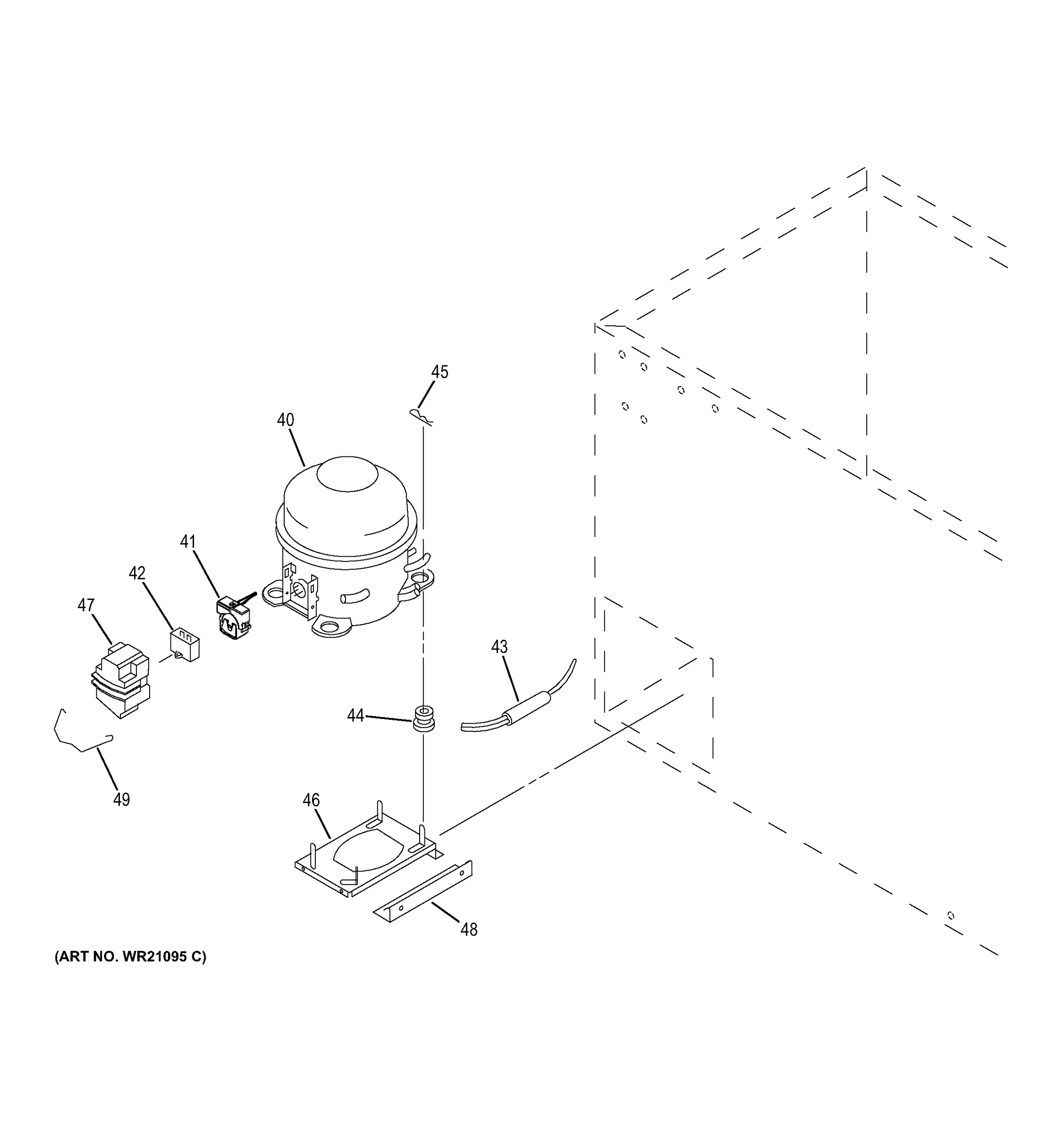

40
COMPRESSOR
COMPRESSOR GEN WR87X23694 Contact Us For Availability
View on Model
41
RUN CAPACITOR
RUN CAPACITOR GEN WR62X23688 Contact Us For Availability
View on Model
42
TSD2 ELECTRICAL
TSD2 ELECTRICAL GEN WR07X23693 Contact Us For Availability
View on Model
43
DRIER
DRIER GEN WR86X23667 Contact Us For Availability
View on Model
44
COMPRESSOR MOUNTING GROM
COMPRESSOR MOUNTING GROM GEN WR01X23664 Contact Us For Availability
View on Model
45
CLIP PIN
CLIP PIN GEN WR01X23660 Contact Us For Availability
View on Model
46
COMPRESSOR BASE
COMPRESSOR BASE GEN WR17X23662 Contact Us For Availability
View on Model
47
CAPACITOR SHIELD
CAPACITOR SHIELD GEN WR01X23659 Contact Us For Availability
View on Model
48
COMPRESSOR MOUNTING BRAC
COMPRESSOR MOUNTING BRAC GEN WR17X23663 Contact Us For Availability
View on Model
49
BALE STRAP
BALE STRAP GEN WR01X23656 Contact Us For Availability
View on Model
