Model Whirlpool FCG20002A GAS RANGE – Common Parts & Diagrams

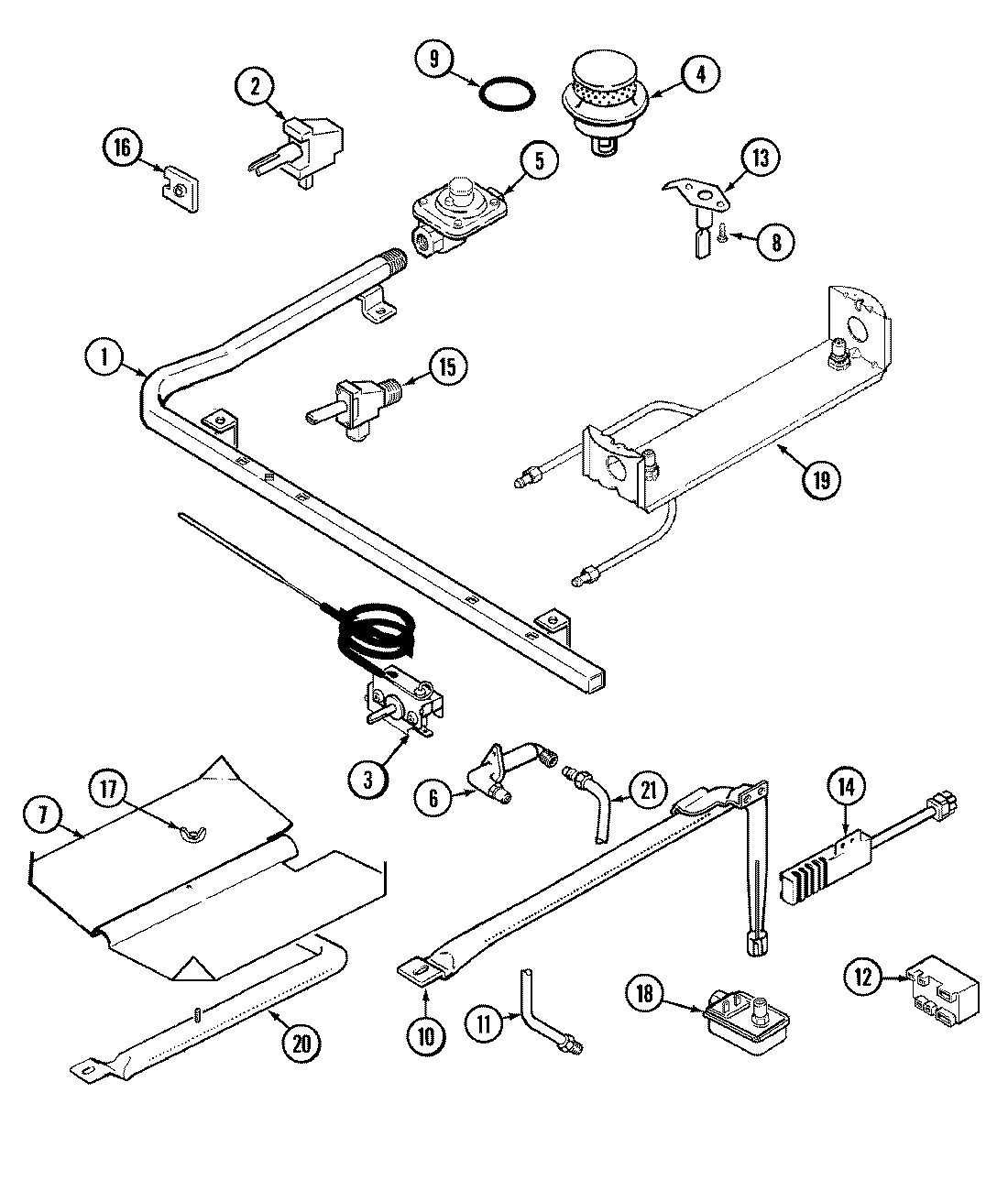

04 - GAS CONTROLS

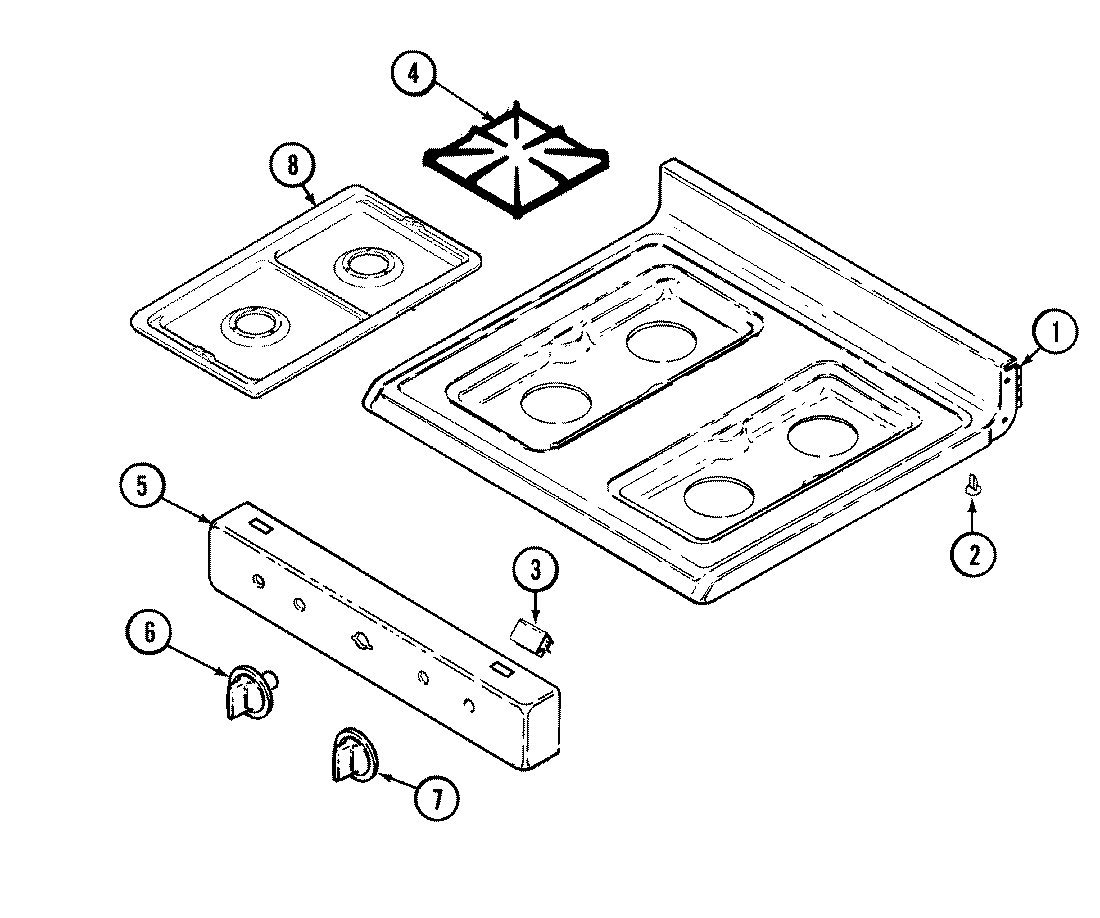

06 - TOP ASSEMBLY

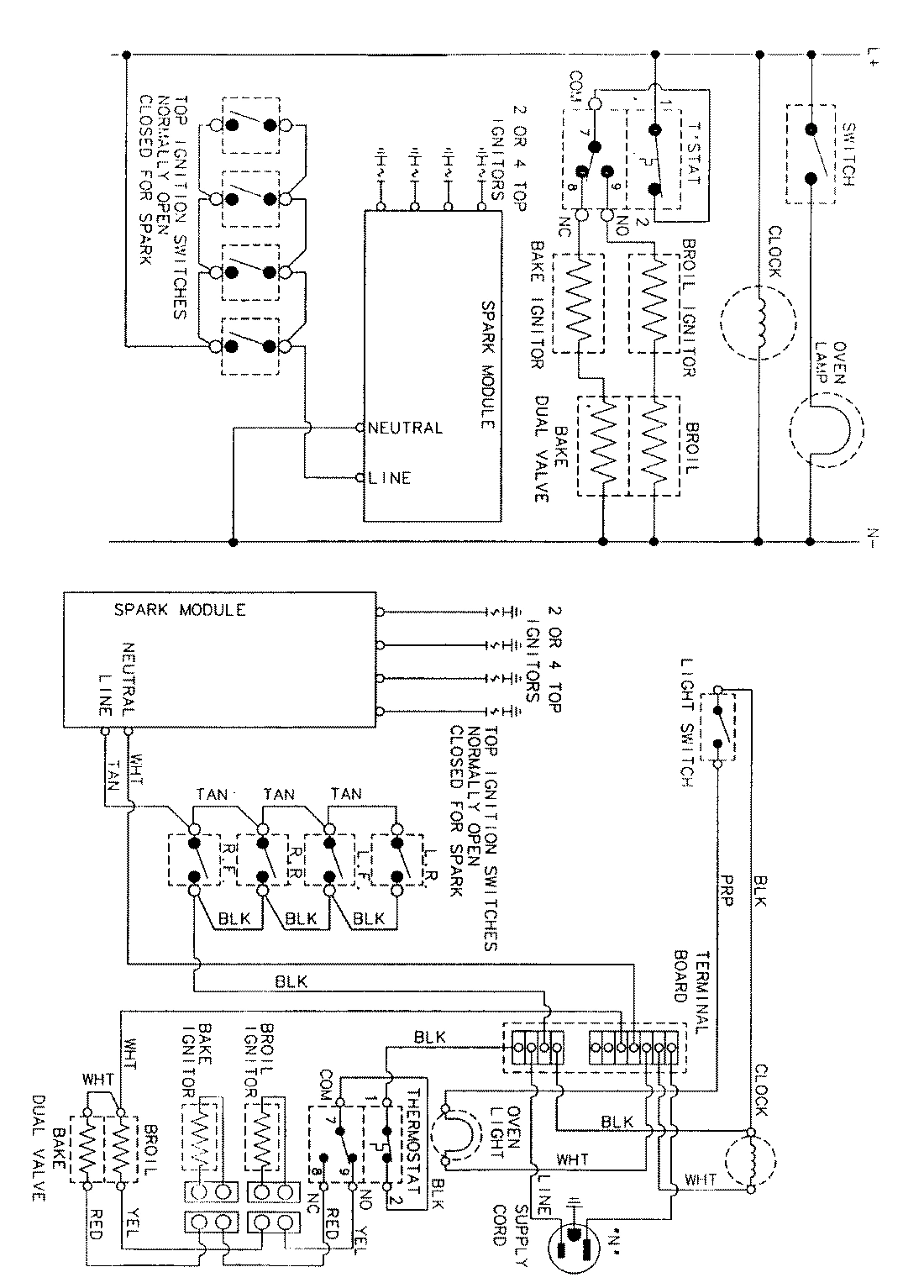

07 - WIRING INFORMATION

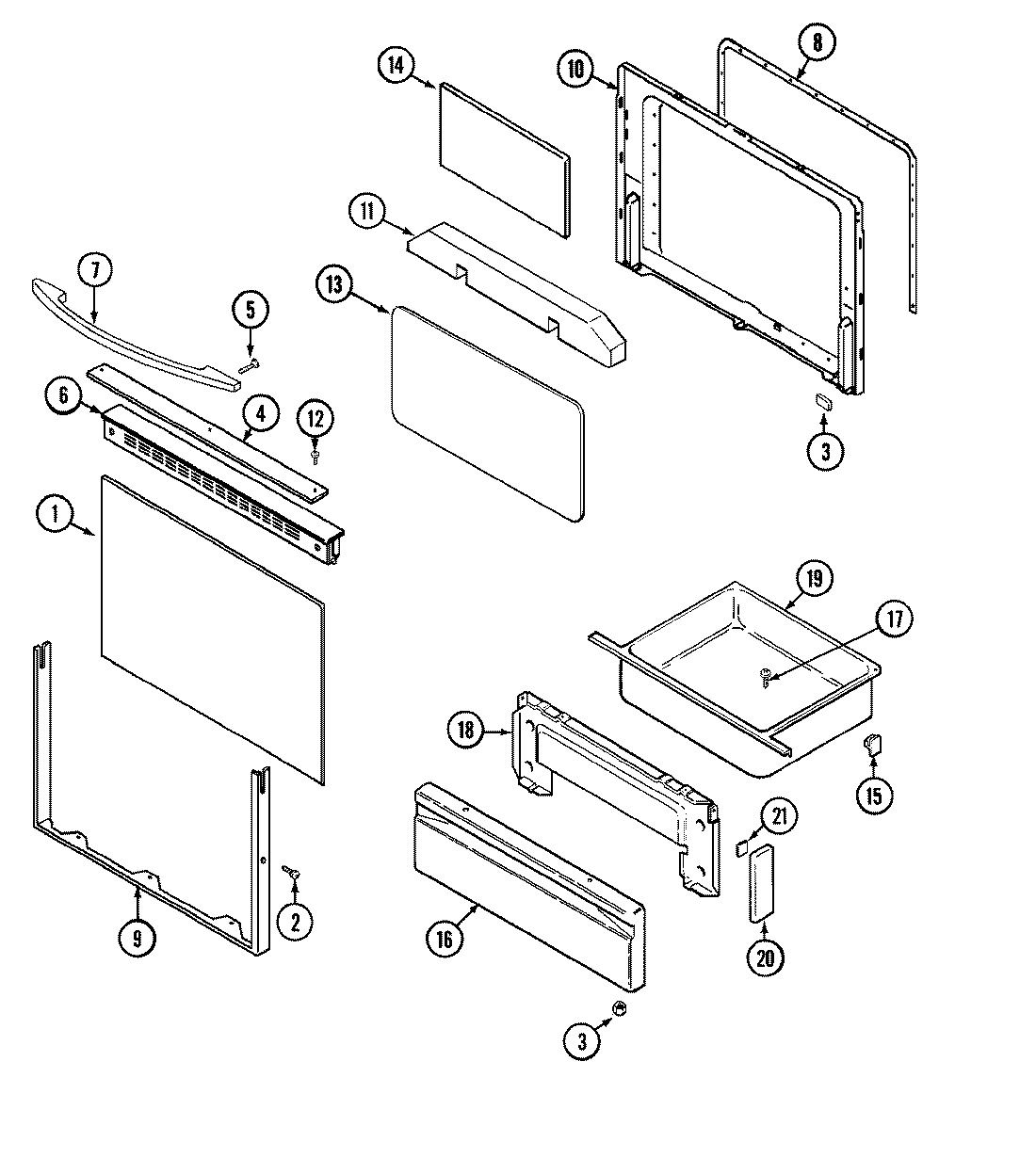

03 - DOOR/DRAWER

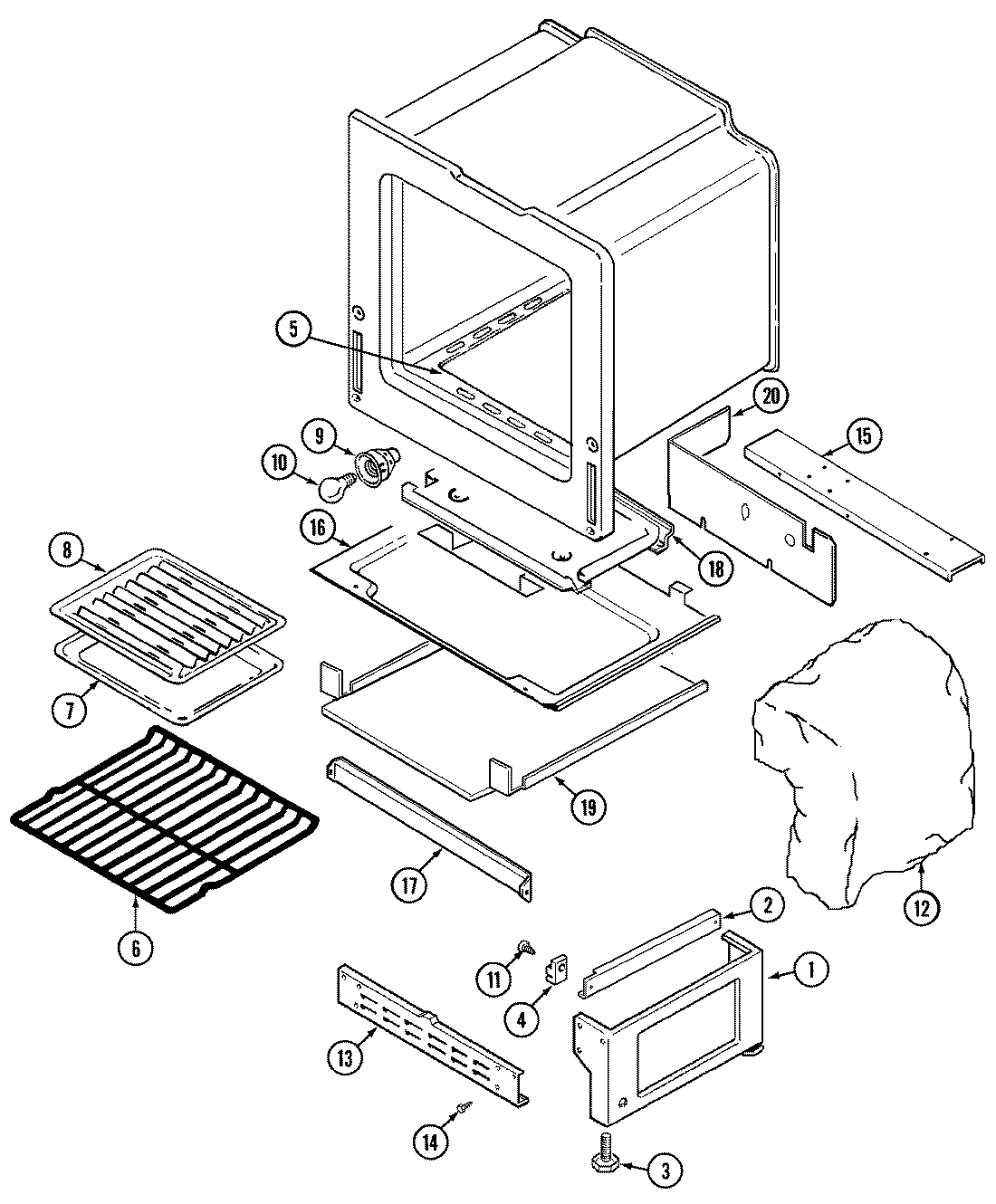

05 - OVEN/BASE

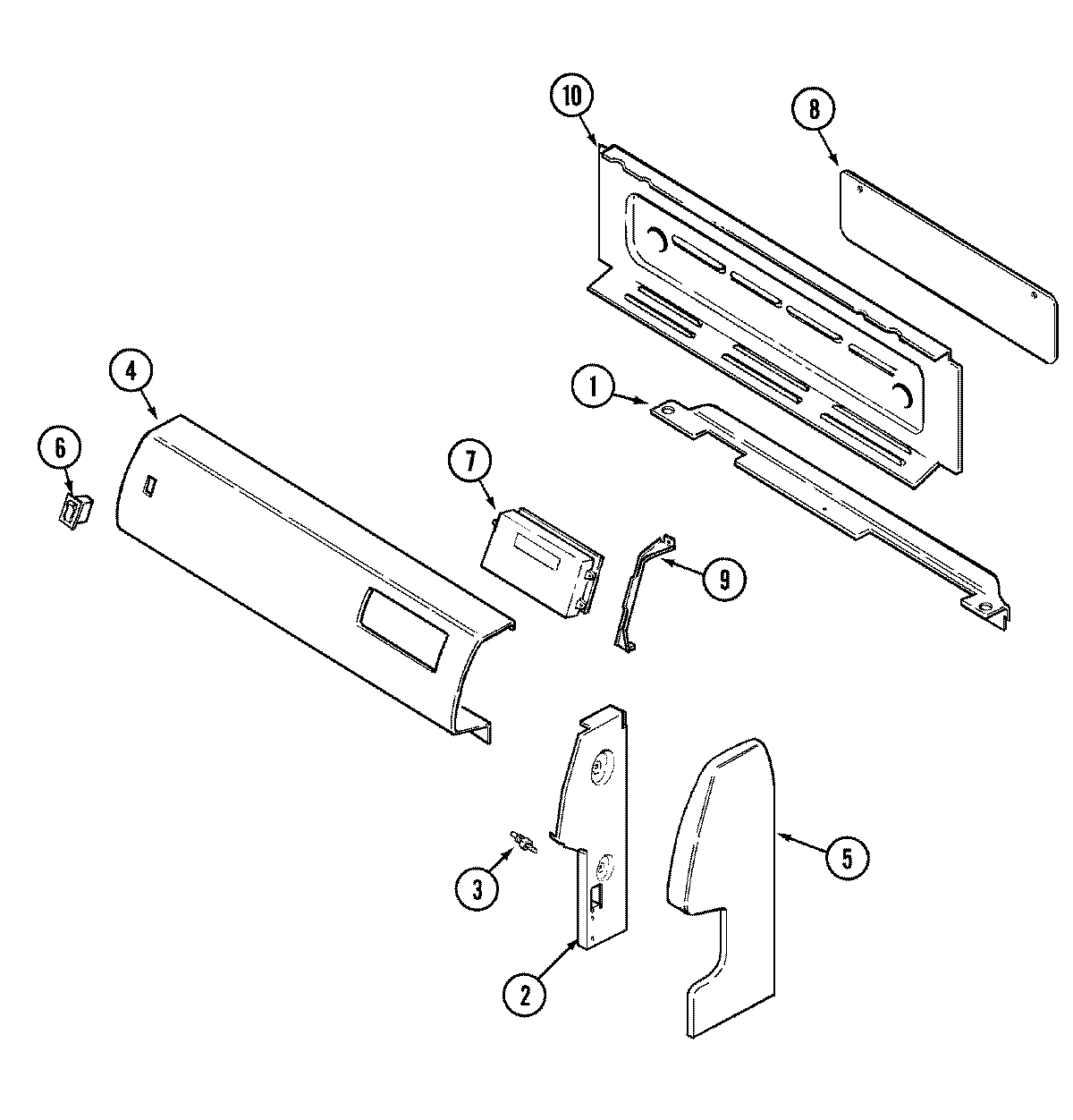

02 - CONTROL PANEL

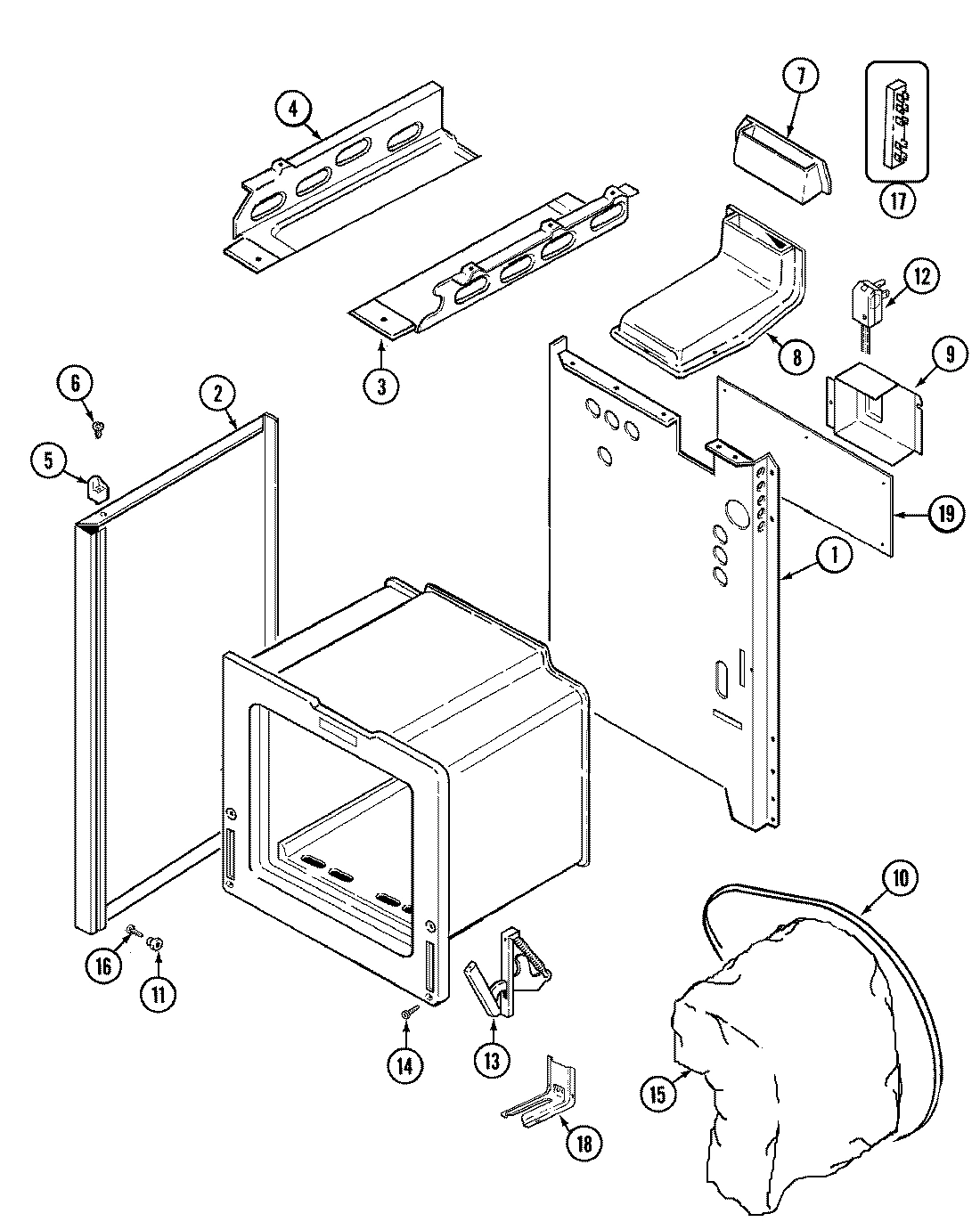

01 - BODY
Common parts from model Whirlpool FCG20002A GAS RANGE
1
PIPE, MANIFOLD WPL 74002531 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 74002441 Contact Us For Availability
1
GLASS, DOOR (ALM) WPL 74002056 Contact Us For Availability
1
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74002401 Contact Us For Availability
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
2
VALVE, BURNER WPL 74002532 Contact Us For Availability
2
VALVE, BURNER WPL 7502P25260 Contact Us For Availability
2
GLIDE WPL 8016P01560 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
3
THERMOSTAT WPL 74002788 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
NUT, LOCK WPL 7103P13960 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
4
SEALED BURNER ASSY. (BRN) WPL 3412D01808 Contact Us For Availability
4
GRATE (BRN) WPL 2003W02708 Contact Us For Availability
4
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
4
INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 74002765 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74002633 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
WASHER WPL 7109P01560 Contact Us For Availability
5
PANEL, MANIFOLD (ALM) WPL 74002779 Contact Us For Availability
5
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
5
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
5
BOTTOM, OVEN WPL 5504A00319 Contact Us For Availability
5
END CAP, PANEL (RT-ALM) WPL 74002500 Contact Us For Availability
5
END CAP, PANEL (LT-ALM) WPL 74002501 Contact Us For Availability
5
SCREW (1 3/16``-ALM) WPL 74002528 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
6
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
6
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
6
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
6
TRIM, TOP (ALM) WPL 74002064 Contact Us For Availability
6
SWITCH, ROCKER (ALM) WPL 7403P35860 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
7
KNOB, VALVE (ALM) WPL 74002782 Contact Us For Availability
7
KNOB, VALVE (MINI-ALM) WPL 74002783 Contact Us For Availability
7
HANDLE (ALM) WPL 74002060 Contact Us For Availability
7
PAN, BROIL WPL 3401F01419 Contact Us For Availability
7
SCREW (ALM) WPL 74002502 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
8
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
8
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
8
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
SHIELD, VENT WPL 74002448 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
9
FRAME, DOOR (ALM) WPL 7706P31160 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7408P03760 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74002449 Contact Us For Availability
9
COVER, MAIN WIRE WPL 74002368 Contact Us For Availability
10
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
LINING, DOOR WPL 74002785 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74002450 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
INSULATION, DOOR WPL 74002458 Contact Us For Availability
11
WIRES, IGNITER (4-OR) WPL 74002457 Contact Us For Availability
11
HARNESS, CONTROL PANEL WPL 74002477 Contact Us For Availability
11
HARNESS, BURNER BOX WPL 74002769 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
12
SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability
12
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74002767 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
13
SCREW WPL 7101P20960 Contact Us For Availability
13
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
13
HINGE WPL 7106P05660 Contact Us For Availability
14
SCREW WPL 7101P32860 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
14
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
SUPPORT, VALVE/REGULATOR WPL 74002593 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 74001478 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
18
VALVE, OVEN WPL 74002387 Contact Us For Availability
18
LINING WPL 2404F04480 Contact Us For Availability
18
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
19
FITTING, ORIFICE (LT) WPL 74002534 Contact Us For Availability
19
FITTING, ORIFICE (RT) WPL 74002535 Contact Us For Availability
19
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
20
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
20
END CAP, DRAWER (ALM) WPL 7744P09160 Contact Us For Availability
20
SCREW WPL 7101P29060 Contact Us For Availability
20
COVER, VALVE WPL 4005F42951 Contact Us For Availability
21
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
21
TAPE WPL 8270P09860 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001861 Contact Us For Availability
× ![]()
