Model Maytag FCE30600B ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

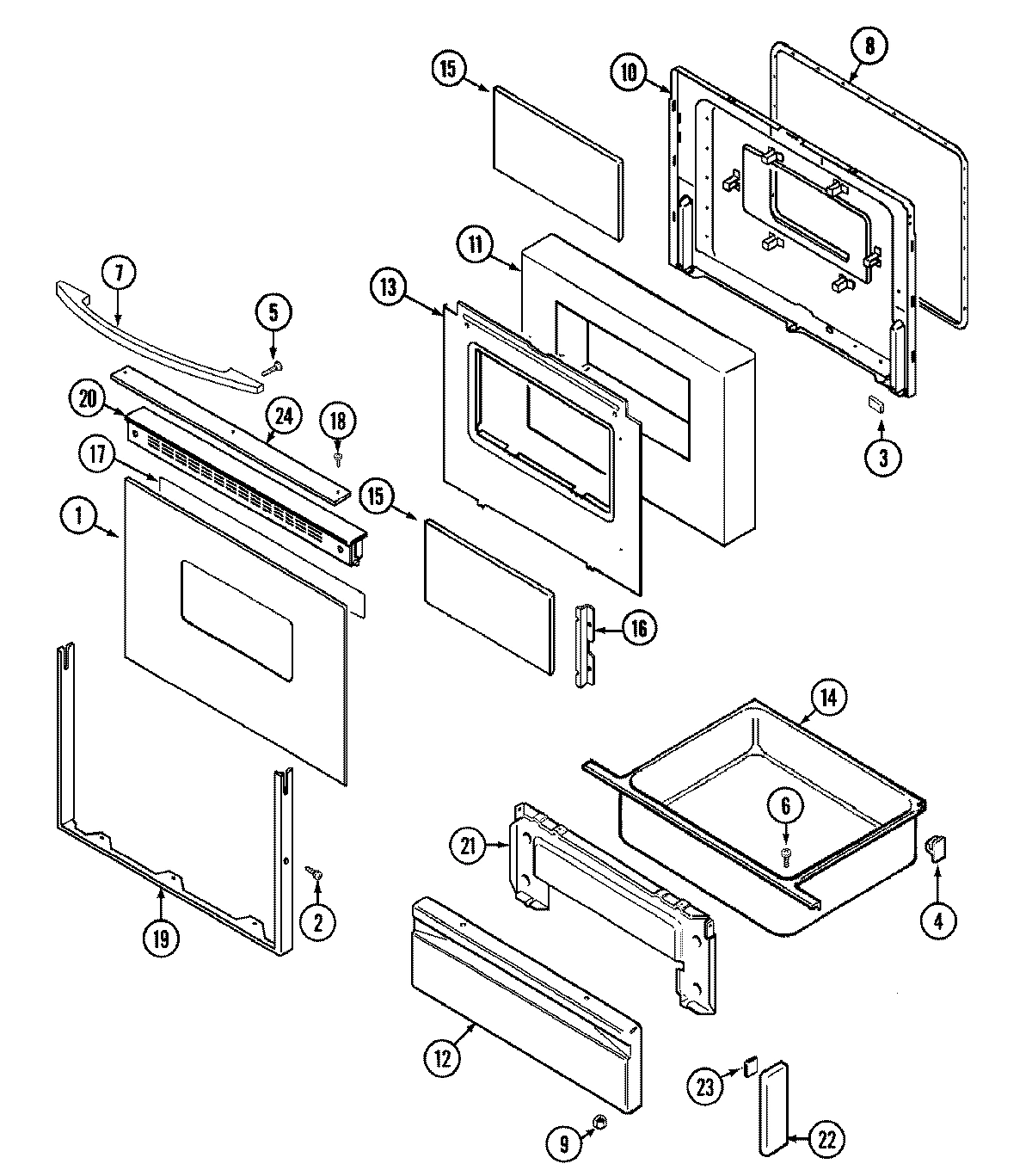

03 - DOOR/DRAWER

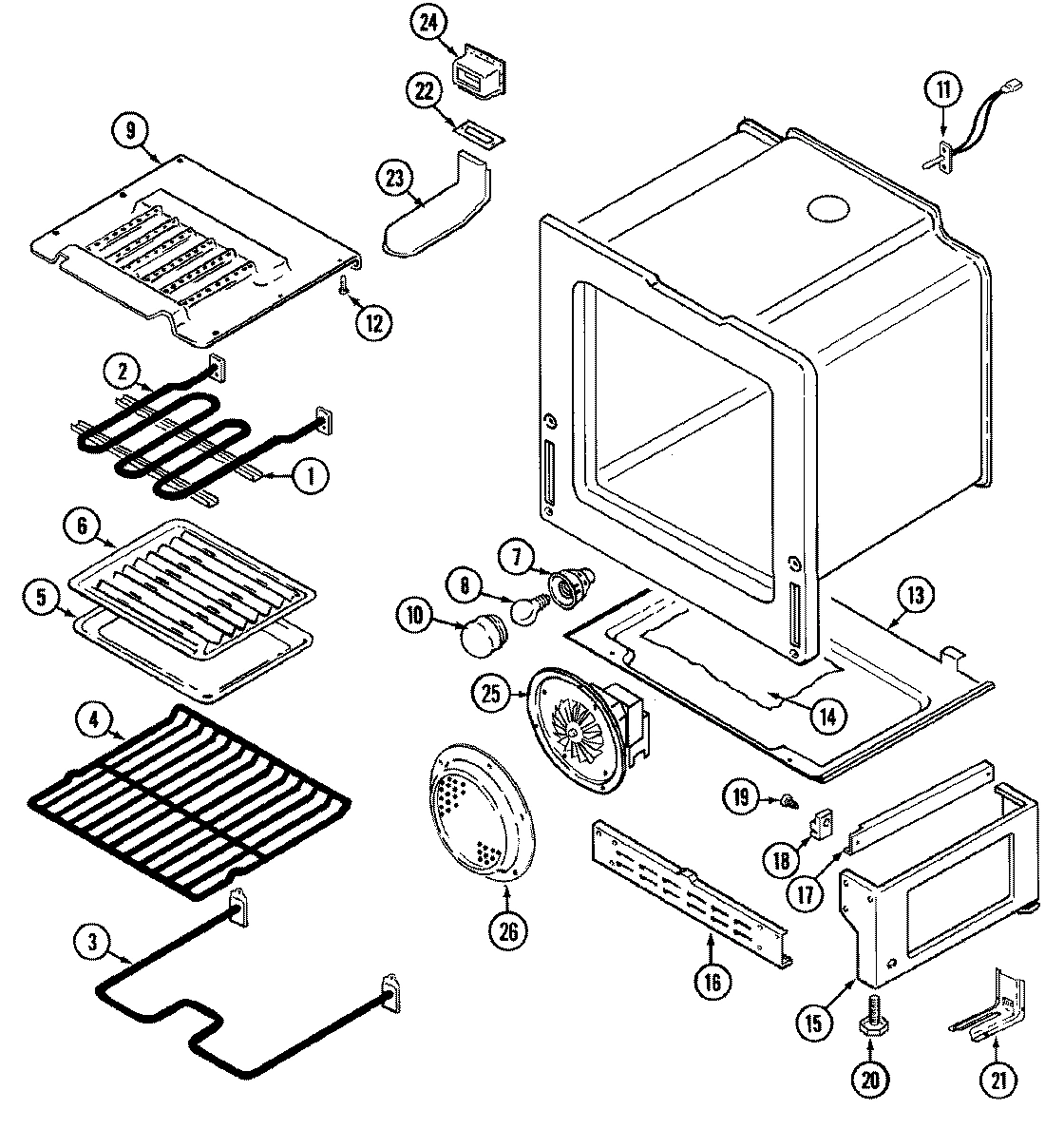

04 - OVEN/BASE

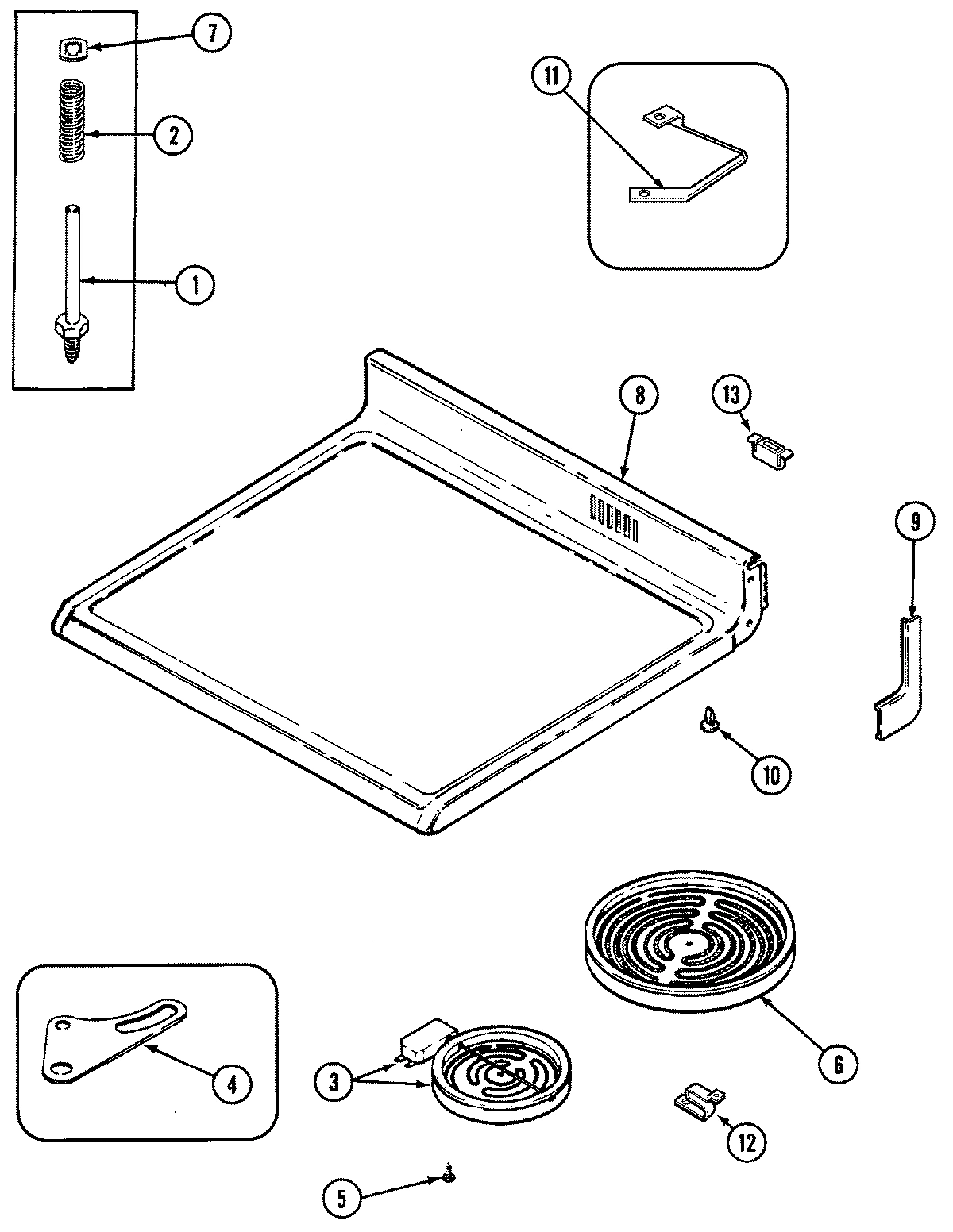

05 - TOP ASSEMBLY
06 - WIRING INFORMATION
Common parts from model Maytag FCE30600B ELECTRIC RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 74002058 MAY 74002058 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7113P013-60 MAY 7113P013-60 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
2
MAY 7803P066-60 MAY 7803P066-60 Contact Us For Availability
3
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
3
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY Y04000064 MAY Y04000064 Contact Us For Availability
4
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
4
MAY 74002105 MAY 74002105 Contact Us For Availability
4
MAY 3819F013-45 MAY 3819F013-45 Contact Us For Availability
5
MAY 3401F014-19 MAY 3401F014-19 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
SCREW MAY 7101P349-60 Contact Us For Availability
6
MAY 74002093 MAY 74002093 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 74002652 MAY 74002652 Contact Us For Availability
6
MAY Y04000063 MAY Y04000063 Contact Us For Availability
7
MAY 74002061 MAY 74002061 Contact Us For Availability
7
MAY 74003125 MAY 74003125 Contact Us For Availability
7
MAY 7112P091-60 MAY 7112P091-60 Contact Us For Availability
8
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
8
MAY 74002143 MAY 74002143 Contact Us For Availability
8
MAY 74003097 MAY 74003097 Contact Us For Availability
9
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
9
MAY 74002122 MAY 74002122 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
9
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
10
MAY 74001719 MAY 74001719 Contact Us For Availability
10
MAY 74002099 MAY 74002099 Contact Us For Availability
10
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
10
MAY 7103P136-60 MAY 7103P136-60 Contact Us For Availability
10
MAY 74003244 MAY 74003244 Contact Us For Availability
10
MAY 74001428 MAY 74001428 Contact Us For Availability
11
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
11
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
11
MAY 74003032 MAY 74003032 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY W10124350 MAY W10124350 Contact Us For Availability
11
MAY 74002035 MAY 74002035 Contact Us For Availability
11
MAY 74002036 MAY 74002036 Contact Us For Availability
11
MAY 74001842 MAY 74001842 Contact Us For Availability
11
MAY 74003095 MAY 74003095 Contact Us For Availability
11
MAY 74001437 MAY 74001437 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 74001800 MAY 74001800 Contact Us For Availability
12
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
12
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
12
MAY 2416W001-70 MAY 2416W001-70 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 74003053 MAY 74003053 Contact Us For Availability
13
MAY 74002039 MAY 74002039 Contact Us For Availability
13
MAY 74001843 MAY 74001843 Contact Us For Availability
13
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 74002042 MAY 74002042 Contact Us For Availability
14
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
14
MAY 74003618 MAY 74003618 Contact Us For Availability
14
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
14
MAY 8308P002-60 MAY 8308P002-60 Contact Us For Availability
15
MAY 74001841 MAY 74001841 Contact Us For Availability
15
MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability
15
MAY 74003016 MAY 74003016 Contact Us For Availability
16
MAY 74001844 MAY 74001844 Contact Us For Availability
16
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
17
MAY 74001725 MAY 74001725 Contact Us For Availability
17
MAY 74003005 MAY 74003005 Contact Us For Availability
17
MAY 74002101 MAY 74002101 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
17
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
MAY 5125A381-60 MAY 5125A381-60 Contact Us For Availability
18
MAY 5170P205-60 MAY 5170P205-60 Contact Us For Availability
18
MAY 74001013 MAY 74001013 Contact Us For Availability
18
MAY 74002121 MAY 74002121 Contact Us For Availability
18
MAY 74003566 MAY 74003566 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
19
MAY 74001449 MAY 74001449 Contact Us For Availability
19
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
19
MAY 16007438 MAY 16007438 Contact Us For Availability
19
MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability
20
MAY 74001311 MAY 74001311 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
20
MAY 16000326 MAY 16000326 Contact Us For Availability
20
MAY 74002065 MAY 74002065 Contact Us For Availability
21
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
21
MAY 2404F043-80 MAY 2404F043-80 Contact Us For Availability
21
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
21
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
22
MAY 74001708 MAY 74001708 Contact Us For Availability
22
MAY 74001823 MAY 74001823 Contact Us For Availability
22
MAY 7744P092-60 MAY 7744P092-60 Contact Us For Availability
22
MAY 7201P054-60 MAY 7201P054-60 Contact Us For Availability
23
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
23
TAPE MAY 8270P098-60 Contact Us For Availability
23
MAY 4006W107-45 MAY 4006W107-45 Contact Us For Availability
24
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
24
MAY 3826W014-45 MAY 3826W014-45 Contact Us For Availability
25
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
25
MAY 74002125 MAY 74002125 Contact Us For Availability
26
MAY 7407P106-60 MAY 7407P106-60 Contact Us For Availability
26
MAY 74001161 MAY 74001161 Contact Us For Availability
26
MAY 74002126 MAY 74002126 Contact Us For Availability
27
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
28
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
29
MAY 74001802 MAY 74001802 Contact Us For Availability
30
MAY 74001872 MAY 74001872 Contact Us For Availability
31
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
33
MAY 74001630 MAY 74001630 Contact Us For Availability
34
MAY 74001631 MAY 74001631 Contact Us For Availability
NI
MAY 15001555 MAY 15001555 Contact Us For Availability
× ![]()
