Model Electrolux FCCG3027AB COOKTOP, GAS, 30 INCH – Common Parts & Diagrams

Common parts from model Electrolux FCCG3027AB COOKTOP, GAS, 30 INCH

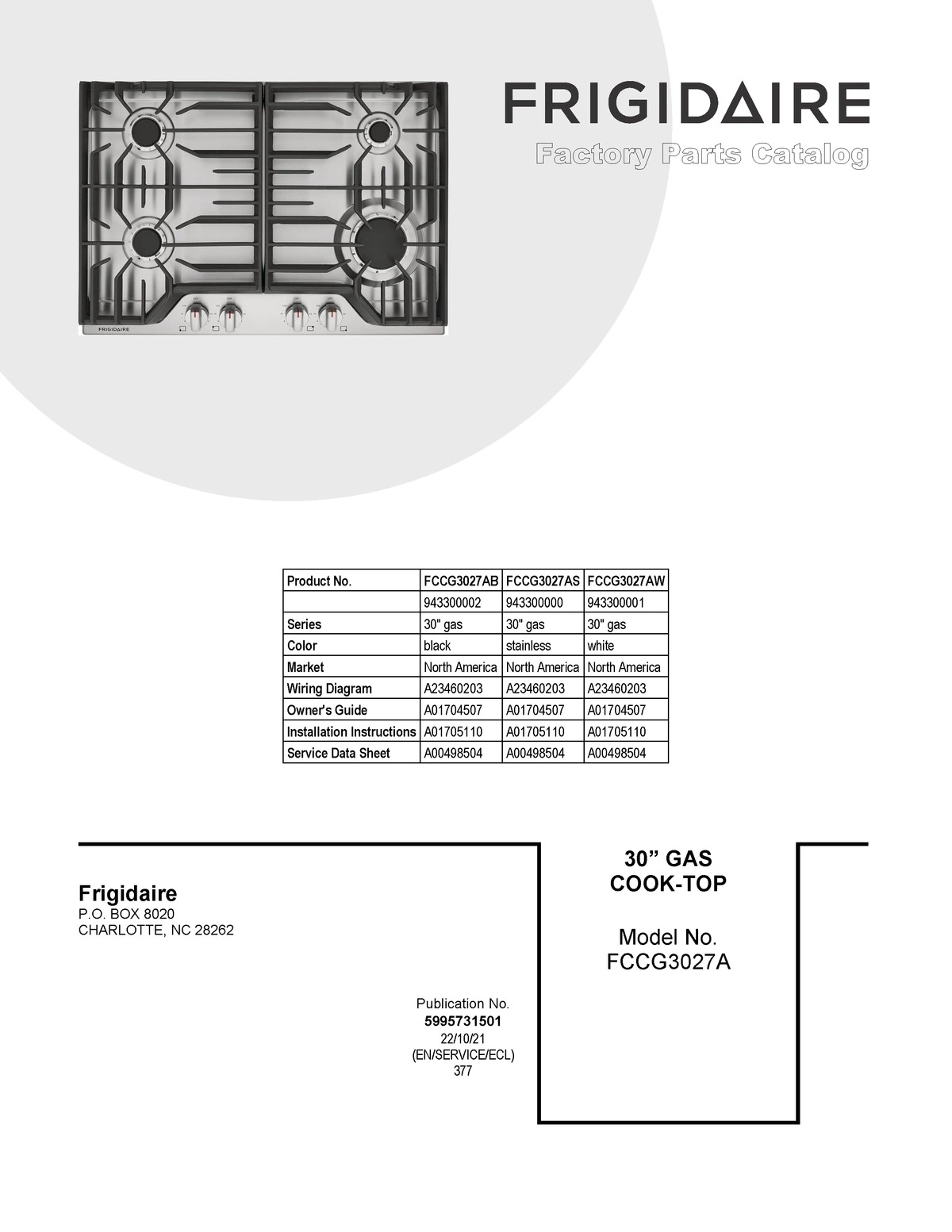

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

MANIFOLD TUBE, ASSEMBLY WCI 5304533575 Contact Us For Availability

View on Model

2

5304527639 Frigidaire Valve Backorder WCI 5304527639 View Details $33.97

View on Model

2A

5304533576 Frigidaire Valve Backorder WCI 5304533576 View Details $23.96

View on Model

2B

5304533577 Frigidaire Valve Assembly Backorder WCI 5304533577 View Details $23.96

View on Model

3

5304533578 Frigidaire Switch Harness Backorder WCI 5304533578 View Details $30.97

View on Model

5

357733402 Frigidaire Oven Bracket Assembly In Stock WCI 357733402 View Details $5.73

View on Model

7

SCREW, PAN T10 ZP PTFE, 2.9 X 13, (8) WCI 354320201 Contact Us For Availability

View on Model

8

5304505695 Frigidaire Oven Module In Stock WCI 5304505695 View Details $40.27

View on Model

9

305338602 Frigidaire Screw Backorder WCI 305338602 View Details $7.77

View on Model

10

5304537945 Frigidaire Crown,Burner,Medium Backorder WCI 5304537945 View Details $6.73

View on Model

10A

5304533592 Frigidaire Range Crown In Stock WCI 5304533592 View Details $5.14

View on Model

10B

5304537946 Frigidaire Crown Burner Extra Larg Backorder WCI 5304537946 View Details $12.70

View on Model

11

5304533583 Frigidaire Igniter/Orifice Backorder WCI 5304533583 View Details $22.22

View on Model

11A

5304533584 Frigidaire Ignitor/Orifice Backorder WCI 5304533584 View Details $22.22

View on Model

11B

5304533582 Frigidaire Igniter/Orifice Assembl Backorder WCI 5304533582 View Details $20.97

View on Model

11C

5304533585 Frigidaire Igniter and Orifice Ass Backorder WCI 5304533585 View Details $32.67

View on Model

12

TUBE ASSEMBLY, BURNER, LH FRONT WCI 5304533587 Contact Us For Availability

View on Model

12A

TUBE ASSEMBLY, BURNER, LH REAR WCI 5304533586 Contact Us For Availability

View on Model

12B

5304533588 Frigidaire Tube Assembly Backorder WCI 5304533588 View Details $18.92

View on Model

12C

TUBE ASSEMBLY, BURNER, RH FRONT WCI 5304533589 Contact Us For Availability

View on Model

13

COVER, SPARK MODULE WCI 5304527658 Contact Us For Availability

View on Model

14

5304533599 Frigidaire Regulator Backorder WCI 5304533599 View Details $56.81

View on Model

22

5304533596 Frigidaire Range Cap Backorder WCI 5304533596 View Details $19.49

View on Model

22A

5304533595 Frigidaire Range Cap Assembly Backorder WCI 5304533595 View Details $17.25

View on Model

22B

5304533597 Frigidaire Range Cap Assembly Backorder WCI 5304533597 View Details $27.68

View on Model

35

5304508440 Frigidaire Bushing Backorder WCI 5304508440 View Details $6.80

View on Model

35

KNOB, TOP VALVE, BLACK WCI 5304533581 Contact Us For Availability

View on Model

36

COVER, LED WCI 5304533580 Contact Us For Availability

View on Model

39

305574902 Frigidaire Power Cord Backorder WCI 305574902 View Details $43.93

View on Model

46

BOX, BURNER WCI 5304527637 Contact Us For Availability

View on Model

72

5304508436 Frigidaire Oven Screw Backorder WCI 5304508436 View Details $2.70

View on Model

132

5304513507 Frigidaire Bushing Assembly Backorder WCI 5304513507 View Details $5.42

View on Model

136

318264301 Frigidaire Oven Support In Stock WCI 318264301 View Details $27.46

View on Model

137

305452400 Frigidaire Oven Screw In Stock WCI 305452400 View Details $7.77

View on Model

NI

305338604 Frigidaire Screw Backorder WCI 305338604 View Details $1.37

View on Model

NI

5304533598 Frigidaire LP Conversion Backorder WCI 5304533598 View Details $29.73

View on Model

NI

GASKET, VALVE STEM WCI A21779501 Contact Us For Availability

View on Model

NIA

5304516456 Frigidaire Wire Assembly Backorder WCI 5304516456 View Details $9.06

View on Model

NIA

CAP, REGULATOR, RED WCI 5304519944 Contact Us For Availability

View on Model

NIB

305452800 Frigidaire Screw Backorder WCI 305452800 View Details $5.88

View on Model

×
