Model LG FC980CM VCR 4 head Hi-Fi Stereo – Common Parts & Diagrams
Diagram 0
Diagram 1

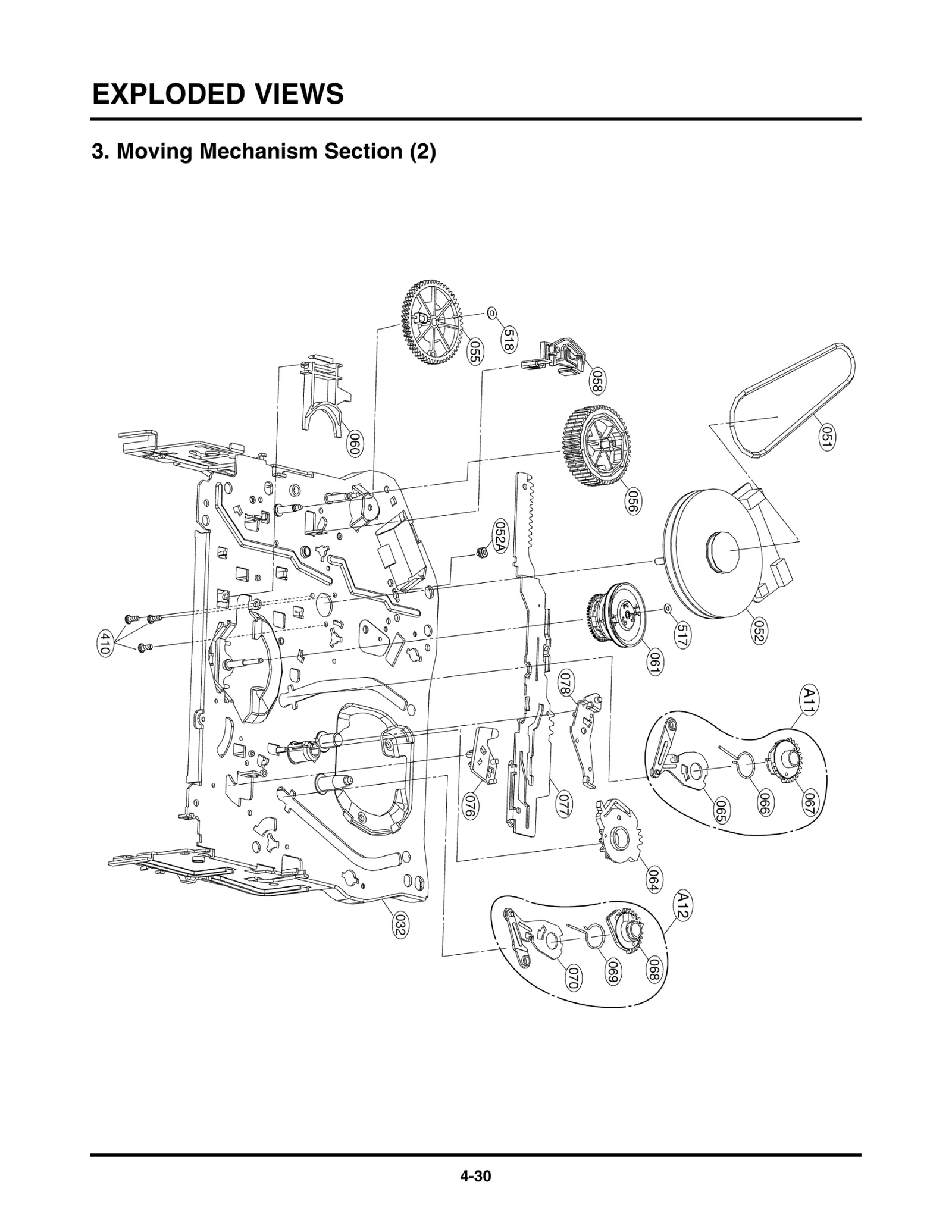

Diagram 2
Diagram 3
Common parts from model LG FC980CM VCR 4 head Hi-Fi Stereo
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
006
Roller LGE 4580R-0004A Contact Us For Availability
007
LGE 4260R-0039A LGE 4260R-0039A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A006A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A007A Contact Us For Availability
052
LGE 4680R-A008A LGE 4680R-A008A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
250
LGE 3110R-0258B LGE 3110R-0258B Contact Us For Availability
260
LGE 3210R-0056C LGE 3210R-0056C Contact Us For Availability
283
DOOR,CASE LGE 3580R-V027A Contact Us For Availability
300
POWER CORD LGE 6410RAHP01A Contact Us For Availability
320
LGE 3720R-D033A LGE 3720R-D033A Contact Us For Availability
323
LGE 3300R-M070A LGE 3300R-M070A Contact Us For Availability
330
LGE 3300R-M069A LGE 3300R-M069A Contact Us For Availability
464
LGE 4404R-0017A LGE 4404R-0017A Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RM0057T Contact Us For Availability
802
LGE 3890R-H536J LGE 3890R-H536J Contact Us For Availability
803
LGE 3920R-E047A LGE 3920R-E047A Contact Us For Availability
806
CABLE SET ASSY RF-CABLE, NTSC LGE 861-012C Contact Us For Availability
810
LGE 6851RN0001K LGE 6851RN0001K Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1N129A Contact Us For Availability
A00
LGE 6721RF0740A LGE 6721RF0740A Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A03
ARM ASSY LGE 4261R-0025A Contact Us For Availability
A42
LGE 6871R-5882B LGE 6871R-5882B Contact Us For Availability
A43
LGE 3721R-F310R LGE 3721R-F310R Contact Us For Availability
A46
LGE 3501R-4881E LGE 3501R-4881E Contact Us For Availability
BC101
COIL LGE 636-004D Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C5G1
LGE 0CE1085C638 LGE 0CE1085C638 Contact Us For Availability
C5M1
LGE 0CH4100K416 LGE 0CH4100K416 Contact Us For Availability
C101
LGE 624-088V LGE 624-088V Contact Us For Availability
C103
CAPACITOR ELECTROLYTIC 100UF S LGE 0CE1076Q600 Contact Us For Availability
C104
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C109
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C112
LGE 0CG4720U630 LGE 0CG4720U630 Contact Us For Availability
C113
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C117
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE227CH618 Contact Us For Availability
C124
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C305
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C322
LGE 0CH4181K416 LGE 0CH4181K416 Contact Us For Availability
C361
LGE 0CQ8224K409 LGE 0CQ8224K409 Contact Us For Availability
C514
LGE 0CC2400K415 LGE 0CC2400K415 Contact Us For Availability
C515
LGE 0CC2700K415 LGE 0CC2700K415 Contact Us For Availability
C517
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C545
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C567
LGE 0CH4102K406 LGE 0CH4102K406 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C596
LGE 0CC1800K415 LGE 0CC1800K415 Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CH4150K416 Contact Us For Availability
C709
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C804
LGE 0CH1122K516 LGE 0CH1122K516 Contact Us For Availability
C831
Capacitor,Ceramic,Chip LGE 0CH4680K416 Contact Us For Availability
C834
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C838
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
CS501
LGE 6600M000002 LGE 6600M000002 Contact Us For Availability
D102
Diode,Rectifier LGE 0DD220609AA Contact Us For Availability
D106
DIODE,RECTIFIER LGE 0DR810040BA Contact Us For Availability
D109
Diode,Rectifier LGE 0DR202000AB Contact Us For Availability
D109
LGE 0DR310000AA LGE 0DR310000AA Contact Us For Availability
ES501
HOLDER ASSEMBLY LGE 4931R-0050C Contact Us For Availability
F101
LGE 585-003S LGE 585-003S Contact Us For Availability
IC5F1
IC,LINEAR LGE 0ILNRPY001A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGSK003B Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC501
LGE 0IMCRMI047A LGE 0IMCRMI047A Contact Us For Availability
IC503
LGE 0ISS240810B LGE 0ISS240810B Contact Us For Availability
IC503
LGE 0IAL240810C LGE 0IAL240810C Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013A Contact Us For Availability
JK5L1
JACK,RCA LGE 6612RIV005D Contact Us For Availability
JK701
JACK,RCA LGE 6612R-C012B Contact Us For Availability
L5M1
INDUCTOR AXIAL LEAD 12M K 2.3X LGE 0LA0122K018 Contact Us For Availability
L102
FILTER(CIRC),EMC LGE 6200JB8010B Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L702
Inductor,Wire Wound,Radial LGE 0LR0222K035 Contact Us For Availability
L802
INDUCTOR,RADIAL LEAD LGE 0LR1000J0N5 Contact Us For Availability
L802
Inductor,Wire Wound,Radial LGE 0LR1000J025 Contact Us For Availability
LD501
LGE 4931R-0017C LGE 4931R-0017C Contact Us For Availability
LED501
LGE 6301R2U002D LGE 6301R2U002D Contact Us For Availability
LED501
LGE 6301R3U002D LGE 6301R3U002D Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
Q152
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q154
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q155
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q304
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
R106
LGE 0RD1803F608 LGE 0RD1803F608 Contact Us For Availability
R120
Resistor,Metal Film LGE 0RN3001F408 Contact Us For Availability
R182
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R332
LGE 0RH6803D622 LGE 0RH6803D622 Contact Us For Availability
RC501
REMOTE CONTROLLER RE LGE 6712R1938GB Contact Us For Availability
RS502
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
SW512
SWITCH,DETECTOR LGE 556-213C Contact Us For Availability
SW701
LGE 6600R-SH12A LGE 6600R-SH12A Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW22A Contact Us For Availability
TU701
LGE 6700NFNG04A LGE 6700NFNG04A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
X301
Crystal LGE 6202R2357AG Contact Us For Availability
ZD152
LGE 0DZ102609BB LGE 0DZ102609BB Contact Us For Availability
ZD152
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD152
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD718
DIODE,ZENER LGE 0DZ512609BA Contact Us For Availability
× ![]()
