Model Whirlpool FC7500XS0 CANISTER VACUUM CLEANER – Common Parts & Diagrams

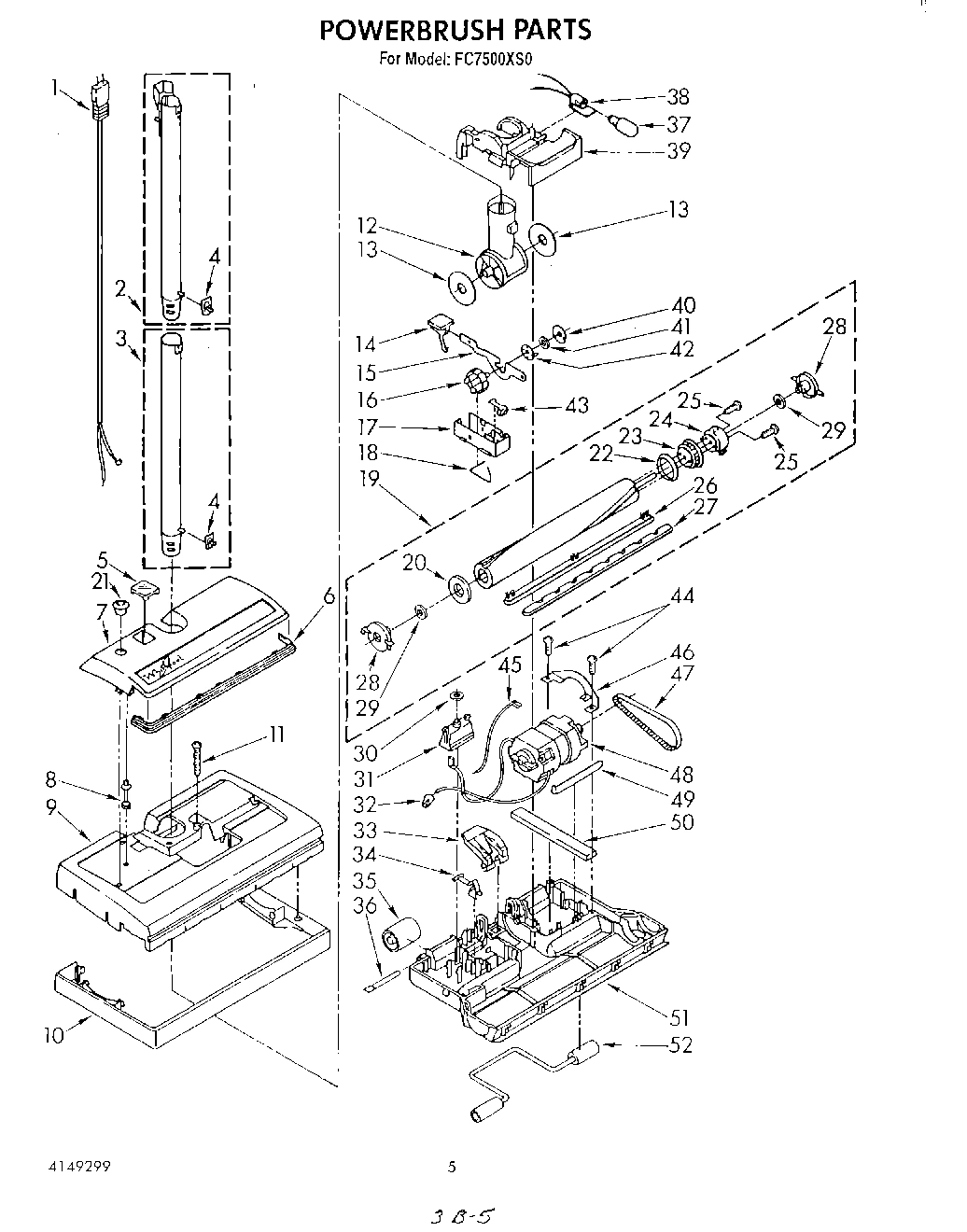

02 - SECTION
04 - SECTION

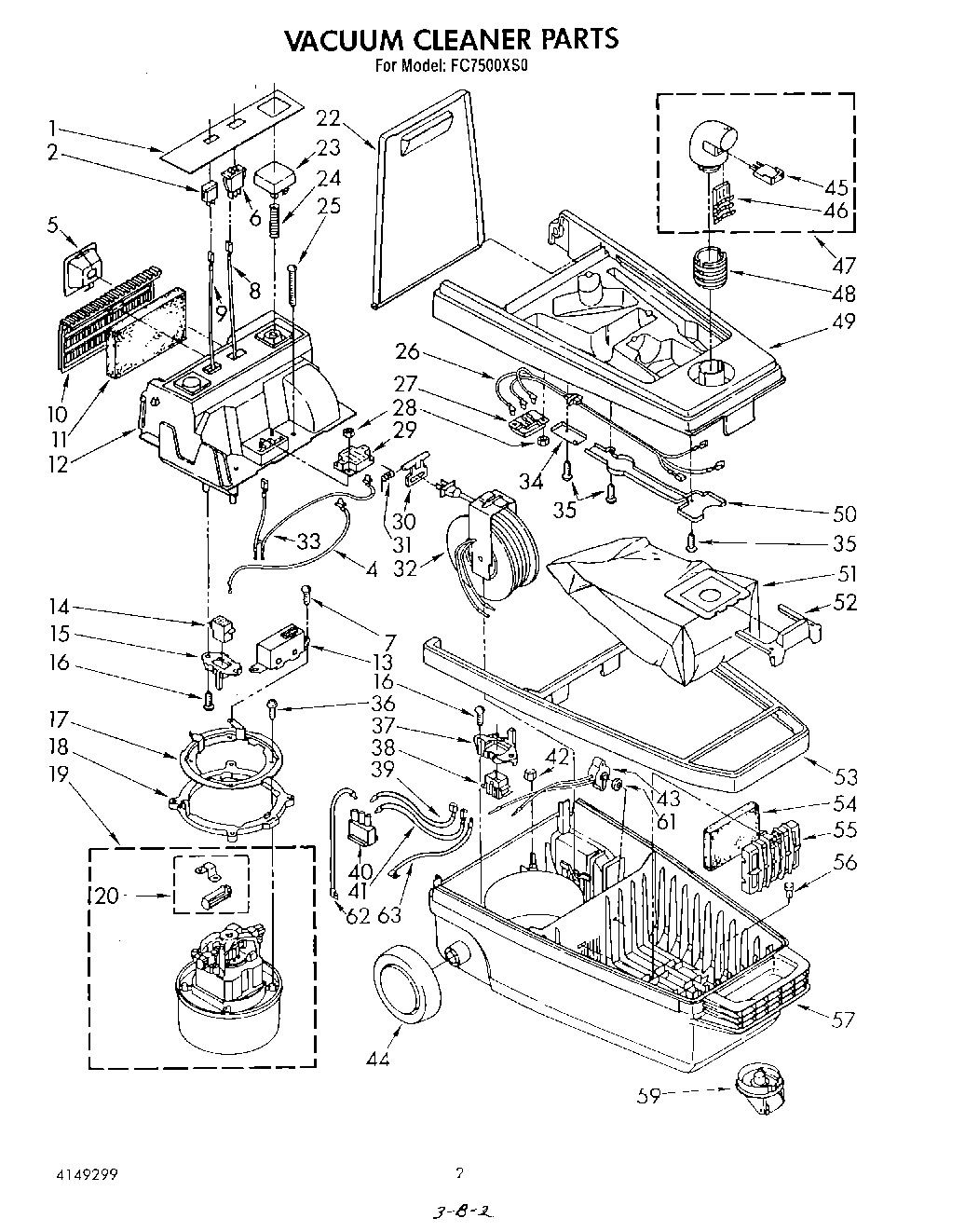

01 - SECTION
03 - SECTION
Common parts from model Whirlpool FC7500XS0 CANISTER VACUUM CLEANER
WPL LIT4149298 WPL LIT4149298 Contact Us For Availability
WPL LIT4149299 WPL LIT4149299 Contact Us For Availability
WPL LIT4149315 WPL LIT4149315 Contact Us For Availability
1
Nameplate WPL 4148443 Contact Us For Availability
1
Cord & Plug WPL 4148431 Contact Us For Availability
1
Brush, Floor WPL 4147381 Contact Us For Availability
2
Light, Indicator WPL 744107 Contact Us For Availability
2
Wand & Cord Mount Assembly WPL 4148535 Contact Us For Availability
2
Nozzle, Upholstery WPL 4147383 Contact Us For Availability
3
Wand, Lower WPL 742489 Contact Us For Availability
3
Brush, Dusting WPL 4147378 Contact Us For Availability
4
Wire, Lead (Blue, 7-0`` Long) WPL 4149380 Contact Us For Availability
4
Tool, Crevice WPL 4147375 Contact Us For Availability
5
Retainer, Cord WPL 4148433 Contact Us For Availability
5
Lens, Height Adjustment WPL 744237 Contact Us For Availability
6
Switch, On-Off WPL 4147409 Contact Us For Availability
6
Lens, Front WPL 744119 Contact Us For Availability
6
Hose WPL 4149306 Contact Us For Availability
7
Screw WPL 680122 Contact Us For Availability
7
Buld Housing (Includes No. 21) WPL 4148547 Contact Us For Availability
7
Terminal WPL 4147362 Contact Us For Availability
8
Lead, Wire (Red, 14-1/2`` Long) WPL 4149379 Contact Us For Availability
8
Button Extension WPL 744280 Contact Us For Availability
8
Plug, Male WPL 4148929 Contact Us For Availability
9
Lead, Wire (Brown, 13-1/2`` Long WPL 4149373 Contact Us For Availability
9
Nozzle WPL 4148424 Contact Us For Availability
9
Housing, Center Tube WPL 4148926 Contact Us For Availability
10
Cover, Exhaust WPL 4147388 Contact Us For Availability
10
Bumper WPL 4148425 Contact Us For Availability
10
Cord & Switch Assembly WPL 4149305 Contact Us For Availability
11
Filter, Exhaust WPL 744062 Contact Us For Availability
11
Screw, 8-18 x 1-7/8 (2) WPL 681550 Contact Us For Availability
11
Housing, Lower WPL 4148428 Contact Us For Availability
12
Cover, Motor WPL 4148531 Contact Us For Availability
12
Swivel WPL 4148418 Contact Us For Availability
12
Button-Slide WPL 4148819 Contact Us For Availability
13
Canister, Control (Variable Speed) WPL 4148830 Contact Us For Availability
13
Seal, Swivel WPL 742019 Contact Us For Availability
13
Housing, Upper WPL 4149824 Contact Us For Availability
14
Insulator, Receptacle WPL 596795 Contact Us For Availability
14
Pad, Footpedal WPL 4148421 Contact Us For Availability
14
``O`` Ring WPL 745016 Contact Us For Availability
15
Bracket, Receptacle WPL 744298 Contact Us For Availability
15
Lever, Indicator WPL 742017 Contact Us For Availability
15
Tube (Includes Illus. 16) WPL 4147584 Contact Us For Availability
16
Spring, Wandlock WPL 725419 Contact Us For Availability
16
Cam, Indicator WPL 744039 Contact Us For Availability
17
Plate, Motor Gasket WPL 744057 Contact Us For Availability
17
Block, Indicator WPL 742015 Contact Us For Availability
17
Filler-Impact WPL 4150300 Contact Us For Availability
18
Gasket, Motor WPL 744056 Contact Us For Availability
18
Spring, Assist WPL 725775 Contact Us For Availability
18
Pin, Retention WPL 4149252 Contact Us For Availability
19
Motor Assembly WPL 705312 Contact Us For Availability
19
Bearing & Brush Assembly WPL 742454 Contact Us For Availability
19
Insulating Paper WPL 4150301 Contact Us For Availability
20
Brush, Motor WPL 588445 Contact Us For Availability
20
Guard, String WPL 742172 Contact Us For Availability
21
Bezel WPL 4149317 Contact Us For Availability
22
Cover, Tool Storage WPL 4147358 Contact Us For Availability
22
Flange, Brush Sprocket WPL 742031 Contact Us For Availability
23
Button, Cord Rewind WPL 4148434 Contact Us For Availability
23
Sprocket, Brush WPL 742506 Contact Us For Availability
24
Spring, Cord Button WPL 744258 Contact Us For Availability
24
End Brush WPL 742509 Contact Us For Availability
25
Screw, No.6-20 x 1`` (2) WPL 681605 Contact Us For Availability
26
Harness, Hood Wire WPL 744091 Contact Us For Availability
26
Brush, Beater WPL 742030 Contact Us For Availability
27
Insulator, Male WPL 4148664 Contact Us For Availability
27
Bar, Beater WPL 742029 Contact Us For Availability
28
Palnut, 1/8`` Stud (4) WPL 681666 Contact Us For Availability
28
Bearing & Housing Assembly (4) WPL 743395 Contact Us For Availability
29
Insulator, Female WPL 4148665 Contact Us For Availability
29
Washer, Metal 12 x 1/2 (2) WPL 681424 Contact Us For Availability
30
Lock, Cord WPL 744256 Contact Us For Availability
30
Seal, Overload WPL 742968 Contact Us For Availability
31
Spring, Cord Lock WPL 744257 Contact Us For Availability
31
Overload Protector WPL 742332 Contact Us For Availability
32
Cord Reel WPL 4148544 Contact Us For Availability
32
Wire Connector WPL 596564 Contact Us For Availability
33
Harness, Wire (Performance Indicator Light) WPL 4149371 Contact Us For Availability
33
Harness, Wire (On/Off Switch) WPL 4149372 Contact Us For Availability
33
Release, Handle WPL 4148436 Contact Us For Availability
34
Cover, Harness (Short) WPL 4147418 Contact Us For Availability
34
Lifter WPL 742013 Contact Us For Availability
35
Roller (2) WPL 4148419 Contact Us For Availability
36
Screw, 10-24 x 1/2 (4) WPL 681697 Contact Us For Availability
36
Axle, Rear (2) WPL 742006 Contact Us For Availability
37
Bracket, Plug WPL 744297 Contact Us For Availability
37
Bulb, Light WPL 676308 Contact Us For Availability
38
Insulator, Plug WPL 596794 Contact Us For Availability
38
Socket, Bulb WPL 745004 Contact Us For Availability
39
Lead, Wire (Blue, 13`` Long) WPL 4148441 Contact Us For Availability
39
Swivel Cap WPL 4148423 Contact Us For Availability
40
Washer, Thrust WPL 722909 Contact Us For Availability
41
Lead, Wire (Black, 13`` Long) WPL 4148662 Contact Us For Availability
41
Washer WPL 725635 Contact Us For Availability
42
On-Sert (4) WPL 681267 Contact Us For Availability
42
Catch, Indexing WPL 722955 Contact Us For Availability
43
Switch, Vacuum (Includes Illus. 61) WPL 744931 Contact Us For Availability
43
Catch, Ratchet WPL 742016 Contact Us For Availability
44
Wheel, Rear WPL 4147578 Contact Us For Availability
45
Plug, Electric WPL 4149314 Contact Us For Availability
45
Lead, Wire WPL 4147041 Contact Us For Availability
46
Insulator, Rotating WPL 744081 Contact Us For Availability
46
Bridge, Motor WPL 705093 Contact Us For Availability
47
Elbow Assembly WPL 4149313 Contact Us For Availability
47
Belt, Cogged (Pkg. of 1) WPL 743411 Contact Us For Availability
48
Contact, Stationary WPL 744073 Contact Us For Availability
48
Motor WPL 4147597 Contact Us For Availability
49
Hood WPL 4147354 Contact Us For Availability
49
Spring, Motor Adjustment WPL 742002 Contact Us For Availability
50
Cover, Harness (Long) WPL 4148438 Contact Us For Availability
50
Gasket WPL 705309 Contact Us For Availability
51
Bag, Dust (Pkg. of 12) WPL 676298 Contact Us For Availability
51
Bag, Dust (Pkg. of 3) WPL 733000 Contact Us For Availability
51
Base WPL 744027 Contact Us For Availability
52
Holder, Dust Bag WPL 4148613 Contact Us For Availability
52
Front Axle Assembly WPL 744029 Contact Us For Availability
53
Bumper WPL 4147374 Contact Us For Availability
54
Fo WPL 744068 Contact Us For Availability
55
WPL 744067 WPL 744067 Contact Us For Availability
56
WPL 706884 WPL 706884 Contact Us For Availability
57
WPL 4148532 WPL 4148532 Contact Us For Availability
59
WPL 4149309 WPL 4149309 Contact Us For Availability
61
WPL 706992 WPL 706992 Contact Us For Availability
62
WPL 4148555 WPL 4148555 Contact Us For Availability
63
WPL 4149381 WPL 4149381 Contact Us For Availability
× ![]()
