Model Whirlpool FC7000XM2 CANISTER VACUUM CLEANER – Common Parts & Diagrams

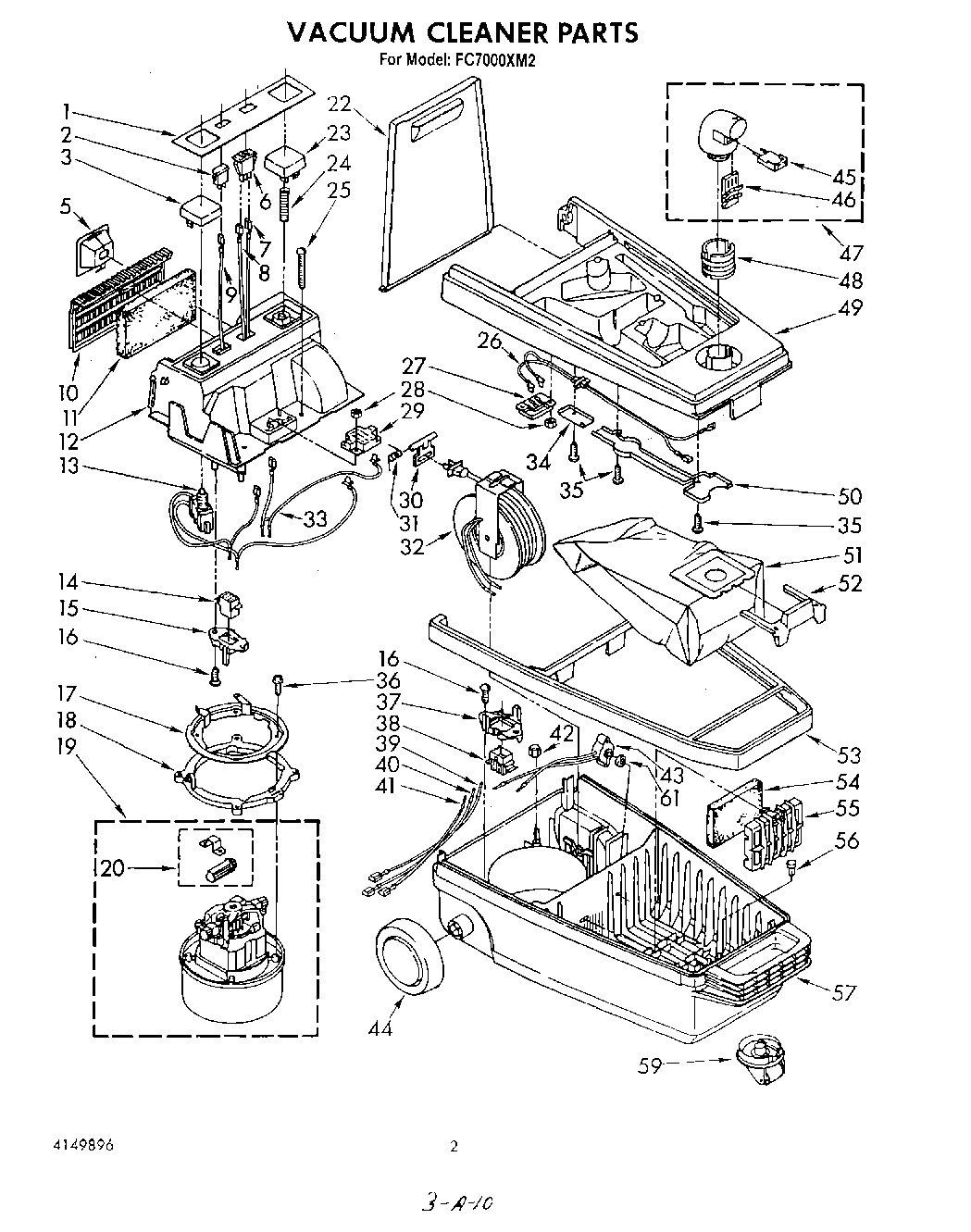

03 - SECTION
01 - SECTION
02 - SECTION

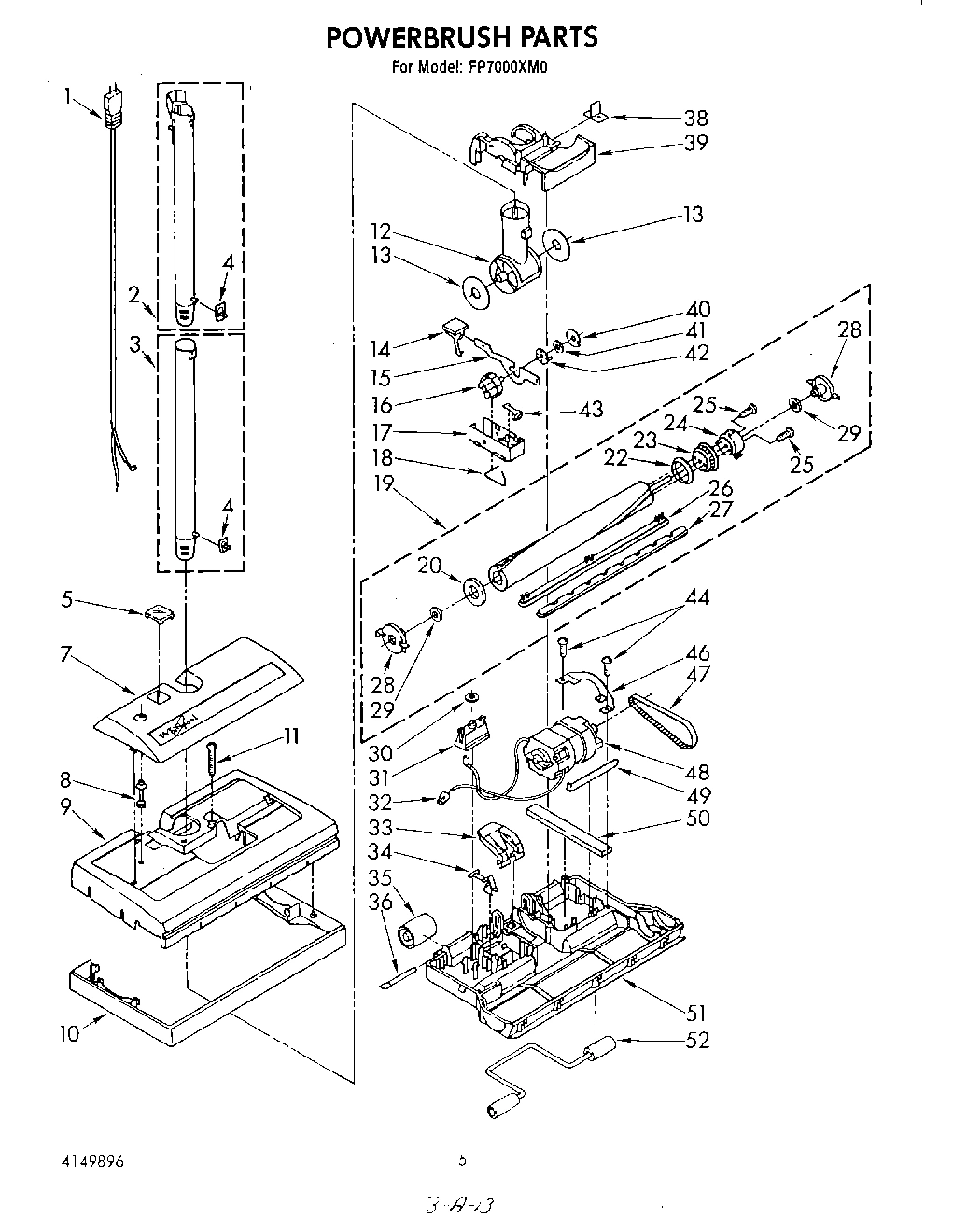

04 - SECTION
Common parts from model Whirlpool FC7000XM2 CANISTER VACUUM CLEANER
WPL LIT4149896 WPL LIT4149896 Contact Us For Availability
WPL LIT743128 WPL LIT743128 Contact Us For Availability
WPL LIT745035 WPL LIT745035 Contact Us For Availability
1
Brush, Floor WPL 744141 Contact Us For Availability
1
Nameplate WPL 744103 Contact Us For Availability
1
Cord & Plug WPL 744265 Contact Us For Availability
2
Nozzle, Upholstery WPL 744144 Contact Us For Availability
2
Light, Indicator WPL 744107 Contact Us For Availability
2
Wand & Cord Mount Assembly WPL 745250 Contact Us For Availability
3
Brush, Dusting WPL 744146 Contact Us For Availability
3
Button, Switch WPL 744116 Contact Us For Availability
3
Wand, Lower WPL 742489 Contact Us For Availability
4
Tool, Crevice WPL 744140 Contact Us For Availability
4
Spring, Wandlock WPL 725419 Contact Us For Availability
5
Hose Assembly WPL 4149897 Contact Us For Availability
5
Retainer, Cord WPL 745032 Contact Us For Availability
5
Lens, Height Adjustment WPL 744237 Contact Us For Availability
6
Hose WPL 4148512 Contact Us For Availability
6
Switch, Hi-Lo WPL 744115 Contact Us For Availability
7
Terminal WPL 744174 Contact Us For Availability
7
Lead, Wire (Yellow, 11-1/2`` Long) WPL 744901 Contact Us For Availability
7
Cover, Nozzle WPL 744136 Contact Us For Availability
8
Plug, Male WPL 744193 Contact Us For Availability
8
Lead, Wire (Orange, 11-1/2`` Long) WPL 744900 Contact Us For Availability
8
Button Extension WPL 744280 Contact Us For Availability
9
Housing, Center Tube WPL 744180 Contact Us For Availability
9
Lead, Wire (Blue, 9-1/2`` Long) WPL 744902 Contact Us For Availability
9
Nozzle WPL 744047 Contact Us For Availability
10
Cord & Plug Assembly WPL 744189 Contact Us For Availability
10
Cover, Exhaust WPL 744061 Contact Us For Availability
10
Bumper WPL 744092 Contact Us For Availability
11
Housing, Lower WPL 744167 Contact Us For Availability
11
Filter, Exhaust WPL 744062 Contact Us For Availability
11
Screw, 8-18 x 1-7/8 (2) WPL 681550 Contact Us For Availability
12
Control, Suction WPL 744187 Contact Us For Availability
12
Cover, Motor WPL 744102 Contact Us For Availability
12
Swivel WPL 744032 Contact Us For Availability
13
Housing, Upper WPL 744185 Contact Us For Availability
13
Switch & Harness, On-Off (Includes Illus. 4) WPL 744904 Contact Us For Availability
13
Seal, Swivel WPL 742019 Contact Us For Availability
14
``O`` Ring WPL 745016 Contact Us For Availability
14
Insulator, Receptacle WPL 596795 Contact Us For Availability
14
Pad, Footpedal WPL 744040 Contact Us For Availability
15
Tube (Includes Illus. 16) WPL 4147584 Contact Us For Availability
15
Bracket, Receptacle WPL 744298 Contact Us For Availability
15
Lever, Indicator WPL 742017 Contact Us For Availability
16
Cam, Indicator WPL 744039 Contact Us For Availability
17
Plate, Motor Gasket WPL 744057 Contact Us For Availability
17
Block, Indicator WPL 742015 Contact Us For Availability
18
Filler, Foam WPL 745020 Contact Us For Availability
18
Gasket, Motor WPL 744056 Contact Us For Availability
18
Spring, Assist WPL 725775 Contact Us For Availability
19
Motor Assembly WPL 700556 Contact Us For Availability
19
Bearing & Brush Assembly WPL 742480 Contact Us For Availability
20
Brush, Motor WPL 588445 Contact Us For Availability
20
Guard, String WPL 742172 Contact Us For Availability
22
Cover, Tool Storage WPL 744106 Contact Us For Availability
22
Flange, Brush Sprocket WPL 742031 Contact Us For Availability
23
Button, Cord Rewind WPL 744060 Contact Us For Availability
23
Sprocket, Brush WPL 742506 Contact Us For Availability
24
Spring, Cord Button WPL 744258 Contact Us For Availability
24
End Brush WPL 742509 Contact Us For Availability
25
Screw, No.6-20 x 1`` (2) WPL 681605 Contact Us For Availability
26
Harness, Hood Wire WPL 744209 Contact Us For Availability
26
Brush, Beater WPL 742030 Contact Us For Availability
27
Insulator, Male WPL 744282 Contact Us For Availability
27
Bar, Beater WPL 742029 Contact Us For Availability
28
Palnut, 1/8`` Stud (4) WPL 681666 Contact Us For Availability
28
Bearing & Housing Assembly (4) WPL 743395 Contact Us For Availability
29
Insulator, Female WPL 744283 Contact Us For Availability
29
Washer, Metal 12 x 1/2 (2) WPL 681424 Contact Us For Availability
30
Lock, Cord WPL 744256 Contact Us For Availability
30
Seal, Overload WPL 742968 Contact Us For Availability
31
Spring, Cord Lock WPL 744257 Contact Us For Availability
31
Overload Protector WPL 742332 Contact Us For Availability
32
Cord Reel WPL 745231 Contact Us For Availability
32
Wire Connector WPL 596564 Contact Us For Availability
33
Harness, Wire WPL 744903 Contact Us For Availability
33
Release, Handle WPL 744031 Contact Us For Availability
34
Cover, Harness (Short) WPL 744247 Contact Us For Availability
34
Lifter WPL 742013 Contact Us For Availability
35
Roller (2) WPL 744240 Contact Us For Availability
36
Screw, 10-24 x 1/2 (4) WPL 681697 Contact Us For Availability
36
Axle, Rear (2) WPL 742006 Contact Us For Availability
37
Bracket, Plug WPL 744297 Contact Us For Availability
38
Insulator, Plug WPL 596794 Contact Us For Availability
38
Plug, Bulb WPL 744279 Contact Us For Availability
39
Lead, Motor (Black, 13`` Long) WPL 744934 Contact Us For Availability
39
Swivel Cap WPL 744036 Contact Us For Availability
40
Lead, Motor (White, 13`` Long) WPL 744935 Contact Us For Availability
40
Washer, Thrust WPL 722909 Contact Us For Availability
41
Lead, Motor (Yellow, 11-1/2`` Long) WPL 744936 Contact Us For Availability
41
Washer WPL 725635 Contact Us For Availability
42
On-Sert (4) WPL 681267 Contact Us For Availability
42
Catch, Indexing WPL 722955 Contact Us For Availability
43
Switch, Vacuum (Includes Illus. 61) WPL 744931 Contact Us For Availability
43
Catch, Ratchet WPL 742016 Contact Us For Availability
44
Wheel, Rear WPL 744052 Contact Us For Availability
45
Plug, Electric WPL 744208 Contact Us For Availability
46
Insulator, Rotating WPL 744207 Contact Us For Availability
46
Bridge, Motor WPL 705093 Contact Us For Availability
47
Elbow Assembly WPL 744206 Contact Us For Availability
47
Belt, Cogged (Pkg. of 1) WPL 743411 Contact Us For Availability
48
Contact, Stationary WPL 744205 Contact Us For Availability
48
Motor WPL 4147595 Contact Us For Availability
49
Hood WPL 744071 Contact Us For Availability
49
Spring, Motor Adjustment WPL 742002 Contact Us For Availability
50
Cover, Harness (Long) WPL 744199 Contact Us For Availability
50
Gasket WPL 705309 Contact Us For Availability
51
Bag, Dust (Pkg. of 12) WPL 676298 Contact Us For Availability
51
Bag, Dust (Pkg. of 3) WPL 733000 Contact Us For Availability
51
Base WPL 744027 Contact Us For Availability
52
Holder, Dust Bag WPL 4148613 Contact Us For Availability
52
Front Axle Assembly WPL 744029 Contact Us For Availability
53
Bumper WPL 744064 Contact Us For Availability
54
Foam, Safety Filter WPL 744068 Contact Us For Availability
55
WPL 744067 WPL 744067 Contact Us For Availability
56
WPL 706884 WPL 706884 Contact Us For Availability
57
WPL 744051 WPL 744051 Contact Us For Availability
59
WPL 744973 WPL 744973 Contact Us For Availability
61
WPL 706992 WPL 706992 Contact Us For Availability
× ![]()
