Model Whirlpool FC5500XS0 CANISTER VACUUM CLEANER – Common Parts & Diagrams
04 - SECTION
03 - SECTION
02 - SECTION
01 - SECTION

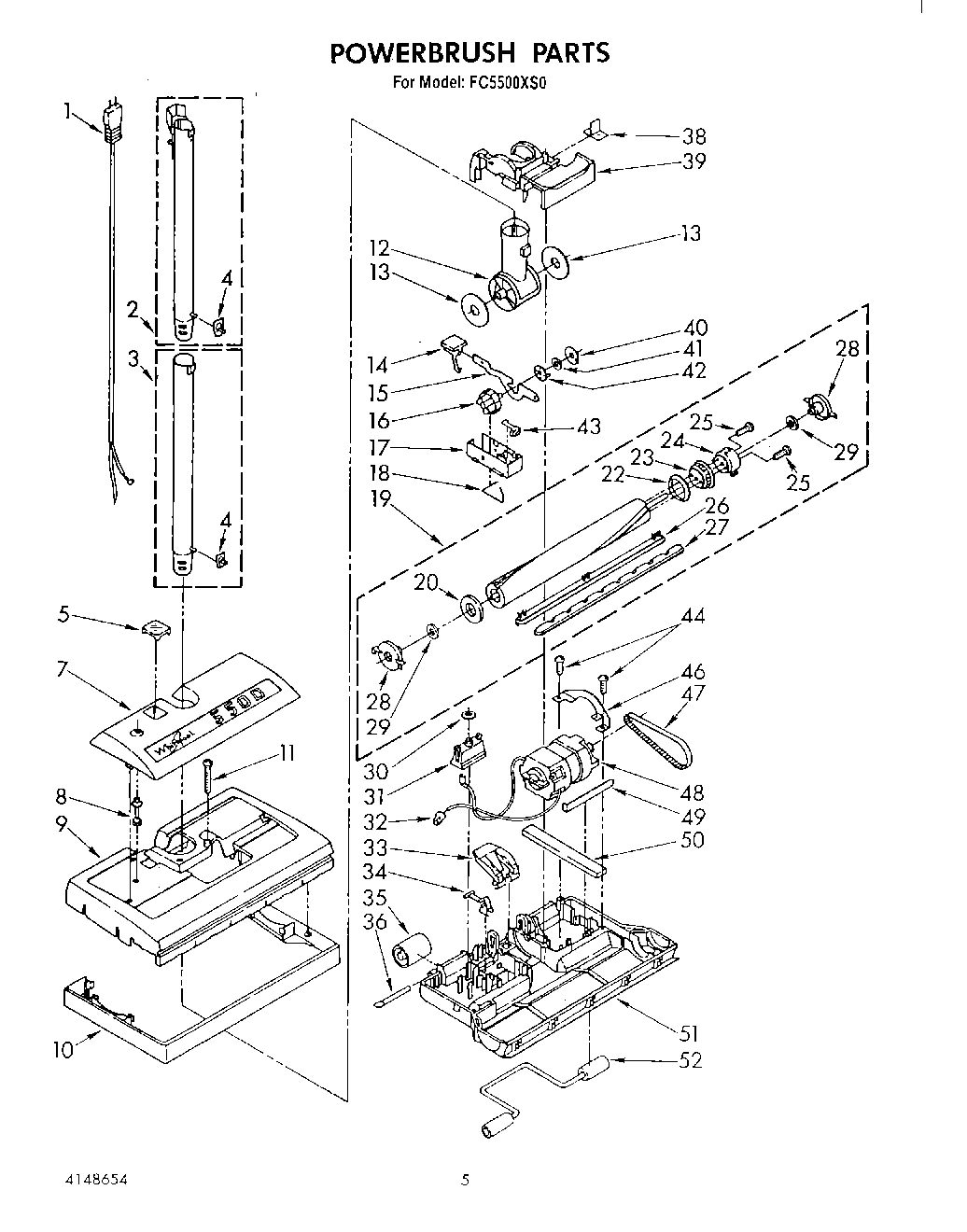

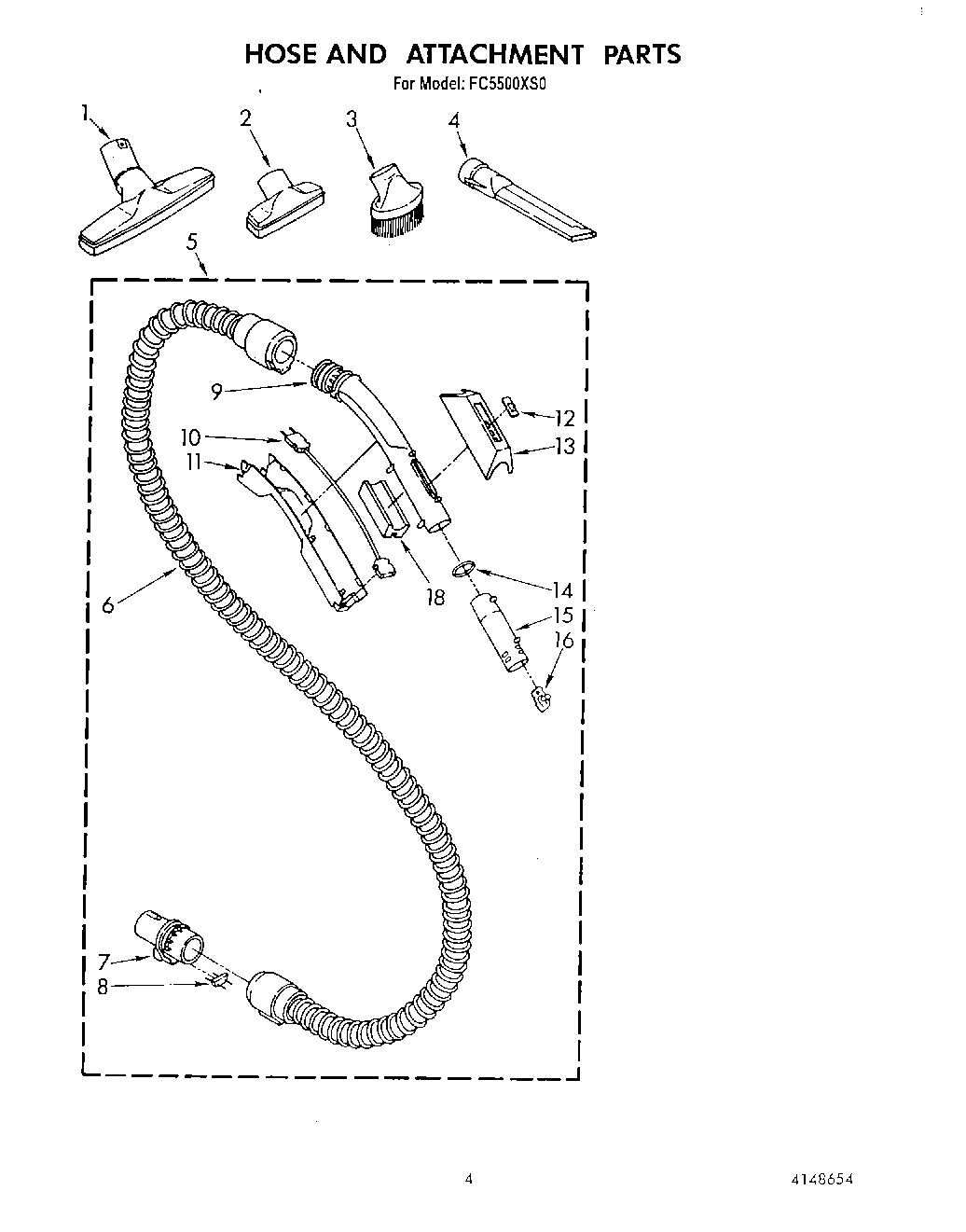

Common parts from model Whirlpool FC5500XS0 CANISTER VACUUM CLEANER
Label, Wiring Diagram WPL LIT4148560 Contact Us For Availability
Owner`s Booklet WPL LIT4148653 Contact Us For Availability
Repair Parts List WPL LIT4148654 Contact Us For Availability
1
Cord & Plug WPL 4148431 Contact Us For Availability
1
Brush, Floor WPL 4147381 Contact Us For Availability
1
Nameplate WPL 4148558 Contact Us For Availability
2
Wand & Cord Mount Assembly WPL 4148535 Contact Us For Availability
2
Nozzle, Upholstery WPL 4147383 Contact Us For Availability
3
Wand, Lower WPL 742489 Contact Us For Availability
3
Brush, Dusting WPL 4147378 Contact Us For Availability
4
Tool, Crevice WPL 4147375 Contact Us For Availability
5
Lens, Height Adjustment WPL 744237 Contact Us For Availability
5
Hose Assembly WPL 4148539 Contact Us For Availability
6
Hose WPL 4148437 Contact Us For Availability
7
Cover, Nozzle WPL 4148559 Contact Us For Availability
7
Terminal WPL 4147362 Contact Us For Availability
7
Lead, Wire (Black, 11-1/2`` Long) WPL 4147611 Contact Us For Availability
8
Button Extension WPL 744280 Contact Us For Availability
8
Plug, Male WPL 4148429 Contact Us For Availability
8
Lead, Wire (Orange, 11-1/2`` Long) WPL 4147416 Contact Us For Availability
9
Nozzle WPL 4148424 Contact Us For Availability
9
Housing, Center Tube WPL 4148427 Contact Us For Availability
10
Bumper WPL 4148425 Contact Us For Availability
10
Cord & Plug Assembly WPL 744189 Contact Us For Availability
10
Cover, Exhaust WPL 4147388 Contact Us For Availability
11
Housing, Lower WPL 4148428 Contact Us For Availability
11
Filter, Exhaust WPL 744062 Contact Us For Availability
12
Swivel WPL 4148418 Contact Us For Availability
12
Control, Suction WPL 4148439 Contact Us For Availability
12
Cover, Motor WPL 4148679 Contact Us For Availability
13
Seal, Swivel WPL 742019 Contact Us For Availability
13
Housing, Upper WPL 4148430 Contact Us For Availability
13
Switch, On-Off WPL 4147409 Contact Us For Availability
14
Pad, Footpedal WPL 4148421 Contact Us For Availability
14
``O`` Ring WPL 745016 Contact Us For Availability
15
Lever, Indicator WPL 742017 Contact Us For Availability
15
Tube (Includes Illus. 16) WPL 4147584 Contact Us For Availability
16
Spring, Wandlock WPL 725419 Contact Us For Availability
16
Cam, Indicator WPL 744039 Contact Us For Availability
17
Block, Indicator WPL 742015 Contact Us For Availability
17
Plate, Motor Gasket WPL 744057 Contact Us For Availability
18
Spring, Assist WPL 725775 Contact Us For Availability
18
Filler, Foam WPL 745020 Contact Us For Availability
18
Gasket, Motor WPL 744056 Contact Us For Availability
19
Bearing & Brush Assembly WPL 742480 Contact Us For Availability
19
Motor Assembly WPL 700690 Contact Us For Availability
20
Guard, String WPL 742172 Contact Us For Availability
20
Brush, Motor WPL 588867 Contact Us For Availability
22
Flange, Brush Sprocket WPL 742031 Contact Us For Availability
22
Cover, Tool Storage WPL 4147358 Contact Us For Availability
23
Sprocket, Brush WPL 742506 Contact Us For Availability
24
End Brush WPL 742509 Contact Us For Availability
25
Screw, 8-18 x 1-7/8 (4) WPL 681550 Contact Us For Availability
25
Screw, No.6-20 x 1`` (2) WPL 681605 Contact Us For Availability
26
Brush, Beater WPL 742030 Contact Us For Availability
26
Harness, Hood Wire WPL 744209 Contact Us For Availability
27
Bar, Beater WPL 742029 Contact Us For Availability
27
Insulator, Male WPL 4148664 Contact Us For Availability
28
Bearing & Housing Assembly (4) WPL 743395 Contact Us For Availability
28
Palnut, 1/8`` Stud (4) WPL 681666 Contact Us For Availability
29
Washer, Metal 12 x 1/2 (2) WPL 681424 Contact Us For Availability
29
Insulator, Female WPL 4148665 Contact Us For Availability
30
Seal, Overload WPL 742968 Contact Us For Availability
30
Power, Cord WPL 4147373 Contact Us For Availability
31
Overload Protector WPL 742332 Contact Us For Availability
31
STRAIN RELIEF WPL 680646 Contact Us For Availability
32
Wire Connector WPL 596564 Contact Us For Availability
32
Gasket, Strip WPL 744615 Contact Us For Availability
33
Release, Handle WPL 4148436 Contact Us For Availability
34
Lifter WPL 742013 Contact Us For Availability
34
Cover, Harness (Short) WPL 4147418 Contact Us For Availability
35
Roller (2) WPL 4148419 Contact Us For Availability
36
Axle, Rear (2) WPL 742006 Contact Us For Availability
36
Screw, 10-24 x 1/2 (4) WPL 681697 Contact Us For Availability
38
Plug, Bulb WPL 744279 Contact Us For Availability
39
Swivel Cap WPL 4148423 Contact Us For Availability
39
Lead, Motor (Black, 9 1/2`` Long) WPL 4148681 Contact Us For Availability
40
Washer, Thrust WPL 722909 Contact Us For Availability
40
Lead, Motor (White, 9 1/2``Long) WPL 4148703 Contact Us For Availability
41
Washer WPL 725635 Contact Us For Availability
42
Catch, Indexing WPL 722955 Contact Us For Availability
42
On-Sert (4) WPL 681267 Contact Us For Availability
43
Catch, Ratchet WPL 742016 Contact Us For Availability
44
Wheel, Rear WPL 4147578 Contact Us For Availability
45
Plug, Electric WPL 4148541 Contact Us For Availability
46
Bridge, Motor WPL 705093 Contact Us For Availability
46
Insulator, Rotating WPL 744207 Contact Us For Availability
47
Belt, Cogged (Pkg. of 1) WPL 743411 Contact Us For Availability
47
Elbow Assembly WPL 4148542 Contact Us For Availability
48
Motor WPL 705064 Contact Us For Availability
48
Contact, Stationary WPL 744205 Contact Us For Availability
49
Spring, Motor Adjustment WPL 742002 Contact Us For Availability
49
Hood WPL 4147354 Contact Us For Availability
50
Gasket WPL 705309 Contact Us For Availability
50
Cover, Harness (Long) WPL 4148438 Contact Us For Availability
51
Base WPL 744027 Contact Us For Availability
51
Bag, Dust (Pkg. of 12) WPL 676298 Contact Us For Availability
51
Bag, Dust (Pkg. of 3) WPL 733000 Contact Us For Availability
52
Front Axle Assembly WPL 4148536 Contact Us For Availability
52
Holder, Dust Bag WPL 4148613 Contact Us For Availability
53
Bumper WPL 4147374 Contact Us For Availability
54
Foam, Safety Filter WPL 744068 Contact Us For Availability
55
Frame, Safety Filter WPL 744067 Contact Us For Availability
56
Pin, Caster Retainer WPL 706884 Contact Us For Availability
57
Base, Canister WPL 4147359 Contact Us For Availability
59
Caster, Complete WPL 4148010 Contact Us For Availability
× ![]()
