Model Whirlpool FC5000XM1 CANISTER VACUUM CLEANER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

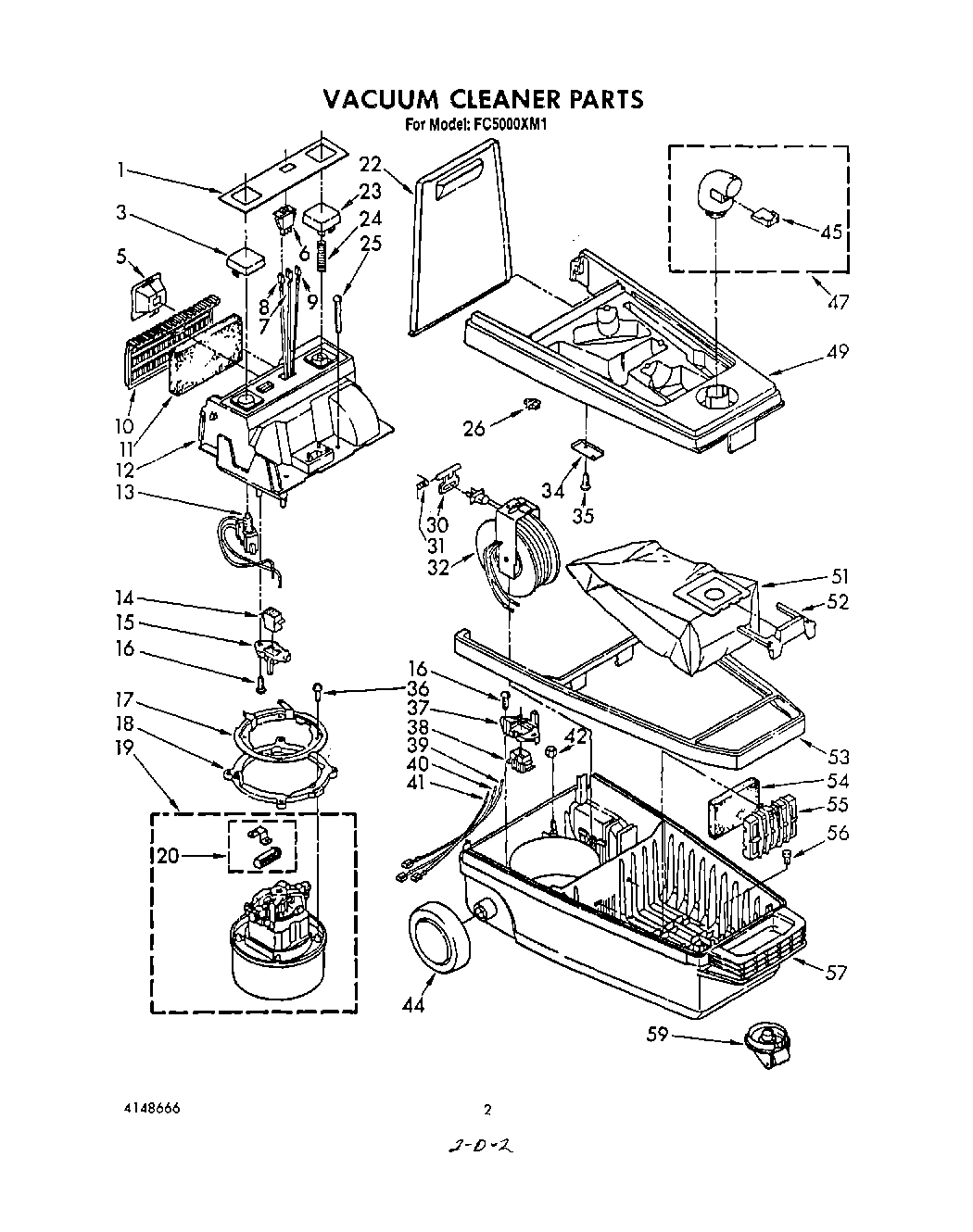

02 - SECTION
Common parts from model Whirlpool FC5000XM1 CANISTER VACUUM CLEANER
Repair Parts List WPL LIT4148666 Contact Us For Availability
Label, Wiring Diagram WPL LIT744253 Contact Us For Availability
Owner`s Booklet WPL LIT745036 Contact Us For Availability
1
Brush, Floor WPL 744141 Contact Us For Availability
1
Nameplate WPL 744113 Contact Us For Availability
2
Nozzle, Upholstery WPL 744144 Contact Us For Availability
3
Brush, Dusting WPL 744146 Contact Us For Availability
3
Button, Switch WPL 744116 Contact Us For Availability
4
Tool, Crevice WPL 744140 Contact Us For Availability
5
Nozzle, Rug WPL 745002 Contact Us For Availability
5
Retainer, Cord WPL 745032 Contact Us For Availability
6
Hose Assembly WPL 744217 Contact Us For Availability
6
Switch, Hi-Lo WPL 744115 Contact Us For Availability
7
Hose WPL 744219 Contact Us For Availability
7
Lead, Wire (Yellow, 11-1/2`` Long) WPL 744901 Contact Us For Availability
8
Terminal WPL 744174 Contact Us For Availability
8
Lead, Wire (Orange, 11-1/2`` Long) WPL 744900 Contact Us For Availability
9
Lead, Wire (Red, 11`` Long) WPL 744895 Contact Us For Availability
10
Curved Handle Assembly WPL 744294 Contact Us For Availability
10
Cover, Exhaust WPL 744061 Contact Us For Availability
11
Adaptor WPL 744292 Contact Us For Availability
11
Filter, Exhaust WPL 744062 Contact Us For Availability
12
Spring, Wandlock WPL 725419 Contact Us For Availability
12
Cover, Motor WPL 744112 Contact Us For Availability
13
Band, Suction Control WPL 744224 Contact Us For Availability
13
Switch & Harness, On-Off (Includes Illus. 4) WPL 744898 Contact Us For Availability
14
Holder, Control Band WPL 744228 Contact Us For Availability
14
Insulator, Receptacle WPL 596795 Contact Us For Availability
15
Wand (2) WPL 742489 Contact Us For Availability
15
Bracket, Receptacle WPL 744298 Contact Us For Availability
17
Plate, Motor Gasket WPL 744057 Contact Us For Availability
18
Gasket, Motor WPL 744056 Contact Us For Availability
19
Motor Assembly WPL 700556 Contact Us For Availability
20
Brush, Motor WPL 588445 Contact Us For Availability
22
Cover, Tool Storage WPL 744106 Contact Us For Availability
23
Button, Cord Rewind WPL 744060 Contact Us For Availability
24
Spring, Cord Button WPL 744258 Contact Us For Availability
25
Screw, 8-18 x 1-7/8 (4) WPL 681550 Contact Us For Availability
26
Grommet WPL 744249 Contact Us For Availability
30
Lock, Cord WPL 744256 Contact Us For Availability
31
Spring, Cord Lock WPL 744257 Contact Us For Availability
32
Cord Reel WPL 745231 Contact Us For Availability
34
Cover, Harness (Short) WPL 744247 Contact Us For Availability
36
Screw, Hex Head WPL 681697 Contact Us For Availability
37
Bracket, Plug WPL 744297 Contact Us For Availability
38
Insulator, Plug WPL 596794 Contact Us For Availability
39
Lead, Motor (Black, 13`` Long) WPL 744934 Contact Us For Availability
40
Lead, Motor (White, 13`` Long) WPL 744935 Contact Us For Availability
41
Lead, Motor (Yellow, 11-1/2`` Long) WPL 744936 Contact Us For Availability
42
On-Sert (4) WPL 681267 Contact Us For Availability
44
Wheel, Rear WPL 744052 Contact Us For Availability
45
Plug WPL 744252 Contact Us For Availability
47
Elbow Assembly WPL 744250 Contact Us For Availability
49
Hood WPL 744071 Contact Us For Availability
51
Bag, Dust (Pkg. of 12) WPL 676298 Contact Us For Availability
51
Bag, Dust (Pkg. of 3) WPL 733000 Contact Us For Availability
52
Holder, Dust Bag WPL 4148613 Contact Us For Availability
53
Bumper WPL 744064 Contact Us For Availability
54
Foam, Safety Filter WPL 744068 Contact Us For Availability
55
Frame, Safety Filter WPL 744067 Contact Us For Availability
56
Pin, Caster Retainer WPL 706884 Contact Us For Availability
57
Base, Canister WPL 745008 Contact Us For Availability
59
Caster, Complete WPL 744973 Contact Us For Availability
× ![]()
