Model Whirlpool FC3000XR1 CANISTER VACUUM CLEANER – Common Parts & Diagrams
02 - SECTION
01 - SECTION

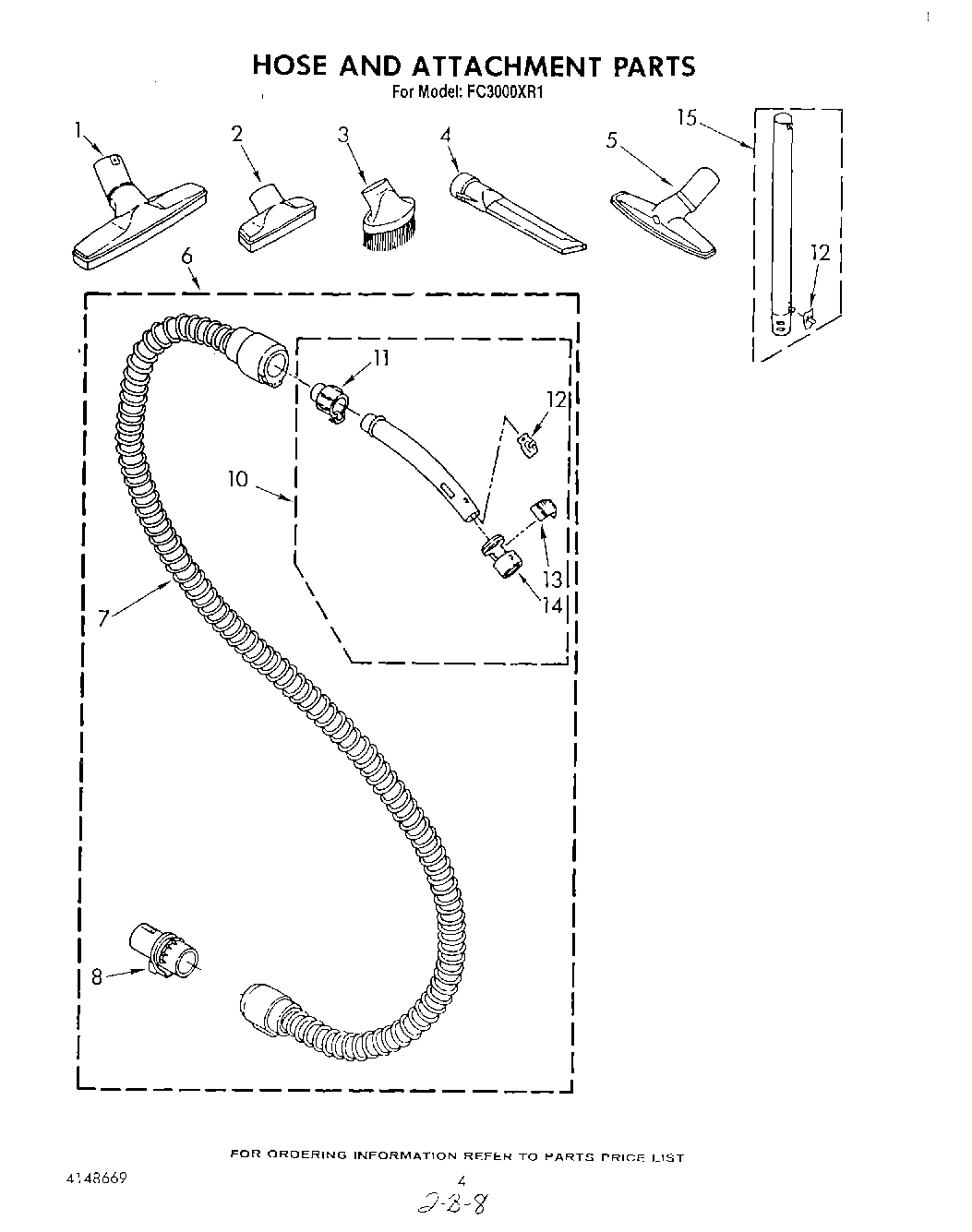

03 - SECTION
Common parts from model Whirlpool FC3000XR1 CANISTER VACUUM CLEANER
Label, Wiring Diagram WPL LIT4147586 Contact Us For Availability
Owner`s Booklet WPL LIT4147900 Contact Us For Availability
Repair Parts List WPL LIT4148669 Contact Us For Availability
1
Nameplate WPL 744127 Contact Us For Availability
1
Brush, Floor WPL 4147381 Contact Us For Availability
2
Nozzle, Upholstery WPL 4147383 Contact Us For Availability
3
STRAIN RELIEF WPL 680646 Contact Us For Availability
3
Brush, Dusting WPL 4147378 Contact Us For Availability
4
Connector, Wire WPL 596564 Contact Us For Availability
4
Tool, Crevice WPL 4147375 Contact Us For Availability
5
Power, Cord WPL 4147373 Contact Us For Availability
5
Nozzle, Rug WPL 4147387 Contact Us For Availability
6
Switch, On-Off WPL 4147409 Contact Us For Availability
6
Hose Assembly WPL 4147361 Contact Us For Availability
7
Lead, Wire (Black, 11-1/2`` Long) WPL 4147611 Contact Us For Availability
7
Hose WPL 4147363 Contact Us For Availability
8
Lead, Wire (Orange, 11-1/2`` Long) WPL 4147416 Contact Us For Availability
8
Terminal WPL 4147362 Contact Us For Availability
10
Cover, Exhaust WPL 4147388 Contact Us For Availability
10
Curved Handle Assembly WPL 4147364 Contact Us For Availability
11
Filter, Exhaust WPL 744062 Contact Us For Availability
11
Adaptor WPL 4147367 Contact Us For Availability
12
Cover, Motor WPL 744126 Contact Us For Availability
12
Spring, Wandlock WPL 725419 Contact Us For Availability
13
Band, Suction Control WPL 4147365 Contact Us For Availability
14
Holder, Control Band WPL 4147366 Contact Us For Availability
15
Wand (2) WPL 742489 Contact Us For Availability
16
GASKET WPL 744615 Contact Us For Availability
17
Plate, Motor Gasket WPL 744057 Contact Us For Availability
18
Gasket, Motor WPL 744056 Contact Us For Availability
19
Motor WPL 700690 Contact Us For Availability
20
Brush, Motor WPL 588867 Contact Us For Availability
22
Cover, Tool Storage WPL 4147358 Contact Us For Availability
25
Screw, 8-18 x 1-7/8 (4) WPL 681550 Contact Us For Availability
26
Grommet WPL 4147546 Contact Us For Availability
36
Screw, 10-24 x 1/2 (4) WPL 681697 Contact Us For Availability
42
On-Sert (4) WPL 681267 Contact Us For Availability
44
Wheel, Rear WPL 4147578 Contact Us For Availability
45
Plug WPL 4147372 Contact Us For Availability
47
Elbow Assembly WPL 4147371 Contact Us For Availability
49
Hood WPL 4147354 Contact Us For Availability
50
Cover, Harness (Short) WPL 4147418 Contact Us For Availability
51
Bag, Dust (Pkg. of 12) WPL 676298 Contact Us For Availability
51
Bag, Dust (Pkg. of 3) WPL 733000 Contact Us For Availability
52
Holder, Dust Bag WPL 4148613 Contact Us For Availability
53
Bumper WPL 4147374 Contact Us For Availability
54
Foam, Safety Filter WPL 744068 Contact Us For Availability
55
Frame, Safety Filter WPL 744067 Contact Us For Availability
56
Pin, Caster Retainer WPL 706884 Contact Us For Availability
57
Base, Canister WPL 4147359 Contact Us For Availability
59
Caster, Complete WPL 4148010 Contact Us For Availability
× ![]()
