Model Whirlpool FB9900XS0 BUILT-IN VACUUM CLEANER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

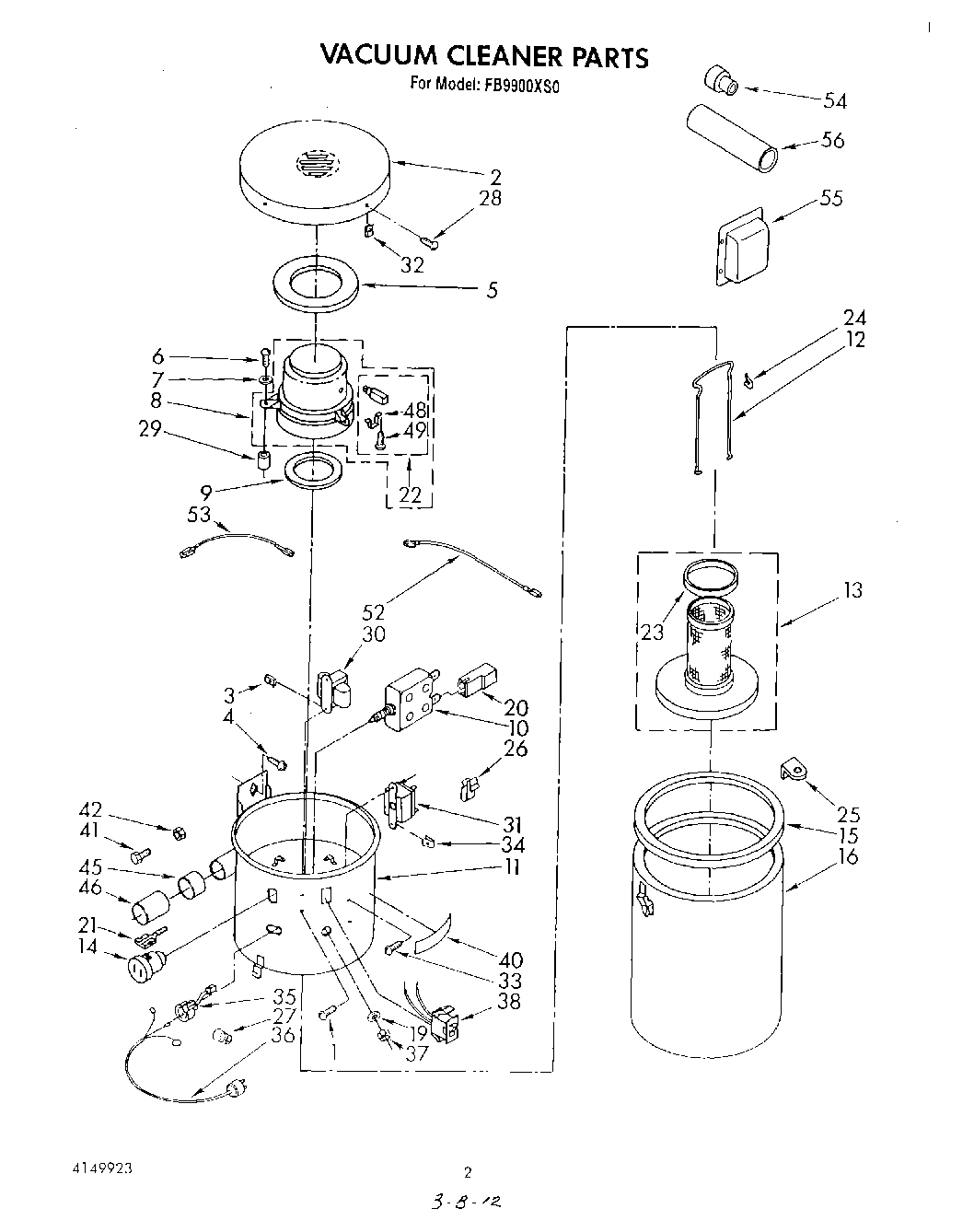

02 - SECTION
Common parts from model Whirlpool FB9900XS0 BUILT-IN VACUUM CLEANER
Instructions, Installation WPL LIT4149921 Contact Us For Availability
Owner`s Manual WPL LIT4149922 Contact Us For Availability
Repair Parts List WPL LIT4149923 Contact Us For Availability
1
Tubing, Flexible, 9`` WPL 732256 Contact Us For Availability
2
Tape, 400`` WPL 732255 Contact Us For Availability
2
Cover WPL 4147032 Contact Us For Availability
3
6` x 2`` Section of Plastic Tubing WPL 4148238 Contact Us For Availability
3
Nut, Speed (2) WPL 681634 Contact Us For Availability
4
Pipe Strap WPL 4149982 Contact Us For Availability
4
Screw, Lag 1/4 x 1-3/4 (2) WPL 681637 Contact Us For Availability
5
Seal, Motor (Top) WPL 732191 Contact Us For Availability
6
Elbow, 90~ Short 2`` WPL 4147069 Contact Us For Availability
6
Screw, 10-12 x 1-3/4 (3) WPL 681568 Contact Us For Availability
7
Elbow, 90~ Sweep, 2`` WPL 4147063 Contact Us For Availability
7
Washer, No.10 (3) WPL 595385 Contact Us For Availability
8
Elbow, 45~, 2`` WPL 4147071 Contact Us For Availability
8
Motor WPL 732172 Contact Us For Availability
9
Tee, 90~ Sweep WPL 4147067 Contact Us For Availability
9
Seal, Motor (Bottom) WPL 701425 Contact Us For Availability
10
Mounting Plate WPL 4147061 Contact Us For Availability
10
Breaker, Circuit (Includes Illus. 37) WPL 732185 Contact Us For Availability
11
Wall Valve WPL 4150158 Contact Us For Availability
11
Cylinder Assembly WPL 4147035 Contact Us For Availability
12
Adhesive (For Sealing Rigid Tube To Fittings) WPL 616070 Contact Us For Availability
12
Adhesive (For Sealing Rigid Tube To Fittings) WPL 701695 Contact Us For Availability
12
Retainer, Filter WPL 701101 Contact Us For Availability
13
Filter & Disk WPL 701213 Contact Us For Availability
14
Terminal WPL 732182 Contact Us For Availability
15
Gasket, Dirt Receptacle WPL 701098 Contact Us For Availability
16
Receptacle, Dirt WPL 4147033 Contact Us For Availability
19
Washer 7/16 WPL 680690 Contact Us For Availability
20
Housing, Receptacle (2) WPL 596610 Contact Us For Availability
22
Kit, Brush Replacement WPL 568980 Contact Us For Availability
23
Gasket, Filter WPL 701180 Contact Us For Availability
24
Clip, Retainer (2) WPL 596521 Contact Us For Availability
25
Clip, Filter Retaining WPL 701236 Contact Us For Availability
26
Clip, Wire WPL 681557 Contact Us For Availability
27
Connector, Closed End WPL 596219 Contact Us For Availability
29
Spacer, Motor Bracket (3) WPL 732133 Contact Us For Availability
30
Transformer WPL 732181 Contact Us For Availability
31
Relay, Motor WPL 732146 Contact Us For Availability
32
Nut, Speed (4) WPL 681642 Contact Us For Availability
33
Screw, 6-20 x 3/8 (2) WPL 681631 Contact Us For Availability
34
Nut, Speed (2) WPL 681633 Contact Us For Availability
35
Strain Relief WPL 681276 Contact Us For Availability
36
Cord, Power WPL 701614 Contact Us For Availability
37
Nut, Switch (2) WPL 680027 Contact Us For Availability
38
Switch, Rocker WPL 732162 Contact Us For Availability
40
Nameplate WPL 4147082 Contact Us For Availability
41
Screw, 8-32 x 3/8 WPL 681036 Contact Us For Availability
45
Bushing WPL 732259 Contact Us For Availability
46
Coupling WPL 732254 Contact Us For Availability
48
Clamp (2) WPL 568924 Contact Us For Availability
52
Lead, Wire (7``) WPL 732196 Contact Us For Availability
53
Lead, Wire (4) WPL 732195 Contact Us For Availability
54
Coupling, Reducer WPL 616556 Contact Us For Availability
55
Muffler, Exhaust WPL 701113 Contact Us For Availability
56
Tubing-Rigid (8``) WPL 732301 Contact Us For Availability
× ![]()
