Model Whirlpool FB7700XR0 BUILT-IN VACUUM CLEANER – Common Parts & Diagrams

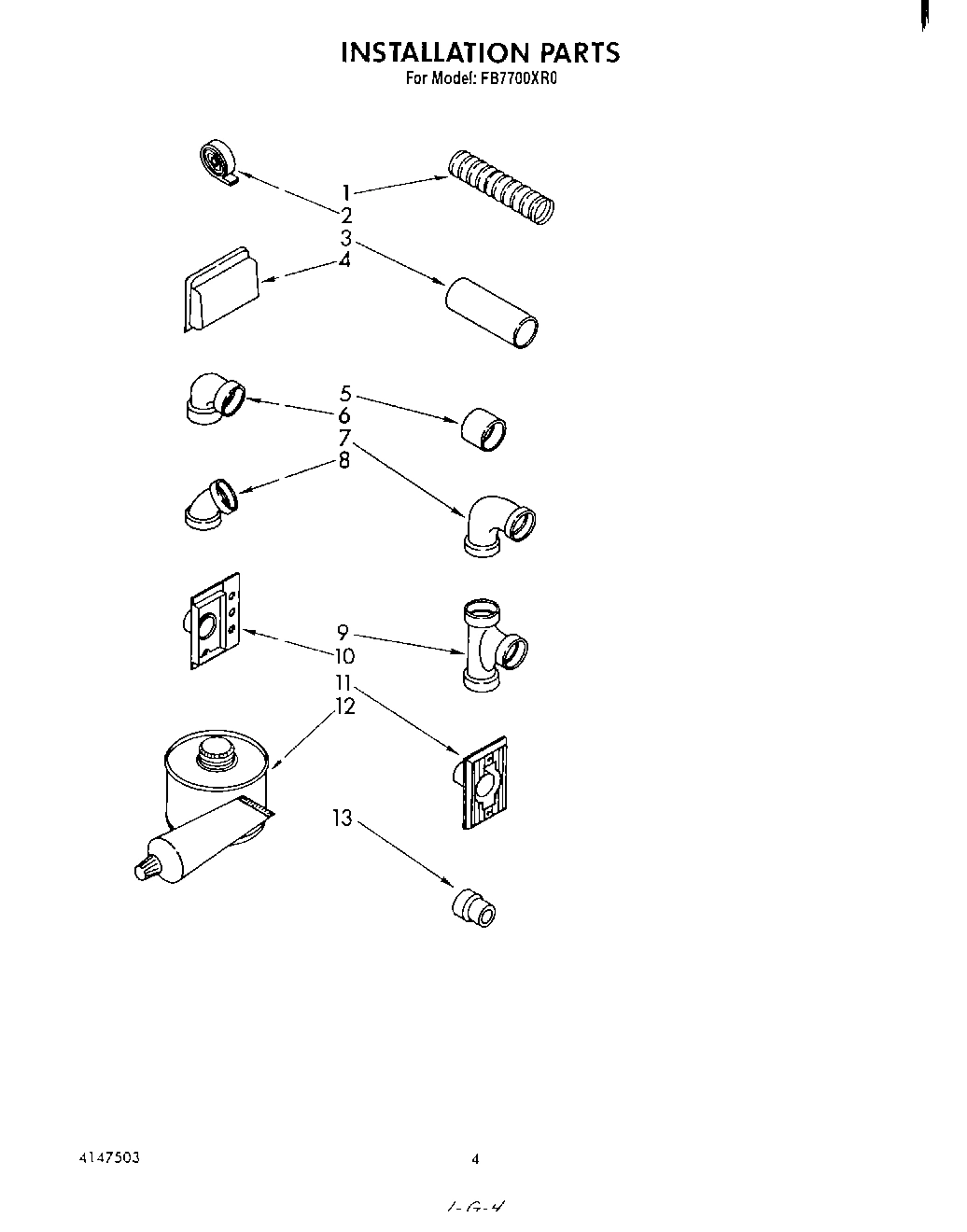

03 - SECTION

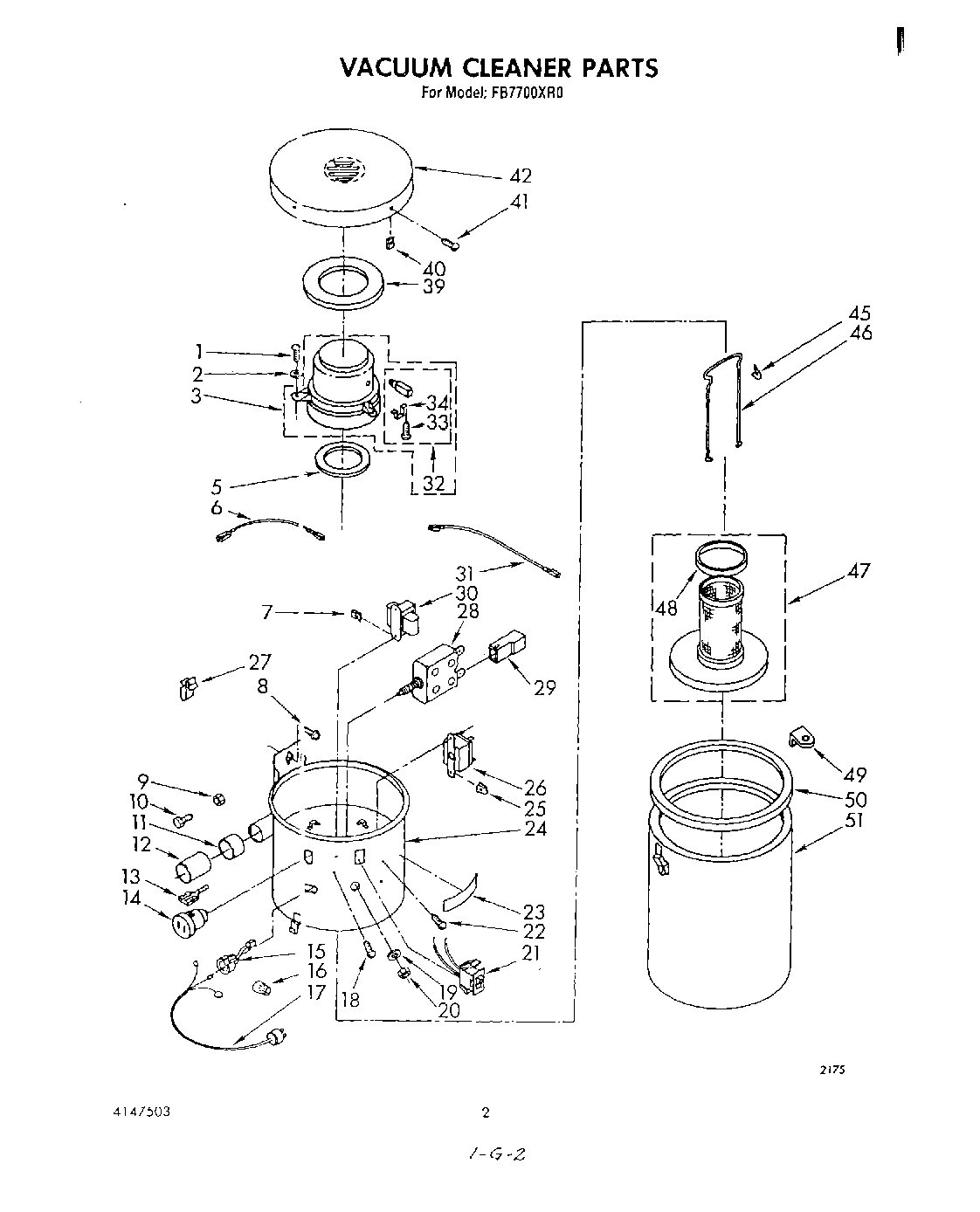

02 - SECTION

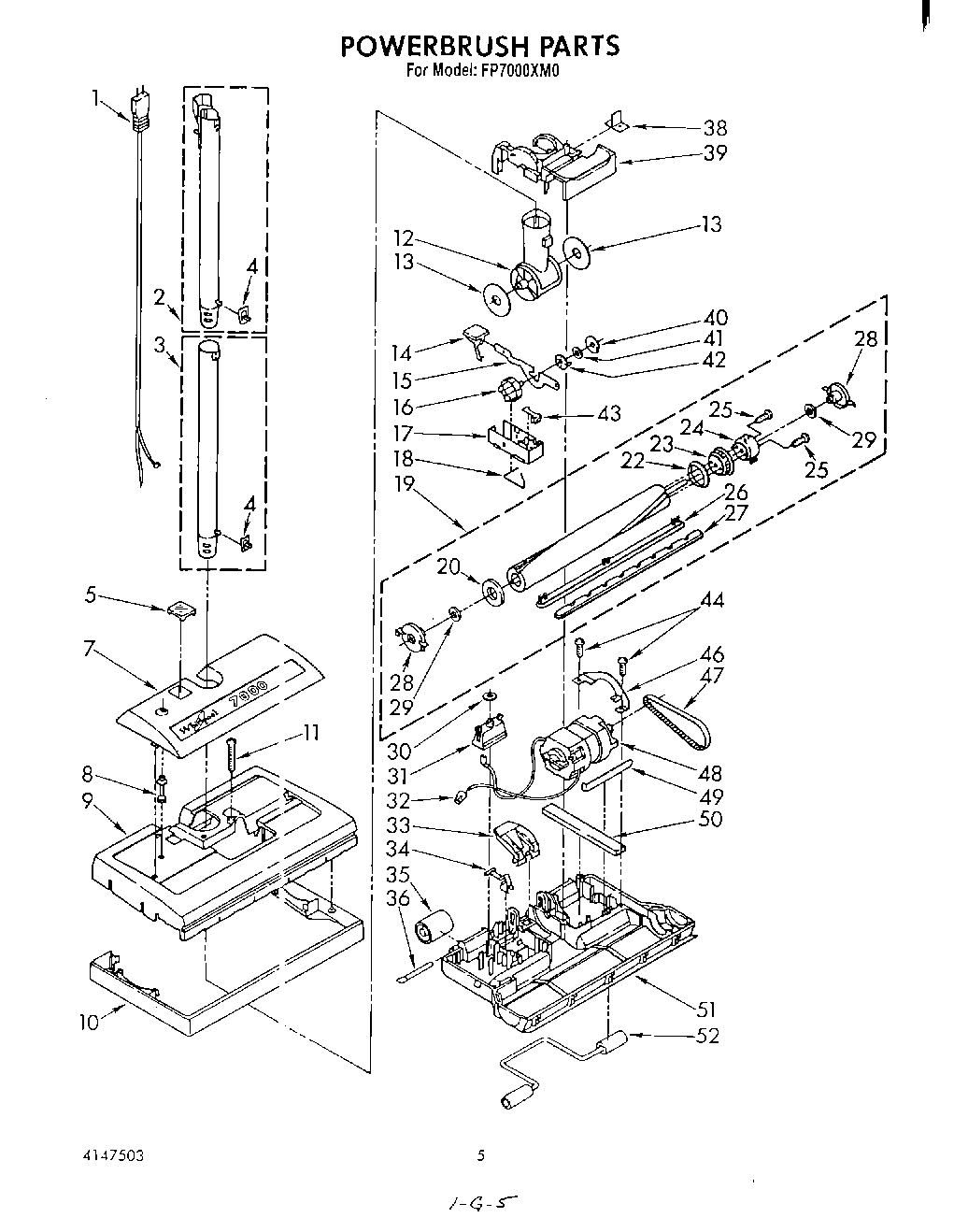

04 - SECTION

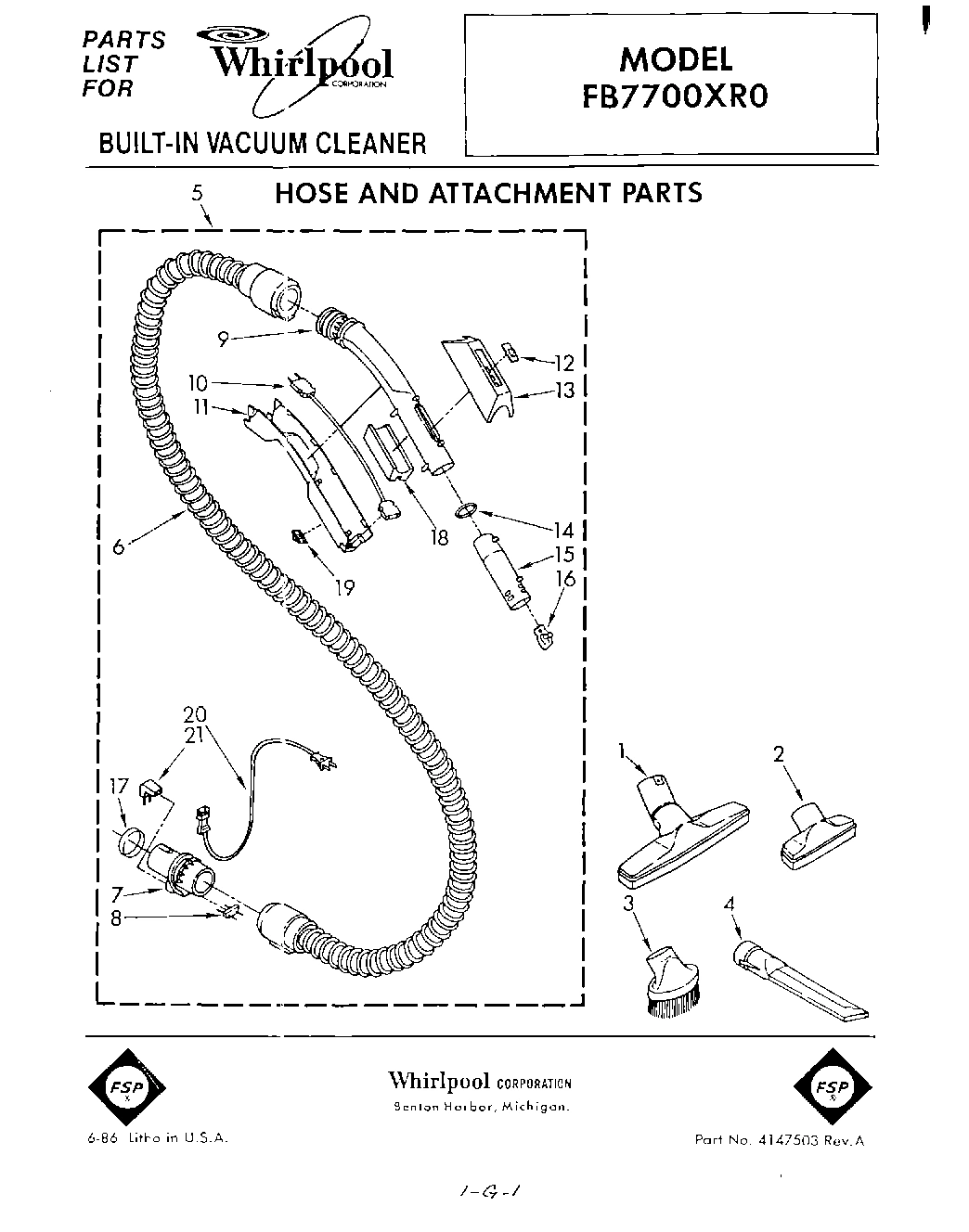

01 - SECTION
Common parts from model Whirlpool FB7700XR0 BUILT-IN VACUUM CLEANER
Owner`s Manual WPL LIT4147008 Contact Us For Availability
Instructions, Installation WPL LIT4147009 Contact Us For Availability
Repair Parts LIst WPL LIT4147503 Contact Us For Availability
1
Tubing, Flexible, 9`` WPL 732256 Contact Us For Availability
1
Screw, 10-12 x 3/4 (3) WPL 680213 Contact Us For Availability
1
Cord & Plug WPL 744265 Contact Us For Availability
1
Brush, Floor WPL 744141 Contact Us For Availability
2
Tape, 400`` WPL 732255 Contact Us For Availability
2
Washer, No.10 (3) WPL 595385 Contact Us For Availability
2
Wand & Cord Mount Assembly WPL 745250 Contact Us For Availability
2
Nozzle, Upholstery WPL 744144 Contact Us For Availability
3
Tube, PVC 1-3/4 O.D. x 8`` WPL 732301 Contact Us For Availability
3
Motor WPL 732090 Contact Us For Availability
3
Wand, Lower WPL 742489 Contact Us For Availability
3
Brush, Dusting WPL 744146 Contact Us For Availability
4
Muffler, Exhaust WPL 701113 Contact Us For Availability
4
Tool, Crevice WPL 744140 Contact Us For Availability
5
Coupling, 2`` WPL 4147065 Contact Us For Availability
5
Seal, Motor (Bottom) WPL 701425 Contact Us For Availability
5
Lens, Height Adjustment WPL 744237 Contact Us For Availability
5
Hose Assembly WPL 4147330 Contact Us For Availability
6
Elbow, 90~ Short 2`` WPL 4147069 Contact Us For Availability
6
Lead, Wire (4) WPL 732195 Contact Us For Availability
6
Hose WPL 4147326 Contact Us For Availability
7
Elbow, 90~ Sweep, 2`` WPL 4147063 Contact Us For Availability
7
Nut, Speed (2) WPL 681634 Contact Us For Availability
7
Cover, Nozzle WPL 744136 Contact Us For Availability
7
Terminal WPL 734065 Contact Us For Availability
8
Elbow, 45~, 2`` WPL 4147071 Contact Us For Availability
8
Screw, Lag 1/4 x 1-3/4 (2) WPL 681637 Contact Us For Availability
8
Button Extension WPL 744280 Contact Us For Availability
8
Plug, Male WPL 741428 Contact Us For Availability
9
Tee, 90~ Sweep WPL 4147067 Contact Us For Availability
9
Nozzle WPL 744047 Contact Us For Availability
9
Housing, Center Tube WPL 744180 Contact Us For Availability
10
Mounting Plate WPL 4147061 Contact Us For Availability
10
Screw, 8-32 x 3/8 WPL 681036 Contact Us For Availability
10
Bumper WPL 744092 Contact Us For Availability
10
Cord & Plug Assembly WPL 4147325 Contact Us For Availability
11
Wall Valve WPL 4147059 Contact Us For Availability
11
Bushing WPL 732259 Contact Us For Availability
11
Screw, 8-18 x 1-7/8 (2) WPL 681550 Contact Us For Availability
11
Switch & Lower Housing WPL 4147697 Contact Us For Availability
12
Adhesive (For Sealing Rigid Tube To Fittings) WPL 616070 Contact Us For Availability
12
Adhesive (For Sealing Rigid Tube To Fittings) WPL 701695 Contact Us For Availability
12
Coupling WPL 732254 Contact Us For Availability
12
Swivel WPL 744032 Contact Us For Availability
12
Control, Suction WPL 744187 Contact Us For Availability
13
Coupling, Reducer WPL 616556 Contact Us For Availability
13
Seal, Swivel WPL 742019 Contact Us For Availability
13
Housing, Upper WPL 744185 Contact Us For Availability
14
Terminal WPL 732182 Contact Us For Availability
14
Pad, Footpedal WPL 744040 Contact Us For Availability
14
``O`` Ring WPL 745016 Contact Us For Availability
15
Strain Relief WPL 681276 Contact Us For Availability
15
Lever, Indicator WPL 742017 Contact Us For Availability
15
Tube (Includes Illus. 16) WPL 4147584 Contact Us For Availability
16
Connector, Closed End WPL 596219 Contact Us For Availability
16
Spring, Wandlock WPL 725419 Contact Us For Availability
16
Cam, Indicator WPL 744039 Contact Us For Availability
17
Cord, Power WPL 701614 Contact Us For Availability
17
Block, Indicator WPL 742015 Contact Us For Availability
17
Ring, Contact WPL 4147616 Contact Us For Availability
18
Spring, Assist WPL 725775 Contact Us For Availability
18
Filler, Foam WPL 4147329 Contact Us For Availability
19
Washer 7/16 WPL 680690 Contact Us For Availability
19
Bearing & Brush Assembly WPL 742480 Contact Us For Availability
19
Topper, Switch WPL 744741 Contact Us For Availability
20
Nut, Switch (2) WPL 680027 Contact Us For Availability
20
Guard, String WPL 742172 Contact Us For Availability
20
Cord, Power WPL 734070 Contact Us For Availability
21
Switch, Rocker WPL 732162 Contact Us For Availability
21
Plug, Double Fused WPL 742359 Contact Us For Availability
22
Screw, 6-20 x 3/8 (2) WPL 681631 Contact Us For Availability
22
Flange, Brush Sprocket WPL 742031 Contact Us For Availability
23
Nameplate WPL 4147081 Contact Us For Availability
23
Sprocket, Brush WPL 742506 Contact Us For Availability
24
Cylinder Assembly WPL 4147006 Contact Us For Availability
24
End Brush WPL 742509 Contact Us For Availability
25
Nut, Speed (2) WPL 681633 Contact Us For Availability
25
Screw, No.6-20 x 1`` (2) WPL 681605 Contact Us For Availability
26
Relay, Motor WPL 732146 Contact Us For Availability
26
Brush, Beater WPL 742030 Contact Us For Availability
27
Clip, Wire WPL 681557 Contact Us For Availability
27
Bar, Beater WPL 742029 Contact Us For Availability
28
Breaker, Circuit (Includes Illus 20) WPL 732185 Contact Us For Availability
28
Bearing & Housing Assembly (4) WPL 743395 Contact Us For Availability
29
Housing, Receptacle (2) WPL 596610 Contact Us For Availability
29
Washer, Metal 12 x 1/2 (2) WPL 681424 Contact Us For Availability
30
Transformer WPL 732181 Contact Us For Availability
30
Seal, Overload WPL 742968 Contact Us For Availability
31
Lead, Wire (7``) WPL 732196 Contact Us For Availability
31
Overload Protector WPL 742332 Contact Us For Availability
32
Kit, Brush WPL 568980 Contact Us For Availability
32
Wire Connector WPL 596564 Contact Us For Availability
33
Release, Handle WPL 744031 Contact Us For Availability
34
Clamp (2) WPL 568924 Contact Us For Availability
34
Lifter WPL 742013 Contact Us For Availability
35
Roller (2) WPL 744240 Contact Us For Availability
36
Axle, Rear (2) WPL 742006 Contact Us For Availability
38
Tube, PVC 1-3/4`` O.D. x 3`` WPL 732300 Contact Us For Availability
38
Plug, Bulb WPL 744279 Contact Us For Availability
39
Seal, Motor (Top) WPL 732192 Contact Us For Availability
39
Swivel Cap WPL 744036 Contact Us For Availability
40
Nut, Speed (4) WPL 681642 Contact Us For Availability
40
Washer, Thrust WPL 722909 Contact Us For Availability
41
Washer WPL 725635 Contact Us For Availability
42
Cover WPL 4147003 Contact Us For Availability
42
Catch, Indexing WPL 722955 Contact Us For Availability
43
Catch, Ratchet WPL 742016 Contact Us For Availability
45
Clip, Retainer (2) WPL 596521 Contact Us For Availability
46
Retainer, Filter WPL 701101 Contact Us For Availability
46
Bridge, Motor WPL 705093 Contact Us For Availability
47
Filter & Disk WPL 701213 Contact Us For Availability
47
Belt, Cogged (Pkg. of 1) WPL 733002 Contact Us For Availability
48
Gasket, Filter WPL 701180 Contact Us For Availability
48
Motor WPL 705064 Contact Us For Availability
49
Clip, Filter Retaining WPL 701236 Contact Us For Availability
49
Spring, Motor Adjustment WPL 742002 Contact Us For Availability
50
Gasket, Dirt Receptacle WPL 701098 Contact Us For Availability
50
Gasket WPL 705309 Contact Us For Availability
51
Receptacle, Dirt WPL 4147004 Contact Us For Availability
51
Base WPL 744027 Contact Us For Availability
52
Front Axle Assembly WPL 744029 Contact Us For Availability
× ![]()
