Model Electrolux FAV157W1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET FRONT AND WRAPPER
03 - CONTROL PARTS

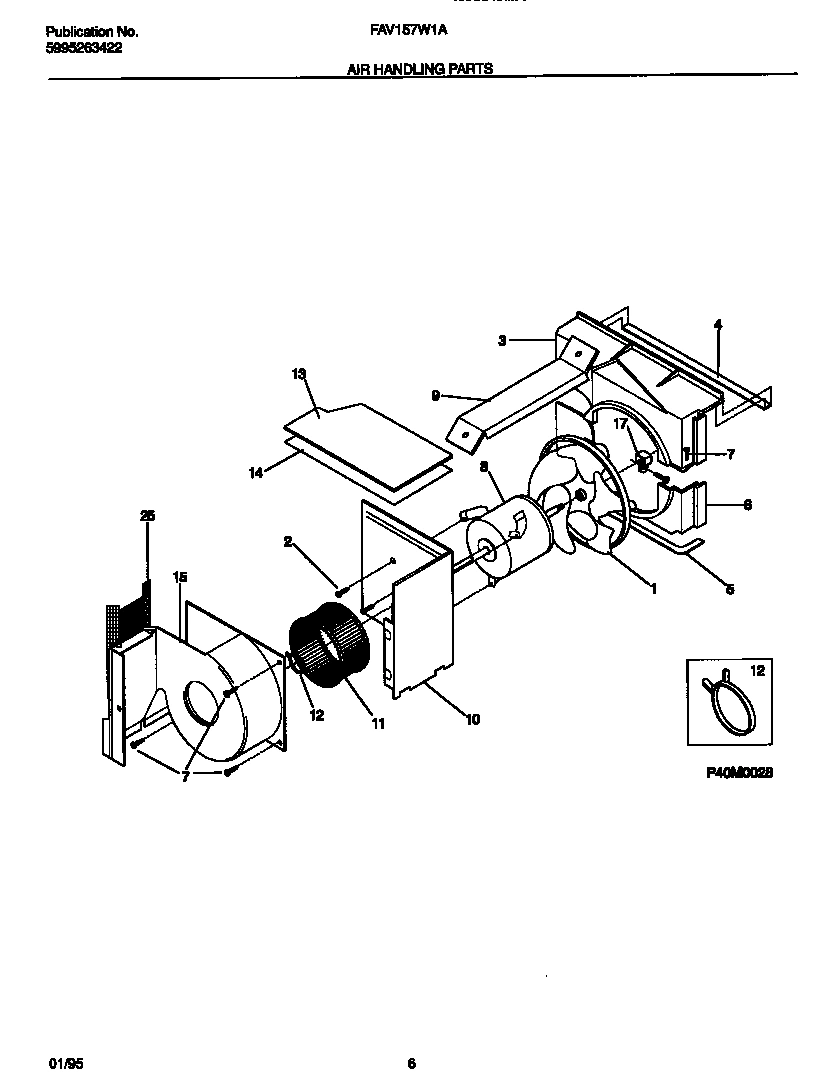

04 - AIR HANDLING PARTS

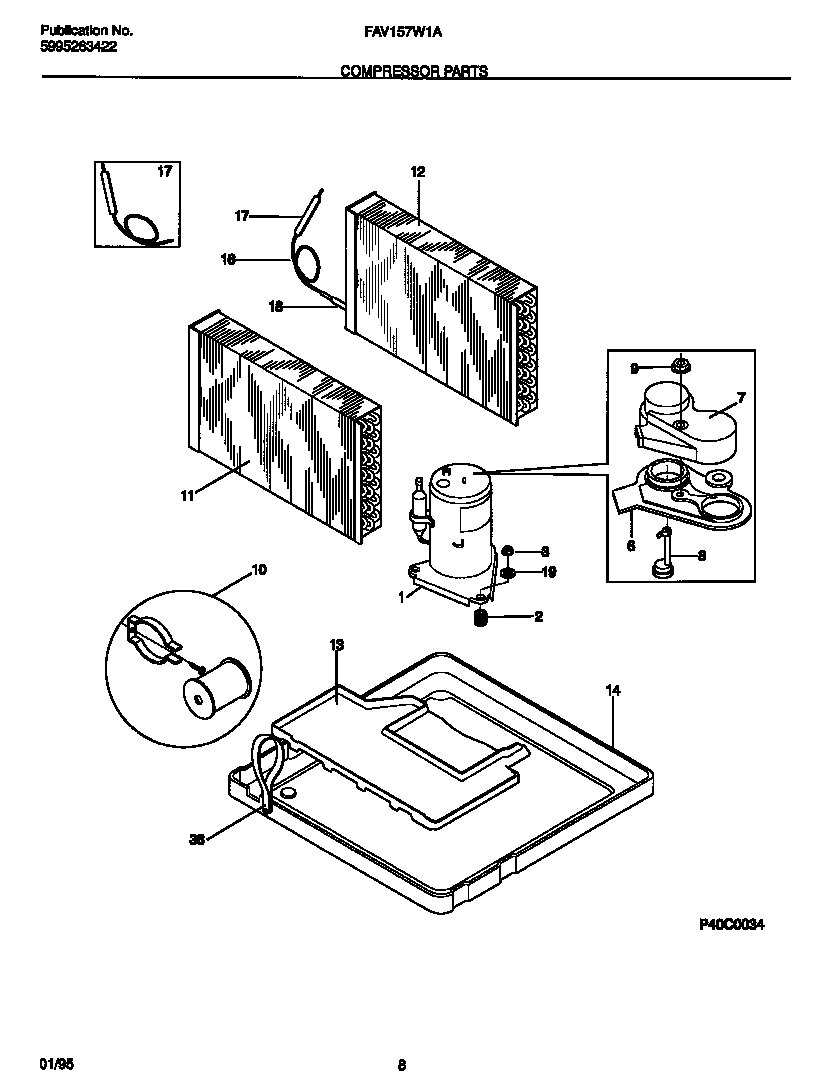

05 - COMPRESSOR PARTS

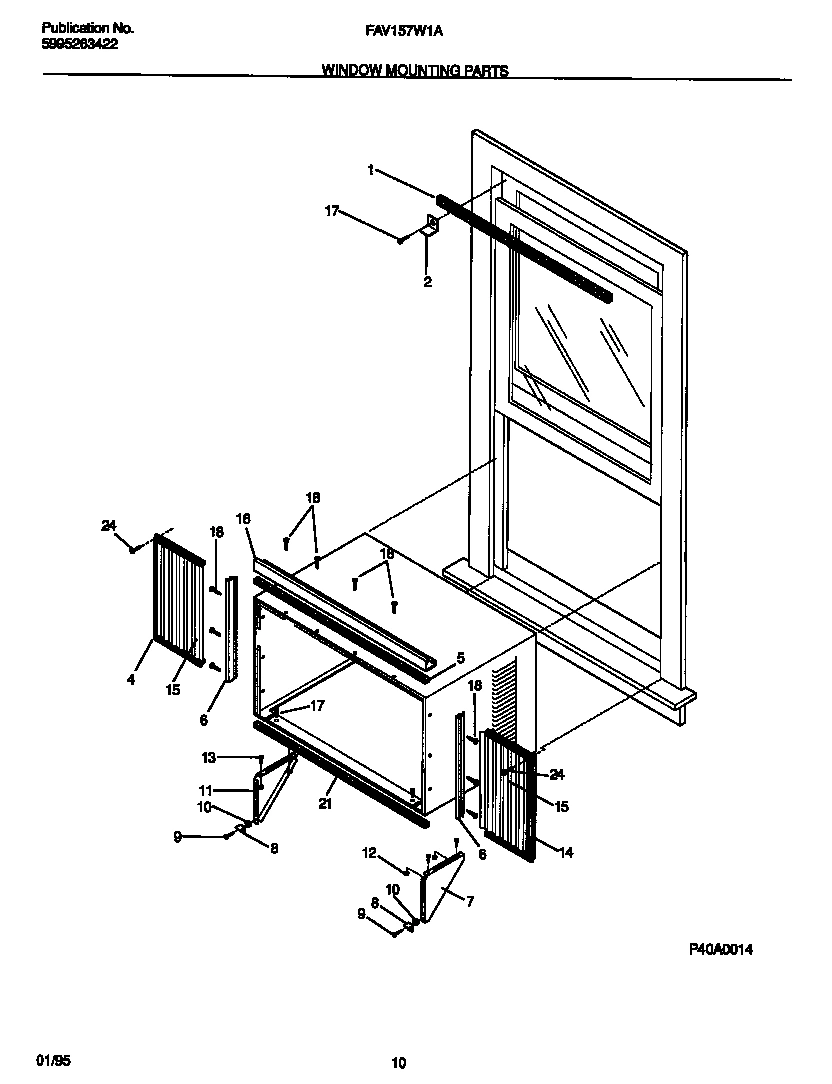

06 - WINDOW MOUNTING PARTS

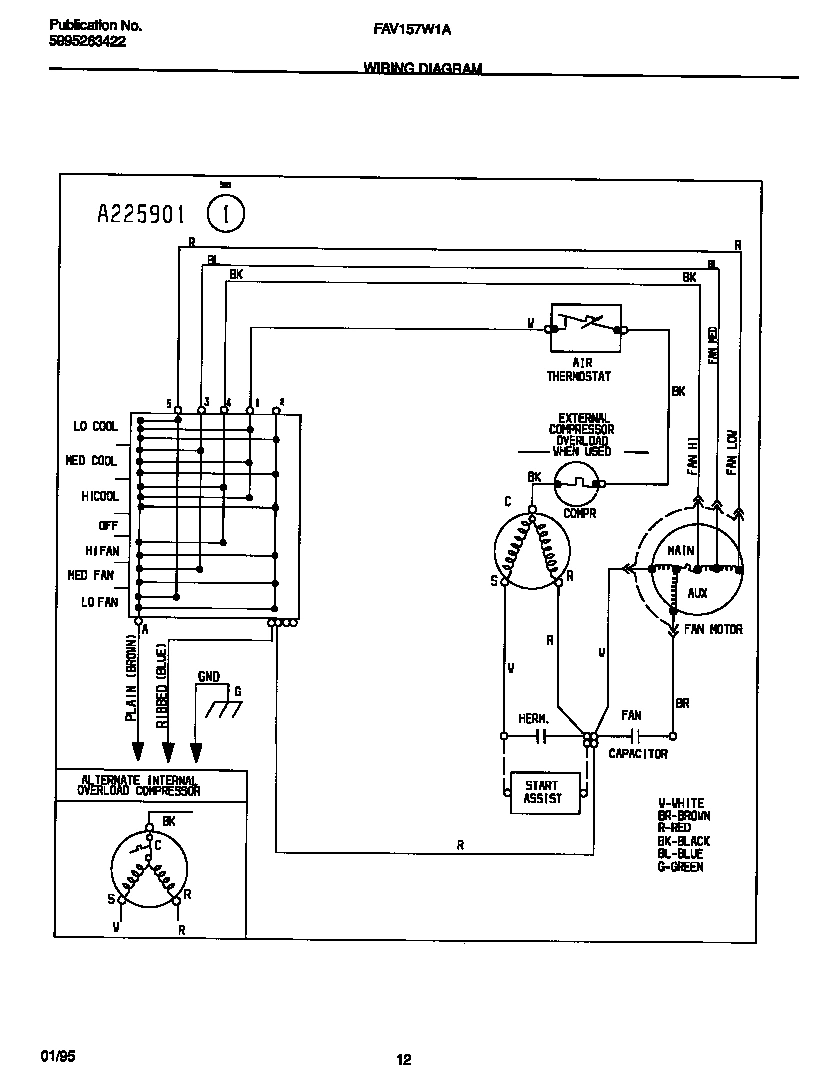

07 - WIRING DIAGRAM
Common parts from model Electrolux FAV157W1A1 ROOM AIR CONDITIONER
*26480
WCI 5303301888 WCI 5303301888 Contact Us For Availability
*26481
INSTRUCTION FOR INSTALLATION WCI 5303284744 Contact Us For Availability
1
FAN BLADE & CLAMP WCI 5303017959 Contact Us For Availability
1
WCI 5303303532 WCI 5303303532 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
DOOR-VENT WCI 5303295752 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
3
WCI 5303201820 WCI 5303201820 Contact Us For Availability
3
WCI 5303015305 WCI 5303015305 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
WCI 5303201821 WCI 5303201821 Contact Us For Availability
4
SEAL - SHROUD UPPER WCI 3016696 Contact Us For Availability
4
WCI 5303302304 WCI 5303302304 Contact Us For Availability
5
WCI 5303209200 WCI 5303209200 Contact Us For Availability
5
SEAL - SCROLL, SHROUD WCI 5303015311 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303015304 WCI 5303015304 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
6
WCI 5303301765 WCI 5303301765 Contact Us For Availability
7
PANEL-CONTROL WCI 5303300231 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303201836 Contact Us For Availability
8
WCI 5303306429 WCI 5303306429 Contact Us For Availability
8
WCI 5303306430 WCI 5303306430 Contact Us For Availability
8
WCI 5303300219 WCI 5303300219 Contact Us For Availability
8
WCI 5303016697 WCI 5303016697 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 5303201838 WCI 5303201838 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
WCI 5303296868 WCI 5303296868 Contact Us For Availability
10
WCI 5303299319 WCI 5303299319 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
BLOWER WHEEL WCI 5303016832 Contact Us For Availability
11
WCI 5303202265 WCI 5303202265 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303306438 WCI 5303306438 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303211009 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303301854 WCI 5303301854 Contact Us For Availability
13
WCI 5303201854 WCI 5303201854 Contact Us For Availability
13
WCI 5303201951 WCI 5303201951 Contact Us For Availability
13
WCI 5303015313 WCI 5303015313 Contact Us For Availability
13
WCI 5303208221 WCI 5303208221 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
WCI 3201832 WCI 3201832 Contact Us For Availability
14
WCI 5303302873 WCI 5303302873 Contact Us For Availability
14
WCI 5303302305 WCI 5303302305 Contact Us For Availability
15
WCI 3201845 WCI 3201845 Contact Us For Availability
15
SCROLL WCI 5303201831 Contact Us For Availability
15
WCI 5303302306 WCI 5303302306 Contact Us For Availability
16
WCI 5303017345 WCI 5303017345 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 50`` WCI 3203179 Contact Us For Availability
16
WCI 5303301777 WCI 5303301777 Contact Us For Availability
17
WCI 5303307486 WCI 5303307486 Contact Us For Availability
17
CORD-ELECTRIC POWER WCI 5303301021 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
WCI 5303202471 WCI 5303202471 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
18
WCI 08012680 WCI 08012680 Contact Us For Availability
19
WCI 5303307505 WCI 5303307505 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5303306263 WCI 5303306263 Contact Us For Availability
21
WCI 5303306262 WCI 5303306262 Contact Us For Availability
21
SEAL - CHASSIS, BOTTOM WCI 5303212504 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
23
WCI 3201953 WCI 3201953 Contact Us For Availability
24
SCREW, FRAME EXT LKG WCI 3002801 Contact Us For Availability
25
WCI 5303302933 WCI 5303302933 Contact Us For Availability
36
STRAP - BASE WCI 5303303558 Contact Us For Availability
38
SCREW, MOTOR DRIVE WCI 5303015294 Contact Us For Availability
40
SPACER-LOUVERS, (5) WCI 3202810 Contact Us For Availability
41
WCI 5300517130 WCI 5300517130 Contact Us For Availability
43
WCI 5303306437 WCI 5303306437 Contact Us For Availability
44
RETAINER-LOUVER BTM. WCI 5303201843 Contact Us For Availability
45
WCI 5303201847 WCI 5303201847 Contact Us For Availability
46
WCI 5303300232 WCI 5303300232 Contact Us For Availability
47
WCI 5303299318 WCI 5303299318 Contact Us For Availability
58
WCI 5303208233 WCI 5303208233 Contact Us For Availability
58
WCI 5303300230 WCI 5303300230 Contact Us For Availability
59
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
62
WCI 5303307479 WCI 5303307479 Contact Us For Availability
66
WCI 5303272800 WCI 5303272800 Contact Us For Availability
× ![]()
