Model Electrolux FASE7021NW2 DRYER – Common Parts & Diagrams
01 - COVER
03 - CABINET/DRUM

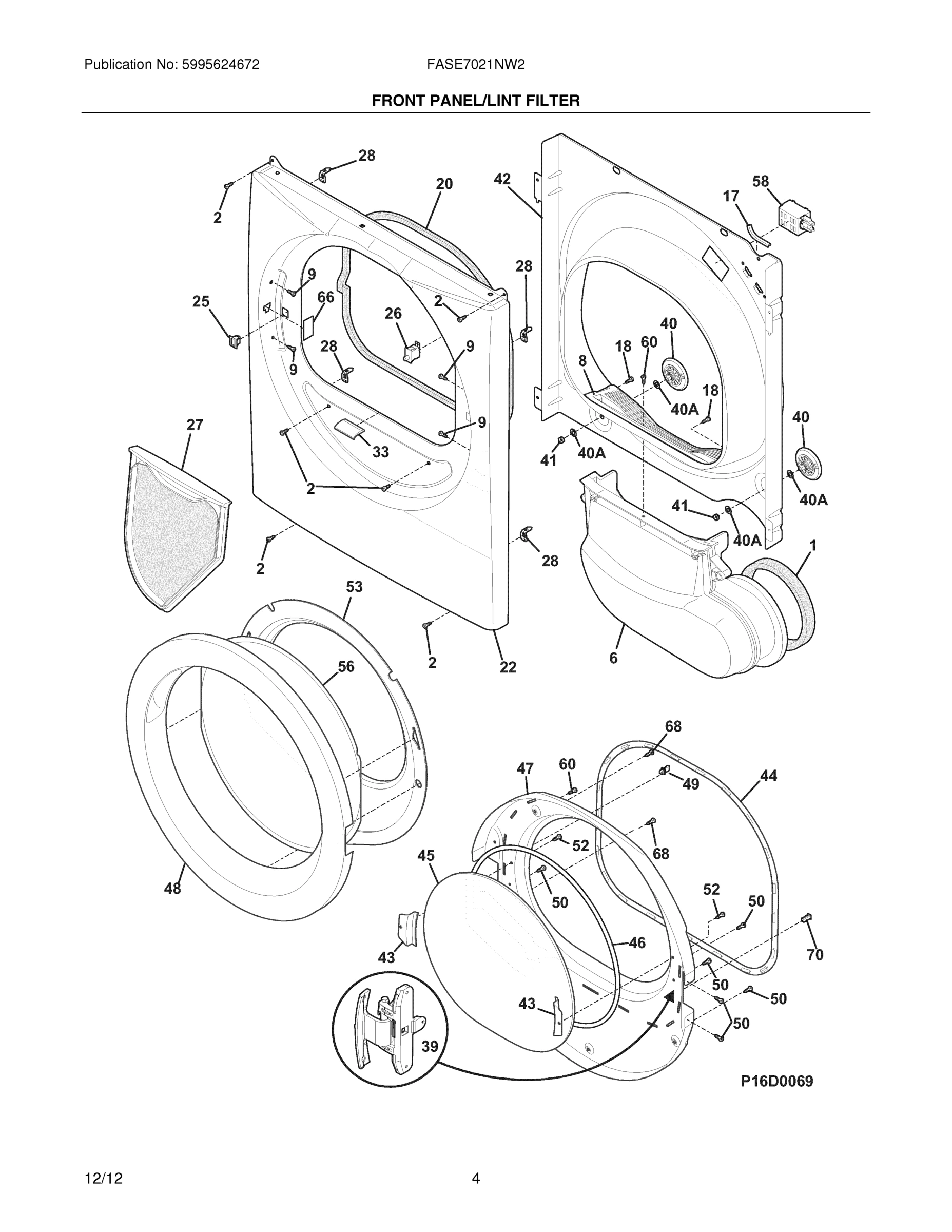

05 - FRONT PANEL/LINT FILTER

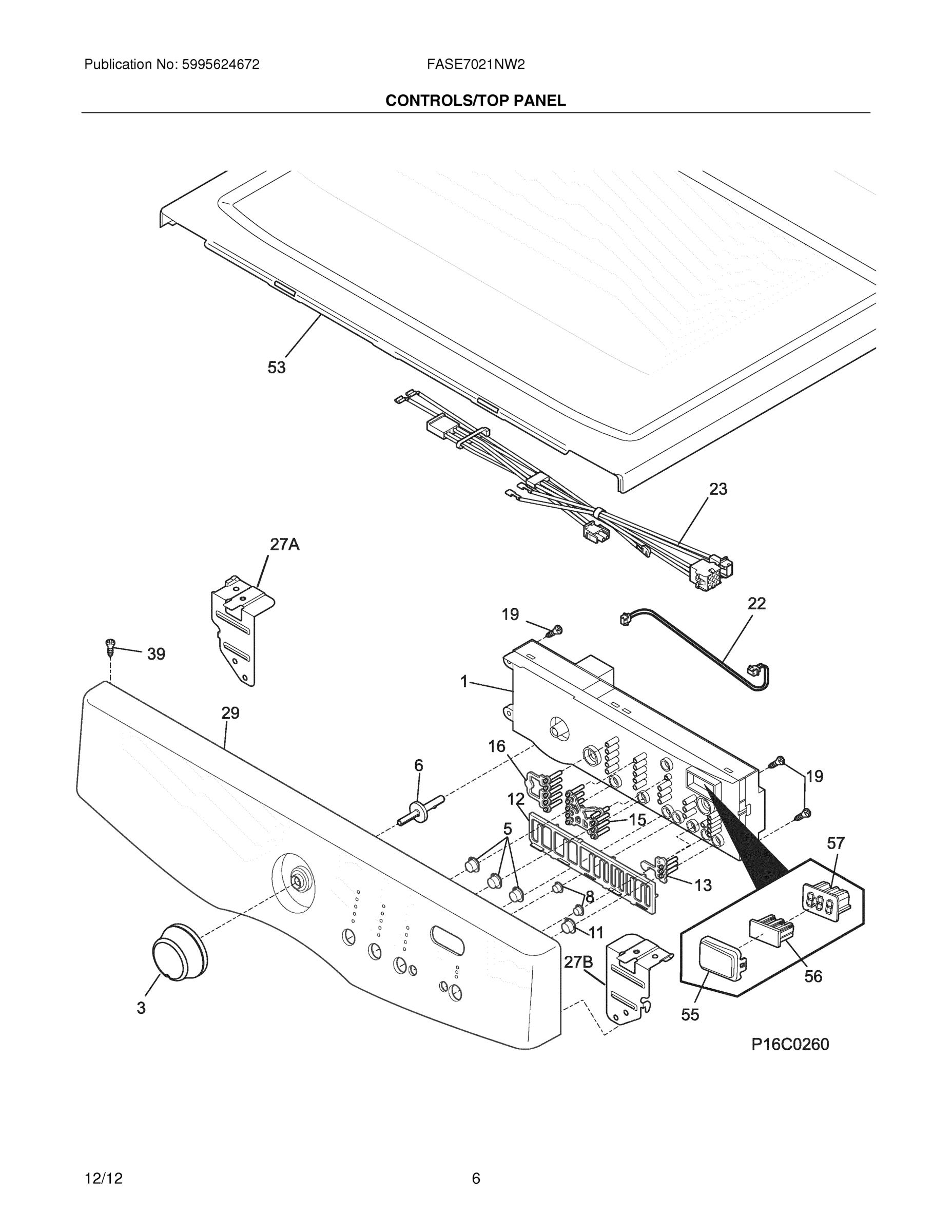

07 - CONTROL/TOP

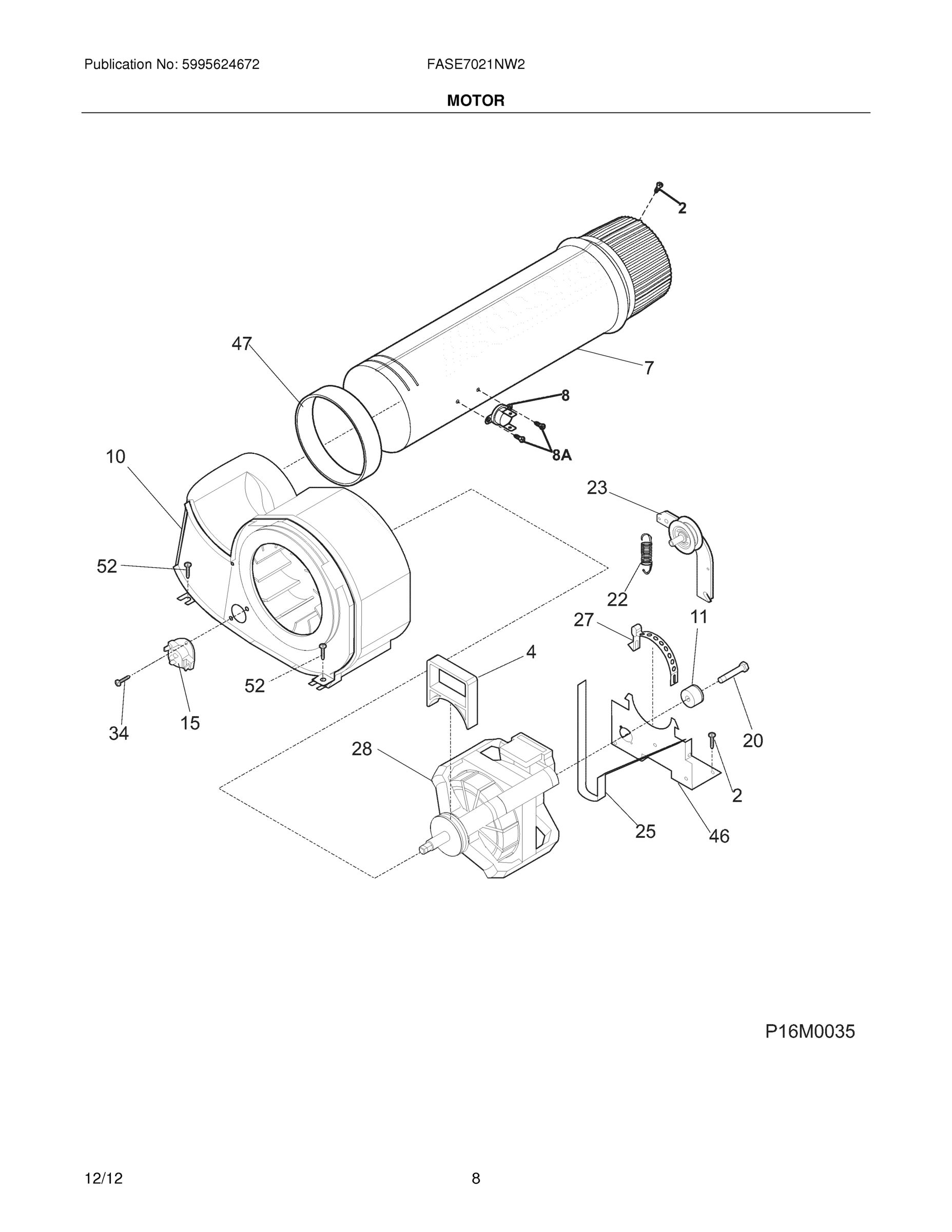

09 - MOTOR/FAN

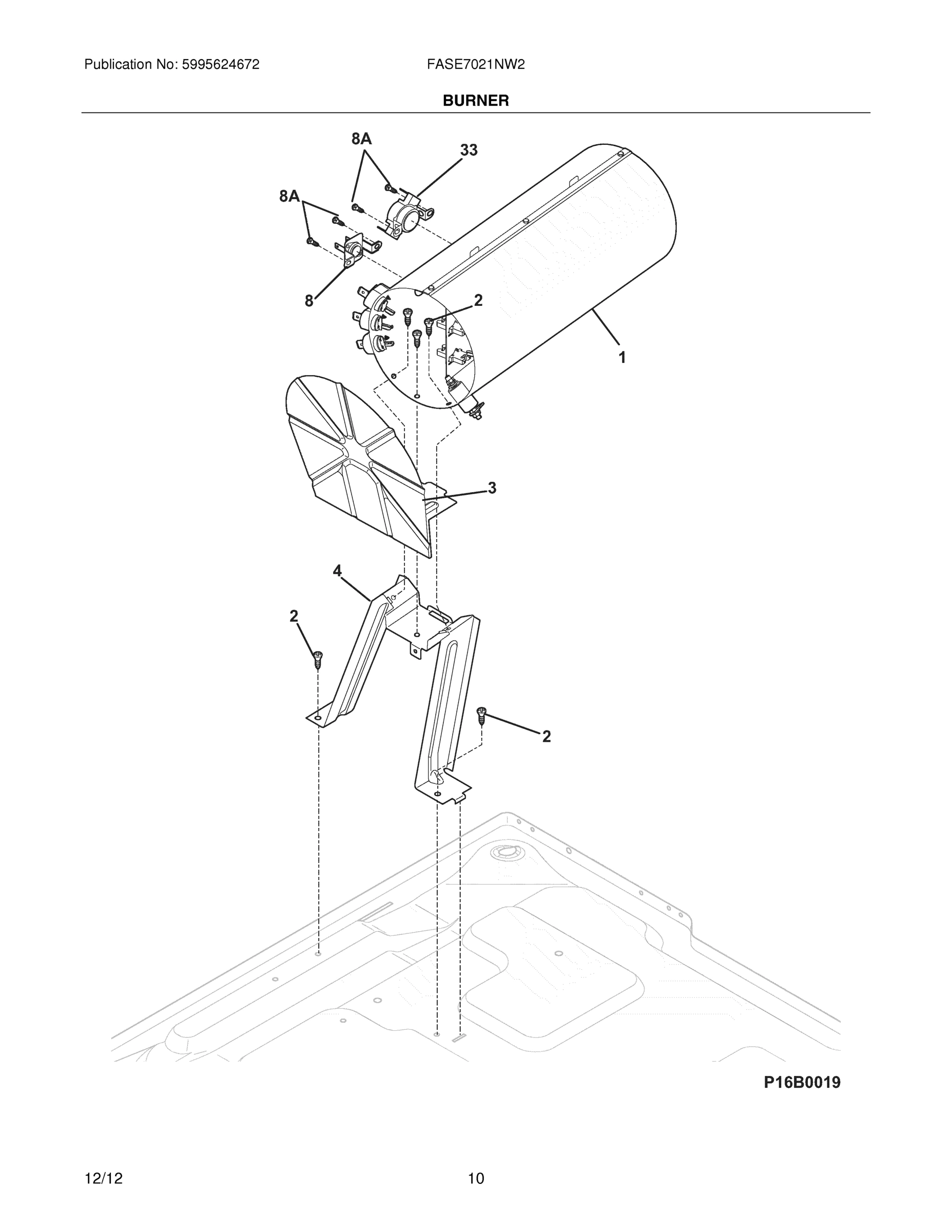

11 - BURNER
Common parts from model Electrolux FASE7021NW2 DRYER
1
WCI 134792700 WCI 134792700 Contact Us For Availability
1
WCI 137035290 WCI 137035290 Contact Us For Availability
1
WCI 137068200 WCI 137068200 Contact Us For Availability
2
Screw,pan head ,8-18B x 0.31 WCI 131168200 Contact Us For Availability
3
WCI 137314625 WCI 137314625 Contact Us For Availability
4
Lock,blower housing WCI 131435200 Contact Us For Availability
4
WCI 134792200 WCI 134792200 Contact Us For Availability
6
WCI 134347700 WCI 134347700 Contact Us For Availability
6
WCI 134710705 WCI 134710705 Contact Us For Availability
7
WASHER-INLET HOSE WCI 5303161296 Contact Us For Availability
8
WCI 137032600 WCI 137032600 Contact Us For Availability
8
Limiter,thermal exhaust ,flush mount WCI 134711401 Contact Us For Availability
8
WCI 134694400 WCI 134694400 Contact Us For Availability
8A
Screw,No.6 pan head ,No.8-32 X .25 ,quadrex WCI 134935200 Contact Us For Availability
9
WCI 131633200 WCI 131633200 Contact Us For Availability
11
WCI 131749800 WCI 131749800 Contact Us For Availability
12
WCI 137320500 WCI 137320500 Contact Us For Availability
13
WCI 134557501 WCI 134557501 Contact Us For Availability
15
WCI 134587700 WCI 134587700 Contact Us For Availability
15
WCI 137031800 WCI 137031800 Contact Us For Availability
15
WCI 134552800 WCI 134552800 Contact Us For Availability
16
WCI 134600000 WCI 134600000 Contact Us For Availability
17
Protector,edge ,right top front ,85.0+/-1.5 WCI 134792900 Contact Us For Availability
19
WCI 134402900 WCI 134402900 Contact Us For Availability
20
WCI 134705900 WCI 134705900 Contact Us For Availability
20
WCI 137116600 WCI 137116600 Contact Us For Availability
20
Bolt,hex head ,1/4-20T x 1.25 ,thread cutting WCI 131017900 Contact Us For Availability
22
Spring,idler arm WCI 131601000 Contact Us For Availability
23
WCI 134786110 WCI 134786110 Contact Us For Availability
23
WCI 137476500 WCI 137476500 Contact Us For Availability
25
WCI 134719300 WCI 134719300 Contact Us For Availability
25
Door Catch,upper WCI 131658800 Contact Us For Availability
26
WCI 134813601 WCI 134813601 Contact Us For Availability
27
WCI 134701410 WCI 134701410 Contact Us For Availability
27
WCI 134242400 WCI 134242400 Contact Us For Availability
27A
WCI 134710900 WCI 134710900 Contact Us For Availability
27B
WCI 134711000 WCI 134711000 Contact Us For Availability
27L
WCI 134690310 WCI 134690310 Contact Us For Availability
27R
WCI 134690410 WCI 134690410 Contact Us For Availability
28
WCI 137034500 WCI 137034500 Contact Us For Availability
29
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr WCI 131205100 Contact Us For Availability
29
WCI 137504810 WCI 137504810 Contact Us For Availability
33
WCI 3204267 WCI 3204267 Contact Us For Availability
33
WCI 137067100 WCI 137067100 Contact Us For Availability
39
WCI 137105100 WCI 137105100 Contact Us For Availability
40A
WCI 134716700 WCI 134716700 Contact Us For Availability
41
WCI 134716800 WCI 134716800 Contact Us For Availability
42
WCI 134696110 WCI 134696110 Contact Us For Availability
43
WCI 134559300 WCI 134559300 Contact Us For Availability
46
WCI 134580300 WCI 134580300 Contact Us For Availability
46
WCI 134693500 WCI 134693500 Contact Us For Availability
47
WCI 131633300 WCI 131633300 Contact Us For Availability
52
WCI 131202300 WCI 131202300 Contact Us For Availability
53
WCI 134638510 WCI 134638510 Contact Us For Availability
55
WCI 137320700 WCI 137320700 Contact Us For Availability
56
WCI 134557300 WCI 134557300 Contact Us For Availability
57
WCI 134503300 WCI 134503300 Contact Us For Availability
58
WCI 131843500 WCI 131843500 Contact Us For Availability
60
WCI 134430300 WCI 134430300 Contact Us For Availability
65
WCI 137017200 WCI 137017200 Contact Us For Availability
68
WCI 134742000 WCI 134742000 Contact Us For Availability
NI
WCI 5308027429 WCI 5308027429 Contact Us For Availability
NI
Wiring Harness,moisture sensor WCI 134930800 Contact Us For Availability
NI
WCI 134926600 WCI 134926600 Contact Us For Availability
NI
WCI 134716200 WCI 134716200 Contact Us For Availability
NI
WCI 137292000 WCI 137292000 Contact Us For Availability
× ![]()
