Model Electrolux FAS255J2A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

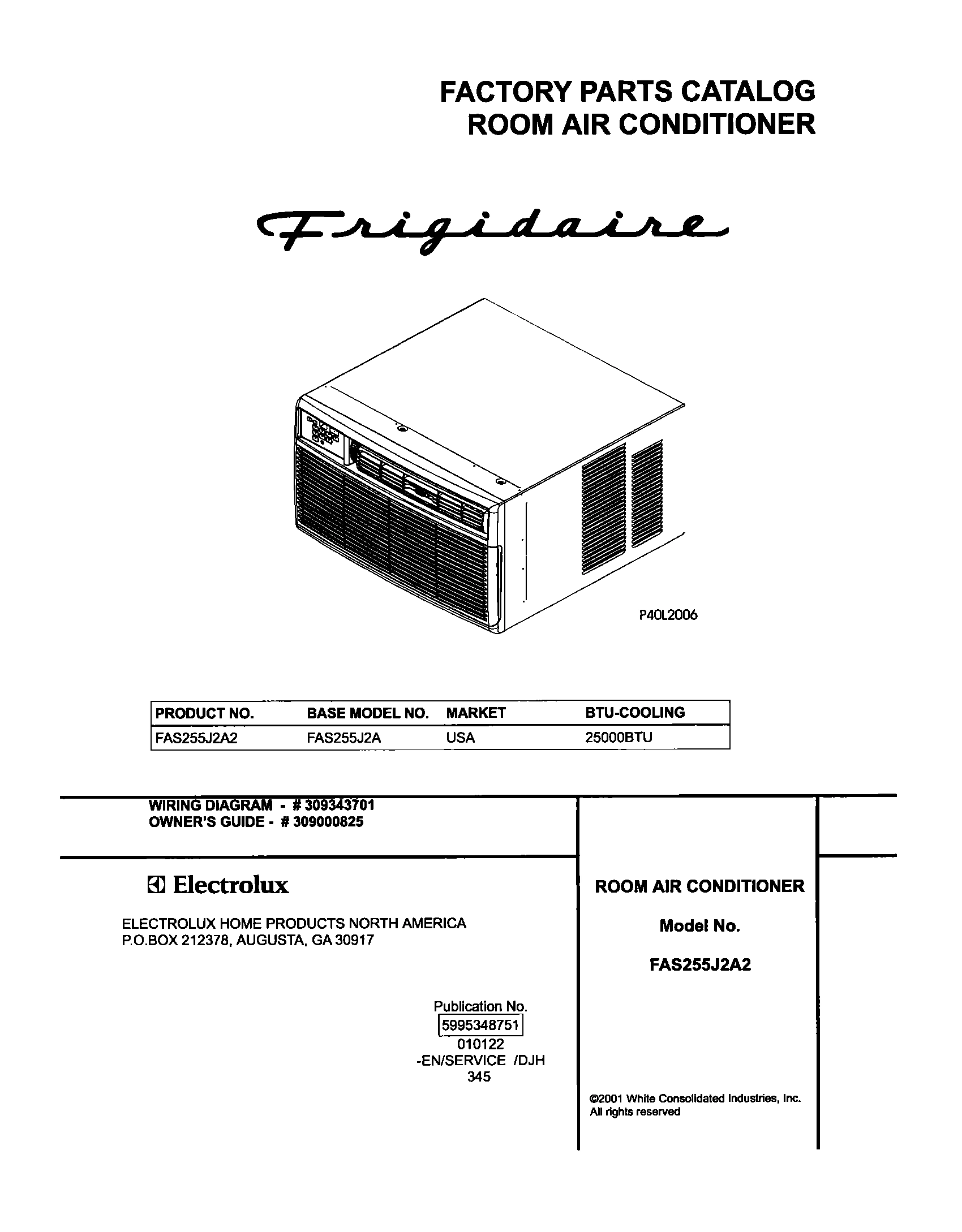

01 - COVER

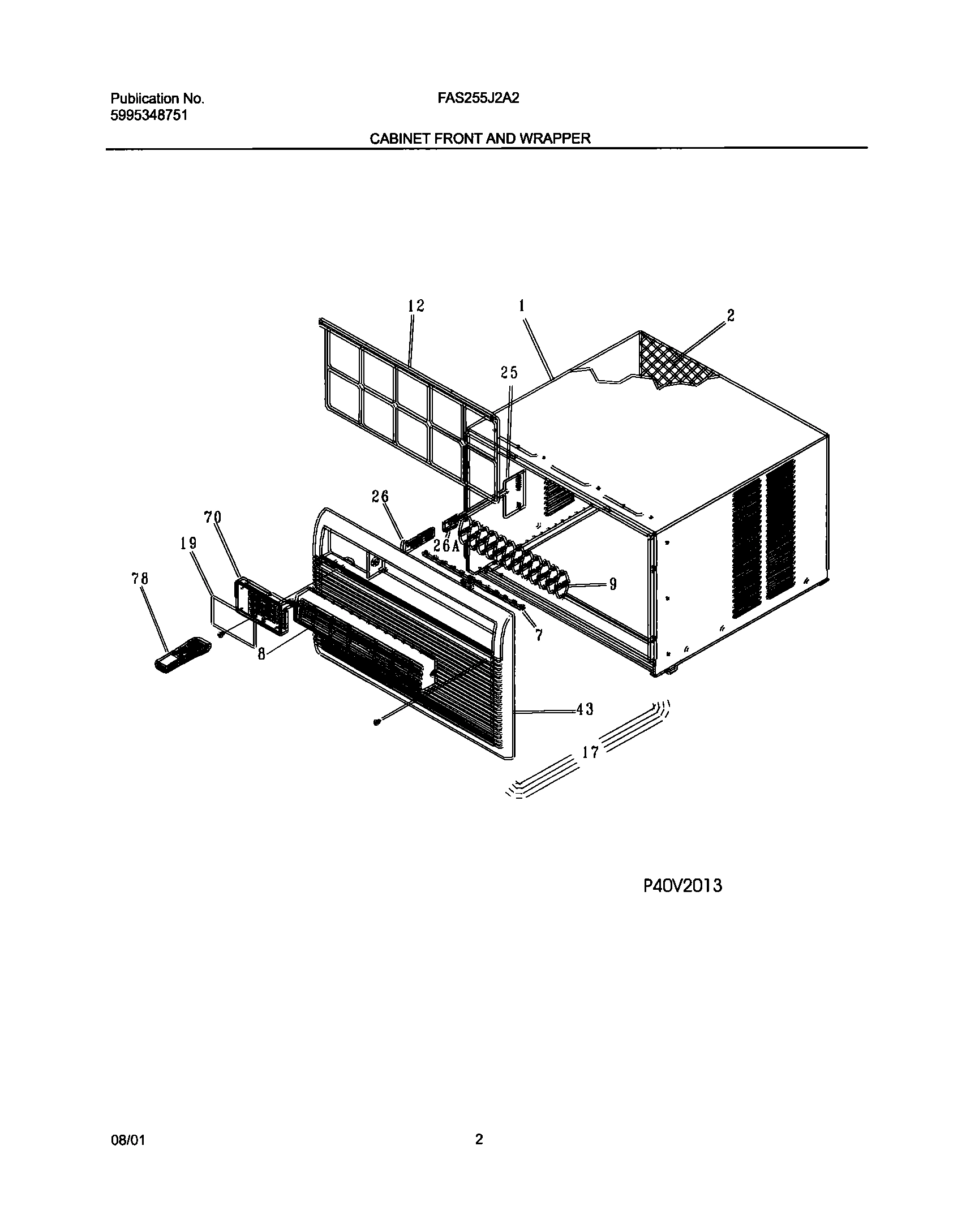

03 - WRAPPER
05 - CONTROLS
07 - AIR HANDLING
09 - SYSTEM
11 - WINDOW MOUNTING
12 - WIRING DIAGRAM
Common parts from model Electrolux FAS255J2A2 ROOM AIR CONDITIONER
1
WCI 5303321440 WCI 5303321440 Contact Us For Availability
1
Compressor WCI 5304408299 Contact Us For Availability
2
WCI 5303286606 WCI 5303286606 Contact Us For Availability
3
Shroud-condenser,one piece WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304414928 WCI 5304414928 Contact Us For Availability
5
SEAL,FAN HOUSING ,LOWER WCI 5303015311 Contact Us For Availability
5
CLAMP,TERMINAL COVER WCI 5303002069 Contact Us For Availability
5
WCI 5304409250 WCI 5304409250 Contact Us For Availability
6
Gasket,terminal cover WCI 5303002068 Contact Us For Availability
6
Retainer,accordian WCI 5304414933 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
Cover,compr terminal WCI 5303002067 Contact Us For Availability
7
WCI 5304414105 WCI 5304414105 Contact Us For Availability
8No.
WCI 309630604 WCI 309630604 Contact Us For Availability
9
WCI 309631004 WCI 309631004 Contact Us For Availability
10
WCI 309623601 WCI 309623601 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
WCI 309634201 WCI 309634201 Contact Us For Availability
11
WCI 5304414106 WCI 5304414106 Contact Us For Availability
12
Filter-air,molded plastic WCI 309631404 Contact Us For Availability
12
Holder-thermistor,assy with seal WCI 5304413782 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
13
WCI 5303316594 WCI 5303316594 Contact Us For Availability
13
WCI 309630301 WCI 309630301 Contact Us For Availability
13
WCI 309623501 WCI 309623501 Contact Us For Availability
14
WCI 309632906 WCI 309632906 Contact Us For Availability
14
WCI 5304414929 WCI 5304414929 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309630101 WCI 309630101 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 5304414930 Contact Us For Availability
16
Harness-wiring WCI 5304408753 Contact Us For Availability
16
Rail,top WCI 5304414116 Contact Us For Availability
17
Front-cabinet,complete assy WCI 309633205 Contact Us For Availability
17
WCI 309343114 WCI 309343114 Contact Us For Availability
19
WCI 309341002 WCI 309341002 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309630201 WCI 309630201 Contact Us For Availability
21
SEAL-BOTTOM WCI 5303212504 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
Handle-vent,gray WCI 309330404 Contact Us For Availability
43
Panel,cabinet front WCI 309630904 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342401 Contact Us For Availability
71
Board-power,Sagem WCI 309350401 Contact Us For Availability
72
WCI 309350403 WCI 309350403 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,240/12 Volt WCI 309111602 Contact Us For Availability
78
WCI 309350502 WCI 309350502 Contact Us For Availability
NI
WCI 309330202 WCI 309330202 Contact Us For Availability
NI
Detent-vent ASSY WCI 309330206 Contact Us For Availability
NI
WCI 309633305 WCI 309633305 Contact Us For Availability
NI
WCI 309331801 WCI 309331801 Contact Us For Availability
NI
Holder-thermistor,without seal WCI 5304414108 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
NI
Kit-mounting support WCI 309313204 Contact Us For Availability
NI
Kit-window mounting,heavy duty WCI 309313303 Contact Us For Availability
NI
WCI 5304409248 WCI 5304409248 Contact Us For Availability
NI
WCI 5304409249 WCI 5304409249 Contact Us For Availability
× ![]()
