Model Electrolux FAS189P2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

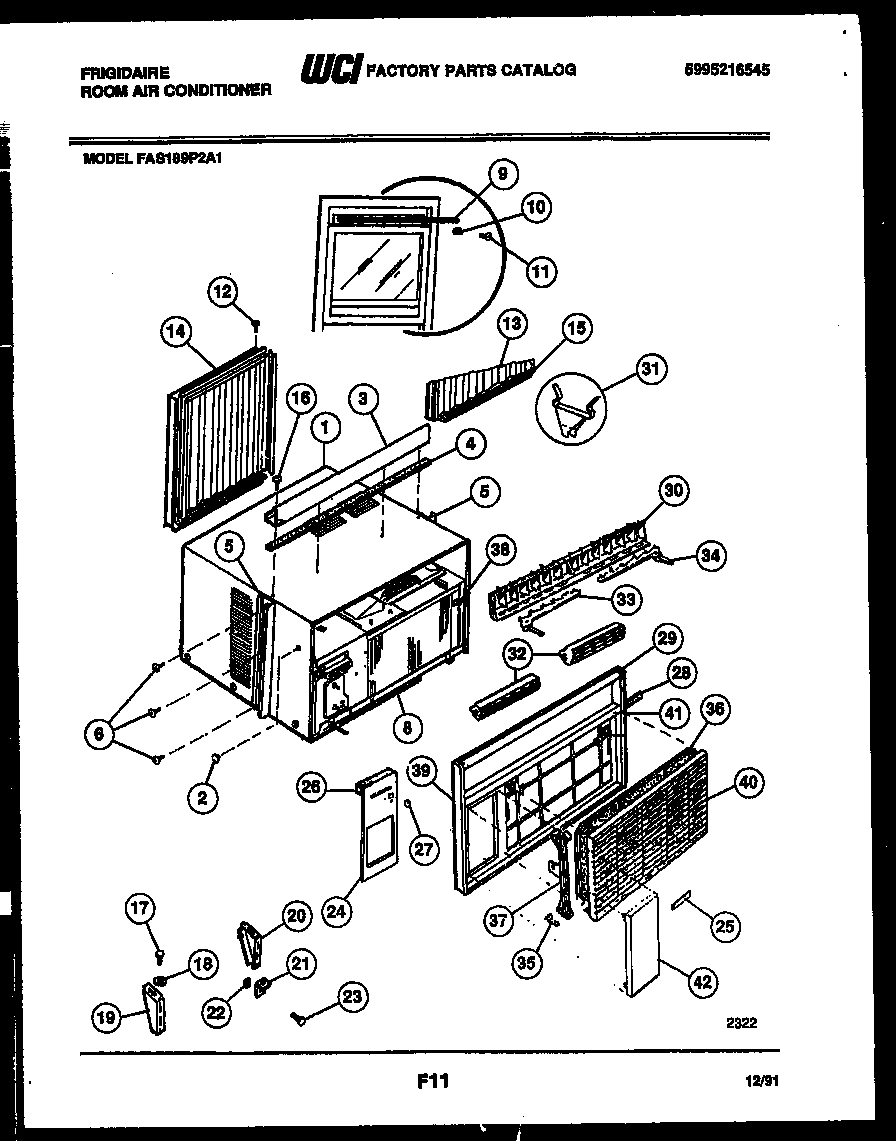

02 - CABINET PARTS

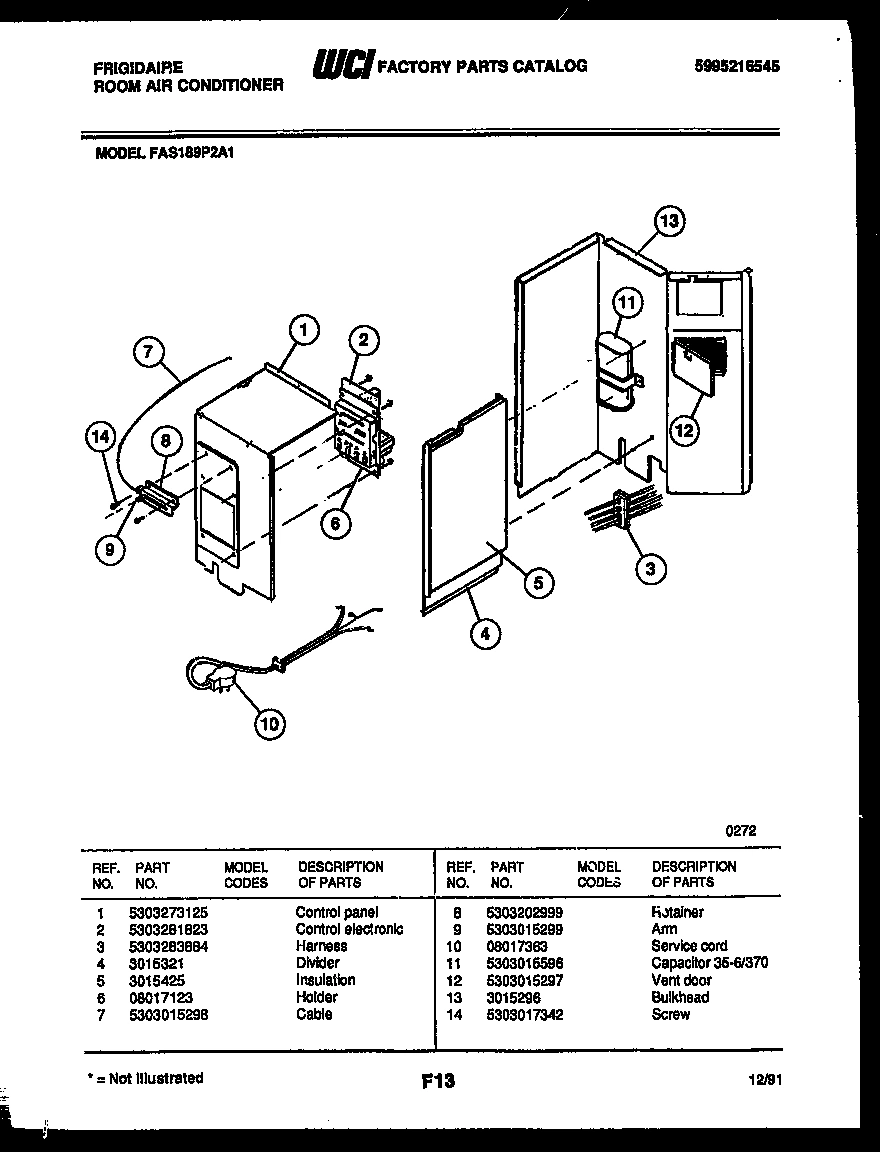

03 - ELECTRICAL PARTS

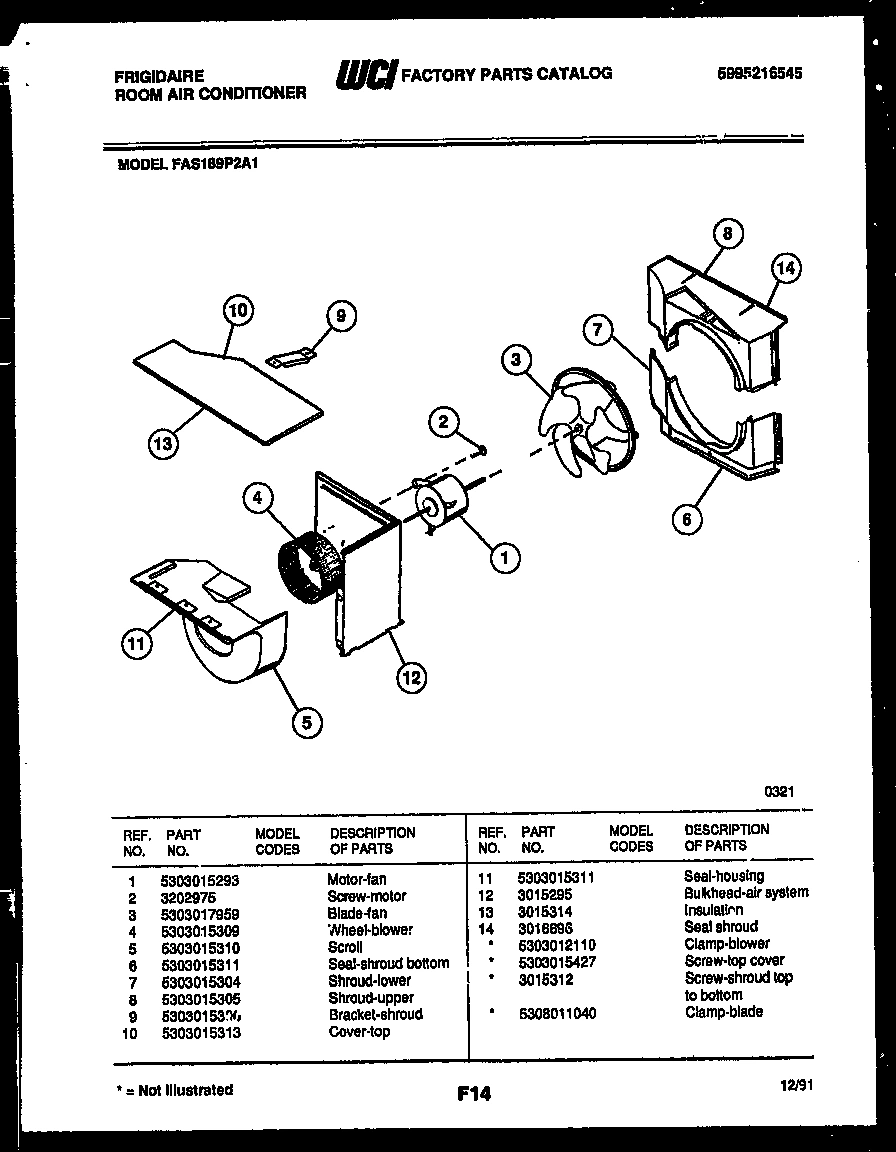

04 - AIR HANDLING PARTS

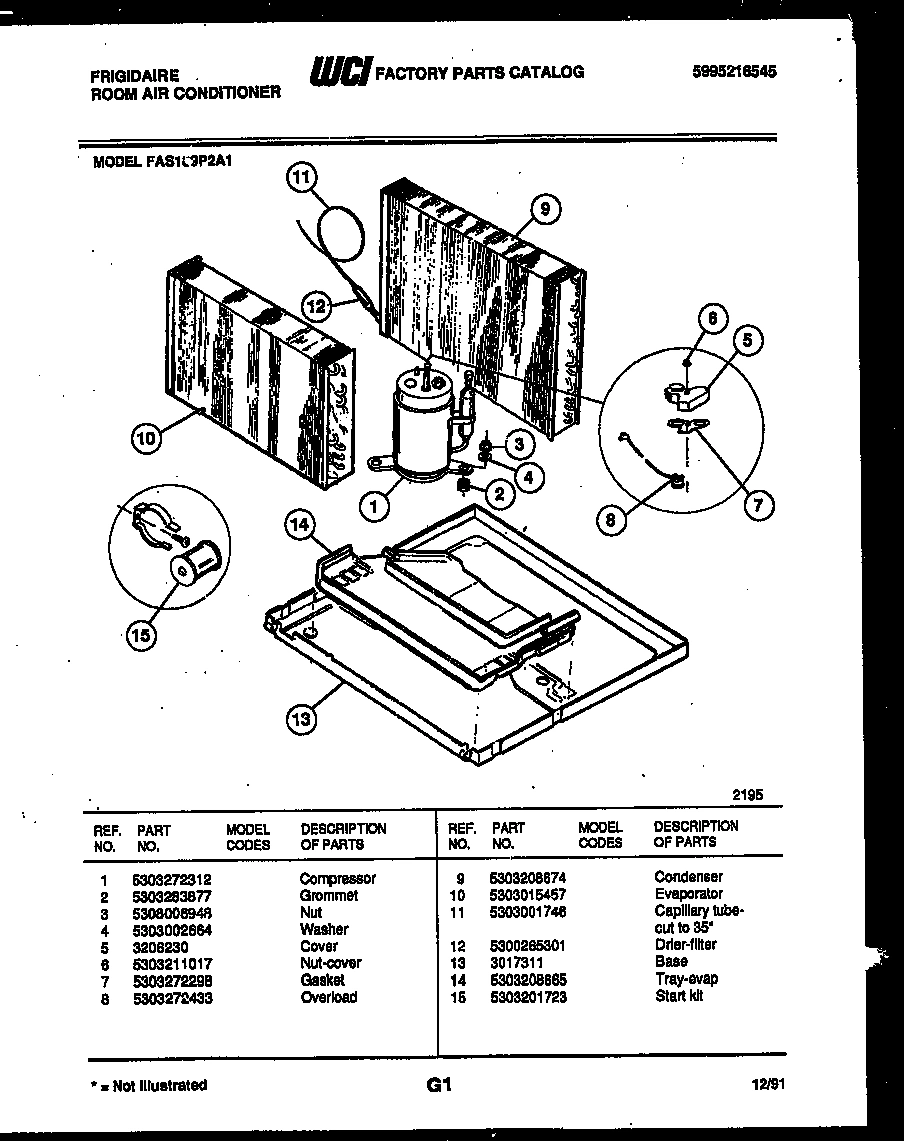

05 - SYSTEM PARTS
Common parts from model Electrolux FAS189P2A1 ROOM AIR CONDITIONER
*56599
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
*56599
CLAMP-BLADE WCI 5308011040 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
WCI 5303273125 WCI 5303273125 Contact Us For Availability
1
WCI 5303015293 WCI 5303015293 Contact Us For Availability
1
WCI 5303272312 WCI 5303272312 Contact Us For Availability
2
WCI 5303271902 WCI 5303271902 Contact Us For Availability
2
WCI 5303281823 WCI 5303281823 Contact Us For Availability
2
WCI 5303283877 WCI 5303283877 Contact Us For Availability
2A
GRILLE REAR (NON-ILLUSTRATED) WCI 5303210207 Contact Us For Availability
2B
WCI 5303271903 WCI 5303271903 Contact Us For Availability
3
RAIL TOP WCI 3202499 Contact Us For Availability
3
WCI 5303283884 WCI 5303283884 Contact Us For Availability
3
WCI 5303017959 WCI 5303017959 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
SEAL RAIL WCI 3001980 Contact Us For Availability
4
WCI 3015321 WCI 3015321 Contact Us For Availability
4
WCI 5303015309 WCI 5303015309 Contact Us For Availability
4
WCI 5303002664 WCI 5303002664 Contact Us For Availability
5
WCI 3202498 WCI 3202498 Contact Us For Availability
5
WCI 3015425 WCI 3015425 Contact Us For Availability
5
WCI 5303015310 WCI 5303015310 Contact Us For Availability
5
COVER WCI 3206230 Contact Us For Availability
6
HOLDER WCI 08017123 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
WCI 5303015298 WCI 5303015298 Contact Us For Availability
7
WCI 5303015304 WCI 5303015304 Contact Us For Availability
7
WCI 5303272298 WCI 5303272298 Contact Us For Availability
8
SEAL CHASSIS BTM WCI 5303212504 Contact Us For Availability
8
RETAINER WCI 5303202999 Contact Us For Availability
8
WCI 5303015305 WCI 5303015305 Contact Us For Availability
8
WCI 5303272433 WCI 5303272433 Contact Us For Availability
9
WCI 5303002608 WCI 5303002608 Contact Us For Availability
9
ARM WCI 5303015299 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
WCI 5303208674 WCI 5303208674 Contact Us For Availability
10
BRACKET WINDOW WCI 5303211056 Contact Us For Availability
10
WCI 08017363 WCI 08017363 Contact Us For Availability
10
WCI 5303015313 WCI 5303015313 Contact Us For Availability
10
WCI 5303015457 WCI 5303015457 Contact Us For Availability
11
CAPACITOR 35-6/370 WCI 5303015596 Contact Us For Availability
11
SEAL - HOUSING WCI 5303015311 Contact Us For Availability
11
CAPILLARY TUBE-CUT TO 35`` WCI 5303001746 Contact Us For Availability
12
SCREW-FRAME WCI 3002801 Contact Us For Availability
12
VENT DOOR WCI 5303015297 Contact Us For Availability
12
WCI 3015295 WCI 3015295 Contact Us For Availability
13
WCI 5303271238 WCI 5303271238 Contact Us For Availability
13
WCI 3015296 WCI 3015296 Contact Us For Availability
13
WCI 3015314 WCI 3015314 Contact Us For Availability
13
WCI 3017311 WCI 3017311 Contact Us For Availability
14
FRAME EXTENSION LH WCI 3202495 Contact Us For Availability
14
WCI 5303017342 WCI 5303017342 Contact Us For Availability
14
WCI 3016696 WCI 3016696 Contact Us For Availability
14
TRAY-EVAP WCI 5303208665 Contact Us For Availability
15
FRAME EXTENSION RH WCI 3202497 Contact Us For Availability
15
WCI 5303201723 WCI 5303201723 Contact Us For Availability
16
SCREW TOP RAIL WCI 08012680 Contact Us For Availability
17
WCI 3007756 WCI 3007756 Contact Us For Availability
19
WCI 3016225 WCI 3016225 Contact Us For Availability
20
WCI 3016624 WCI 3016624 Contact Us For Availability
21
BRACKET WINDOW SILL WCI 3001815 Contact Us For Availability
22
WCI 3007759 WCI 3007759 Contact Us For Availability
23
SCREW STOOL SASH LOCK WCI 3002803 Contact Us For Availability
24
WCI 5303281825 WCI 5303281825 Contact Us For Availability
25
NAME PLATE WCI 08017126 Contact Us For Availability
26
SEAL WCI 08017129 Contact Us For Availability
27
WCI 5303271479 WCI 5303271479 Contact Us For Availability
28
WCI 08017353 WCI 08017353 Contact Us For Availability
29
WCI 5303281922 WCI 5303281922 Contact Us For Availability
30
LOUVERS & LINK WCI 5303002459 Contact Us For Availability
31
CLIP-LOUVER WCI 5303001844 Contact Us For Availability
32
LOUVERS HORIZ WCI 5308017160 Contact Us For Availability
33
WCI 5303002163 WCI 5303002163 Contact Us For Availability
34
WCI 5303002162 WCI 5303002162 Contact Us For Availability
35
CLIP-FRONT MTG WCI 5308010914 Contact Us For Availability
36
FILTER WCI 5308017190 Contact Us For Availability
37
TRACK-FILTER (2) WCI 5308017138 Contact Us For Availability
38
BRACKET WCI 5303016223 Contact Us For Availability
39
SEAL WCI 08017132 Contact Us For Availability
40
PANEL WCI 5303200420 Contact Us For Availability
41
WCI 5303281824 WCI 5303281824 Contact Us For Availability
42
DOOR WCI 5308016197 Contact Us For Availability
× ![]()
