Model Electrolux FAS185M2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER
05 - CONTROLS

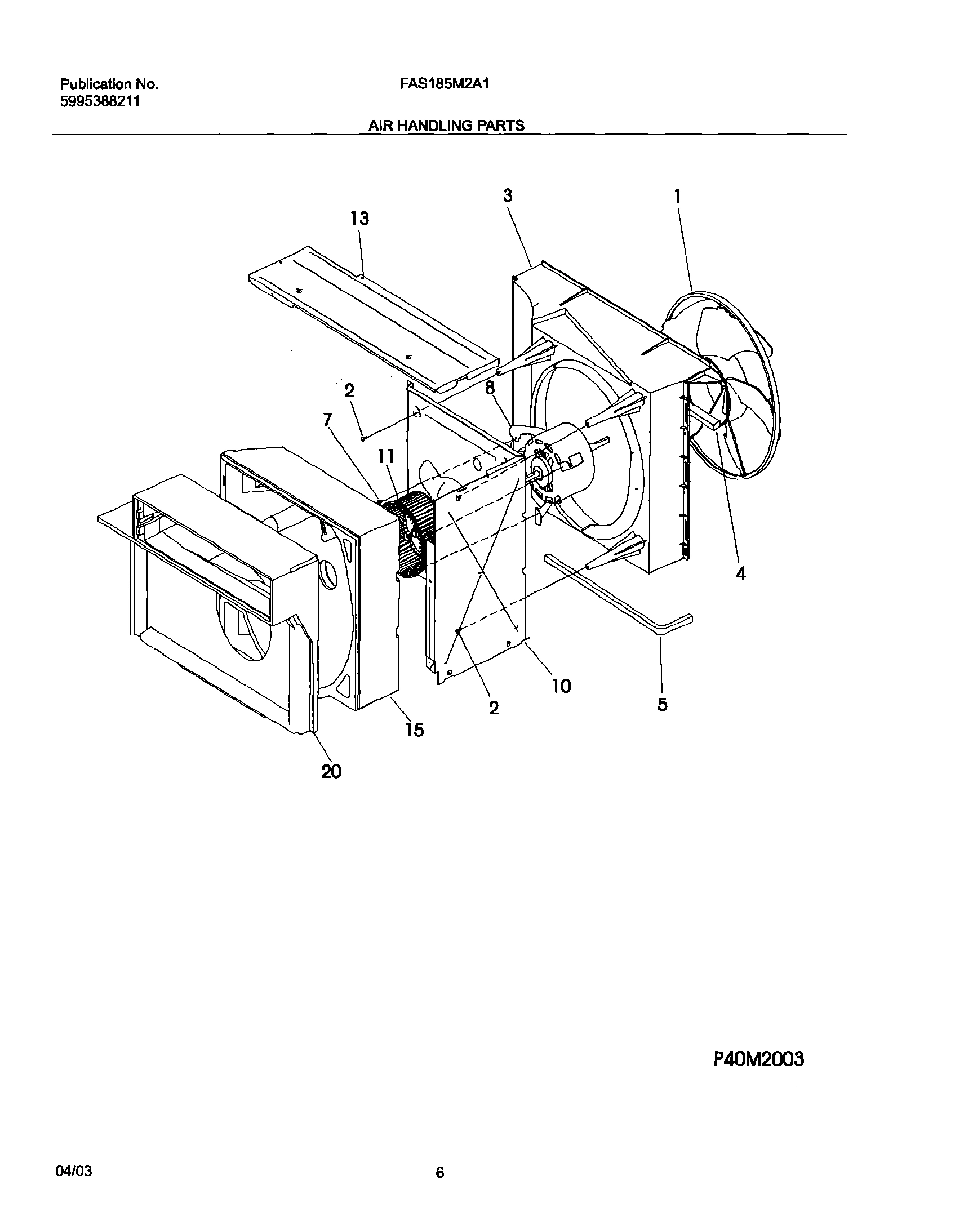

07 - AIR HANDLING PARTS
09 - COMPRESSOR PARTS

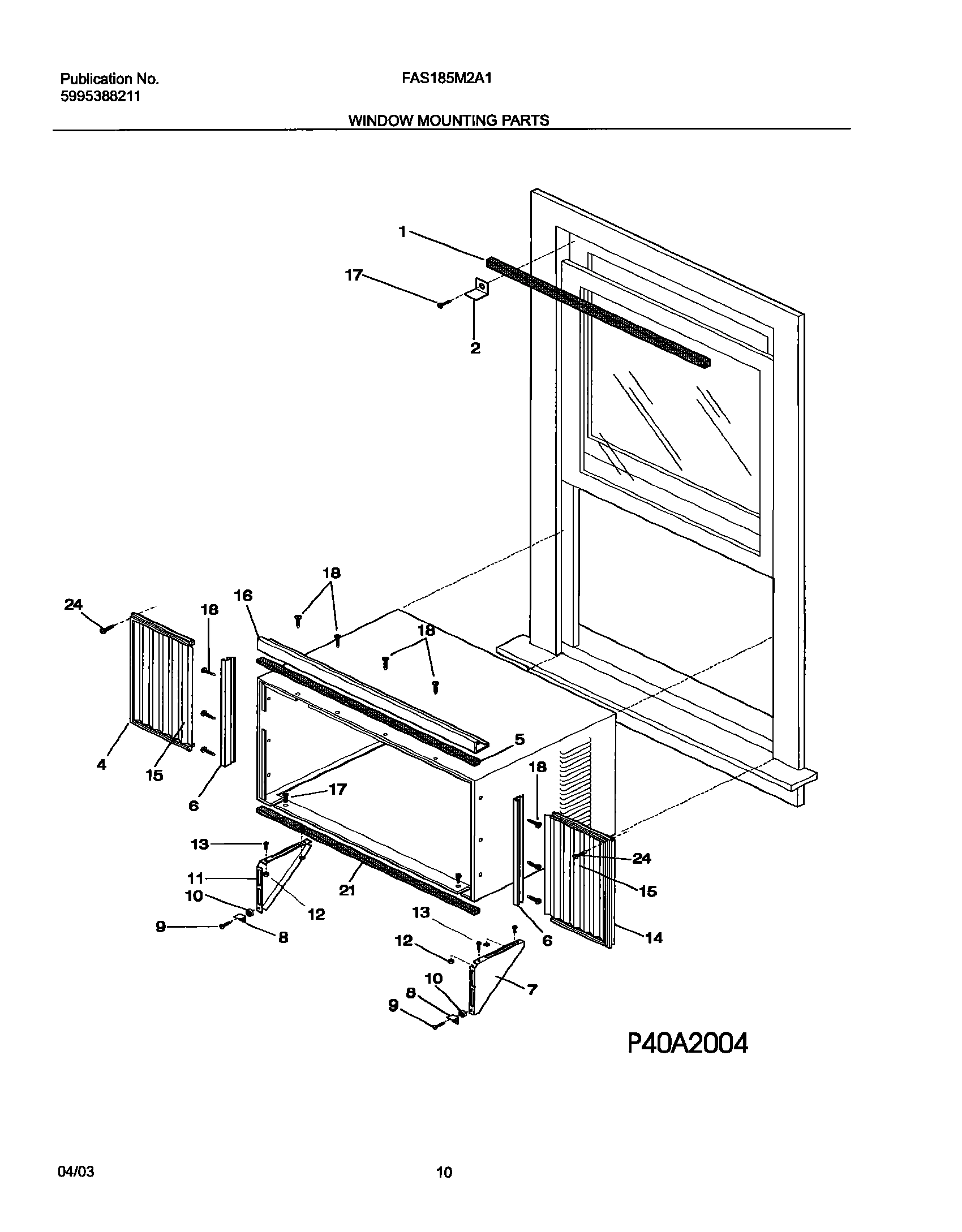

11 - WINDOW MOUNTING PARTS

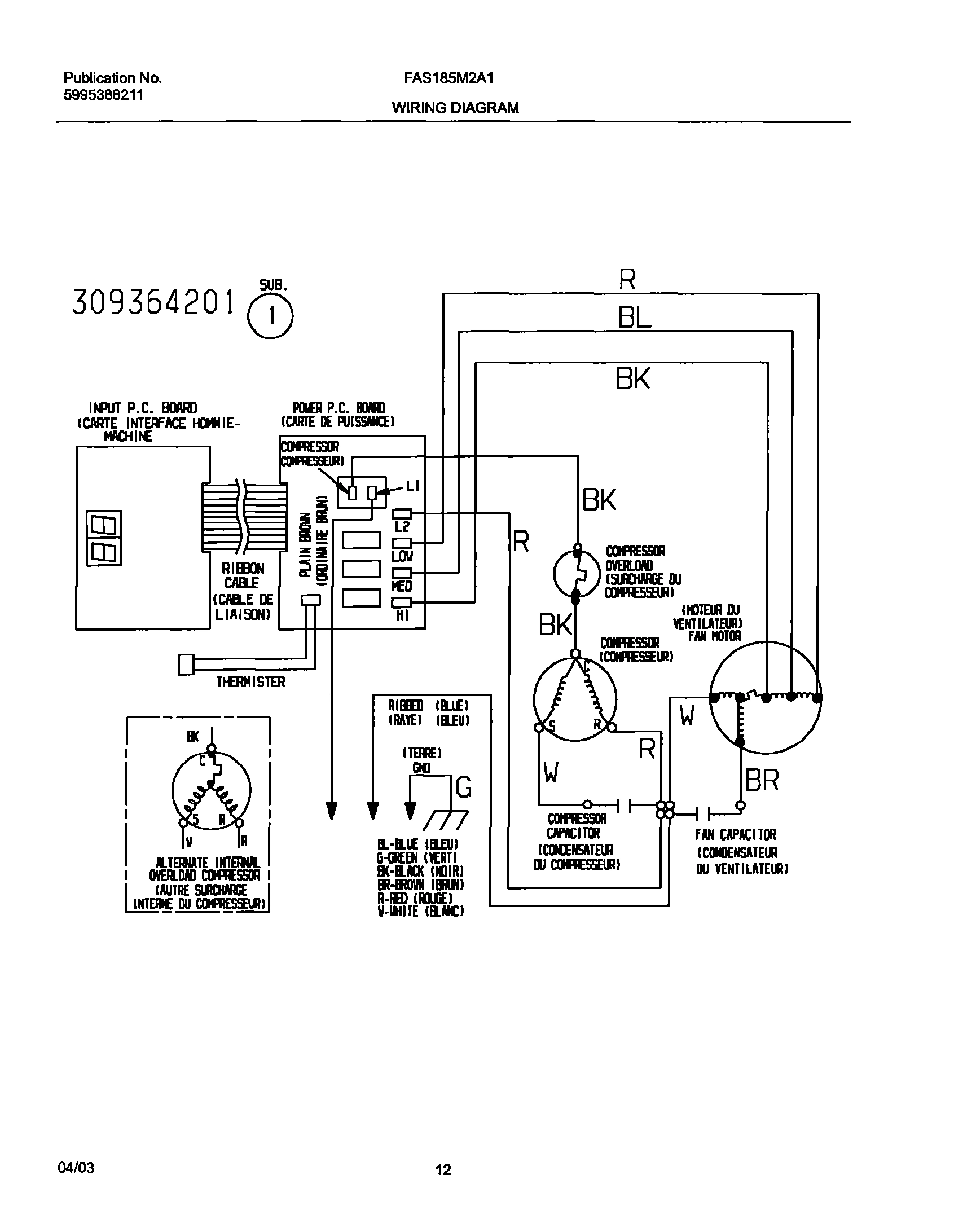

12 - WIRING DIAGRAM
Common parts from model Electrolux FAS185M2A1 ROOM AIR CONDITIONER
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
WCI 309603112 WCI 309603112 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Shroud,cond fan motor WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304426345 WCI 5304426345 Contact Us For Availability
5
Seal,fan housing ,19.56`` x 0.50`` ,lower WCI 5303015311 Contact Us For Availability
5
Seal,top rail/cab WCI 5304409250 Contact Us For Availability
6
WCI 5304431275 WCI 5304431275 Contact Us For Availability
6
Retainer,accordian mount WCI 5304414933 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
7
WCI 5304414105 WCI 5304414105 Contact Us For Availability
8
WCI 309630607 WCI 309630607 Contact Us For Availability
8
Overload Protector WCI 5304414111 Contact Us For Availability
8
Bracket,sill/unit sprt. WCI 3001815 Contact Us For Availability
9
Louver,vertical WCI 309631004 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
9
Screw,1/4-20 x 0.750 WCI 3007756 Contact Us For Availability
10
WCI 309623602 WCI 309623602 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
10
Nut,lock ,1/4-20 ,support bracket WCI 3007759 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
WCI 309634201 WCI 309634201 Contact Us For Availability
11
WCI 5304414106 WCI 5304414106 Contact Us For Availability
12
Filter-air,molded plastic WCI 309631404 Contact Us For Availability
12
WCI 5304413782 WCI 5304413782 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
12A
Clip,sensor retainer ,(2) WCI 309331801 Contact Us For Availability
13
WCI 5303306706 WCI 5303306706 Contact Us For Availability
13
Cover,blower wheel ,top WCI 309630302 Contact Us For Availability
13
Tray,evap drip WCI 309623501 Contact Us For Availability
13
Screw,10-32 x 0.500 ,support WCI 5303281649 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
14
WCI 309632910 WCI 309632910 Contact Us For Availability
14
WCI 5304426346 WCI 5304426346 Contact Us For Availability
15
WCI 5303303077 WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309630101 Contact Us For Availability
15
Panel,accordian ,LH/RH ,window closure WCI 309645602 Contact Us For Availability
16
Capillary Tube,45 inch long WCI 5308017121 Contact Us For Availability
16
Rail,top WCI 5304414116 Contact Us For Availability
17
Front Assembly,w/7,8,9,12,43 WCI 309633205 Contact Us For Availability
17
Cord-electric power,type C ,16 AWG WCI 309343112 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
WCI 5308012680 WCI 5308012680 Contact Us For Availability
19
WCI 309360104 WCI 309360104 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309630201 Contact Us For Availability
21
Seal,sleeve/shroud ,23.72`` x 1.25`` ,bottom WCI 5303212504 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
24
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
25
Door,vent ,with actuator WCI 309321401 Contact Us For Availability
26
Handle-vent,gray WCI 309330404 Contact Us For Availability
26A
WCI 309330202 WCI 309330202 Contact Us For Availability
43
Panel,cabinet front WCI 309630904 Contact Us For Availability
70
WCI 309369701 WCI 309369701 Contact Us For Availability
71
WCI 309350405 WCI 309350405 Contact Us For Availability
72
WCI 309350407 WCI 309350407 Contact Us For Availability
75
WCI 5304413781 WCI 5304413781 Contact Us For Availability
78
WCI 309342607 WCI 309342607 Contact Us For Availability
NI
WCI 309369926 WCI 309369926 Contact Us For Availability
NI
WCI 5304414095 WCI 5304414095 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
Mounting Support Kit,heavy duty WCI 309313204 Contact Us For Availability
NI
Window Mounting Kit,heavy duty WCI 309313303 Contact Us For Availability
NI
Hardware Kit,window mount ,heavy duty WCI 5304409248 Contact Us For Availability
NI
Seal,ship screw hole WCI 5304409249 Contact Us For Availability
× ![]()
