Model Electrolux FAS155K1A3 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

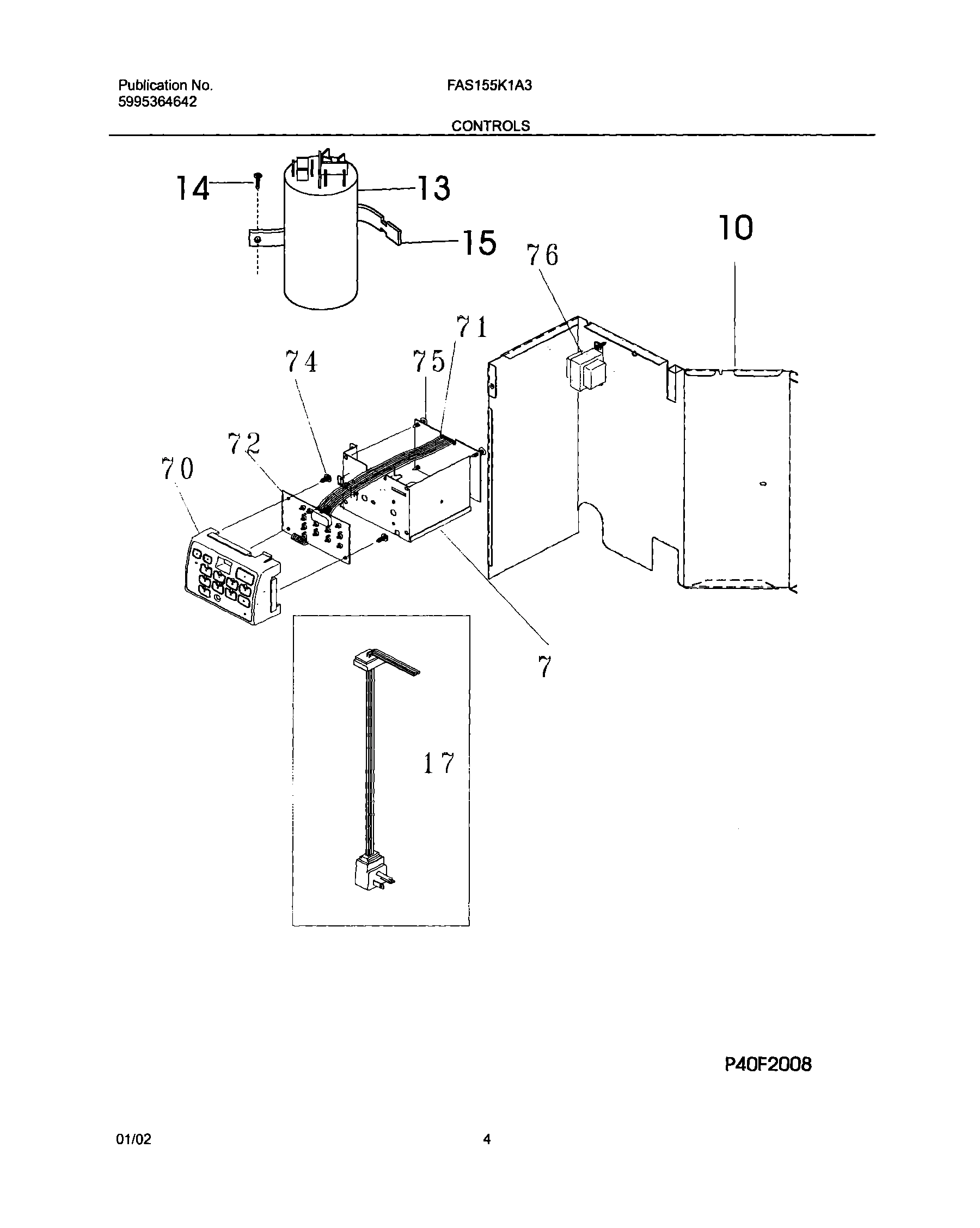

05 - CONTROLS
07 - AIR HANDLING PARTS

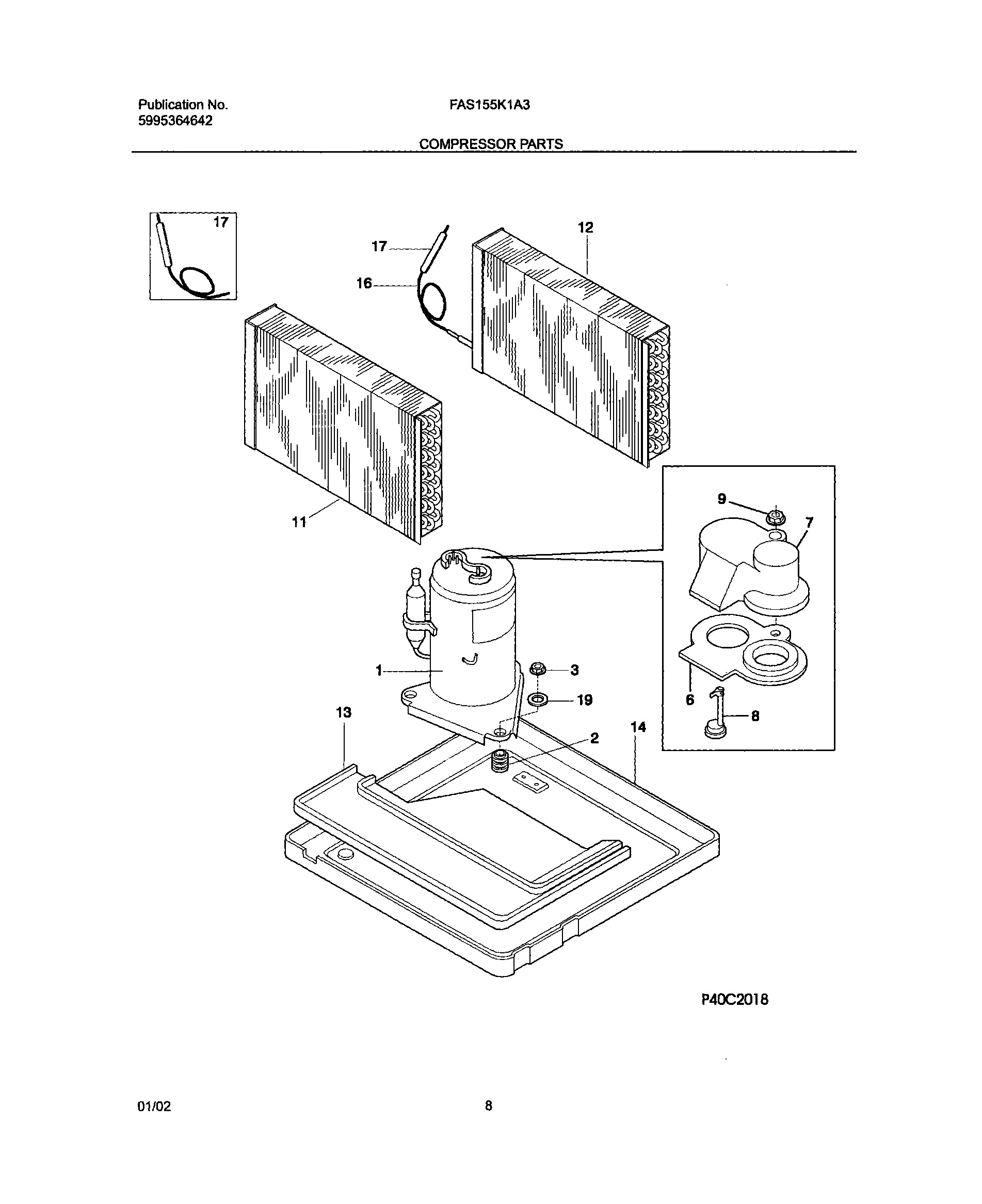

09 - COMPRESSOR PARTS

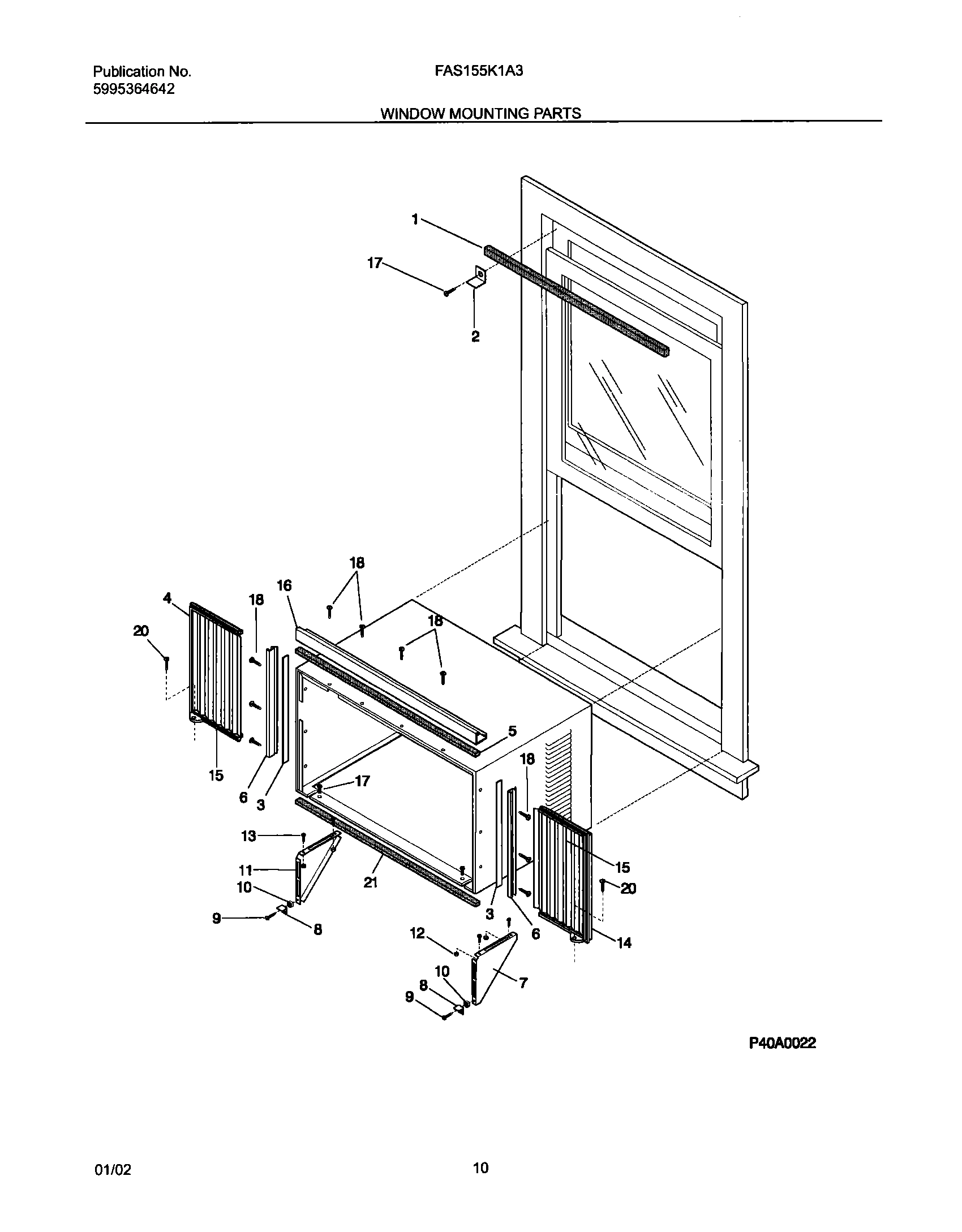

11 - WINDOW MOUNTING PARTS

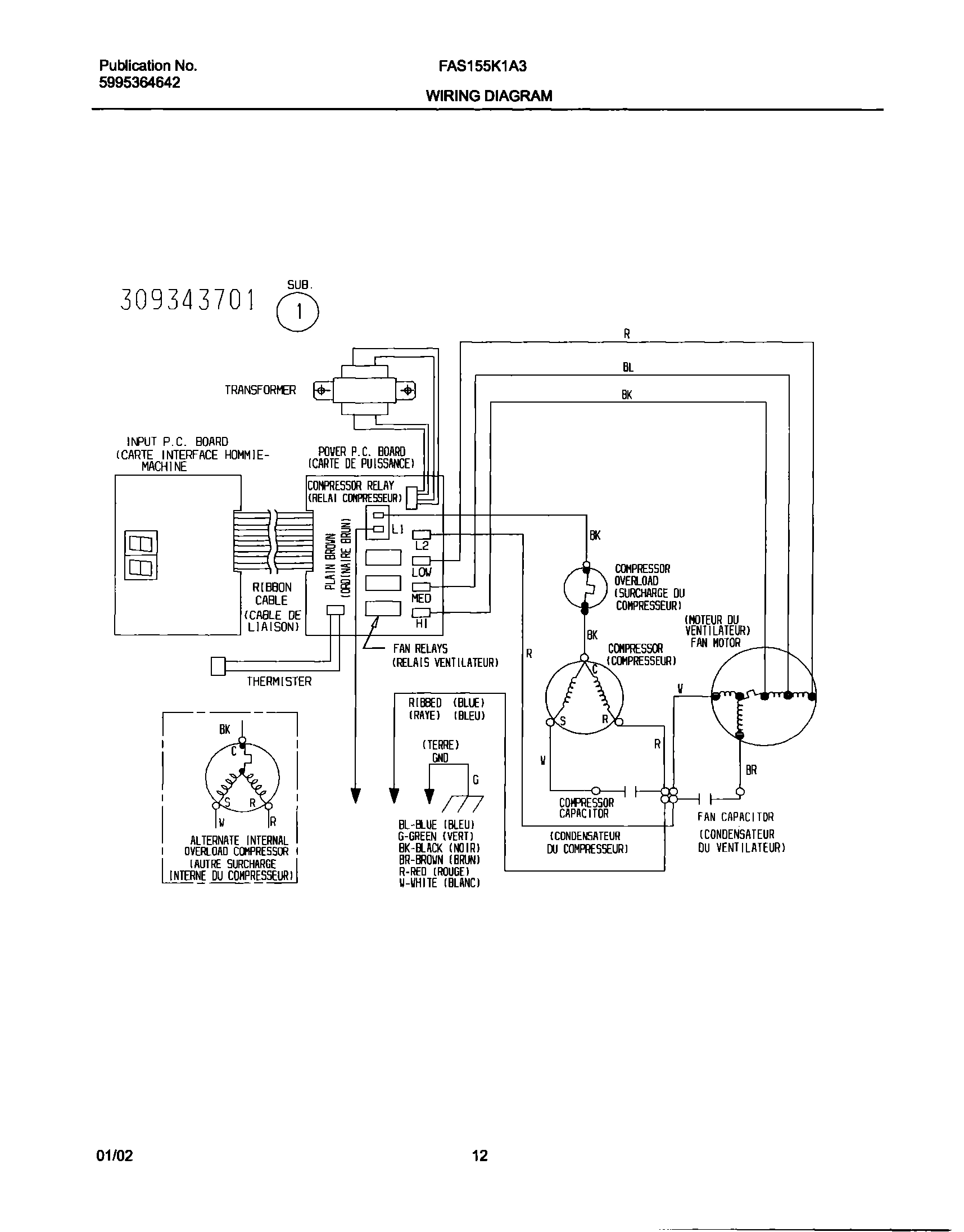

12 - WIRING DIAGRAM
Common parts from model Electrolux FAS155K1A3 ROOM AIR CONDITIONER
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
COMPRESSOR,W/OVERLOAD WCI 5303925103 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Shroud-condenser,one piece WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
Seal,retainerNOT USED. WCI 5303276728 Contact Us For Availability
4
WCI 5304414928 WCI 5304414928 Contact Us For Availability
5
SEAL,FAN HOUSING ,LOWER WCI 5303015311 Contact Us For Availability
5
WCI 5304409250 WCI 5304409250 Contact Us For Availability
6
Gasket-cover,terminal WCI 5303272298 Contact Us For Availability
6
Retainer,accordian WCI 5304414933 Contact Us For Availability
7
Control Box WCI 309630403 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
WCI 5304414105 WCI 5304414105 Contact Us For Availability
8
WCI 309630609 WCI 309630609 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
Louver,vertical WCI 309631004 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 309623602 WCI 309623602 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
Evaporator WCI 309634103 Contact Us For Availability
11
WCI 5304414106 WCI 5304414106 Contact Us For Availability
12
Filter-air,molded plastic WCI 309631404 Contact Us For Availability
12
WCI 5303303600 WCI 5303303600 Contact Us For Availability
13
WCI 5303291523 WCI 5303291523 Contact Us For Availability
13
WCI 309630302 WCI 309630302 Contact Us For Availability
13
WCI 309623501 WCI 309623501 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
WCI 5303285199 WCI 5303285199 Contact Us For Availability
14
Base-compressor WCI 309632907 Contact Us For Availability
14
WCI 5304414929 WCI 5304414929 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309630101 WCI 309630101 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 5304414930 Contact Us For Availability
16
Capillary Tube,40 inch long ,cut-to-length WCI 5303289577 Contact Us For Availability
16
Rail,top WCI 5304414116 Contact Us For Availability
17
Front-cabinet,complete assy WCI 309633205 Contact Us For Availability
17
Cord-electric power,type A ,14 AWG WCI 309343111 Contact Us For Availability
17
Tube-process,cond. outlet WCI 5304417722 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
WCI 5308012680 WCI 5308012680 Contact Us For Availability
19
WCI 309341002 WCI 309341002 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309630201 WCI 309630201 Contact Us For Availability
20
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
21
Seal-sleeve/chassis,bottom WCI 5303212504 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
Handle-vent,gray WCI 309330404 Contact Us For Availability
26A
WCI 309330202 WCI 309330202 Contact Us For Availability
43
Panel,cabinet front WCI 309630904 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342401 Contact Us For Availability
71
PC Board,power,Sagem WCI 309350401 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,120/12 Volt WCI 309111601 Contact Us For Availability
78
WCI 309350502 WCI 309350502 Contact Us For Availability
NI
WCI 5304402119 WCI 5304402119 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309331801 WCI 309331801 Contact Us For Availability
NI
Holder-thermistor,assy with seal WCI 5304413782 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
Kit-mounting support WCI 309313204 Contact Us For Availability
NI
Kit-window mounting,heavy duty WCI 309313303 Contact Us For Availability
NI
WCI 309367416 WCI 309367416 Contact Us For Availability
NI
Kit-Hardware,mounting WCI 5304409248 Contact Us For Availability
NI
WCI 5304409249 WCI 5304409249 Contact Us For Availability
× ![]()
