Model Electrolux FAS155J1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

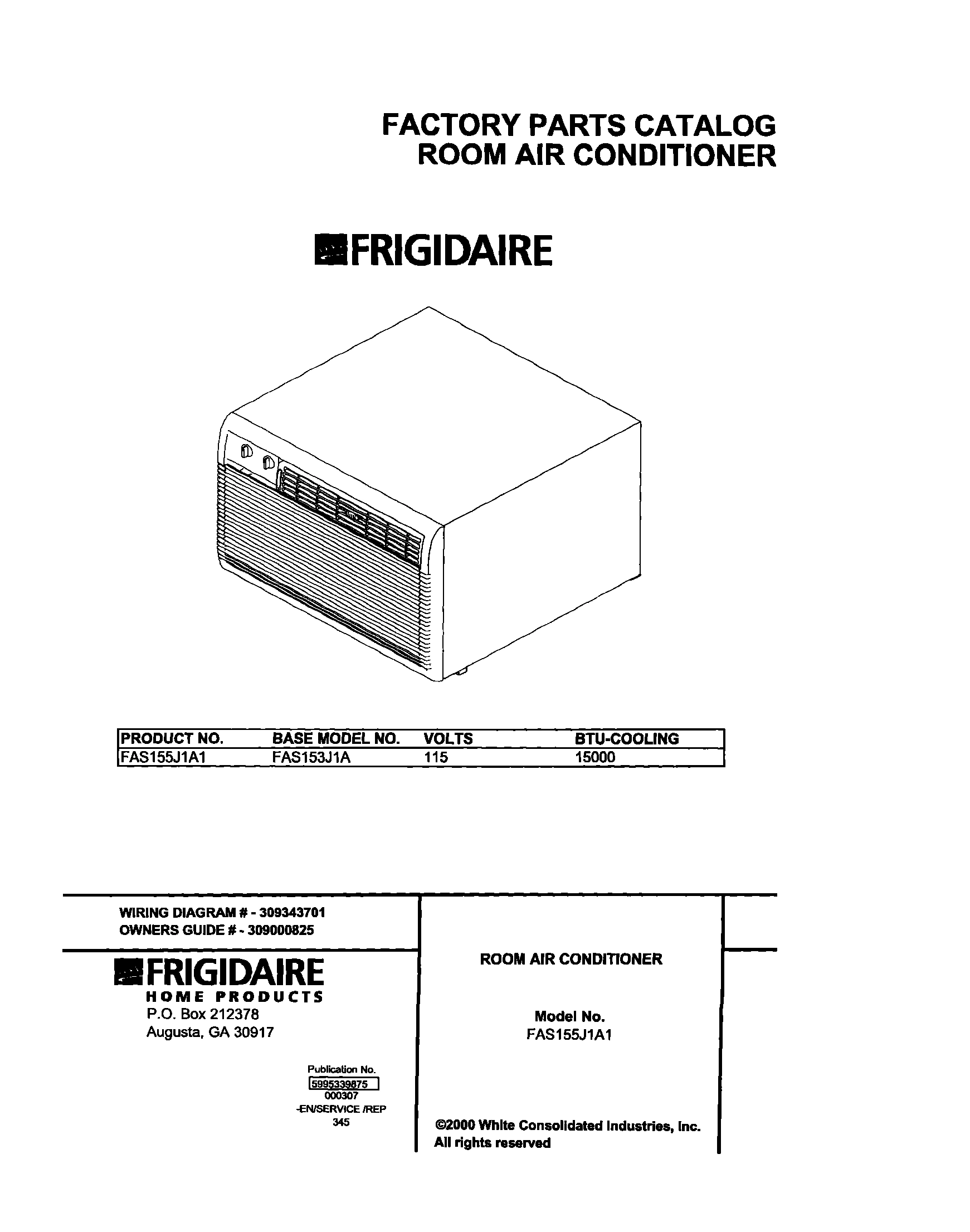

01 - COVER

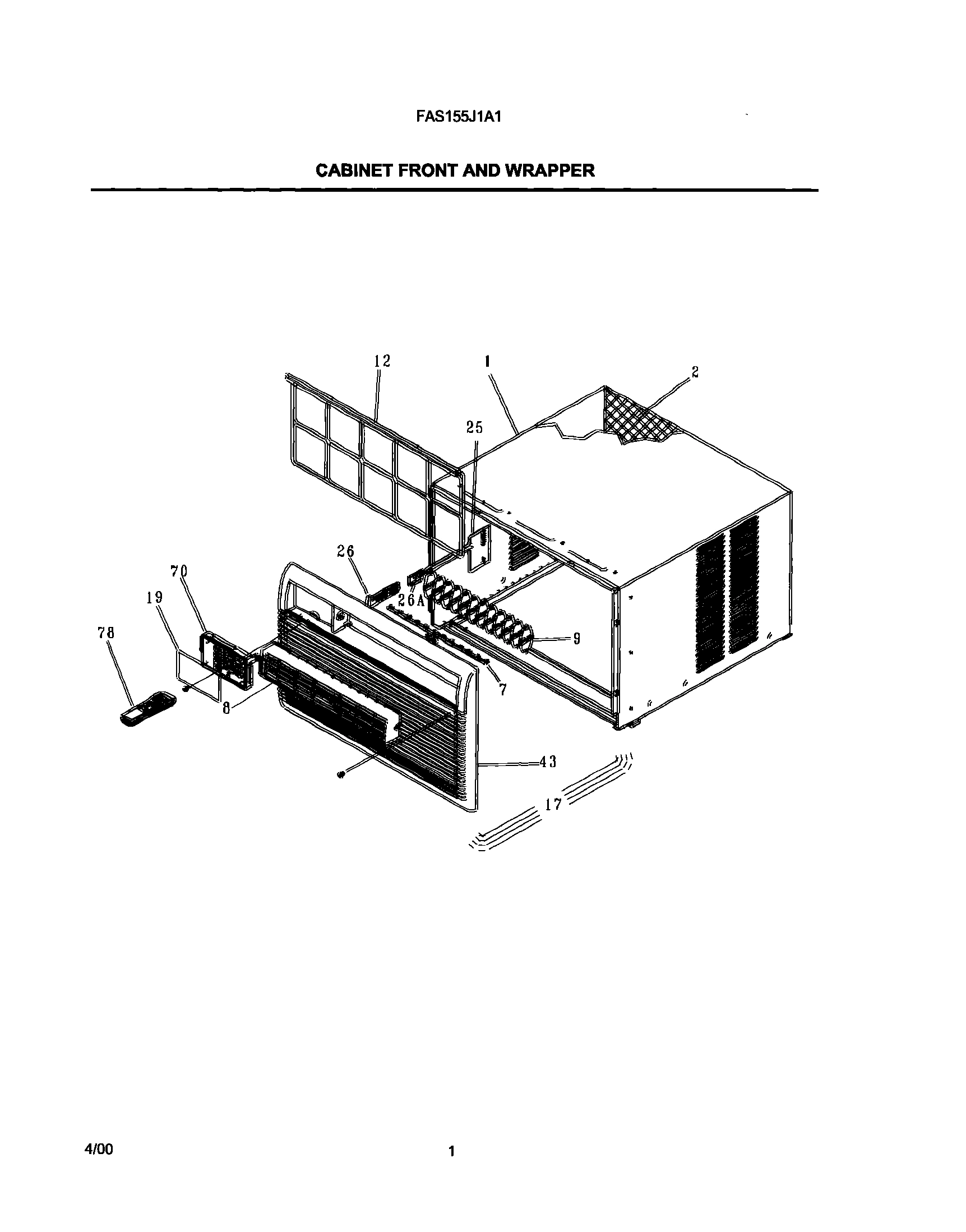

02 - CABINET FRONT/WRAPPER

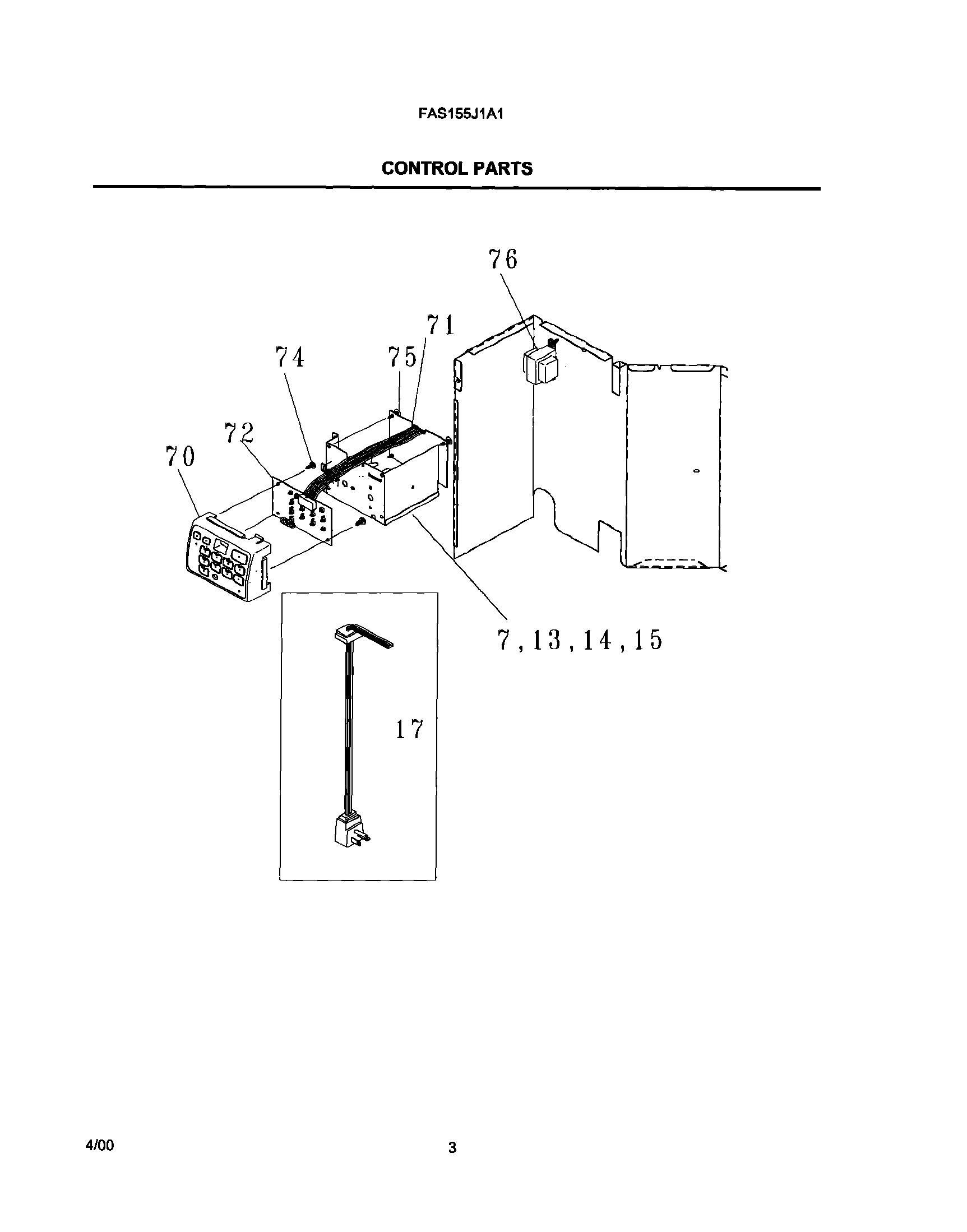

04 - CONTROL PARTS

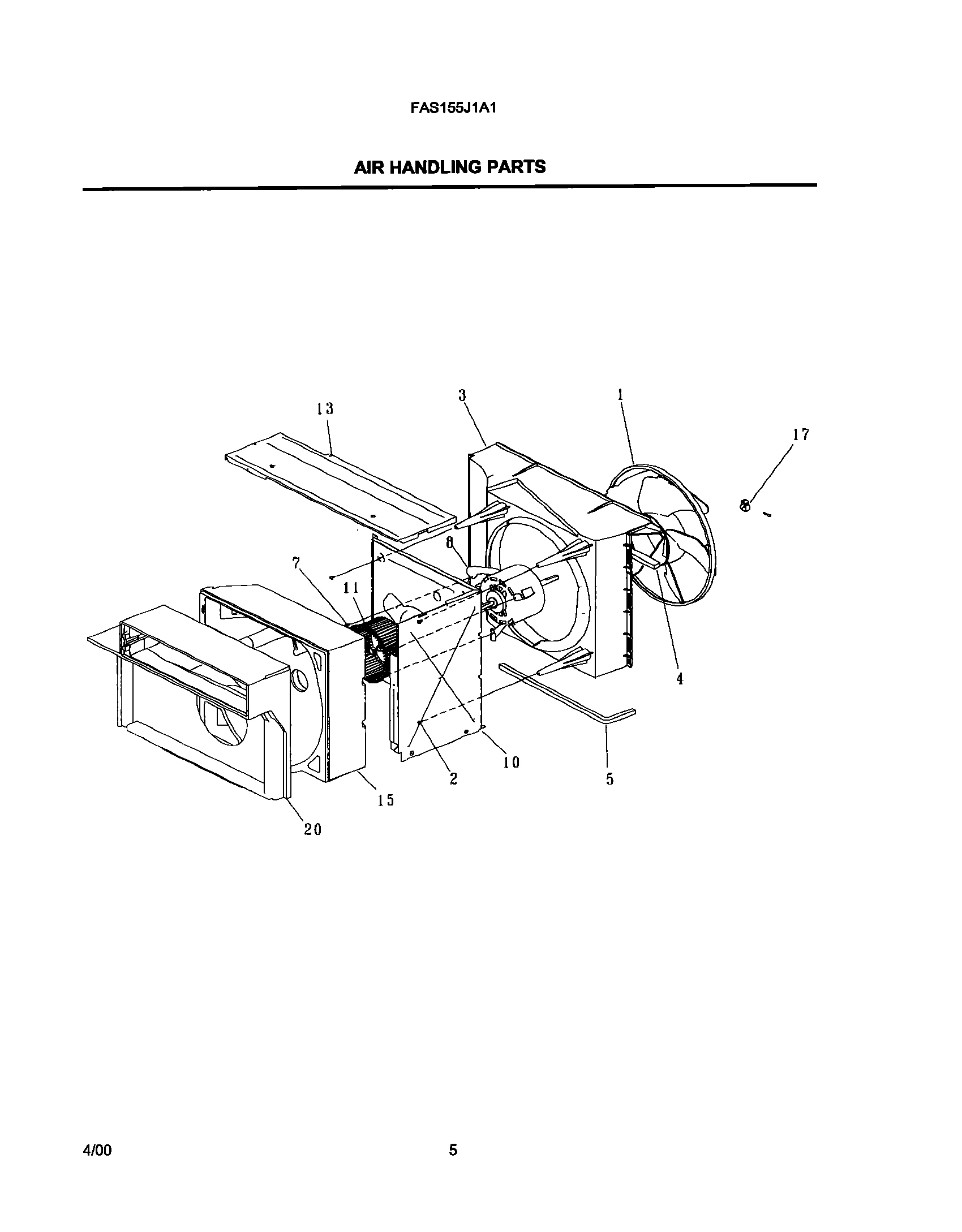

06 - AIR HANDLING PARTS

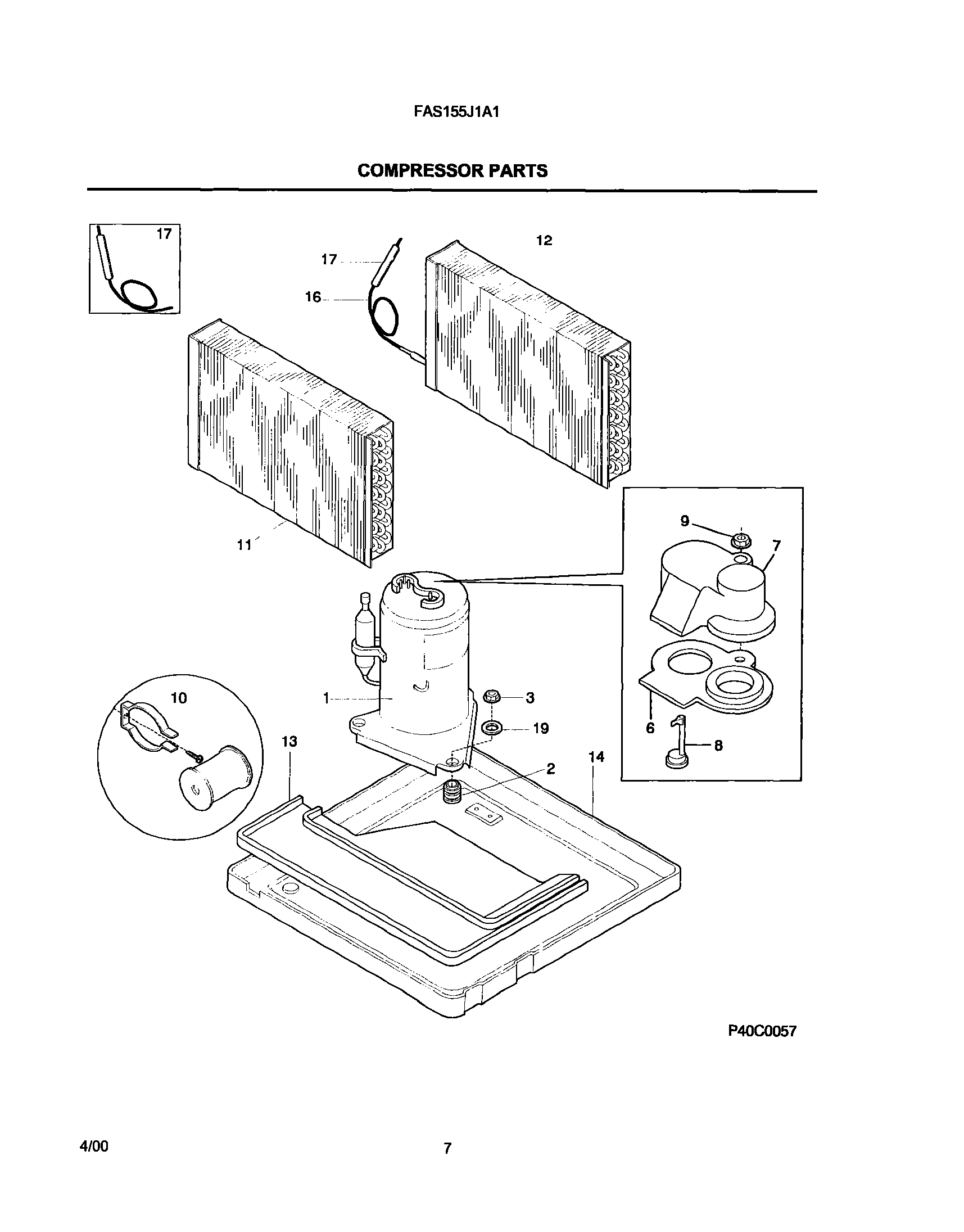

08 - COMPRESSOR PARTS

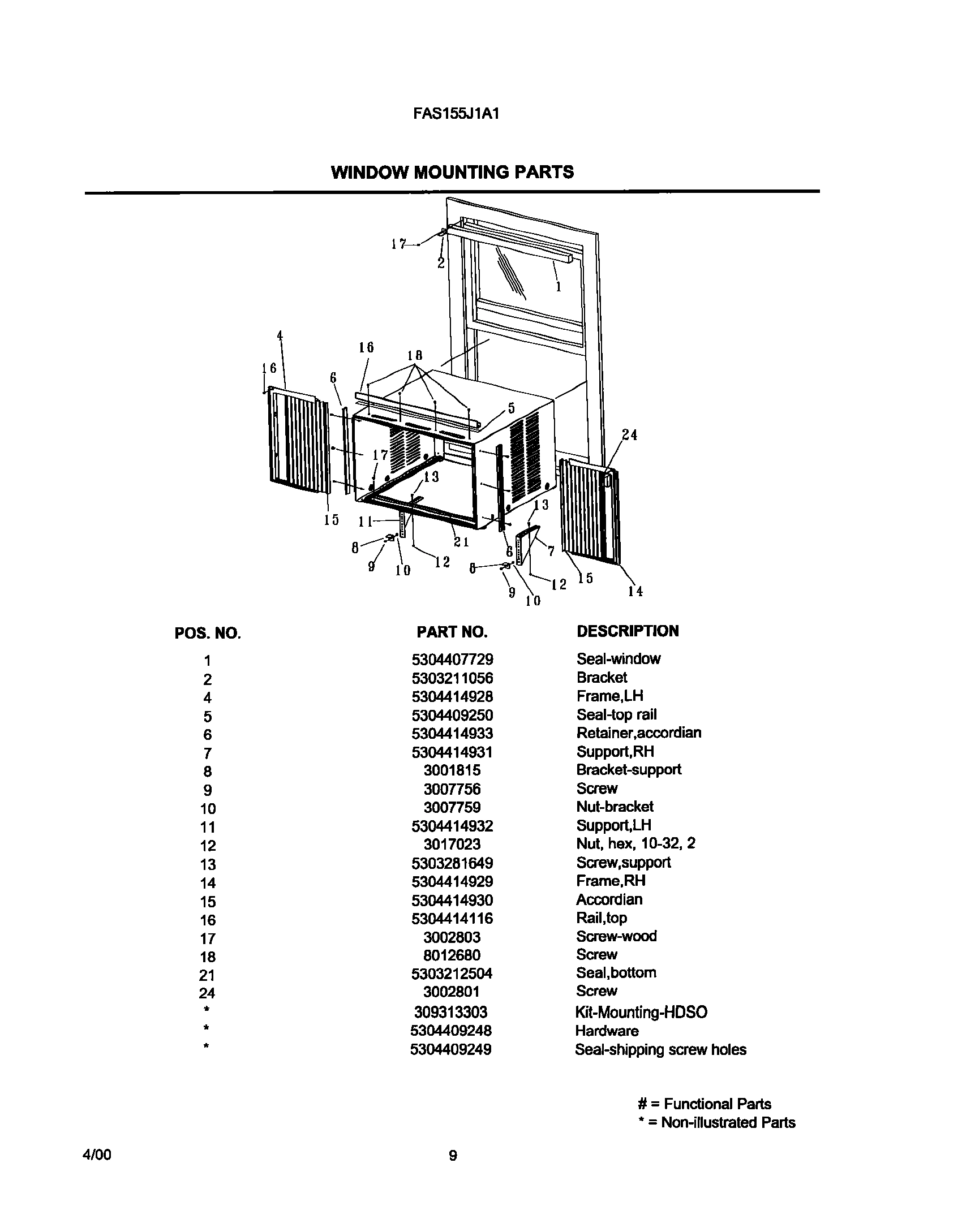

09 - WINDOW MOUNTING PARTS

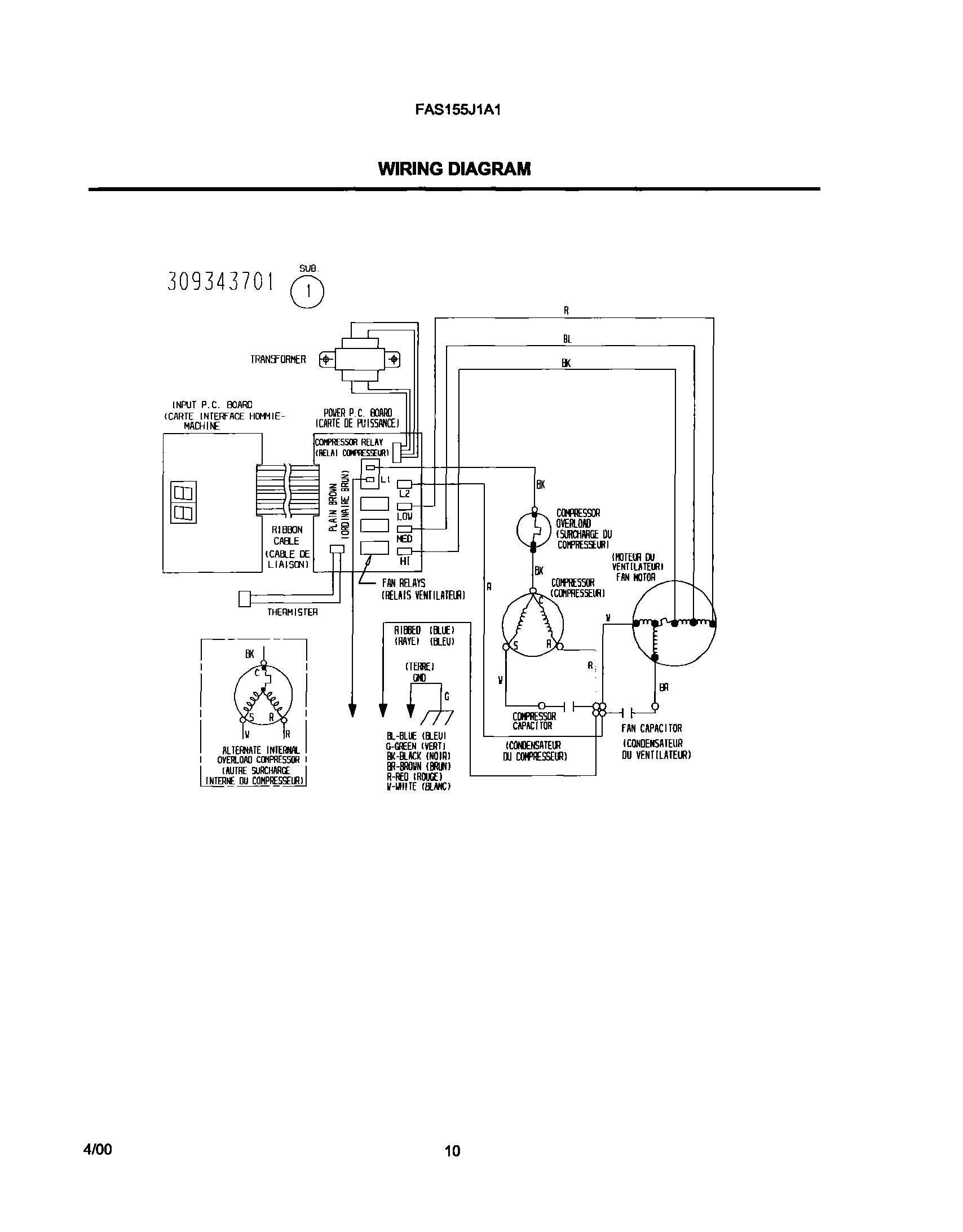

10 - WIRING DIAGRAM
Common parts from model Electrolux FAS155J1A1 ROOM AIR CONDITIONER
1
FAN BLADE & CLAMP WCI 5303311048 Contact Us For Availability
1
WCI 5303925103 WCI 5303925103 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
WCI 5303283877 WCI 5303283877 Contact Us For Availability
3
No.CONDENSER SHROUD-ONE PC. WCI 309623201 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
SEAL WCI 3016696 Contact Us For Availability
4
WCI 5304414928 WCI 5304414928 Contact Us For Availability
5
SEAL WCI 5303015311 Contact Us For Availability
5
Seal,top rail/cab WCI 5304409250 Contact Us For Availability
6
WCI 5303272298 WCI 5303272298 Contact Us For Availability
6
Retainer,accordian WCI 5304414933 Contact Us For Availability
7
Link,vertical louver WCI 309631104 Contact Us For Availability
7
No.BOX-CONTROL HDTC ELEC.CONTROL WCI 309630403 Contact Us For Availability
7
CAPACITOR-TERMINAL COVER WCI 3206230 Contact Us For Availability
7
WCI 5304414931 WCI 5304414931 Contact Us For Availability
8
WCI 309630804 WCI 309630804 Contact Us For Availability
8
WCI 5304407974 WCI 5304407974 Contact Us For Availability
8
WCI 5303016697 WCI 5303016697 Contact Us For Availability
8
WCI 3001815 WCI 3001815 Contact Us For Availability
9
Louver,vertical WCI 309631004 Contact Us For Availability
9
CAP-TERMINAL COVER WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
No.BULKHEAD-CONTR SIDE HDT/A,T/C WCI 309623601 Contact Us For Availability
10
No.BULKHEAD-AIR SIDE HD T/A, T/C WCI 309623401 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
No.EVAP-ASSY HDTC 2ROW/19FPI WCI 309634103 Contact Us For Availability
11
WCI 5304414932 WCI 5304414932 Contact Us For Availability
12
No.FILTER-MOLDED WCI 309631404 Contact Us For Availability
12
No.THERMISTOR HOLDER WCI 5304414108 Contact Us For Availability
12
WCI 5303303600 WCI 5303303600 Contact Us For Availability
13
WCI 309335304 WCI 309335304 Contact Us For Availability
13
No.COVER-TOP HDTA/TC WCI 309630301 Contact Us For Availability
13
Tray,evap drip WCI 309623501 Contact Us For Availability
13
WCI 5303281649 WCI 5303281649 Contact Us For Availability
14
No.BASE-STUD ASSY (NCS1403-G96Y) WCI 309632907 Contact Us For Availability
14
WCI 5304414929 WCI 5304414929 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309630101 Contact Us For Availability
15
WCI 5304414930 WCI 5304414930 Contact Us For Availability
16
CAPILLARY TUBE (CUT TO 50``) WCI 5303289577 Contact Us For Availability
16
Rail,top WCI 5304414116 Contact Us For Availability
17
No.FRONT ASSY-FAC 1403 WCI 309633205 Contact Us For Availability
17
Cord-electric power,type A ,14 AWG WCI 309343111 Contact Us For Availability
17
WCI 5308011040 WCI 5308011040 Contact Us For Availability
17
WCI 5304417722 WCI 5304417722 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
SCREW WCI 8012680 Contact Us For Availability
19
WCI 309341002 WCI 309341002 Contact Us For Availability
19
WCI 5303002664 WCI 5303002664 Contact Us For Availability
20
Plate,scroll cover WCI 309630201 Contact Us For Availability
21
WCI 5303212504 WCI 5303212504 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
25
Door,vent ,with actuator WCI 309321401 Contact Us For Availability
26
No.HANDLE-VENT BARCLNA (1403) WCI 309330404 Contact Us For Availability
43
No.FRAME-FRNT HDTC BRCLN WCI 309630904 Contact Us For Availability
70
No.ENCLOURE-HDTC BRANDS WCI 309342401 Contact Us For Availability
71
PC Board,power WCI 309340503 Contact Us For Availability
72
WCI 309340701 WCI 309340701 Contact Us For Availability
75
WCI 5304413781 WCI 5304413781 Contact Us For Availability
76
WCI 309111601 WCI 309111601 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342604 Contact Us For Availability
NI
WCI 309633305 WCI 309633305 Contact Us For Availability
NI
WCI 5304408752 WCI 5304408752 Contact Us For Availability
NI
No.KIT-WING/RETAINER SUPPORT WCI 309313303 Contact Us For Availability
NI
HARDWARE KIT WCI 5304409248 Contact Us For Availability
NI
Seal,ship screw hole WCI 5304409249 Contact Us For Availability
× ![]()
