Model Electrolux FAS155H1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT/WRAPPER

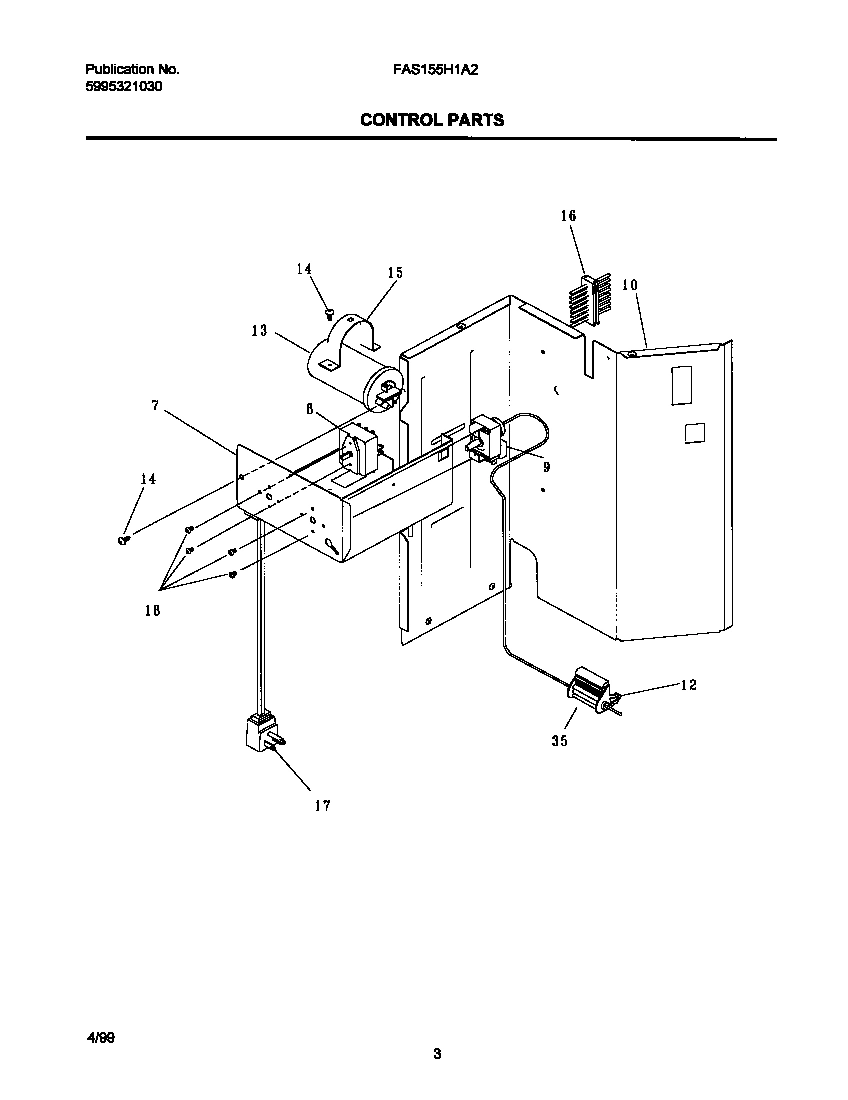

03 - CONTROL PARTS

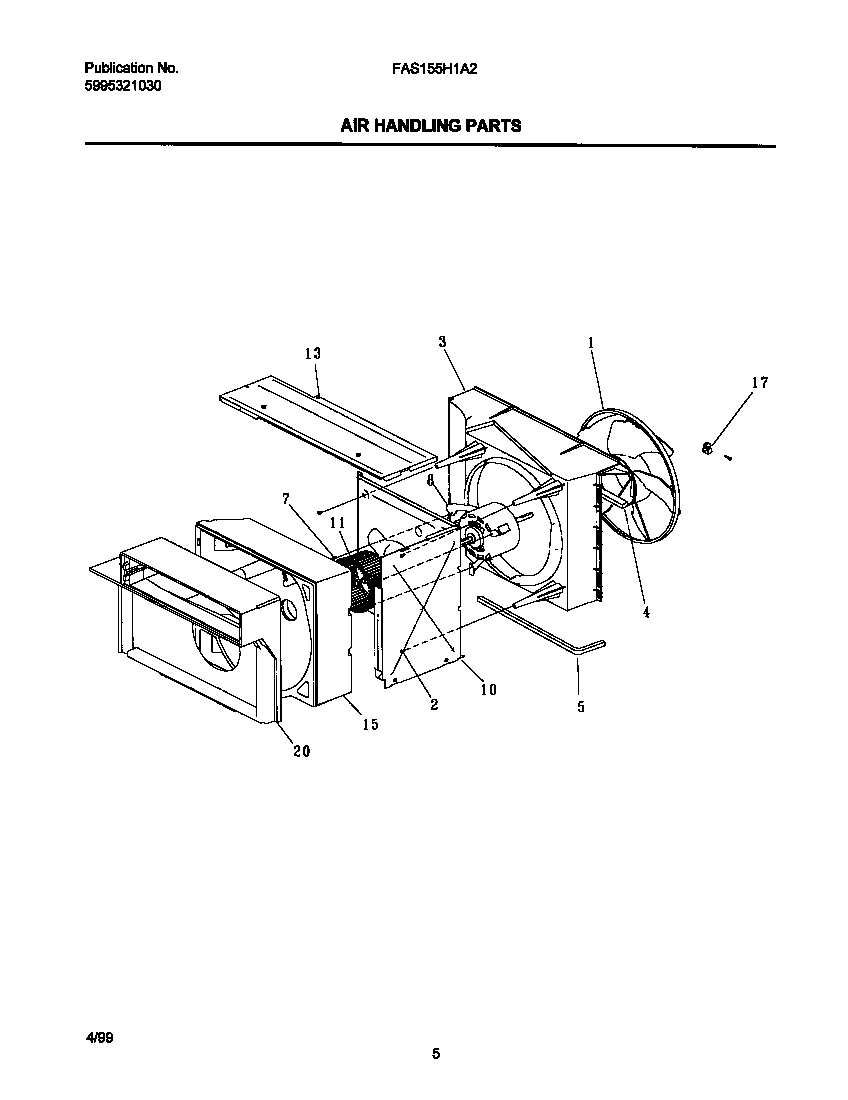

04 - AIR HANDLING PARTS

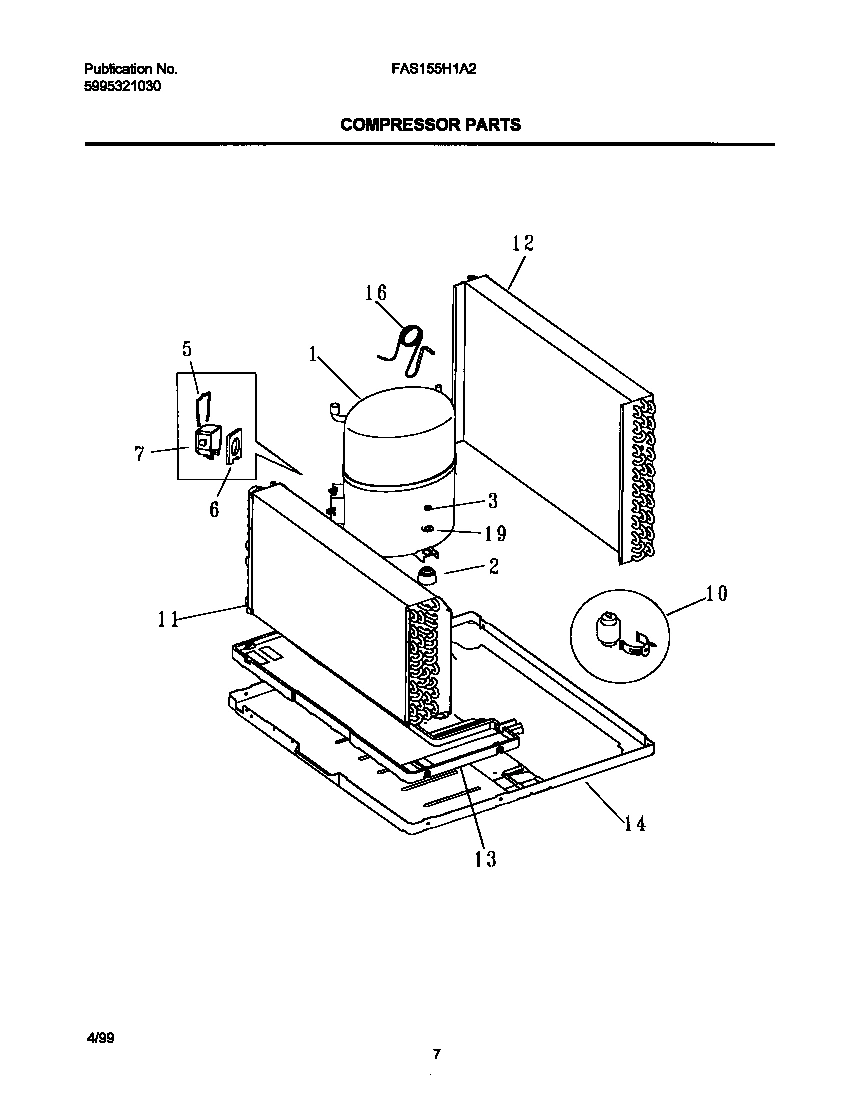

05 - COMPRESSOR PARTS

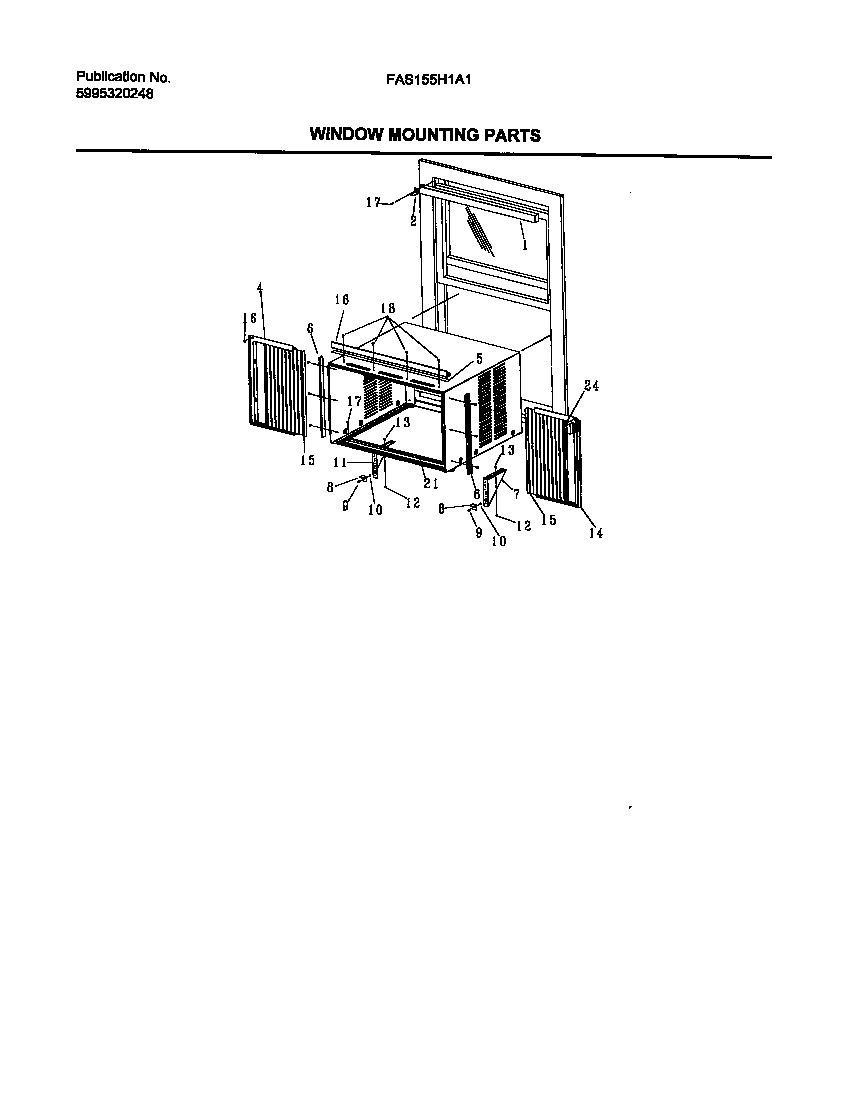

06 - WINDOW MOUNTING PARTS

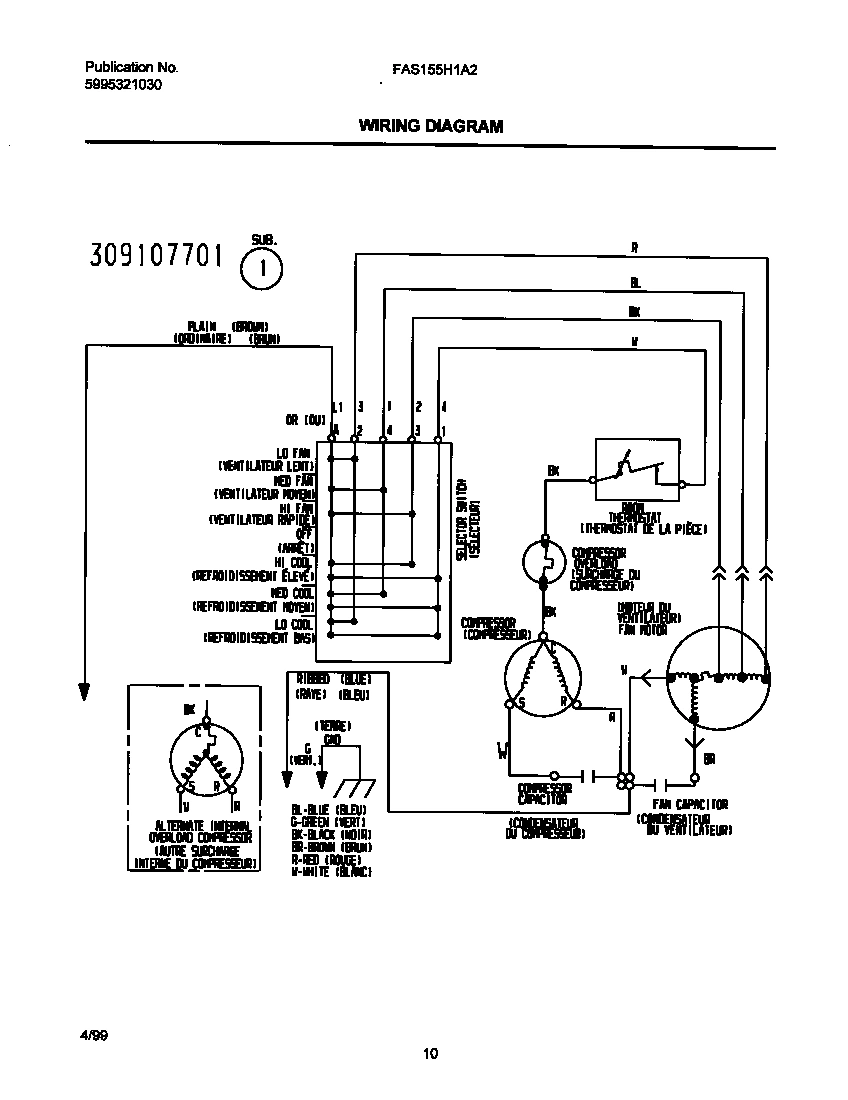

07 - WIRING DIAGRAM
Common parts from model Electrolux FAS155H1A2 ROOM AIR CONDITIONER
*02481
WCI 309635401 WCI 309635401 Contact Us For Availability
*02482
HARDWARE KIT WCI 5304409248 Contact Us For Availability
*02483
SEAL-SHIPPING SCREW HOLES WCI 5304409249 Contact Us For Availability
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
COMPRESSOR,W/OVERLOAD WCI 5303925103 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 309632801 WCI 309632801 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN, UPPER WCI 5303015305 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
SEAL,HOUSING-FAN ,UPPER WCI 3016696 Contact Us For Availability
4
WCI 5303302304 WCI 5303302304 Contact Us For Availability
5
SEAL,HOUSING-FAN ,LOWER WCI 5303015311 Contact Us For Availability
5
WCI 5304409250 WCI 5304409250 Contact Us For Availability
6
HOUSING-FAN,LOWER WCI 5303015304 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
6
WCI 5303301765 WCI 5303301765 Contact Us For Availability
7
WCI 309631101 WCI 309631101 Contact Us For Availability
7
BOX-CONTROL HDTA/TC WCI 309630401 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 309633901 WCI 309633901 Contact Us For Availability
8
WCI 5303313962 WCI 5303313962 Contact Us For Availability
8
WCI 5304407974 WCI 5304407974 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 309631001 WCI 309631001 Contact Us For Availability
9
CNTRL-AIR TMP 20AMP RATING WCI 5304408295 Contact Us For Availability
9
BRACKET WCI 5303015306 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
BULKHEAD-CONTR SIDE HDT/A,T/C WCI 309623601 Contact Us For Availability
10
BULKHEAD-AIR SIDE HD T/A, T/C WCI 309623401 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
BLOWER WHL& CLAMP ASY-PLASTIC WCI 309633001 Contact Us For Availability
11
WCI 309634103 WCI 309634103 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 309634001 WCI 309634001 Contact Us For Availability
12
RETAINING CLIP-SENS BULB 1``CL WCI 309331801 Contact Us For Availability
12
WCI 5303303600 WCI 5303303600 Contact Us For Availability
13
WCI 309335304 WCI 309335304 Contact Us For Availability
13
COVER-TOP HDTA/TC WCI 309630301 Contact Us For Availability
13
TRAY-EVAP HDSO REDESIGN WCI 309623501 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
WCI 309632902 WCI 309632902 Contact Us For Availability
14
WCI 5303302305 WCI 5303302305 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
SCROLL-EVAP COOL ONLY HDT/C WCI 309630101 Contact Us For Availability
15
WCI 5303302306 WCI 5303302306 Contact Us For Availability
16
WCI 5304408752 WCI 5304408752 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
16
WCI 5303301777 WCI 5303301777 Contact Us For Availability
17
WCI 309633203 WCI 309633203 Contact Us For Availability
17
WCI 5304408774 WCI 5304408774 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
18
SCREW,RAIL TOP WCI 8012680 Contact Us For Availability
19
WCI 309633503 WCI 309633503 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309307006 WCI 309307006 Contact Us For Availability
20
PLATE-SCROLL HDTC/TA WCI 309630201 Contact Us For Availability
21
SEAL-BOTTOM WCI 5303212504 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
WCI 309330601 WCI 309330601 Contact Us For Availability
35
WCI 3200761 WCI 3200761 Contact Us For Availability
43
WCI 309633801 WCI 309633801 Contact Us For Availability
70
WCI 309330202 WCI 309330202 Contact Us For Availability
× ![]()
