Model Electrolux FAS154J1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

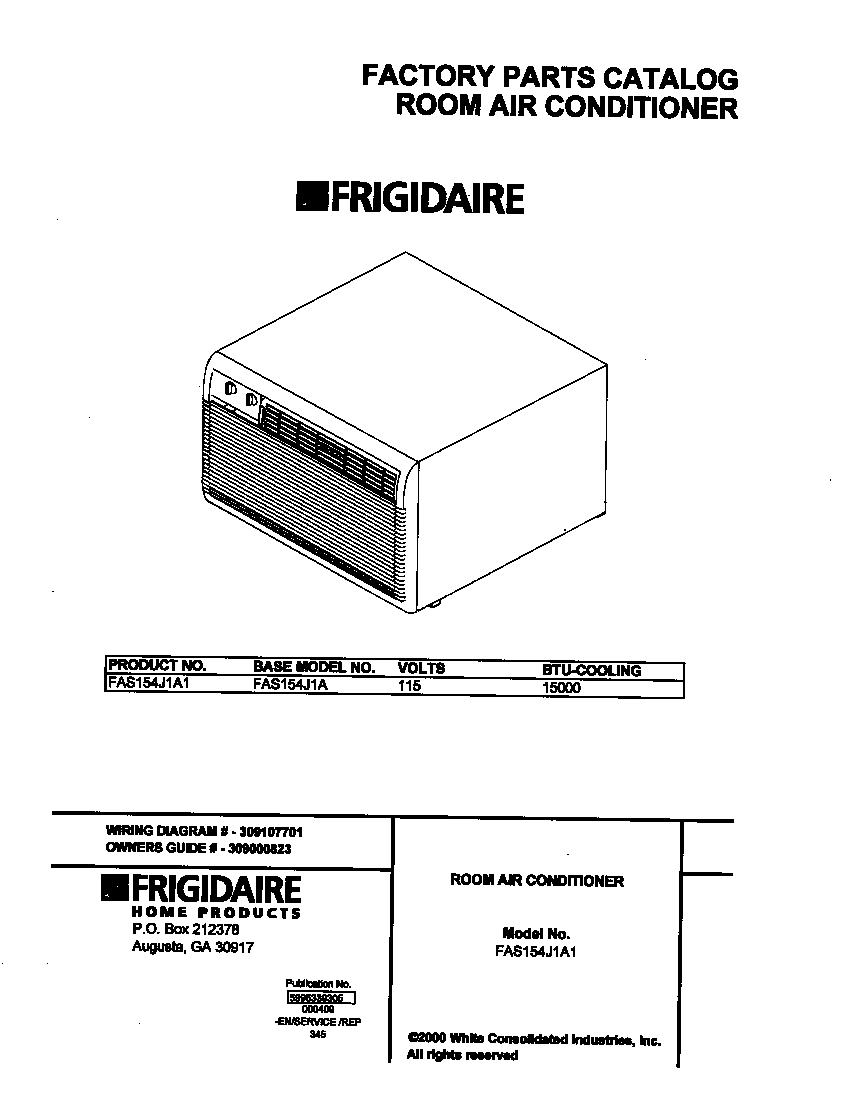

01 - COVER

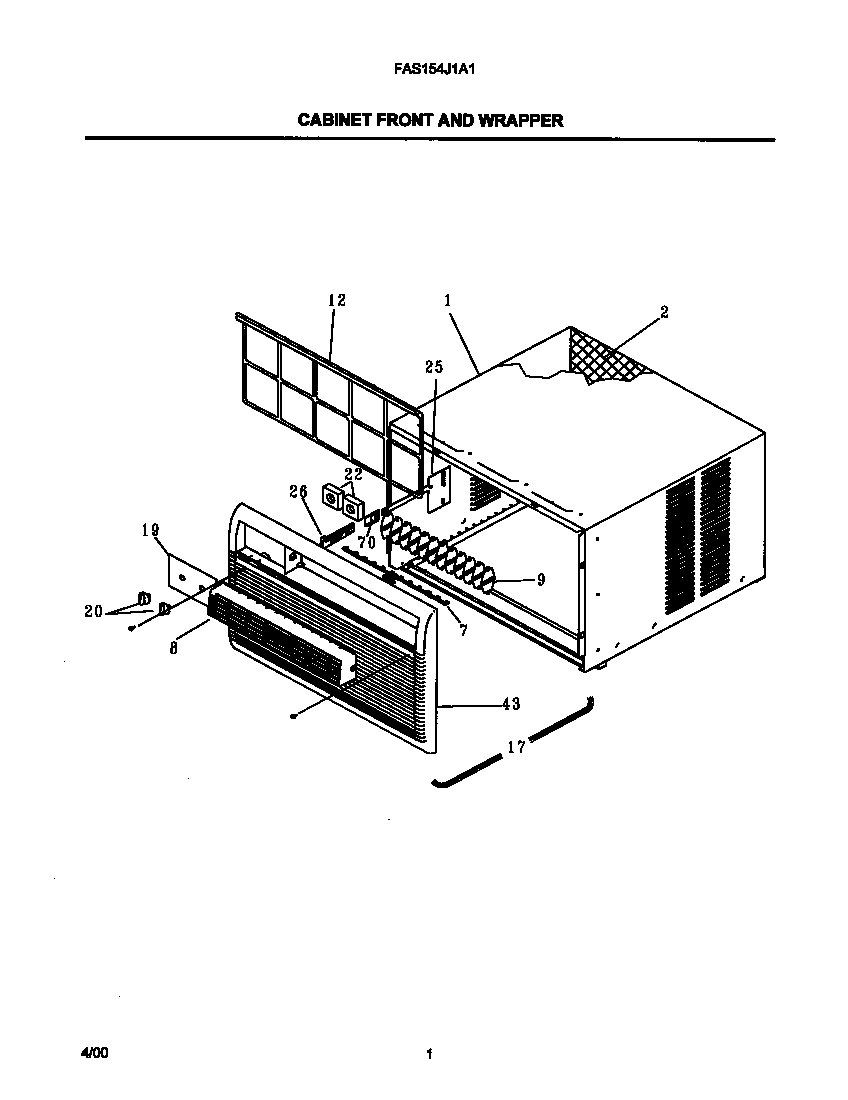

02 - CABINET FRONT AND WRAPPER

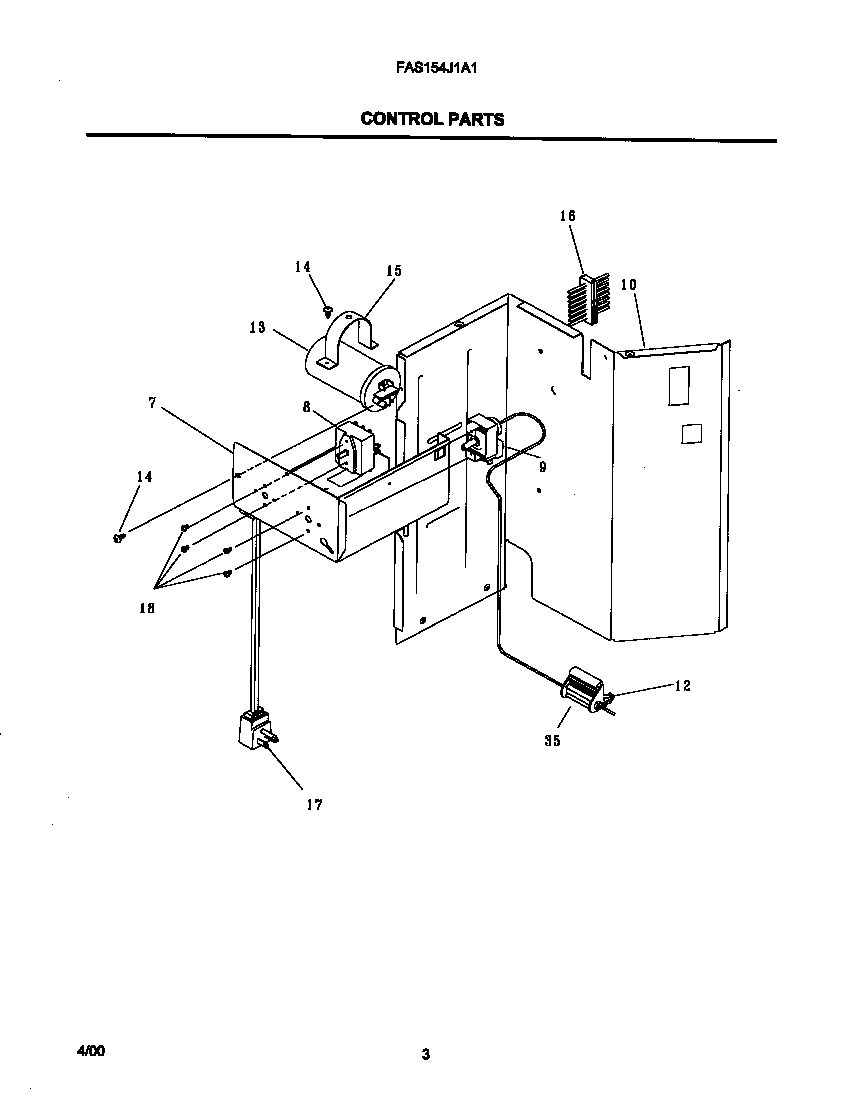

03 - CONTROL PARTS

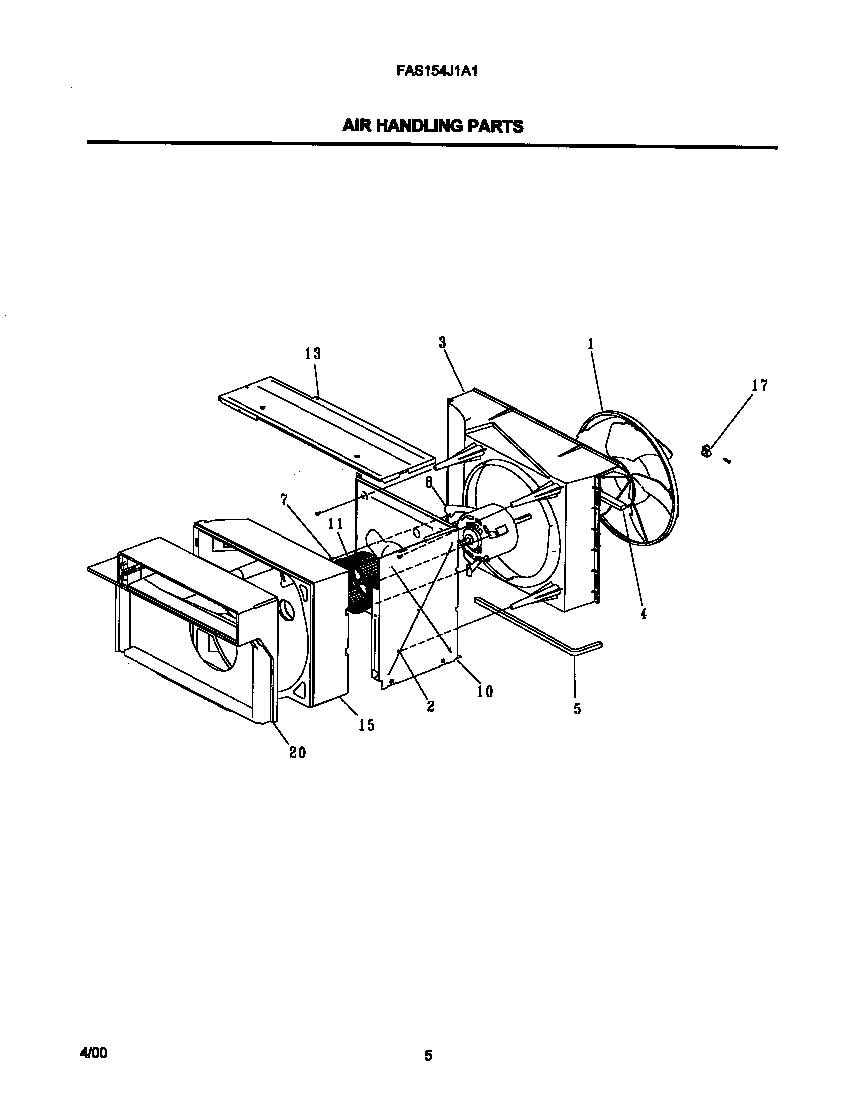

04 - AIR HANDLING PARTS

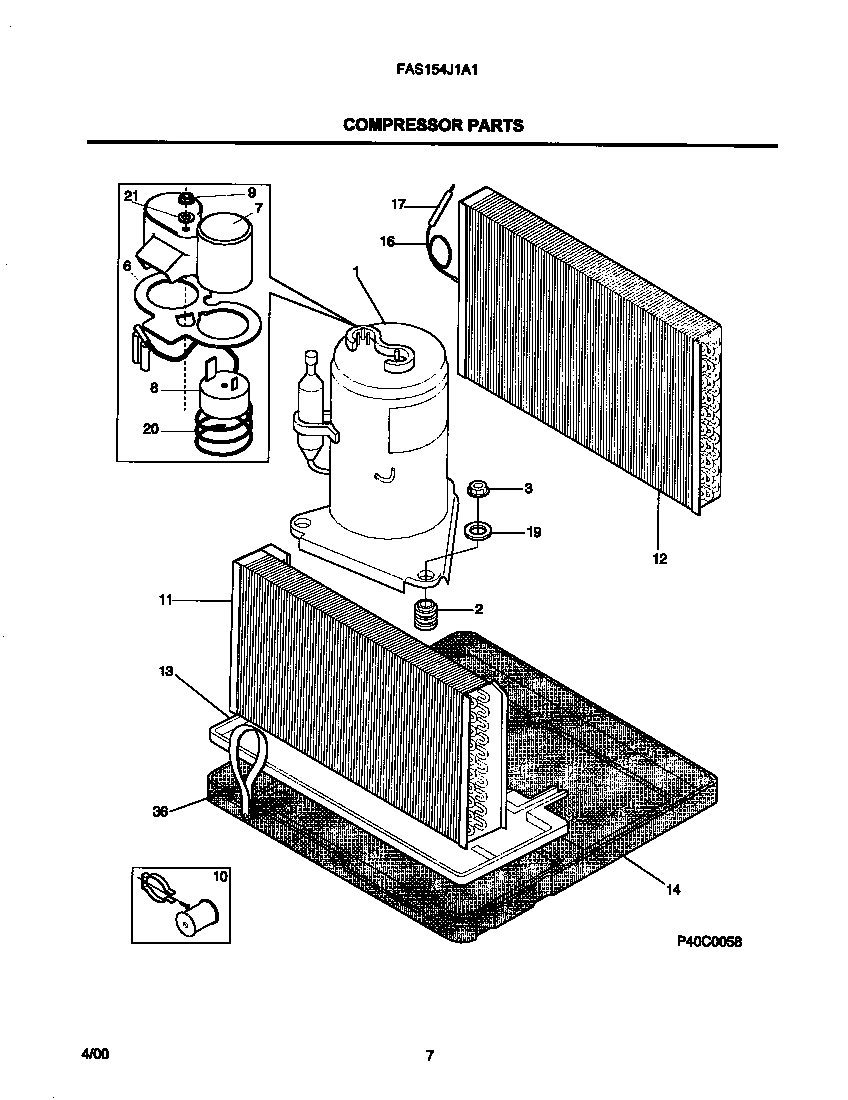

05 - COMPRESSOR PARTS

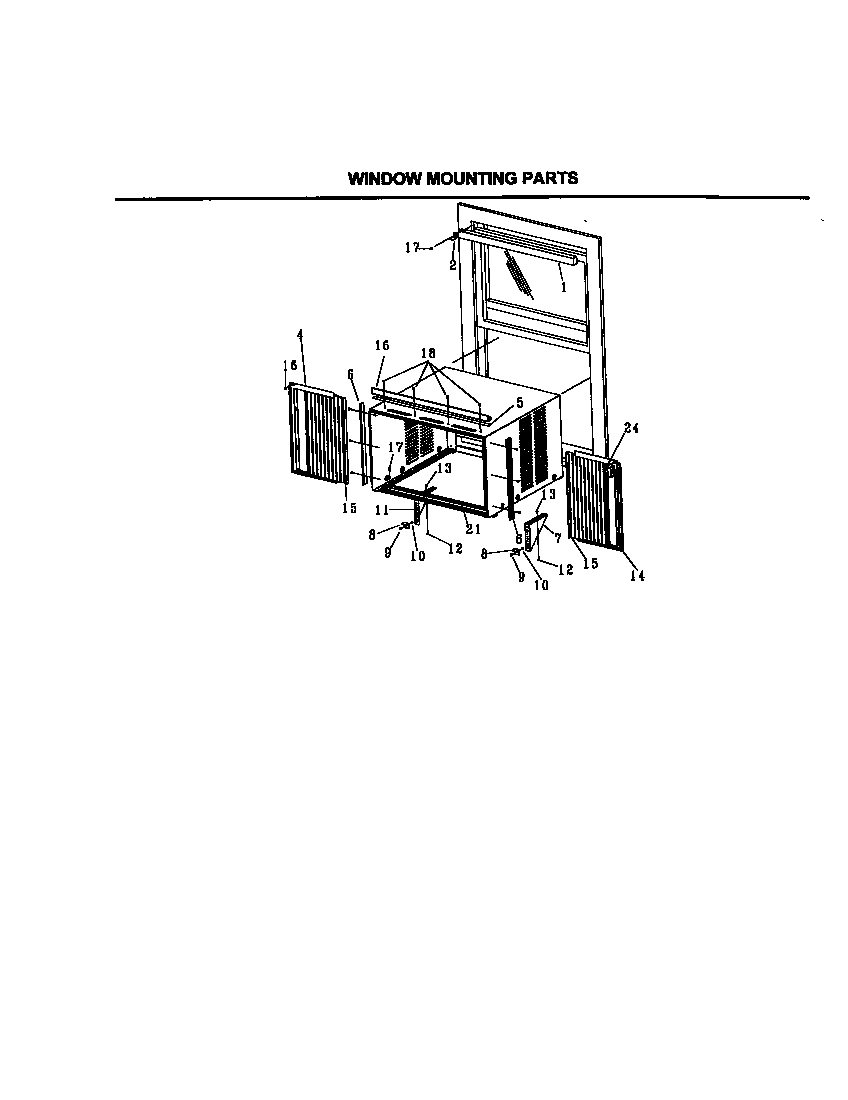

06 - WINDOW MOUNTING PARTS

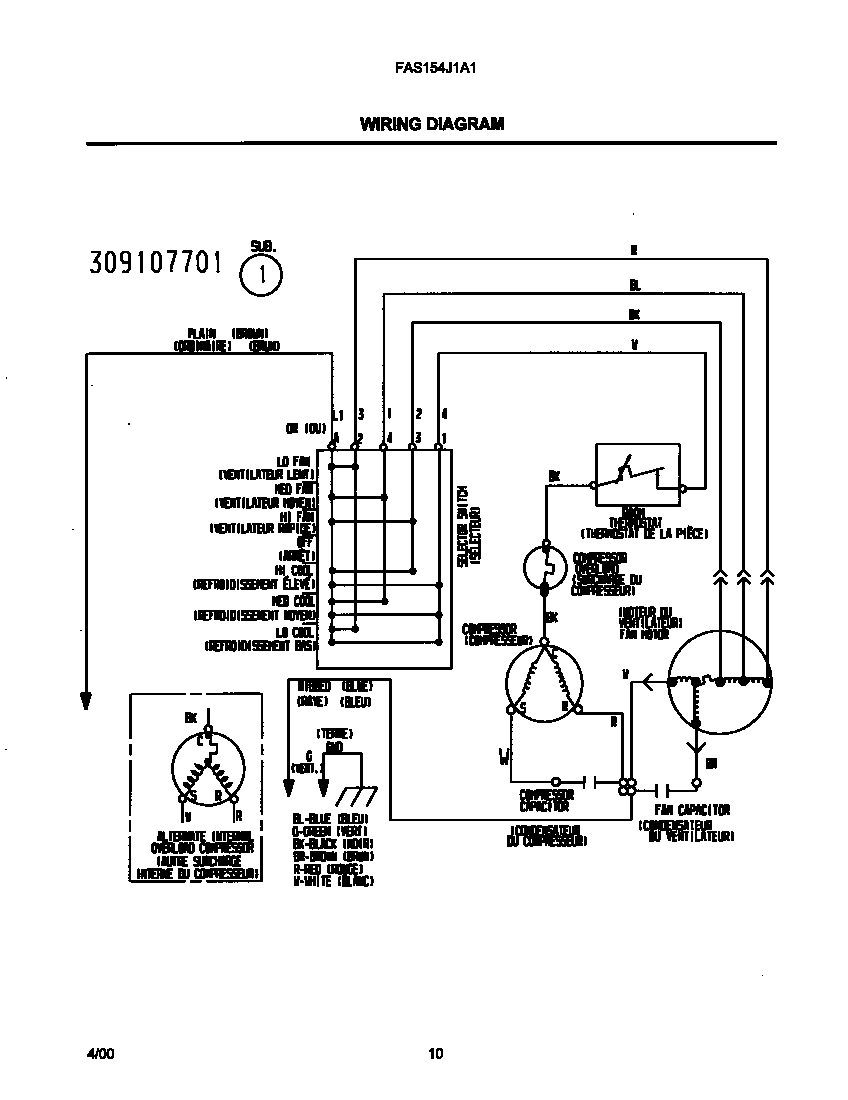

07 - WIRING DIAGRAM
Common parts from model Electrolux FAS154J1A1 ROOM AIR CONDITIONER
*17321
WCI 309313303 WCI 309313303 Contact Us For Availability
*17322
WCI 5304409248 WCI 5304409248 Contact Us For Availability
*17323
WCI 5304409249 WCI 5304409249 Contact Us For Availability
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
COMPRESSOR,W/OVERLOAD WCI 5303925103 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 309632804 WCI 309632804 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309623201 WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304414928 WCI 5304414928 Contact Us For Availability
5
SEAL,FAN HOUSING ,LOWER WCI 5303015311 Contact Us For Availability
5
WCI 5304409250 WCI 5304409250 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
6
WCI 5304414933 WCI 5304414933 Contact Us For Availability
7
WCI 309631104 WCI 309631104 Contact Us For Availability
7
WCI 309630401 WCI 309630401 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
WCI 5304414931 WCI 5304414931 Contact Us For Availability
8
WCI 309630804 WCI 309630804 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
WCI 5304407974 WCI 5304407974 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 309631004 WCI 309631004 Contact Us For Availability
9
WCI 5304408295 WCI 5304408295 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 309623601 WCI 309623601 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
WCI 309634103 WCI 309634103 Contact Us For Availability
11
WCI 5304414932 WCI 5304414932 Contact Us For Availability
12
WCI 309631404 WCI 309631404 Contact Us For Availability
12
WCI 309331801 WCI 309331801 Contact Us For Availability
12
WCI 5303303600 WCI 5303303600 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309630301 WCI 309630301 Contact Us For Availability
13
WCI 309623501 WCI 309623501 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
WCI 309632907 WCI 309632907 Contact Us For Availability
14
WCI 5304414929 WCI 5304414929 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309630101 WCI 309630101 Contact Us For Availability
15
WCI 5304414930 WCI 5304414930 Contact Us For Availability
16
WCI 5304408752 WCI 5304408752 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
16
WCI 5304414116 WCI 5304414116 Contact Us For Availability
17
WCI 309633205 WCI 309633205 Contact Us For Availability
17
WCI 309343111 WCI 309343111 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
18
SCREW,RAIL TOP WCI 8012680 Contact Us For Availability
19
WCI 309633506 WCI 309633506 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
KNOB-CONTROL (1403,W/7005) WCI 309307013 Contact Us For Availability
20
WCI 309630201 WCI 309630201 Contact Us For Availability
21
SEAL-BOTTOM WCI 5303212504 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
24
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
WCI 309330206 WCI 309330206 Contact Us For Availability
26
WCI 309330404 WCI 309330404 Contact Us For Availability
35
WCI 3200761 WCI 3200761 Contact Us For Availability
38
SCREW,10-16AB X 0.500 , MOTOR DRIVE WCI 5308009156 Contact Us For Availability
43
WCI 309630904 WCI 309630904 Contact Us For Availability
70
WCI 309330202 WCI 309330202 Contact Us For Availability
× ![]()
