Model Electrolux FAS153J1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER

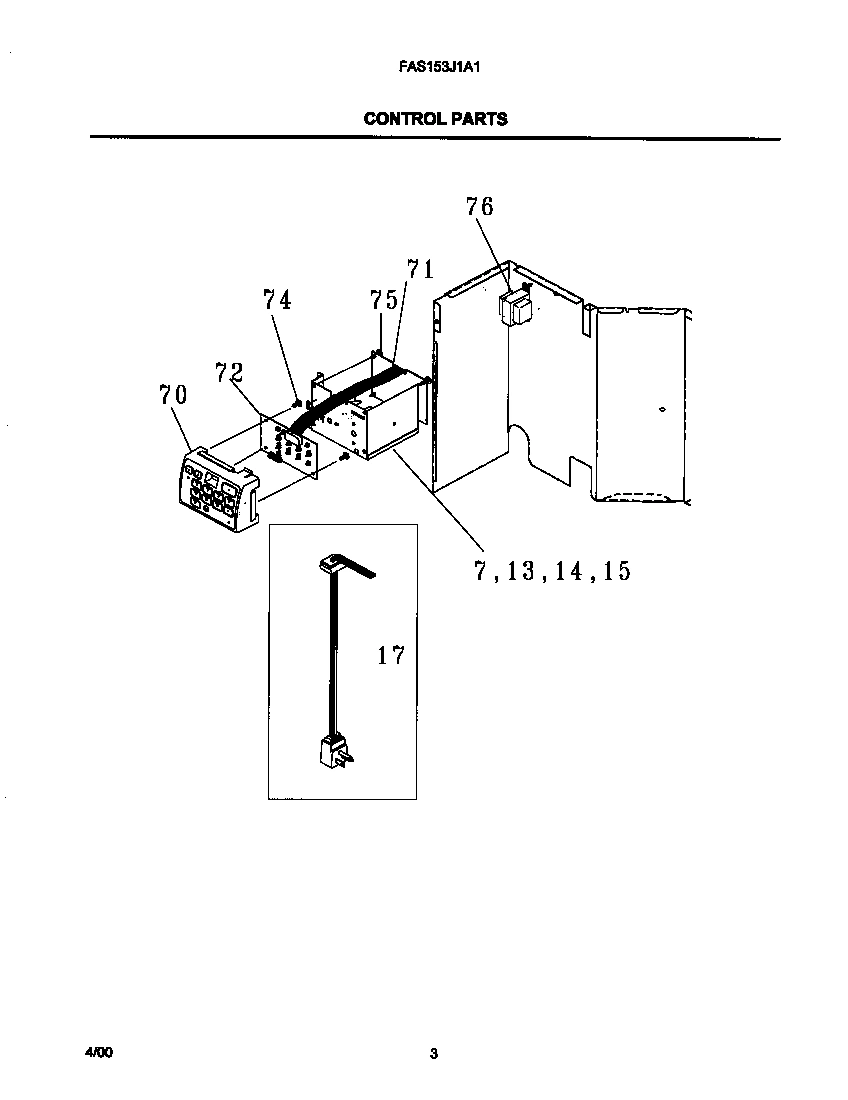

03 - CONTROL PARTS

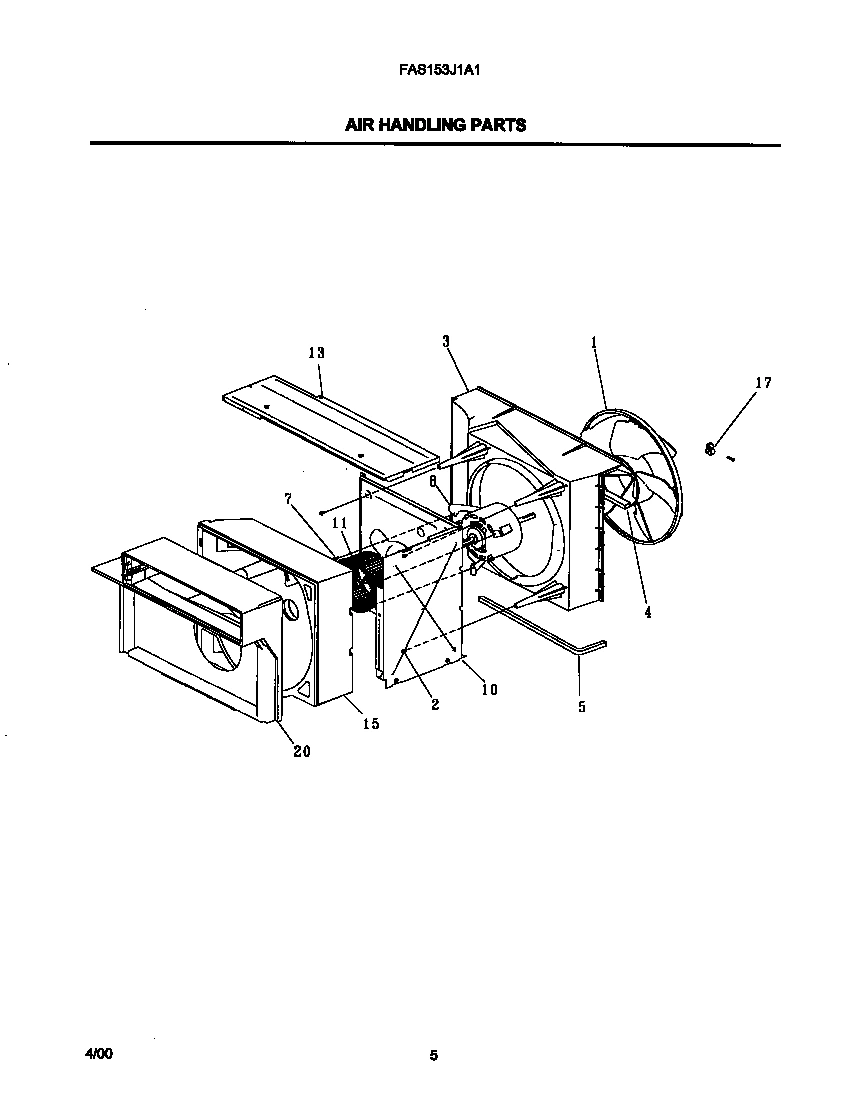

04 - AIR HANDLING PARTS

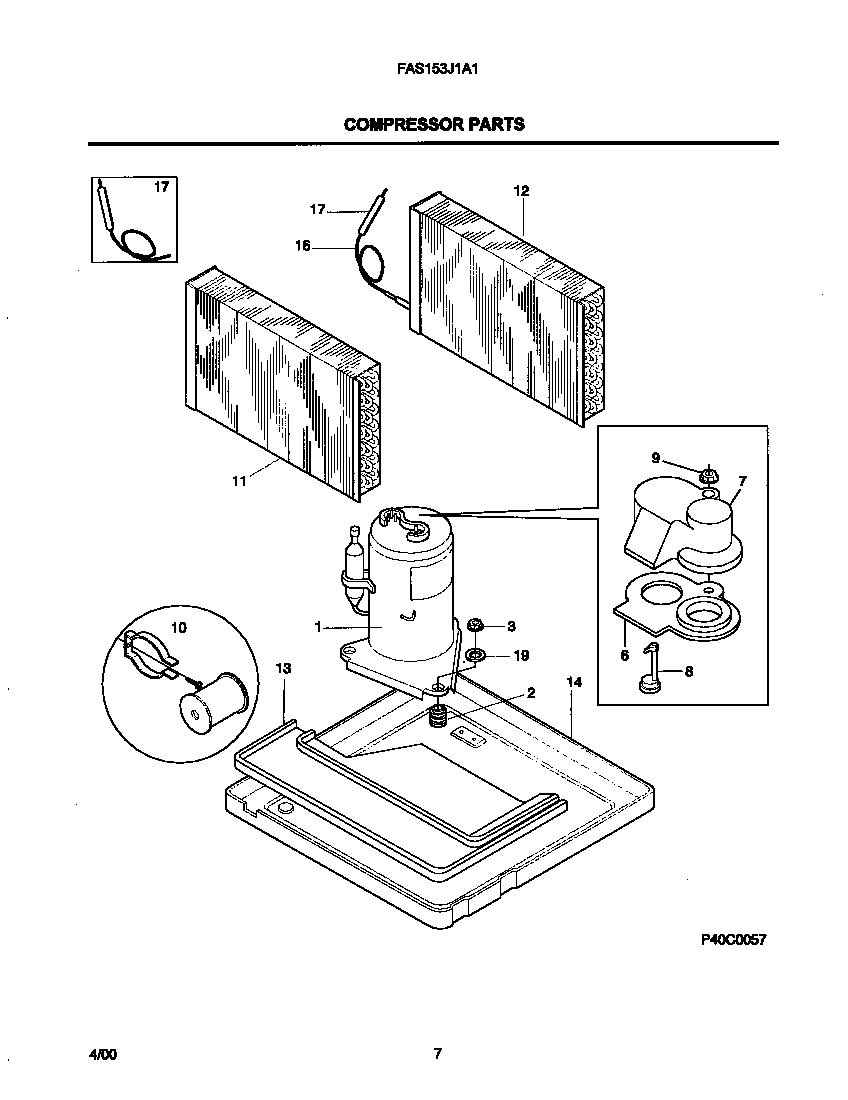

05 - COMPRESSOR PARTS

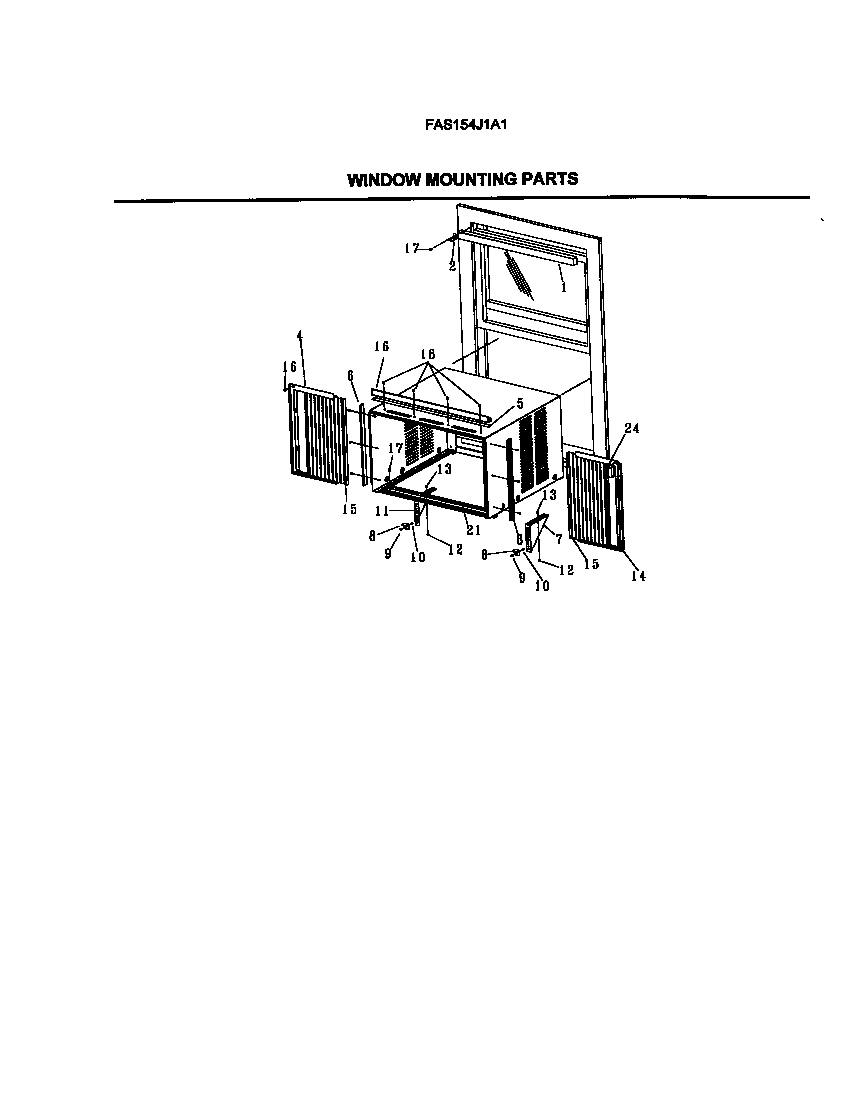

06 - WINDOW MOUNTING PARTS

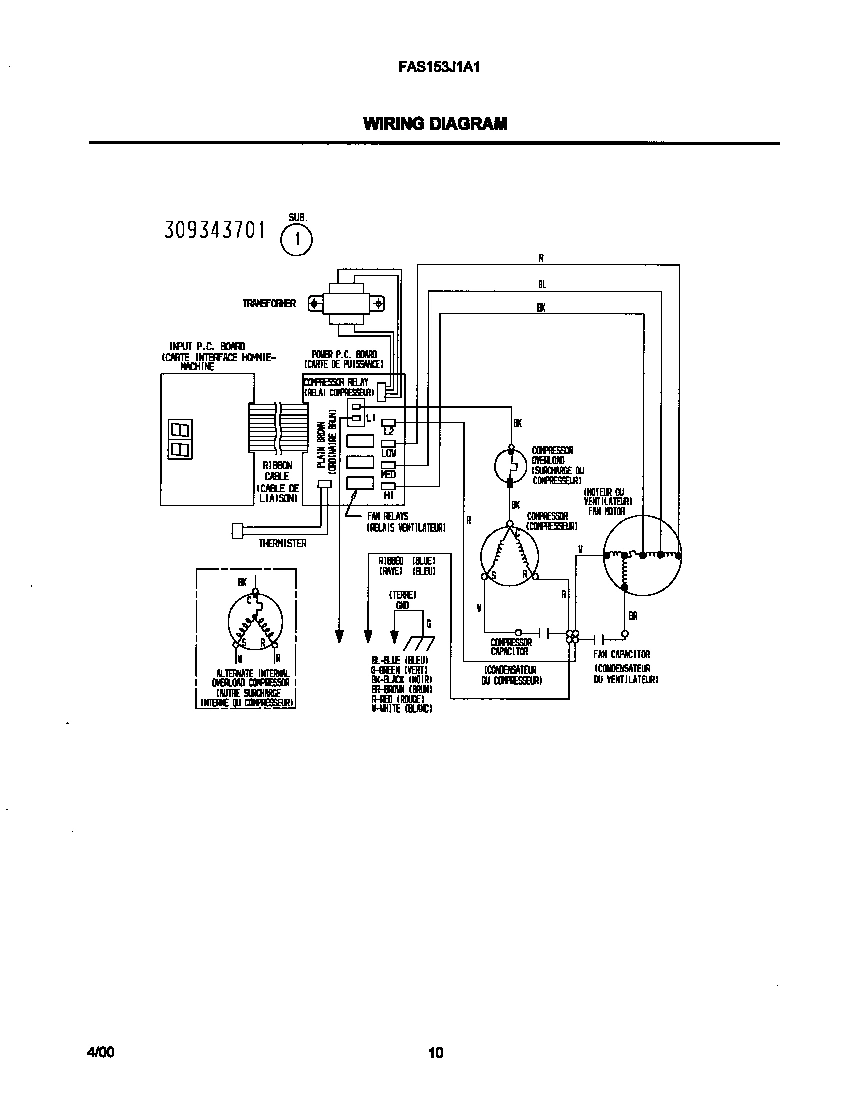

07 - WIRING DIAGRAM
Common parts from model Electrolux FAS153J1A1 ROOM AIR CONDITIONER
*14961
THERMISTOR HOLDER ASSY WCI 5304413782 Contact Us For Availability
*14962
RIBBON PROTECTOR ELEC CNTRL WCI 5304417643 Contact Us For Availability
*14963
WCI 309313204 WCI 309313204 Contact Us For Availability
*14964
WCI 309313303 WCI 309313303 Contact Us For Availability
*14965
WCI 5304409248 WCI 5304409248 Contact Us For Availability
*14966
WCI 5304409249 WCI 5304409249 Contact Us For Availability
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
COMPRESSOR,W/OVERLOAD WCI 5303925103 Contact Us For Availability
2
WCI 309632804 WCI 309632804 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309623201 WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304414928 WCI 5304414928 Contact Us For Availability
5
SEAL,FAN HOUSING ,LOWER WCI 5303015311 Contact Us For Availability
5
WCI 5304409250 WCI 5304409250 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
6
WCI 5304414933 WCI 5304414933 Contact Us For Availability
7
WCI 309631104 WCI 309631104 Contact Us For Availability
7
WCI 309630403 WCI 309630403 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
BRACKET-SUPPT-RH (NCS1403) WCI 5304414105 Contact Us For Availability
8
WCI 309630804 WCI 309630804 Contact Us For Availability
8
WCI 5304407974 WCI 5304407974 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
9
WCI 309631004 WCI 309631004 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
10
WCI 309623601 WCI 309623601 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
WCI 309634103 WCI 309634103 Contact Us For Availability
11
BRACKET-SUPPT-LH (NCS1403) WCI 5304414106 Contact Us For Availability
12
WCI 309631404 WCI 309631404 Contact Us For Availability
12
WCI 309331801 WCI 309331801 Contact Us For Availability
12
WCI 5304414108 WCI 5304414108 Contact Us For Availability
12
WCI 5303303600 WCI 5303303600 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309630301 WCI 309630301 Contact Us For Availability
13
WCI 309623501 WCI 309623501 Contact Us For Availability
14
WCI 309632907 WCI 309632907 Contact Us For Availability
14
WCI 5304414929 WCI 5304414929 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309630101 WCI 309630101 Contact Us For Availability
15
WCI 5304414930 WCI 5304414930 Contact Us For Availability
16
WCI 5304408752 WCI 5304408752 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
16
WCI 5304414116 WCI 5304414116 Contact Us For Availability
17
WCI 309633205 WCI 309633205 Contact Us For Availability
17
WCI 309343111 WCI 309343111 Contact Us For Availability
17
WCI 5304417722 WCI 5304417722 Contact Us For Availability
19
WCI 309341003 WCI 309341003 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309630201 WCI 309630201 Contact Us For Availability
21
SEAL-BOTTOM WCI 5303212504 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
WCI 309330206 WCI 309330206 Contact Us For Availability
26
WCI 309330404 WCI 309330404 Contact Us For Availability
43
WCI 309630904 WCI 309630904 Contact Us For Availability
70
WCI 309330202 WCI 309330202 Contact Us For Availability
70
WCI 309342401 WCI 309342401 Contact Us For Availability
71
WCI 309340503 WCI 309340503 Contact Us For Availability
72
WCI 309340701 WCI 309340701 Contact Us For Availability
75
PC BOARD-SUPPORT HARDWARE WCI 5304413781 Contact Us For Availability
76
WCI 309111601 WCI 309111601 Contact Us For Availability
78
PKG-JY-TAI TRANS W/BATTERIES WCI 309350502 Contact Us For Availability
78
WCI 309342604 WCI 309342604 Contact Us For Availability
× ![]()
