Model Electrolux FAL125M1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

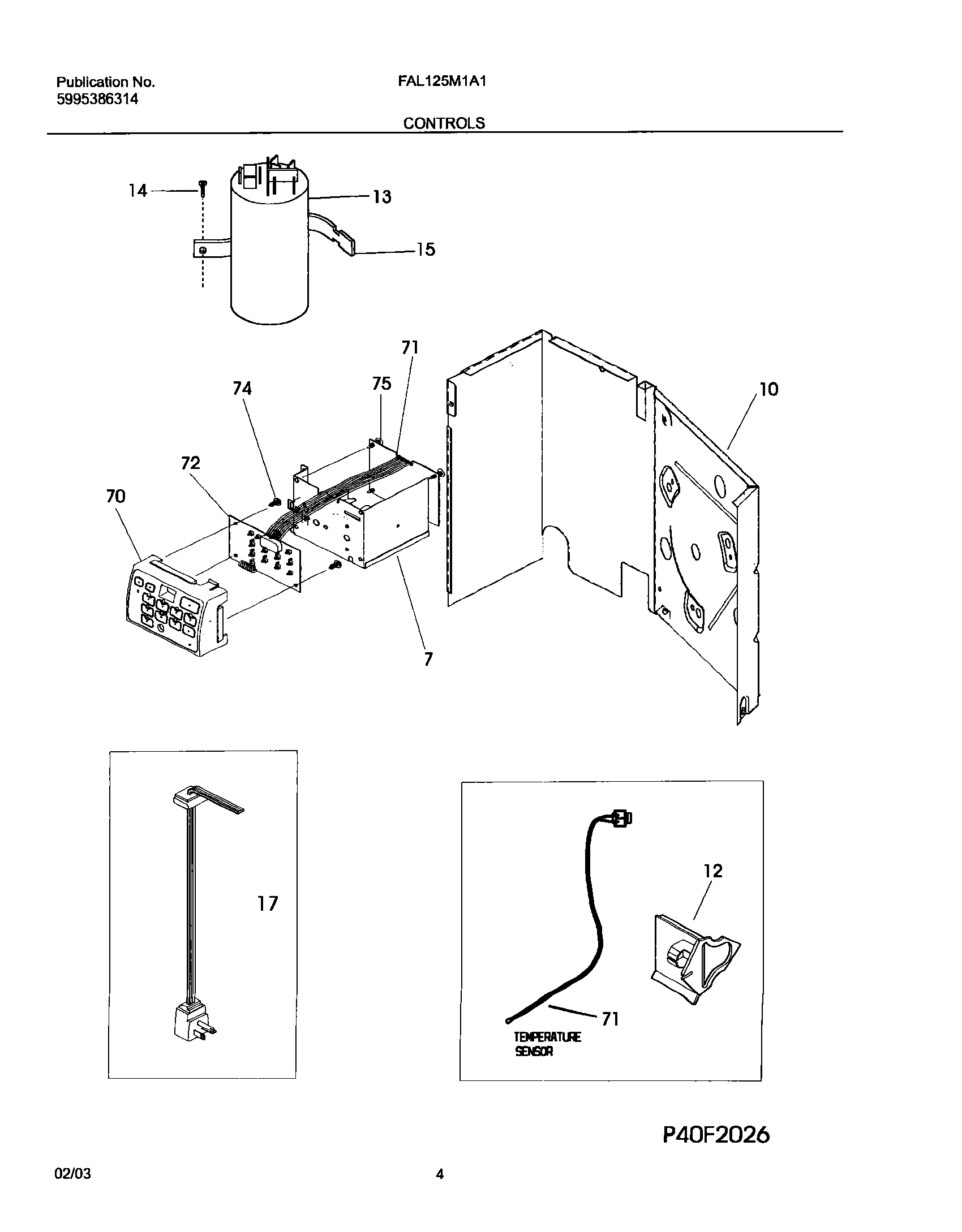

05 - CONTROLS

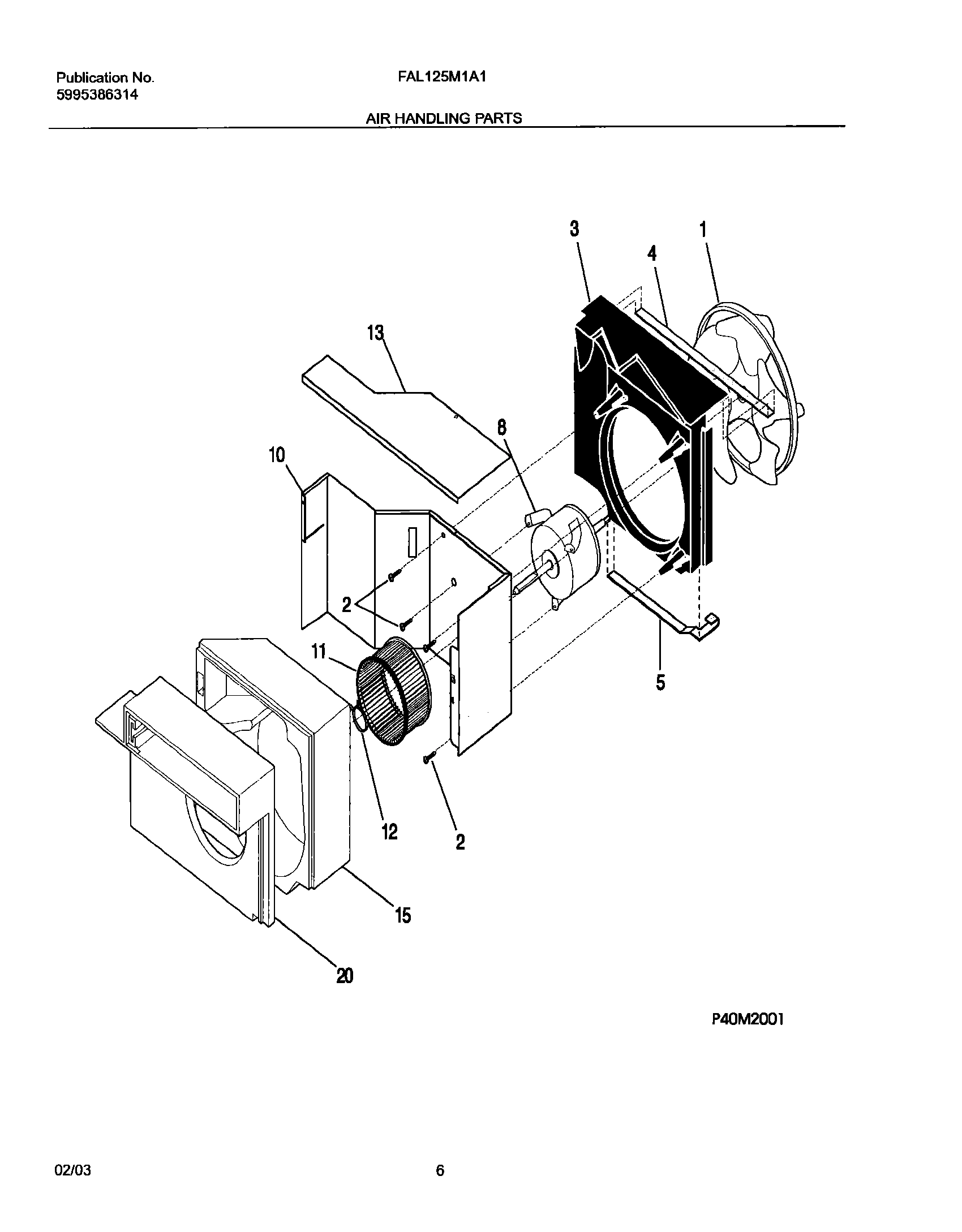

07 - AIR HANDLING PARTS

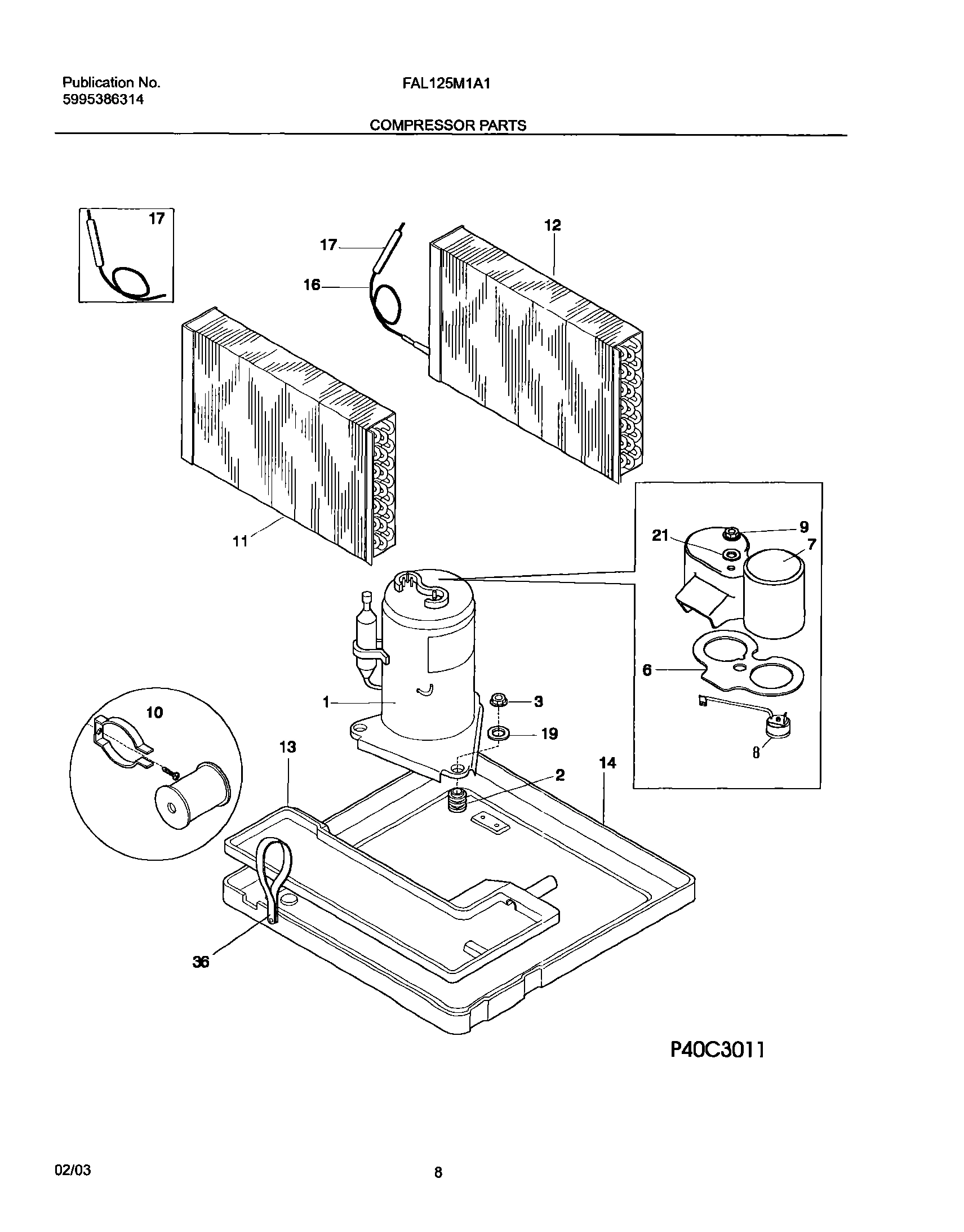

09 - COMPRESSOR PARTS
11 - WINDOW MOUNTING PARTS

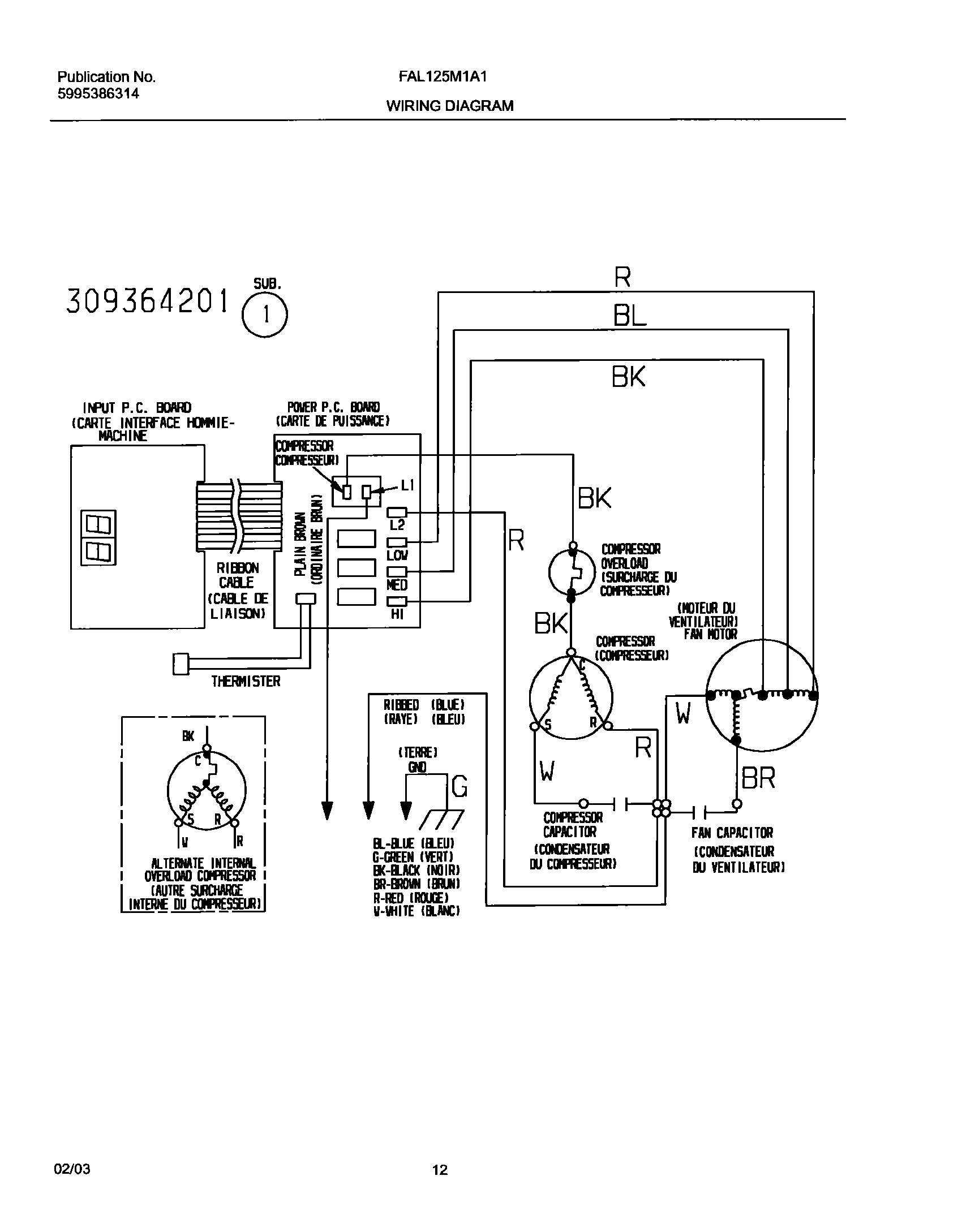

12 - WIRING DIAGRAM
Common parts from model Electrolux FAL125M1A1 ROOM AIR CONDITIONER
1
WCI 309651002 WCI 309651002 Contact Us For Availability
1
WCI 309603122 WCI 309603122 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing,fan shroud WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
Extension,sliding frame ,LH ,w/closure panel WCI 5304426457 Contact Us For Availability
4
Seal WCI 3202953 Contact Us For Availability
5
Seal,bottom WCI 3202951 Contact Us For Availability
5
Seal,rail ,top WCI 5303207200 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
6
WCI 5304414107 WCI 5304414107 Contact Us For Availability
7
Control Box WCI 309605605 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
8
WCI 309639701 WCI 309639701 Contact Us For Availability
8
WCI 309630610 WCI 309630610 Contact Us For Availability
8
WCI 5304430489 WCI 5304430489 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
Blower-wheel,cavity 3&4 WCI 309608902 Contact Us For Availability
11
WCI 309635505 WCI 309635505 Contact Us For Availability
12
WCI 309343502 WCI 309343502 Contact Us For Availability
12
Holder,thermistor ,w/seal WCI 08017123 Contact Us For Availability
12
Clamp,blower wheel mt WCI 5303012110 Contact Us For Availability
12
Condenser WCI 5304407866 Contact Us For Availability
13
WCI 5304431545 WCI 5304431545 Contact Us For Availability
13
Cover,blower wheel ,top WCI 309605902 Contact Us For Availability
13
Tray,evaporator drip WCI 309606001 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
14
Base,compressor mt. ,grey WCI 5304419798 Contact Us For Availability
14
Extension,sliding frame ,RH ,w/closure panel WCI 5304426458 Contact Us For Availability
15
WCI 309111901 WCI 309111901 Contact Us For Availability
15
Housing,blower scroll WCI 309605702 Contact Us For Availability
15
Panel,accordian ,LH/RH ,window closure WCI 309645601 Contact Us For Availability
16
WCI 5304423363 WCI 5304423363 Contact Us For Availability
16
Rail,support ,top WCI 5304414102 Contact Us For Availability
17
Front Assembly,cabinet ,7-8-9-12-38-43 WCI 309640302 Contact Us For Availability
17
Cord-electric power,14 AWG ,115 V WCI 309343104 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
19
WCI 309360003 WCI 309360003 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309605802 Contact Us For Availability
21
Seal,sleeve/chassis ,bottom WCI 5314949603 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
Door,fresh air vent WCI 309328602 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
Panel,cabinet front WCI 309639601 Contact Us For Availability
43
Frame,cabinet front WCI 309639501 Contact Us For Availability
70
WCI 309369601 WCI 309369601 Contact Us For Availability
71
WCI 309350404 WCI 309350404 Contact Us For Availability
72
WCI 309350406 WCI 309350406 Contact Us For Availability
75
WCI 5304413781 WCI 5304413781 Contact Us For Availability
78
WCI 309342607 WCI 309342607 Contact Us For Availability
NI
WCI 309369921 WCI 309369921 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Protector,ribbon wire ,sleeve WCI 5304415017 Contact Us For Availability
NI
Mounting Support Kit WCI 309313205 Contact Us For Availability
NI
Window Mounting Kit WCI 309313304 Contact Us For Availability
NI
WCI 5303301572 WCI 5303301572 Contact Us For Availability
NI
Hardware Kit,window mount WCI 5304426447 Contact Us For Availability
× ![]()
