Model Electrolux FAL123S1A3 ROOM AIR CONDITIONER – Common Parts & Diagrams

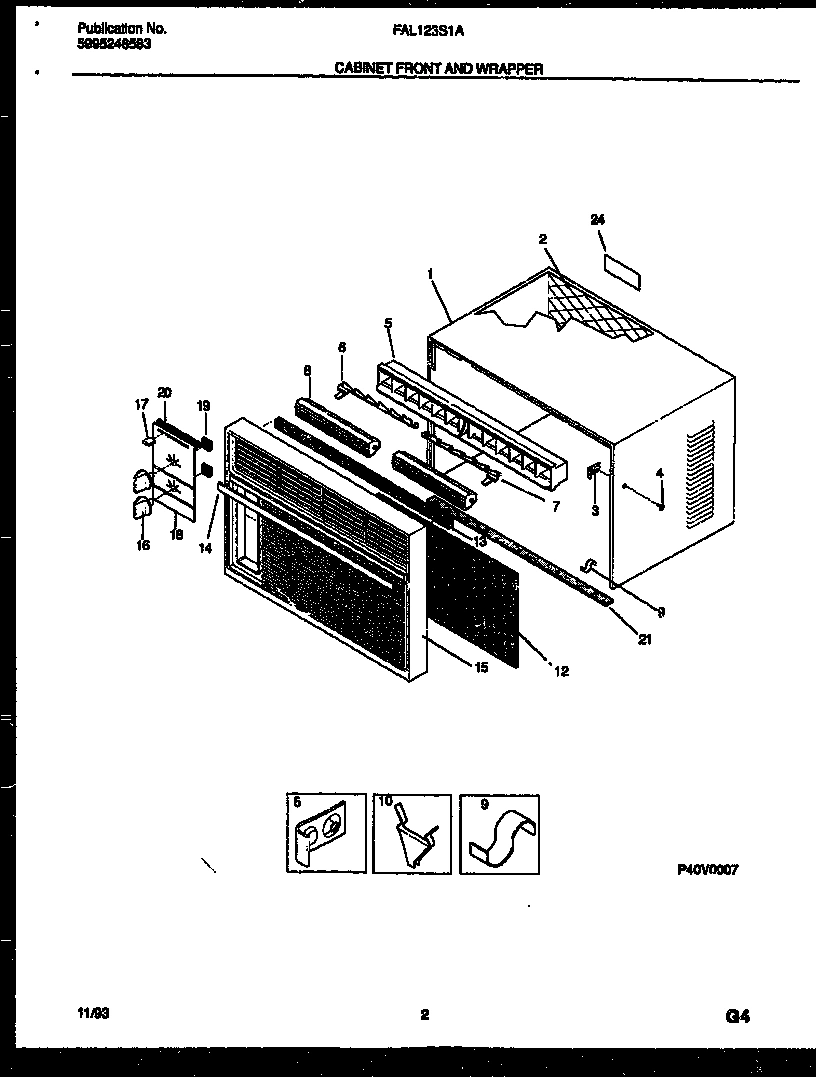

02 - CABINET FRONT AND WRAPPER

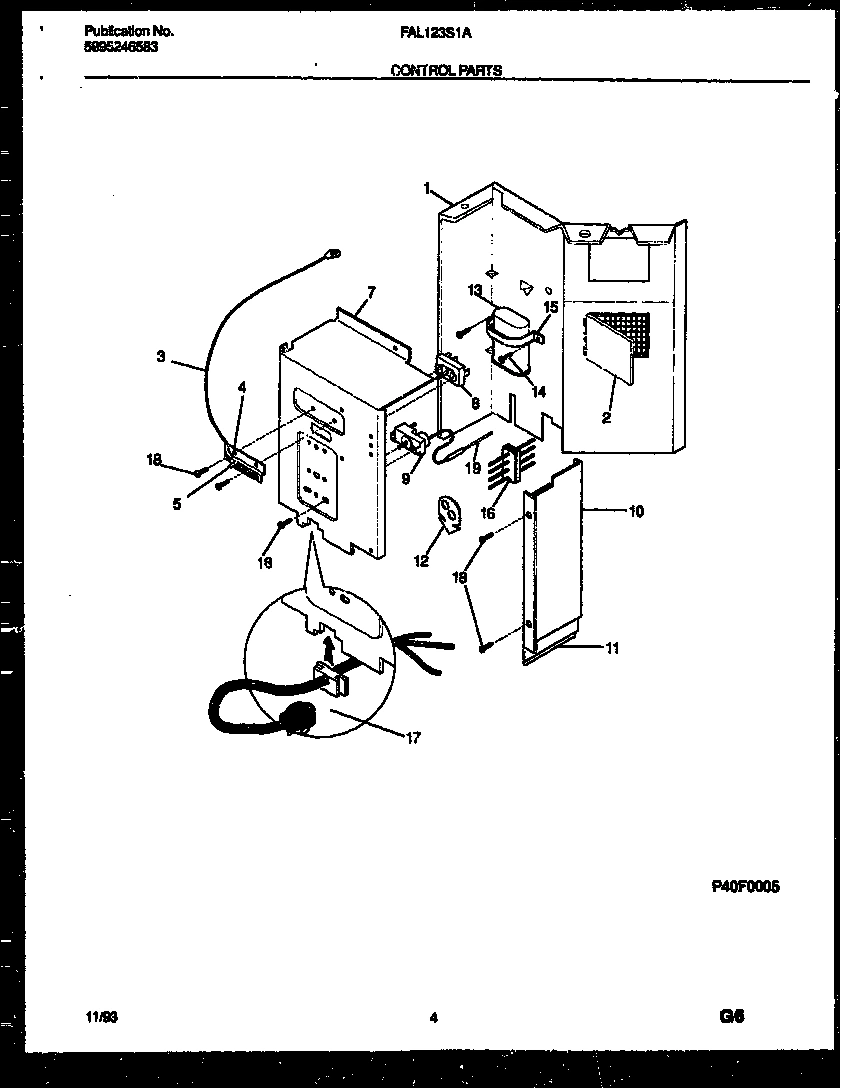

03 - CONTROL PARTS

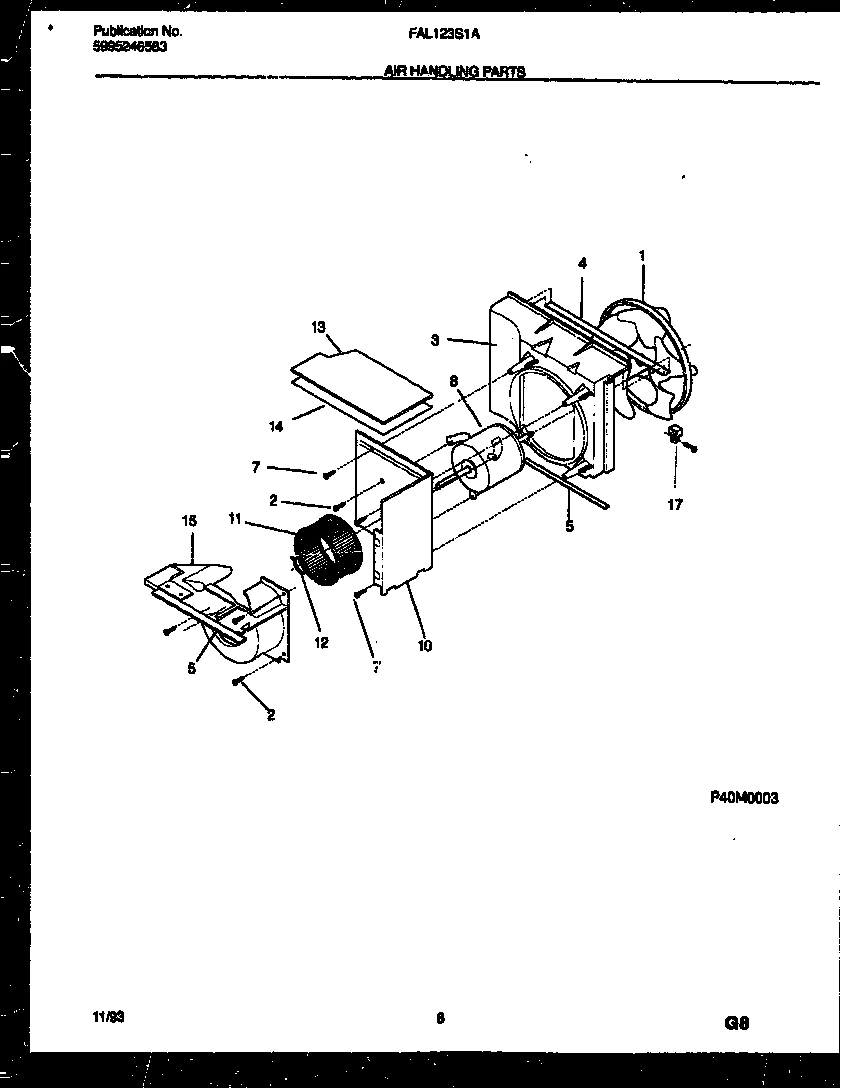

04 - AIR HANDLING PARTS

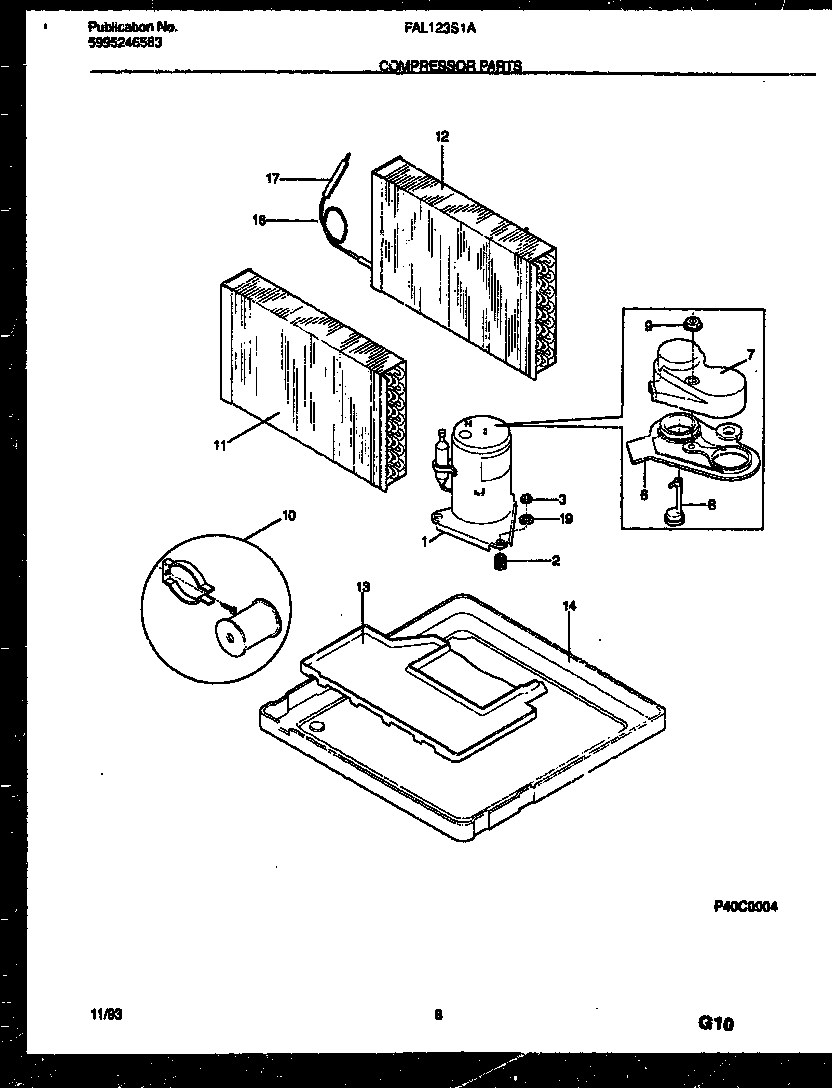

05 - COMPRESSOR PARTS

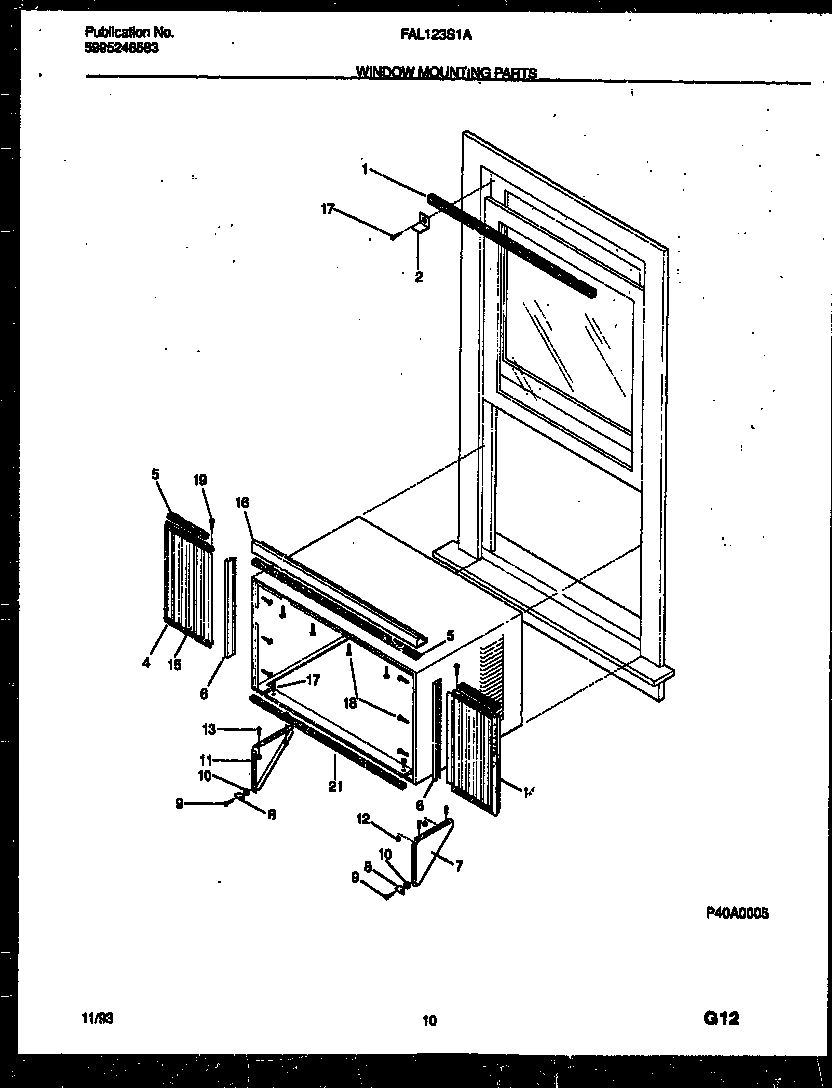

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux FAL123S1A3 ROOM AIR CONDITIONER
1
PARTITION-CONTROL AREA WCI 5303210984 Contact Us For Availability
1
WCI 5303202954 WCI 5303202954 Contact Us For Availability
1
WCI 5303207198 WCI 5303207198 Contact Us For Availability
2
PANEL-REAR WCI 5303301025 Contact Us For Availability
2
WCI 5303295752 WCI 5303295752 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
NUT-FRONT LOCK, 2 WCI 08010928 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
WCI 3202950 WCI 3202950 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
WCI 5303271346 WCI 5303271346 Contact Us For Availability
4
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
4
SEAL-SHROUD TOP WCI 3202953 Contact Us For Availability
5
LOUVERS W/LINK, 5 WCI 5303002458 Contact Us For Availability
5
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
5
SEAL-SCROLL-SHROUD WCI 3202951 Contact Us For Availability
5
WCI 5303016697 WCI 5303016697 Contact Us For Availability
6
LINK-LOUVERS, LH WCI 5303293787 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
7
LINK-LOUVERS, RH WCI 5303293786 Contact Us For Availability
7
WCI 5303293521 WCI 5303293521 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
8
LOUVER-HORIZ. WCI 5303300133 Contact Us For Availability
8
WCI 5303201621 WCI 5303201621 Contact Us For Availability
8
WCI 5303202807 WCI 5303202807 Contact Us For Availability
9
CONTROL-TEMPERATURE WCI 5303002079 Contact Us For Availability
9
CLIP-FRONT/BASE WCI 5308010914 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
10
CLIP-LINK, (2) WCI 5303001844 Contact Us For Availability
10
WCI 3202963 WCI 3202963 Contact Us For Availability
10
PARTITION-AIR SYSTEM WCI 5303295238 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
11
CLIP-FILTER, (2) WCI 3203495 Contact Us For Availability
11
WCI 5303210243 WCI 5303210243 Contact Us For Availability
11
BLOWER WHEEL WCI 5303210236 Contact Us For Availability
11
WCI 5303301805 WCI 5303301805 Contact Us For Availability
12
WCI 5303001809 WCI 5303001809 Contact Us For Availability
12
WCI 3203075 WCI 3203075 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303301816 WCI 5303301816 Contact Us For Availability
13
WCI 5308014101 WCI 5308014101 Contact Us For Availability
13
CAPACITOR 35-10/370 WCI 5308017135 Contact Us For Availability
13
WCI 3202957 WCI 3202957 Contact Us For Availability
13
WCI 5303210203 WCI 5303210203 Contact Us For Availability
14
WCI 5303300134 WCI 5303300134 Contact Us For Availability
14
WCI 3202958 WCI 3202958 Contact Us For Availability
14
WCI 5303301243 WCI 5303301243 Contact Us For Availability
15
WCI 5303300132 WCI 5303300132 Contact Us For Availability
15
WCI 5303015323 WCI 5303015323 Contact Us For Availability
15
WCI 5303300760 WCI 5303300760 Contact Us For Availability
16
WCI 5303017300 WCI 5303017300 Contact Us For Availability
16
WCI 5303202961 WCI 5303202961 Contact Us For Availability
16
WCI 5308017253 WCI 5308017253 Contact Us For Availability
17
WCI 5303271479 WCI 5303271479 Contact Us For Availability
17
CORD-ELECTRIC POWER WCI 5303301021 Contact Us For Availability
18
WCI 5303300135 WCI 5303300135 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
19
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
19
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
24
NAMEPLATE-REAR GRILLE WCI 5303300131 Contact Us For Availability
× ![]()
