Model Electrolux FAL123K1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - WRAPPER

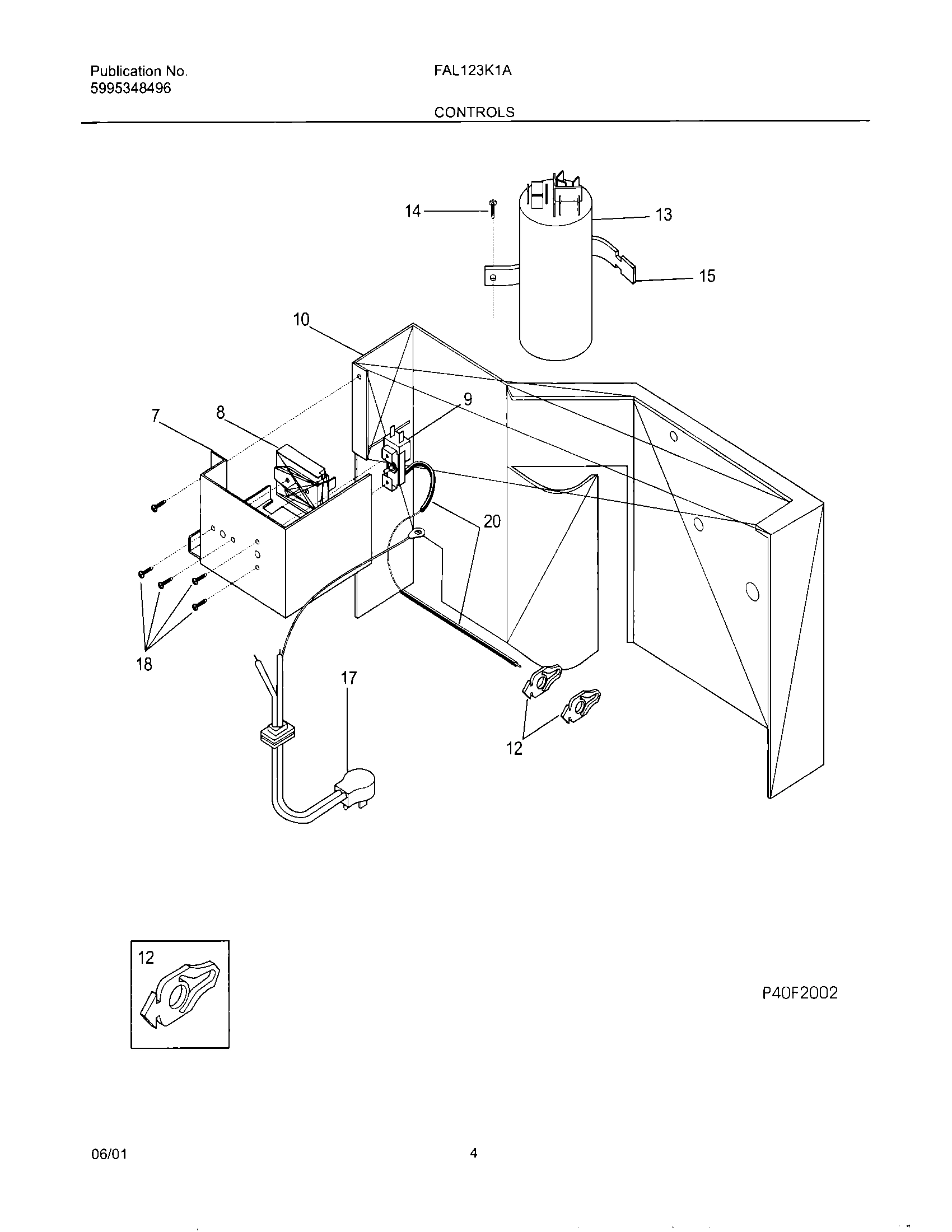

05 - CONTROLS

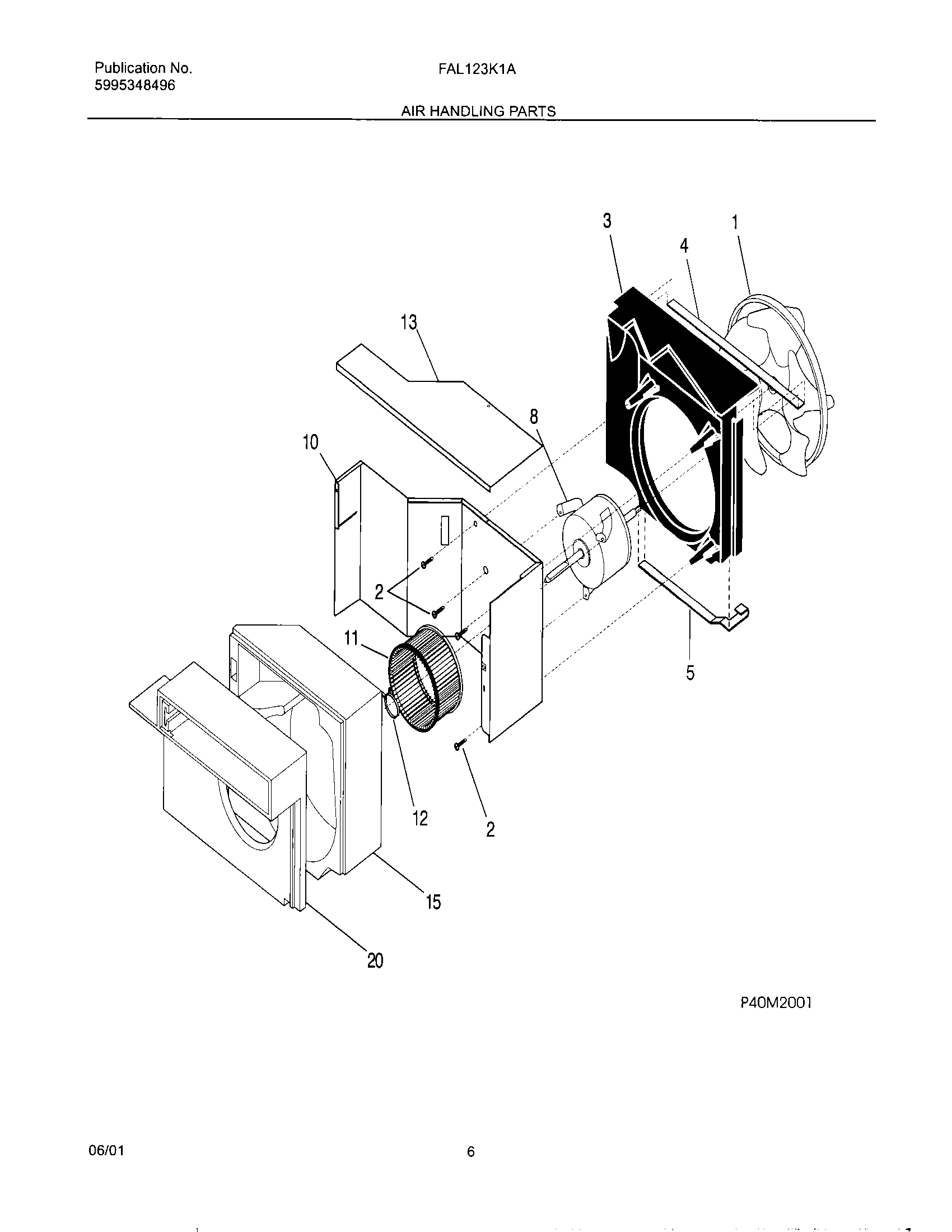

07 - AIRHAND

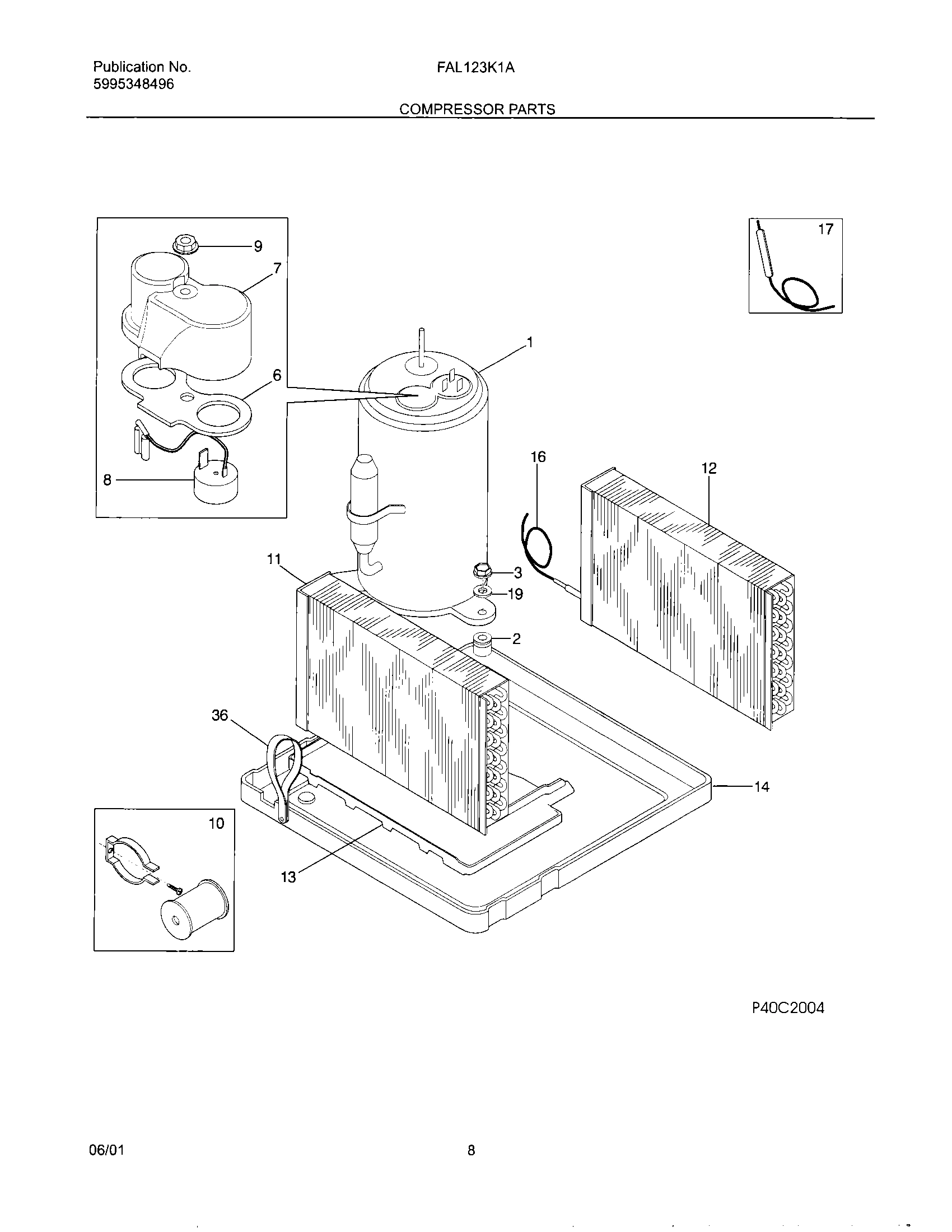

09 - SYSTEM/COMPRESSOR

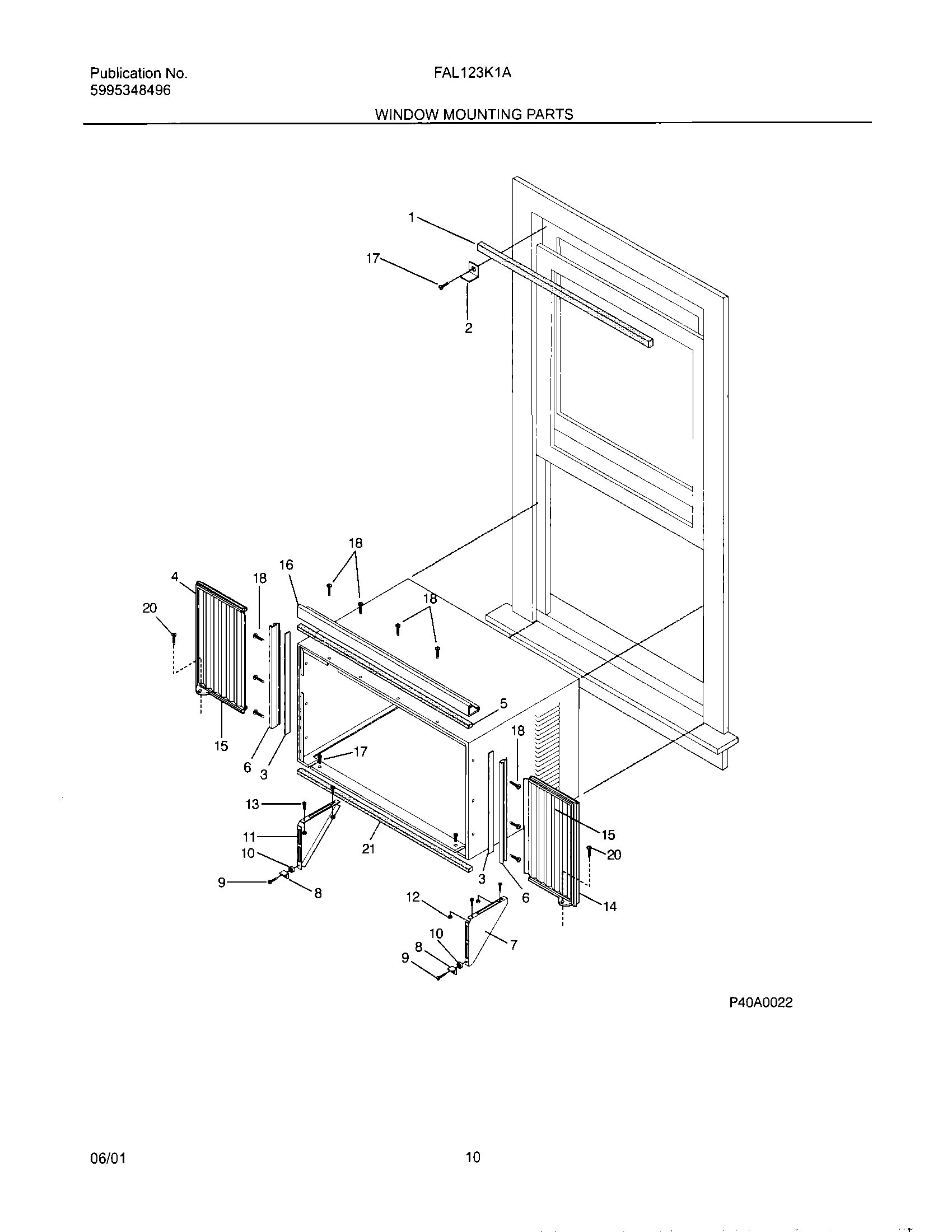

11 - MOUNTING

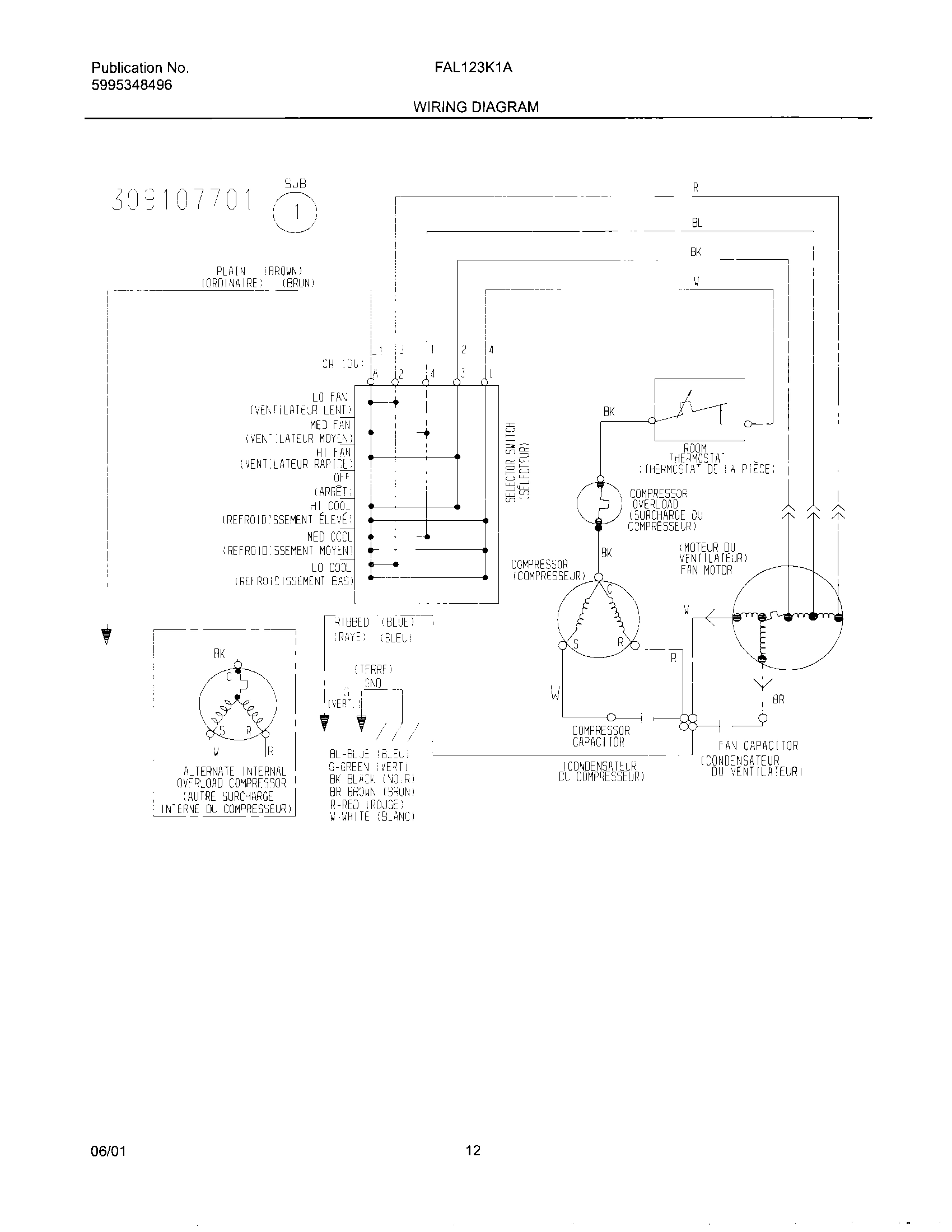

12 - WIRING
Common parts from model Electrolux FAL123K1A2 ROOM AIR CONDITIONER
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
Compressor WCI 5304407864 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
4
WCI 5304415073 WCI 5304415073 Contact Us For Availability
5
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
5
Seal,rail ,top WCI 5303207200 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
6
WCI 5304414107 WCI 5304414107 Contact Us For Availability
7
WCI 309638601 WCI 309638601 Contact Us For Availability
7
WCI 309605603 WCI 309605603 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
WCI 5304414105 WCI 5304414105 Contact Us For Availability
8
WCI 309639701 WCI 309639701 Contact Us For Availability
8
WCI 5304417447 WCI 5304417447 Contact Us For Availability
8
WCI 309630602 WCI 309630602 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5303316597 WCI 5303316597 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309608901 WCI 309608901 Contact Us For Availability
11
Evaporator WCI 309606105 Contact Us For Availability
11
WCI 5304414106 WCI 5304414106 Contact Us For Availability
12
WCI 309343502 WCI 309343502 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303002169 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
Condenser WCI 5304407866 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
Base-compressor,22TC Staked WCI 5304414418 Contact Us For Availability
14
WCI 5304415074 WCI 5304415074 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309605702 WCI 309605702 Contact Us For Availability
15
WCI 5304415072 WCI 5304415072 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
16
WCI 5304414102 WCI 5304414102 Contact Us For Availability
17
WCI 309640302 WCI 309640302 Contact Us For Availability
17
Cord-service WCI 309343104 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309344501 WCI 309344501 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 309605802 WCI 309605802 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
24
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
WCI 309330201 WCI 309330201 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
WCI 309639601 WCI 309639601 Contact Us For Availability
38
SCREW,10-16AB X 0.500 , MOTOR DRIVE WCI 5308009156 Contact Us For Availability
43
WCI 309639501 WCI 309639501 Contact Us For Availability
NI
WCI 309640402 WCI 309640402 Contact Us For Availability
NI
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309608902 WCI 309608902 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
NI
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
NI
Kit-mounting support WCI 309313203 Contact Us For Availability
NI
Kit-window mtg WCI 309313302 Contact Us For Availability
× ![]()
