Model Electrolux FAL104J1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER

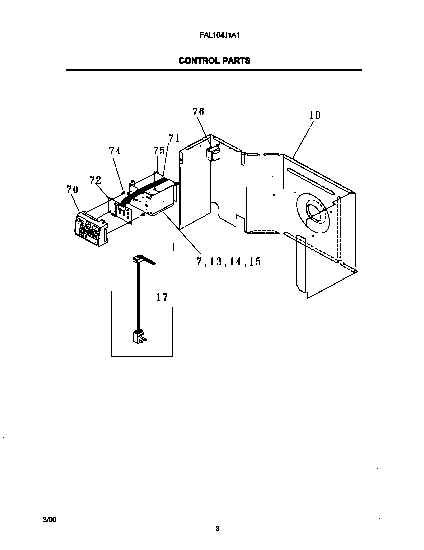

03 - CONTROL PARTS

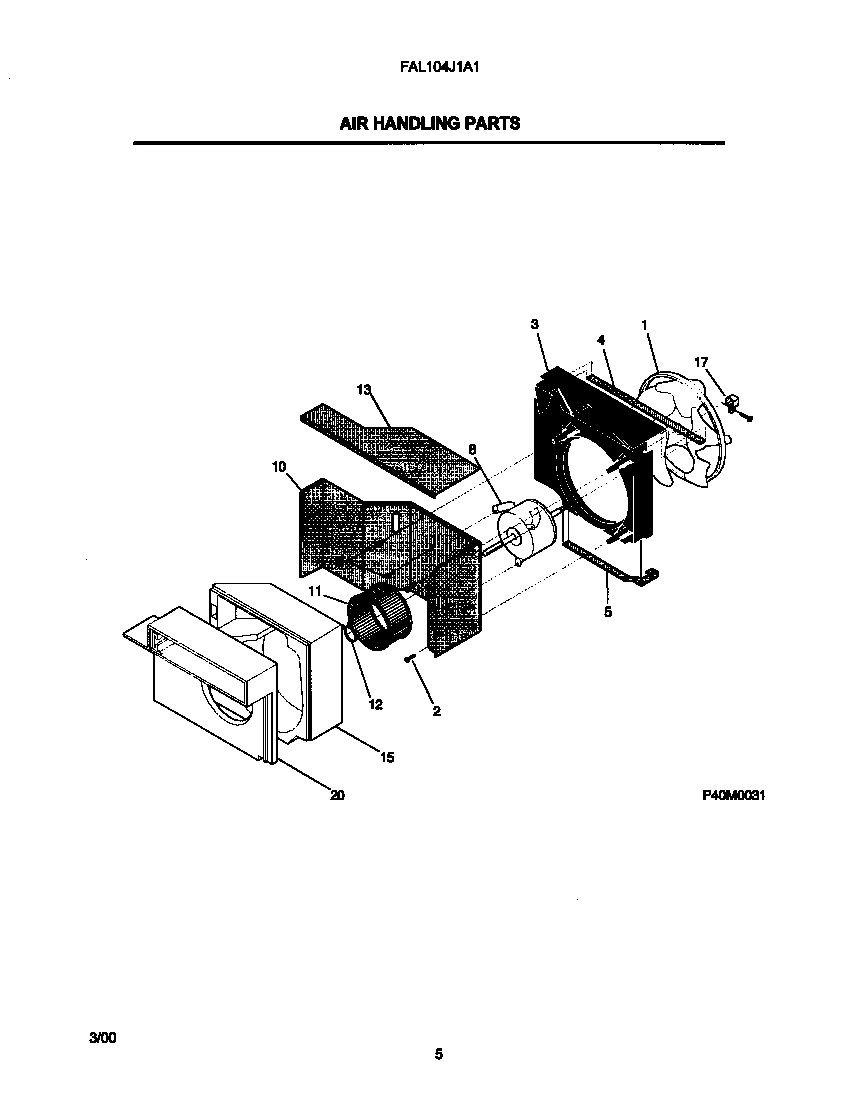

04 - AIR HANDLING PARTS

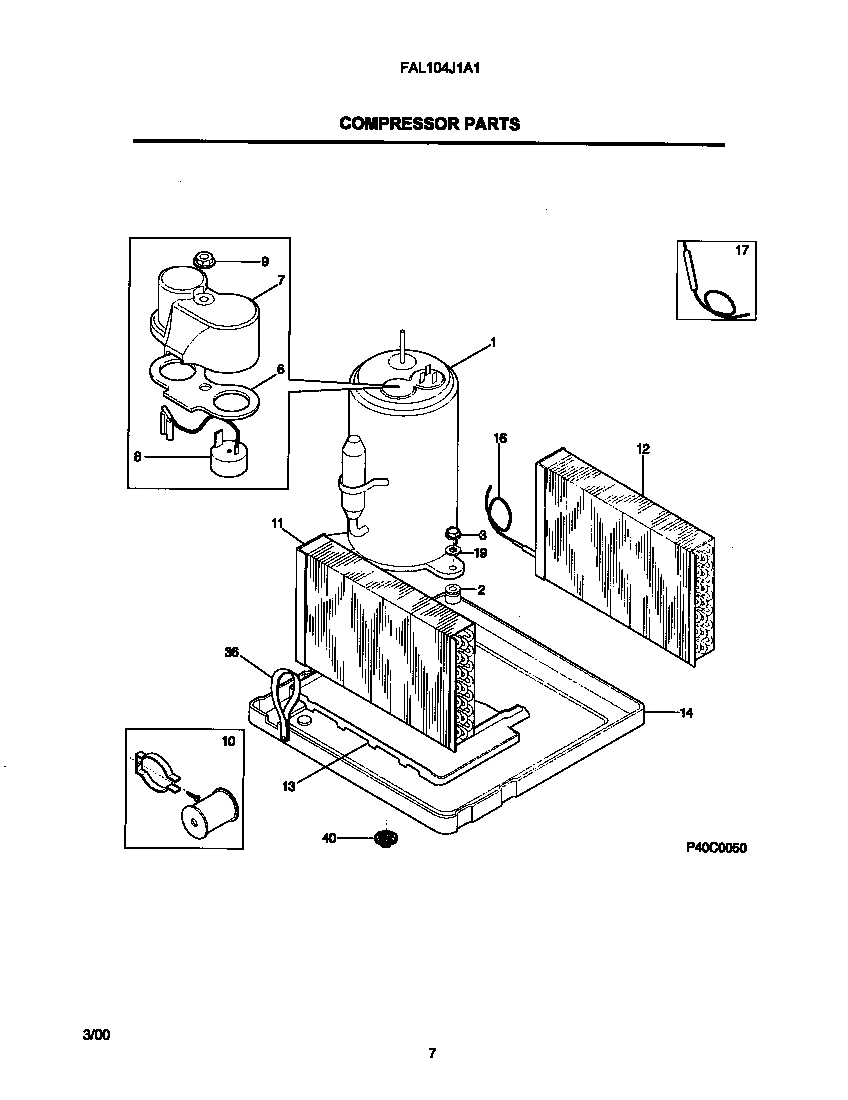

05 - COMPRESSOR PARTS

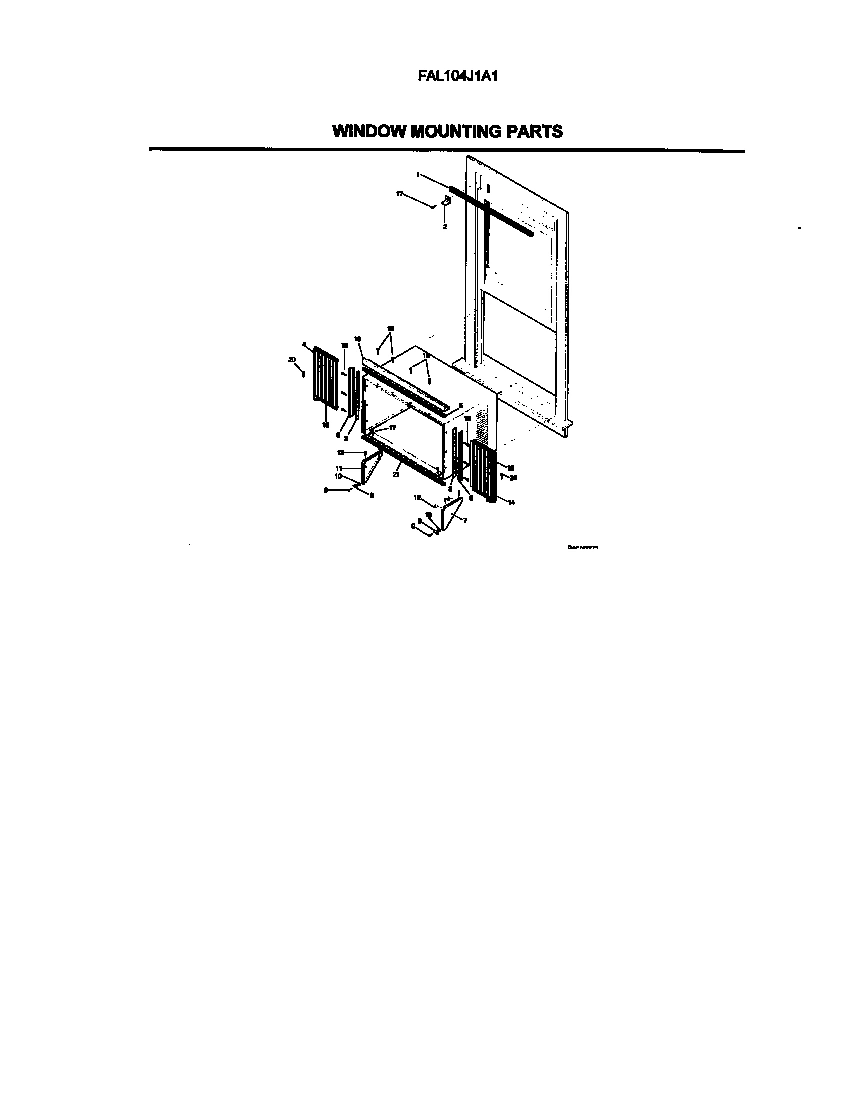

06 - WINDOW MOUNTING PARTS

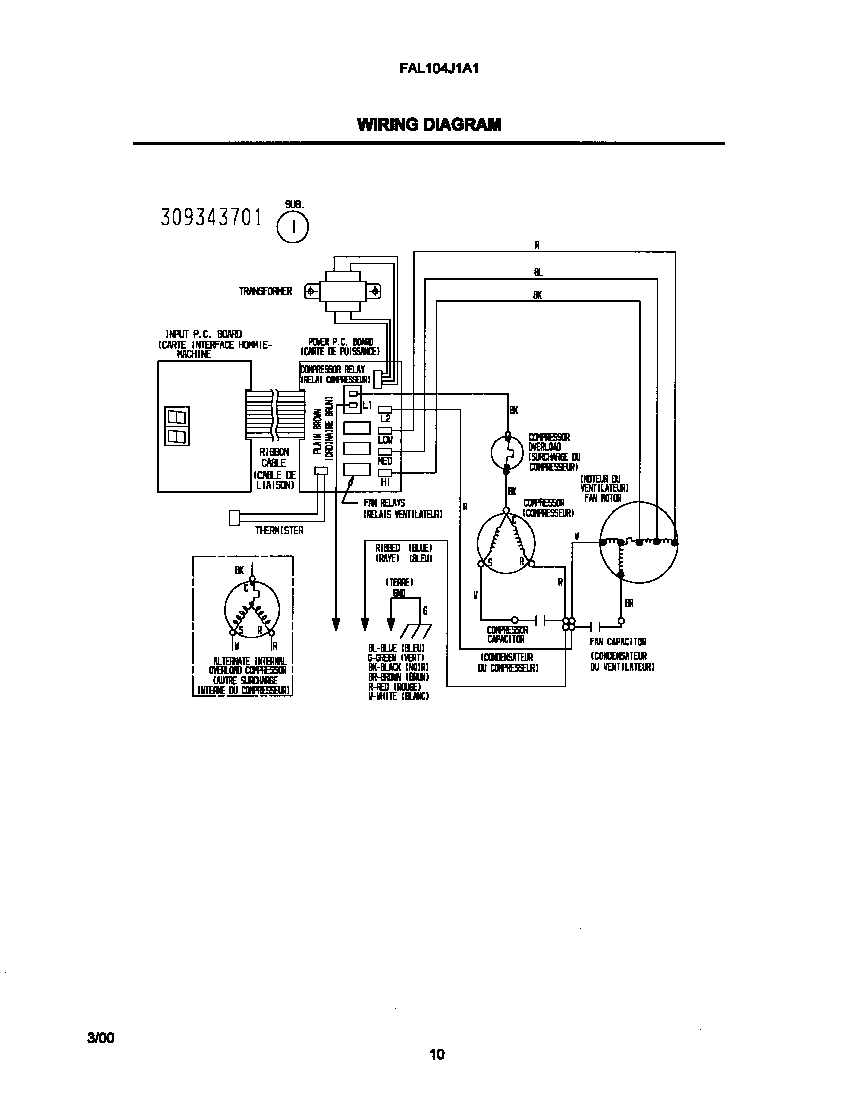

07 - WIRING DIAGRAM
Common parts from model Electrolux FAL104J1A1 ROOM AIR CONDITIONER
*94522
WCI 309111201 WCI 309111201 Contact Us For Availability
*94523
CLIP-CONTROL BULB WCI 08017123 Contact Us For Availability
*94524
WCI 5304415017 WCI 5304415017 Contact Us For Availability
*94525
MOUNTING SUPPORT KIT WCI 309313203 Contact Us For Availability
*94526
KIT-WING/RETAINER SUPPORT WCI 309313302 Contact Us For Availability
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
WCI 309603103 WCI 309603103 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GRLL&RR RAIL ASM-22NSL (1403) WCI 5304414101 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
4
WCI 5304415073 WCI 5304415073 Contact Us For Availability
5
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
5
Seal,rail ,top WCI 5303207200 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
6
RETAINER-ACCORD (NCS1403)GREY WCI 5304414107 Contact Us For Availability
7
WCI 309638601 WCI 309638601 Contact Us For Availability
7
WCI 309605605 WCI 309605605 Contact Us For Availability
7
COVER-TERMINAL,GS CMPR355OU-L WCI 5304416126 Contact Us For Availability
7
BRACKET-SUPPT-RH (NCS1403) WCI 5304414105 Contact Us For Availability
8
+HORIZ.LOUVER WCI 309639701 Contact Us For Availability
8
WCI 309630602 WCI 309630602 Contact Us For Availability
8
WCI 5304403166 WCI 5304403166 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
VERT. LOUV. WCI 309342001 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
BLOWER WHEEL-22 CAVITY3&4 WCI 309608902 Contact Us For Availability
11
WCI 309606103 WCI 309606103 Contact Us For Availability
11
BRACKET-SUPPT-LH (NCS1403) WCI 5304414106 Contact Us For Availability
12
FILTER-NO FRAME 22``T/C WCI 309343502 Contact Us For Availability
12
+CLAMP-BLOWER WHEEL WCI 309112101 Contact Us For Availability
12
WCI 5304403945 WCI 5304403945 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
WCI 309606001 WCI 309606001 Contact Us For Availability
14
ACCORD WCI 5304415072 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309605702 WCI 309605702 Contact Us For Availability
15
WCI 5304415074 WCI 5304415074 Contact Us For Availability
16
+RAIL-TOP SUPPORT (NCS1403) WCI 5304414102 Contact Us For Availability
17
FRNT/PNL ASSY COMPL.BRND.22TC WCI 309640302 Contact Us For Availability
17
WCI 309343104 WCI 309343104 Contact Us For Availability
17
WCI 5304415406 WCI 5304415406 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
19
WCI 309340903 WCI 309340903 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309605802 WCI 309605802 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303291328 Contact Us For Availability
21
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
21
WASHER WCI 5303293809 Contact Us For Availability
24
SCREW,8-18B X 0.500 WCI 3002801 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
HANDLE-VNT BRND 1403 CMP/22TC WCI 309639401 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
WCI 309639601 WCI 309639601 Contact Us For Availability
43
FRAME-FRNT WCI 309639501 Contact Us For Availability
70
WCI 309342301 WCI 309342301 Contact Us For Availability
71
WCI 309340503 WCI 309340503 Contact Us For Availability
72
WCI 309340601 WCI 309340601 Contact Us For Availability
75
PC BOARD-SUPPORT HARDWARE WCI 5304413781 Contact Us For Availability
76
WCI 309111601 WCI 309111601 Contact Us For Availability
78
PKG-JY-TAI TRANS W/BATTERIES WCI 309350502 Contact Us For Availability
78
WCI 309342604 WCI 309342604 Contact Us For Availability
× ![]()
