Model Electrolux FAL103Y1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER
03 - CONTROL PARTS

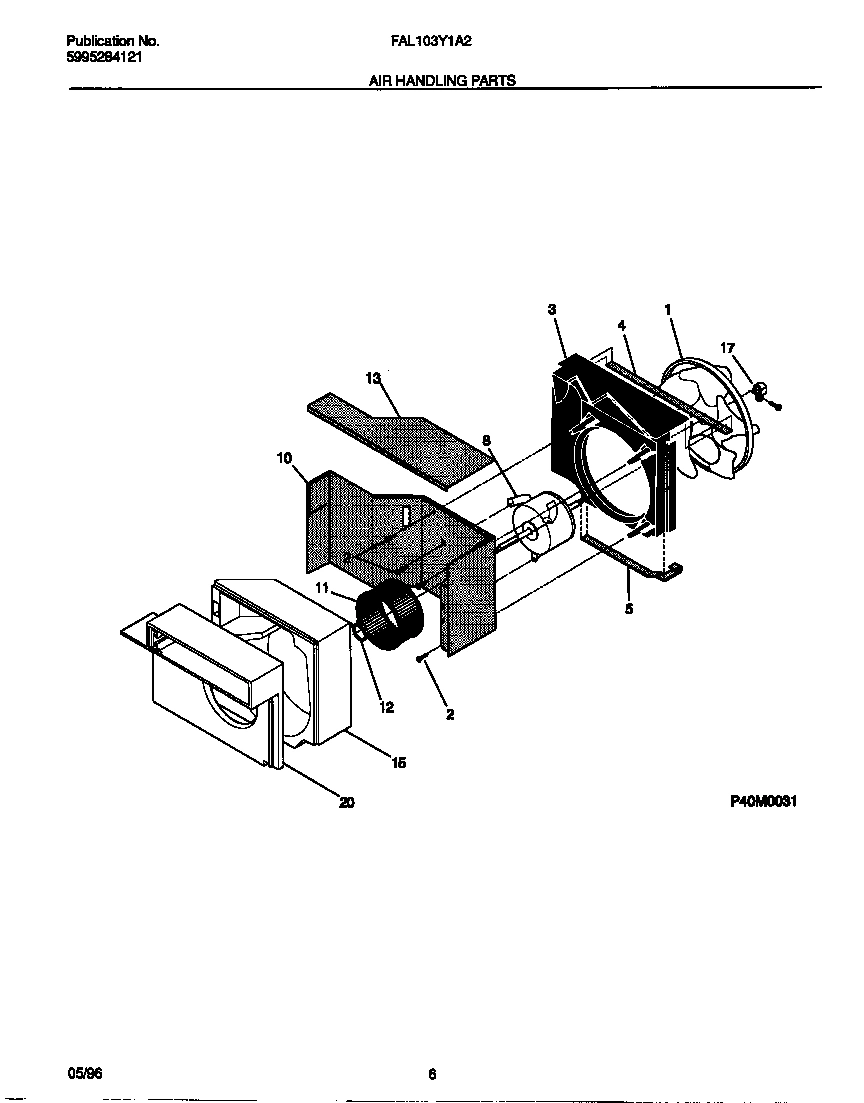

04 - AIR HANDLING PARTS

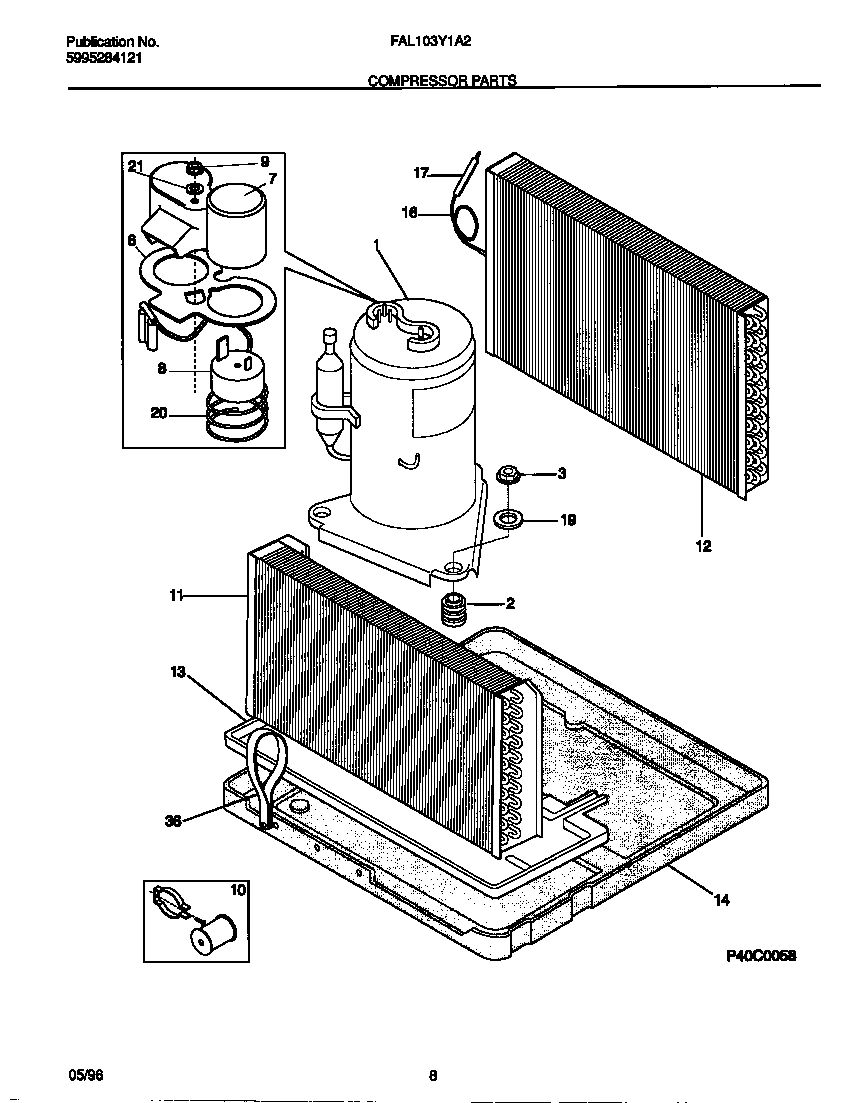

05 - COMPRESSOR PARTS

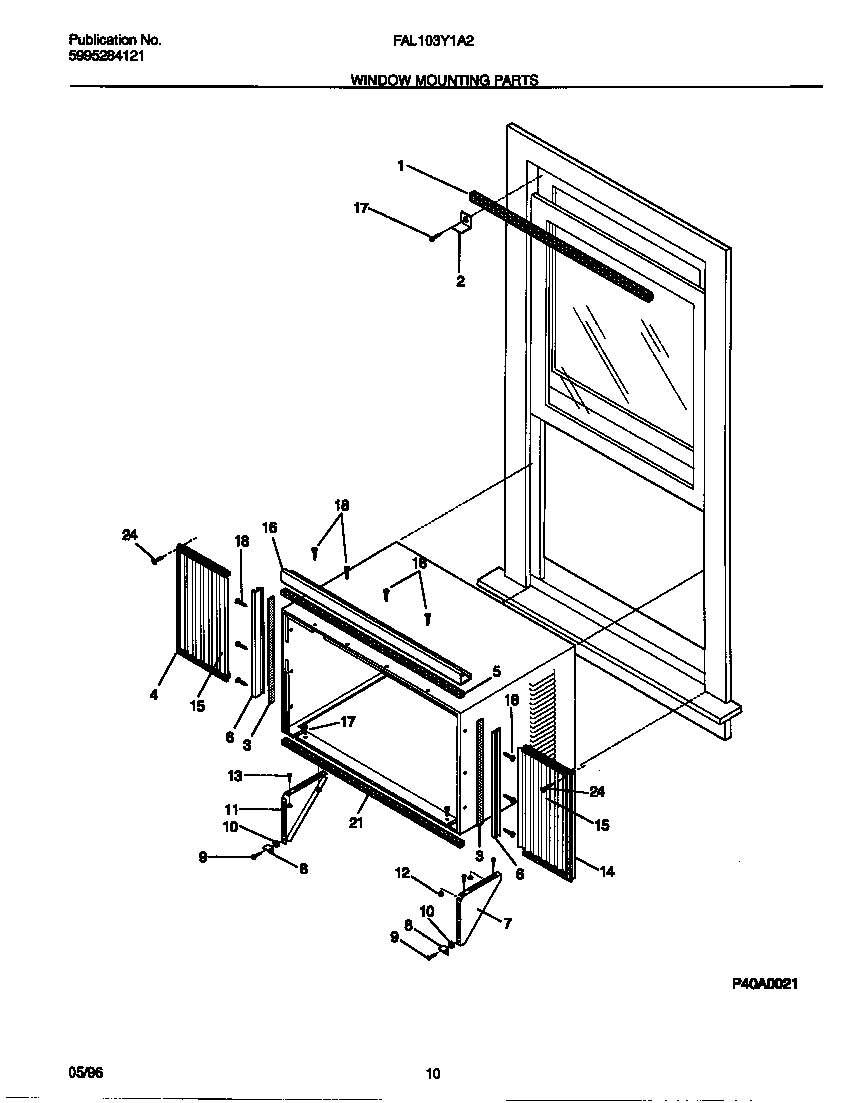

06 - WINDOW MOUNTING PARTS

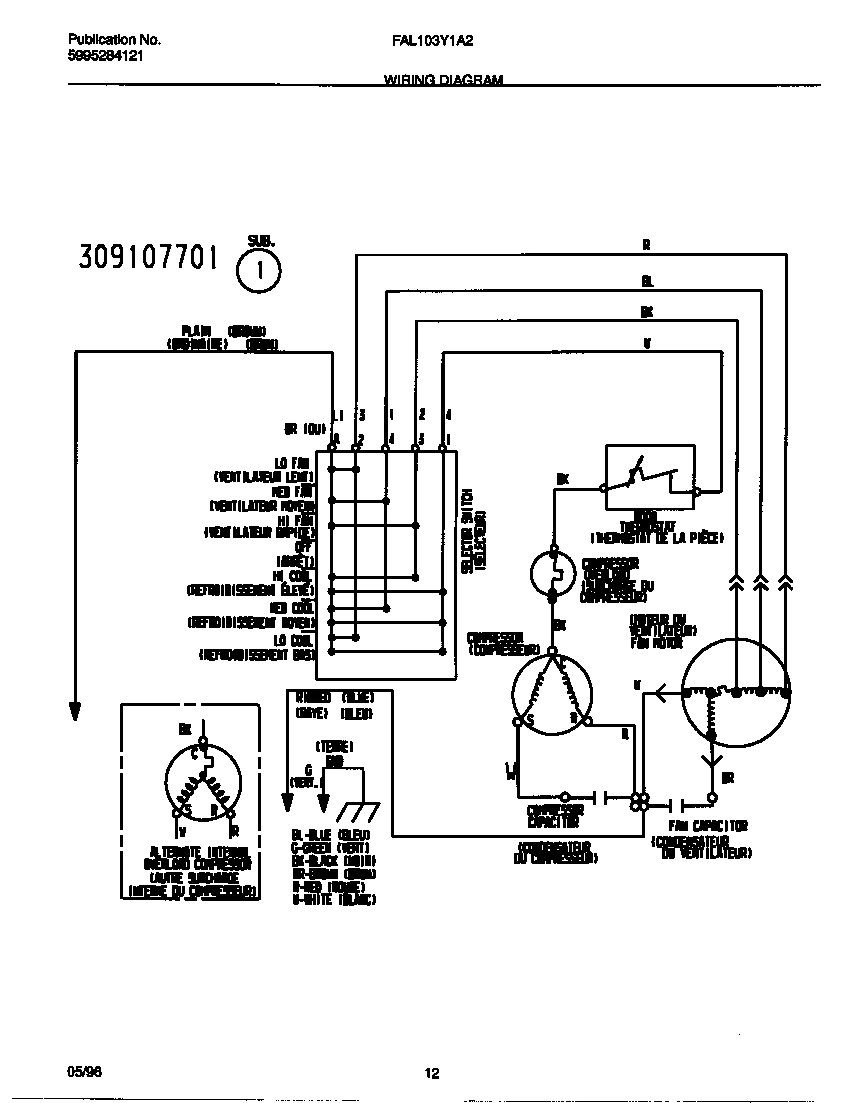

07 - WIRING DIAGRAM
Common parts from model Electrolux FAL103Y1A2 ROOM AIR CONDITIONER
*58560
WIRING HARNESS WCI 5303316603 Contact Us For Availability
1
WCI 5303202954 WCI 5303202954 Contact Us For Availability
1
WCI 5303320010 WCI 5303320010 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GRILLE, REAR WCI 5303303597 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
WCI 3202950 WCI 3202950 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
SEAL-SHROUD TOP WCI 3202953 Contact Us For Availability
4
FRAME, LH WCI 5303301245 Contact Us For Availability
5
SEAL WCI 3202951 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
RETAINER-ACCORDIAN WCI 5303301250 Contact Us For Availability
7
LINK,LOUVER ,(2) WCI 309304101 Contact Us For Availability
7
CONTROL BOX WCI 309605601 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 309607702 WCI 309607702 Contact Us For Availability
8
WCI 5303316598 WCI 5303316598 Contact Us For Availability
8
WCI 5303202807 WCI 5303202807 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303211100 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 309607801 WCI 309607801 Contact Us For Availability
9
WCI 5303316597 WCI 5303316597 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
WCI 309607802 WCI 309607802 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309608901 WCI 309608901 Contact Us For Availability
11
WCI 309606103 WCI 309606103 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 309609502 WCI 309609502 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303002169 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303317815 WCI 5303317815 Contact Us For Availability
13
WCI 5303320002 WCI 5303320002 Contact Us For Availability
13
WCI 309605901 WCI 309605901 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
WCI 5303316611 WCI 5303316611 Contact Us For Availability
14
FRAME, RH WCI 5303301246 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309605701 WCI 309605701 Contact Us For Availability
15
ACCORDIAN WCI 5303301247 Contact Us For Availability
16
WCI 5303320220 WCI 5303320220 Contact Us For Availability
16
WCI 5303301251 WCI 5303301251 Contact Us For Availability
17
WCI 309609701 WCI 309609701 Contact Us For Availability
17
WCI 5303316618 WCI 5303316618 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
19
WCI 309614601 WCI 309614601 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309307002 WCI 309307002 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 309605801 WCI 309605801 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
21
SEAL, BOTTOM WCI 5314949603 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
25
WCI 5303316592 WCI 5303316592 Contact Us For Availability
26
WCI 309100502 WCI 309100502 Contact Us For Availability
28
WCI 309100401 WCI 309100401 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
× ![]()
