Model Electrolux FAL103W1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

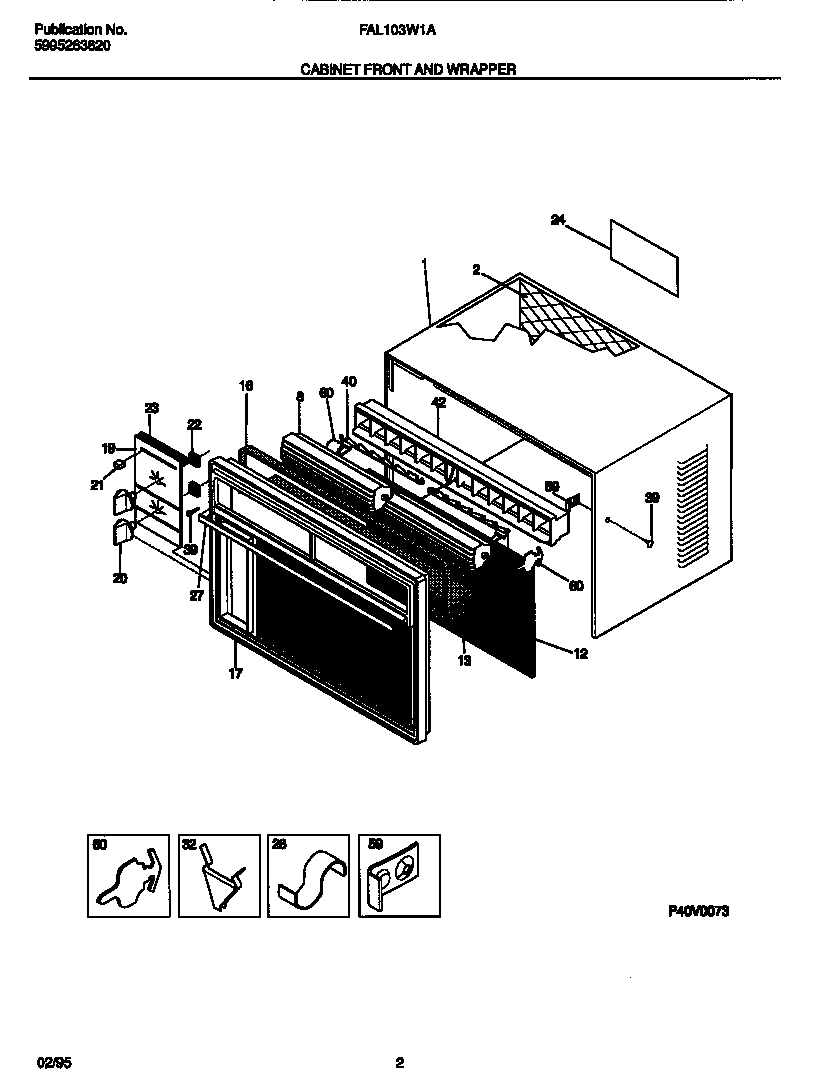

02 - CABINET FRONT AND WRAPPER

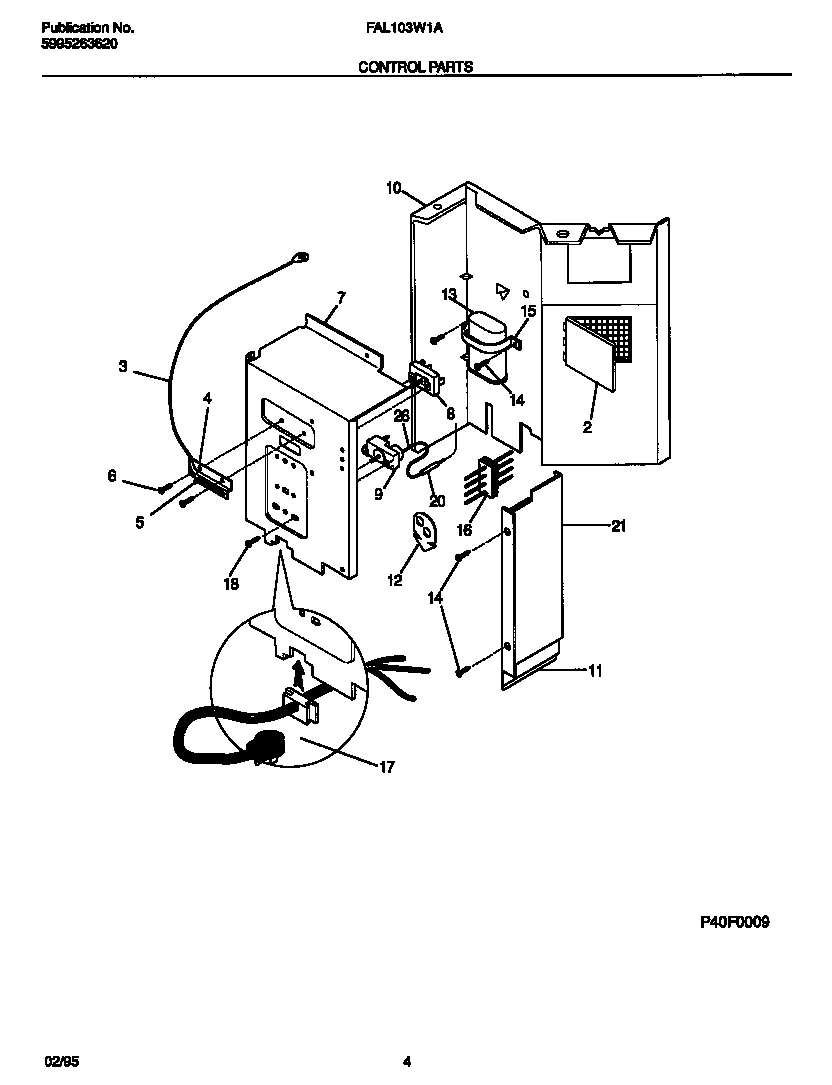

03 - CONTROL PARTS

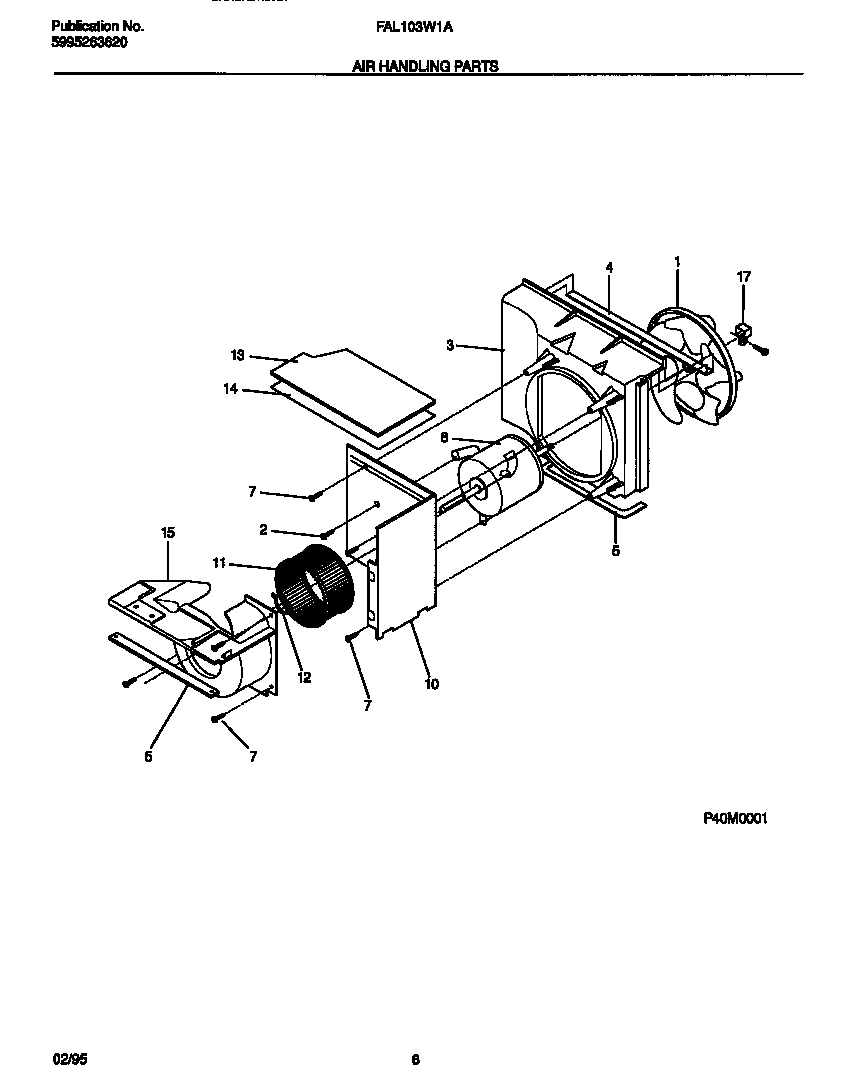

04 - AIR HANDLING PARTS

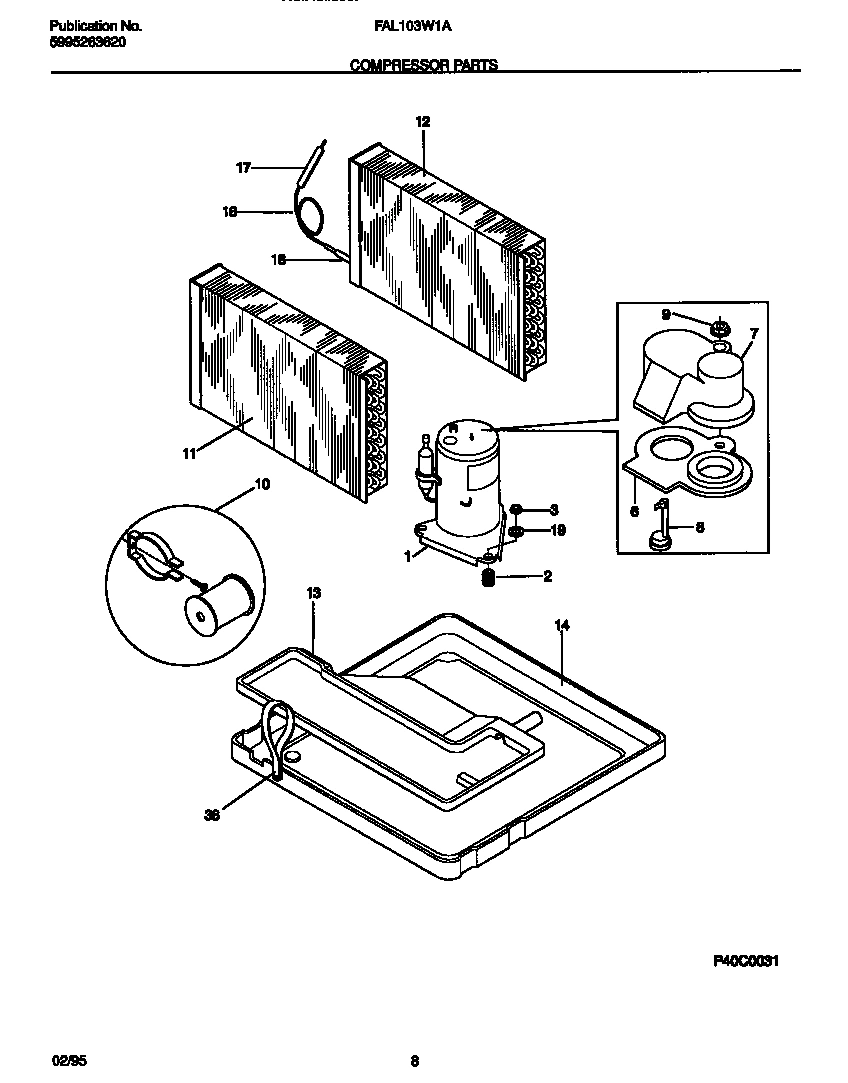

05 - COMPRESSOR PARTS

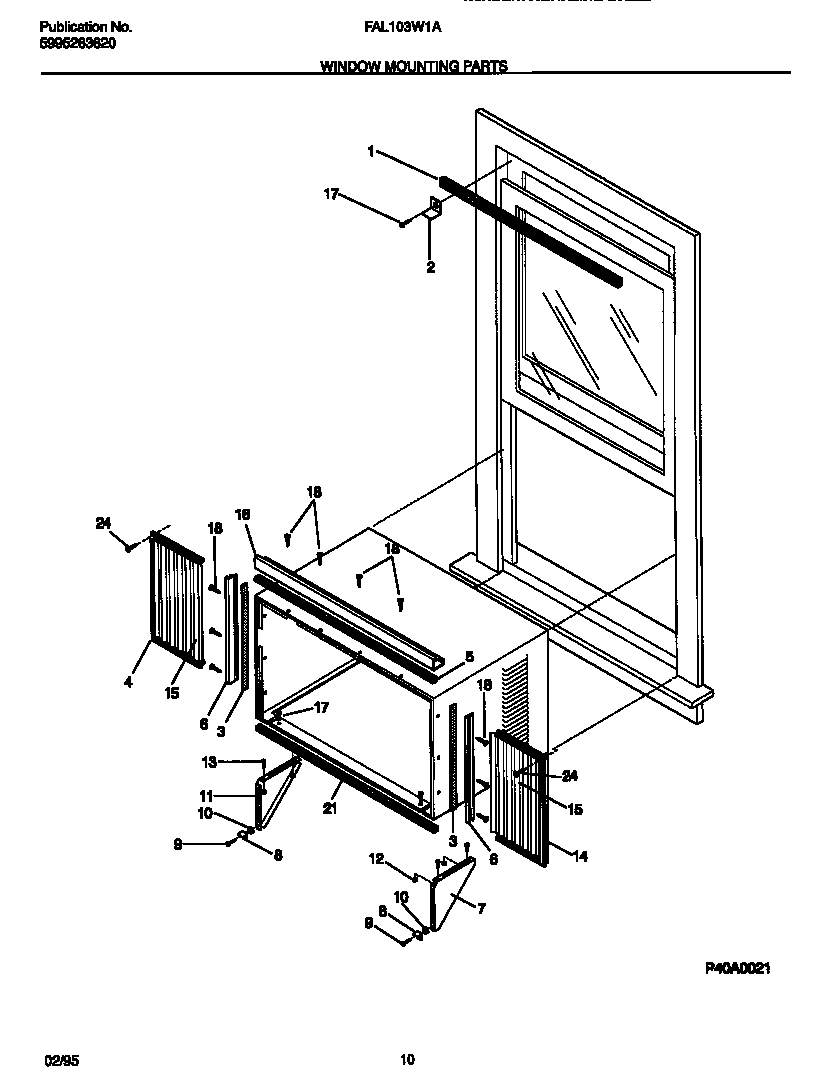

06 - WINDOW MOUNTING PARTS

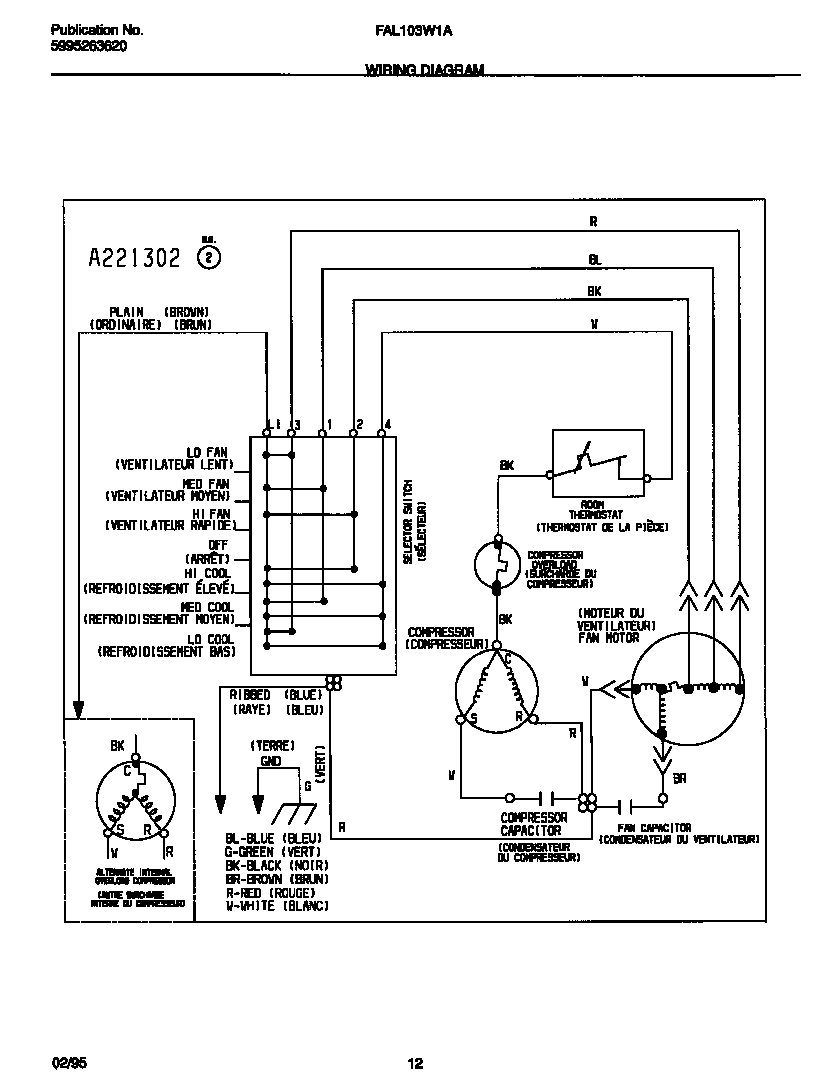

07 - WIRING DIAGRAM

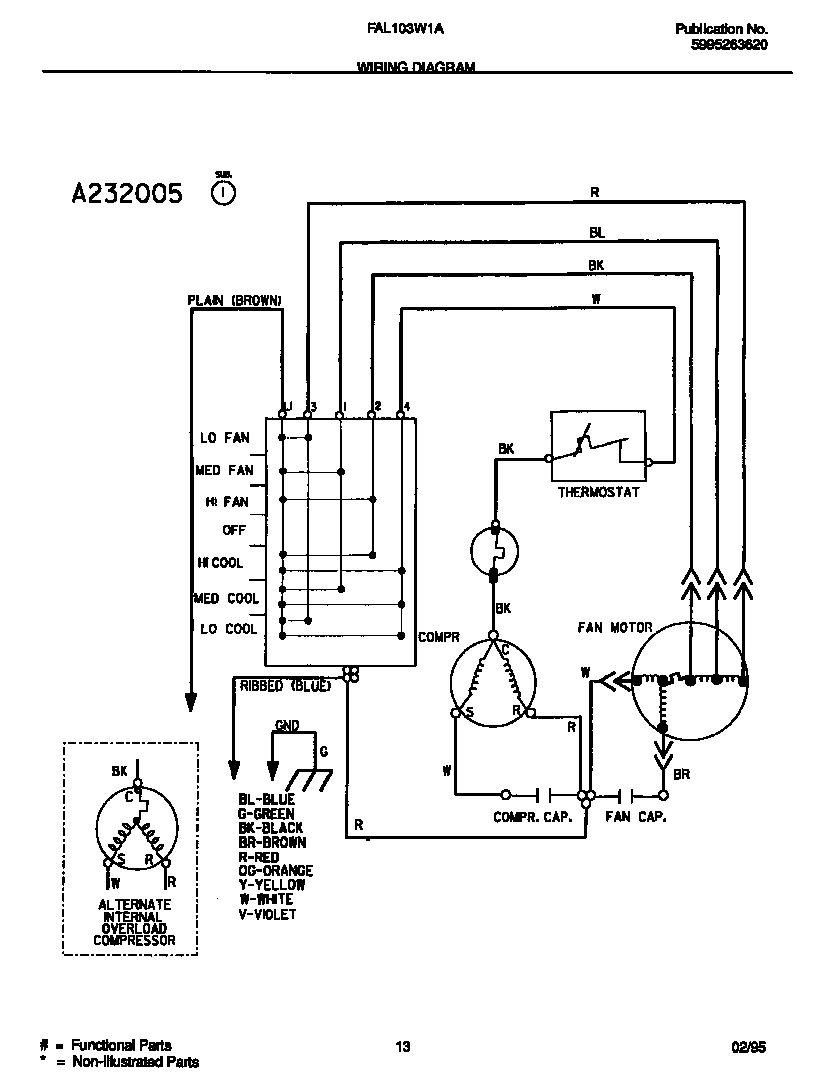

08 - WIRING DIAGRAM
Common parts from model Electrolux FAL103W1A2 ROOM AIR CONDITIONER
*03480
WCI 5303301887 WCI 5303301887 Contact Us For Availability
1
WCI 5303202954 WCI 5303202954 Contact Us For Availability
1
WCI 5303210848 WCI 5303210848 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
DOOR-VENT WCI 5303295752 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
WCI 3202950 WCI 3202950 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
4
SEAL-SHROUD TOP WCI 3202953 Contact Us For Availability
4
FRAME, LH WCI 5303301245 Contact Us For Availability
5
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
5
SEAL WCI 3202951 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 3201668 WCI 3201668 Contact Us For Availability
6
RETAINER-ACCORDIAN WCI 5303301250 Contact Us For Availability
7
WCI 5303293521 WCI 5303293521 Contact Us For Availability
7
WCI 3201669 WCI 3201669 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
LOUVER-HORIZ. WCI 5303300133 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303201621 Contact Us For Availability
8
WCI 5303202807 WCI 5303202807 Contact Us For Availability
8
WCI 5303210849 WCI 5303210849 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 5303301708 WCI 5303301708 Contact Us For Availability
9
WCI 3201670 WCI 3201670 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
BULKHEAD WCI 5303295238 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 5303210243 WCI 5303210243 Contact Us For Availability
11
BLOWER WHEEL WCI 5303210236 Contact Us For Availability
11
WCI 5303307608 WCI 5303307608 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303001809 WCI 5303001809 Contact Us For Availability
12
WCI 3203075 WCI 3203075 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303307624 WCI 5303307624 Contact Us For Availability
13
WCI 5308014101 WCI 5308014101 Contact Us For Availability
13
WCI 3203526 WCI 3203526 Contact Us For Availability
13
WCI 3202957 WCI 3202957 Contact Us For Availability
13
WCI 5303210203 WCI 5303210203 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
WCI 5303300134 WCI 5303300134 Contact Us For Availability
14
WCI 3202958 WCI 3202958 Contact Us For Availability
14
WCI 5303301034 WCI 5303301034 Contact Us For Availability
14
FRAME, RH WCI 5303301246 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 5303300760 WCI 5303300760 Contact Us For Availability
15
ACCORDIAN WCI 5303301247 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 40`` WCI 5303209547 Contact Us For Availability
16
WCI 5303202961 WCI 5303202961 Contact Us For Availability
16
WCI 5303301251 WCI 5303301251 Contact Us For Availability
17
WCI 5303300132 WCI 5303300132 Contact Us For Availability
17
CORD-ELECTRIC POWER WCI 5303301021 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
19
WCI 5303300135 WCI 5303300135 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
KNOB-CONTROL, (2) WCI 5303017300 Contact Us For Availability
20
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
21
WCI 5303271479 WCI 5303271479 Contact Us For Availability
21
WCI 3202963 WCI 3202963 Contact Us For Availability
21
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
23
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
24
SCREW, FRAME EXT LKG WCI 3002801 Contact Us For Availability
26
WCI 5308007834 WCI 5308007834 Contact Us For Availability
28
CLIP-FRONT/BASE WCI 5308010914 Contact Us For Availability
32
CLIP-LINK, (2) WCI 5303001844 Contact Us For Availability
36
STRAP - BASE WCI 5303303558 Contact Us For Availability
39
WCI 5303271346 WCI 5303271346 Contact Us For Availability
40
LINK-LOUVERS, LH WCI 5303293787 Contact Us For Availability
41
LINK-LOUVERS, RH WCI 5303293786 Contact Us For Availability
42
LOUVERS W/LINK, 5 WCI 5303002458 Contact Us For Availability
59
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
60
CLIP-FILTER, (2) WCI 3203495 Contact Us For Availability
× ![]()
