Model Electrolux FAL103K1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

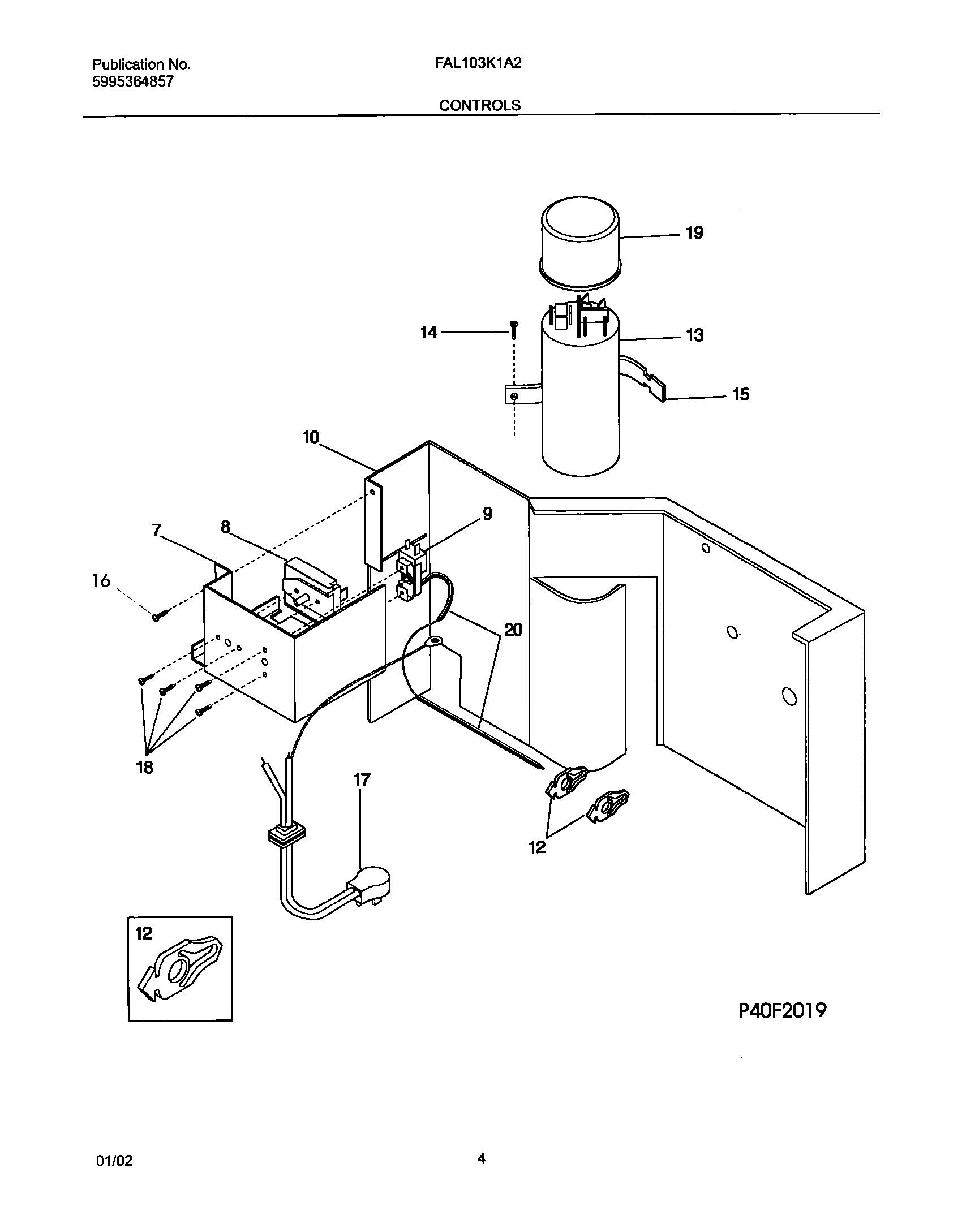

05 - CONTROLS

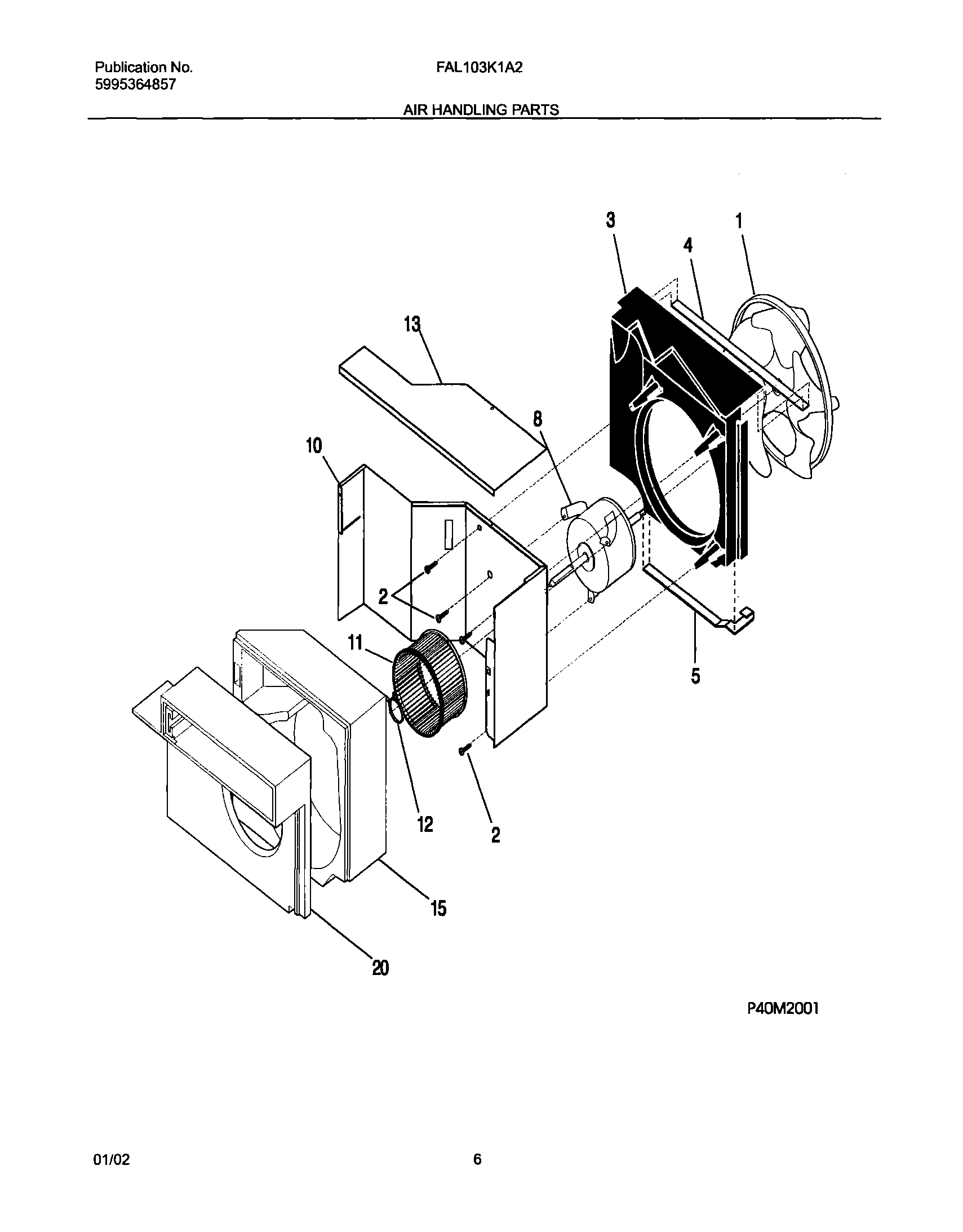

07 - AIR HANDLING PARTS

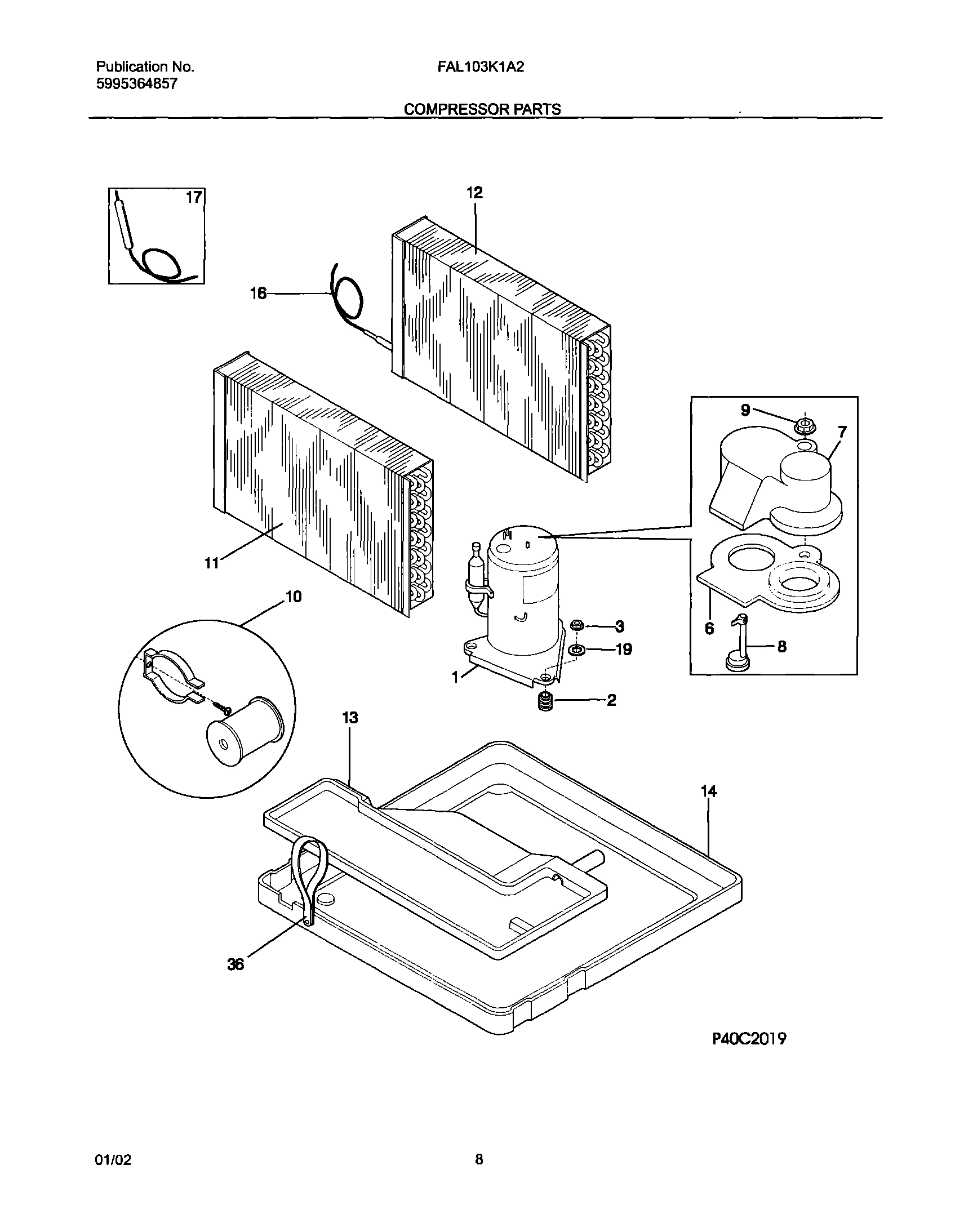

09 - COMPRESSOR PARTS

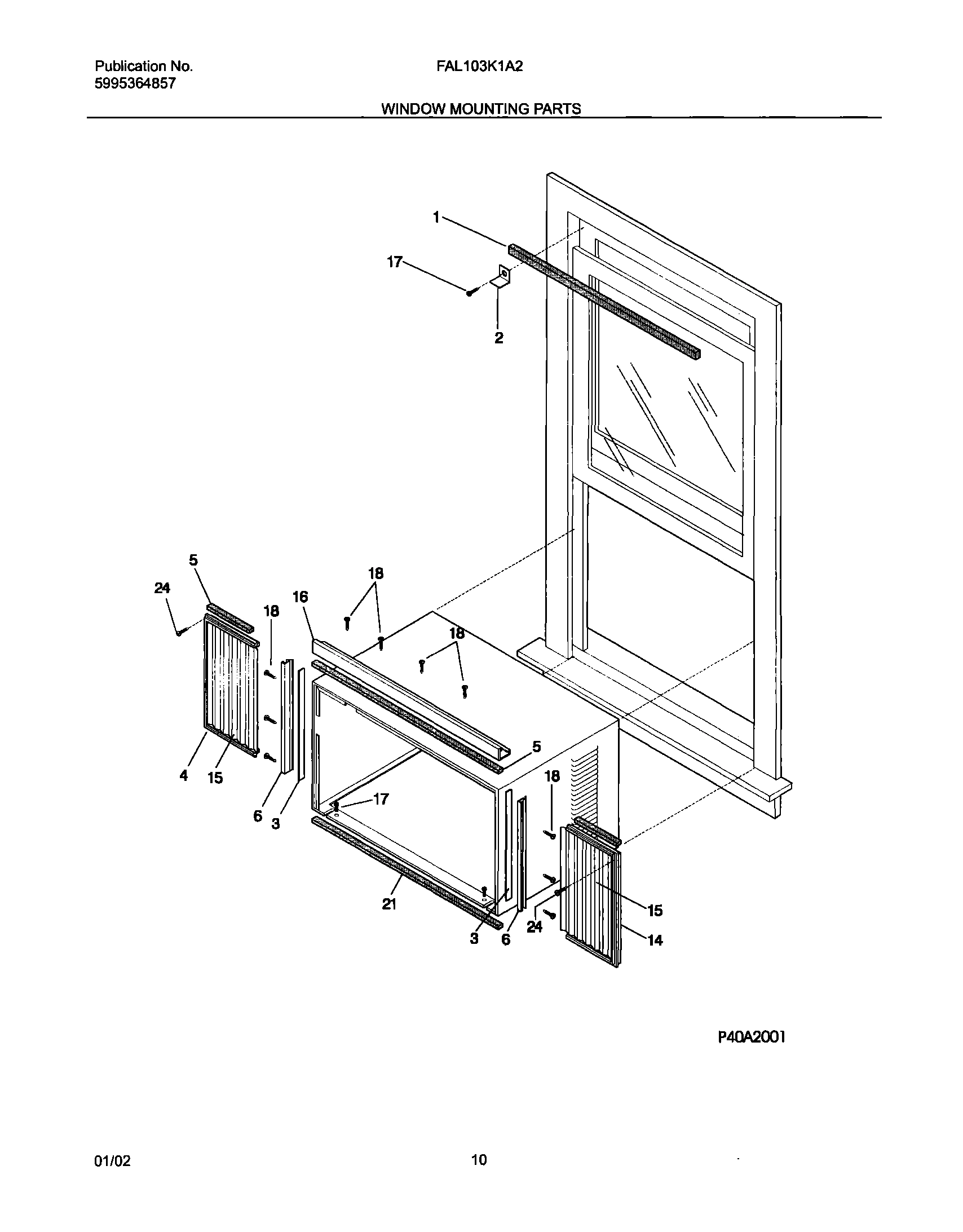

11 - WINDOW MOUNTING PARTS

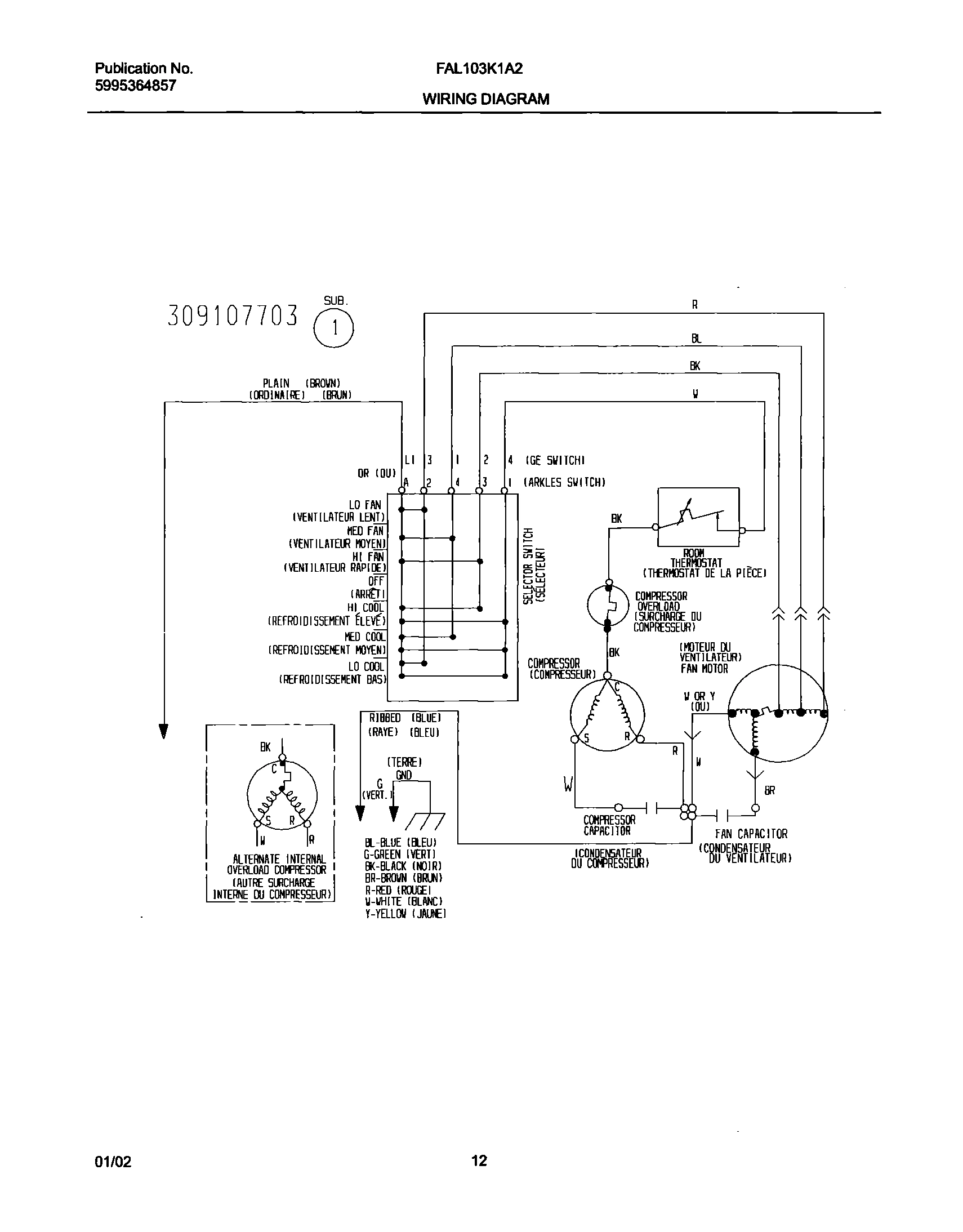

12 - WIRING DIAGRAM
Common parts from model Electrolux FAL103K1A2 ROOM AIR CONDITIONER
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
WCI 5304419112 WCI 5304419112 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
4
WCI 5304414122 WCI 5304414122 Contact Us For Availability
5
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
5
Seal,rail ,top WCI 5303207200 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
WCI 5304414107 WCI 5304414107 Contact Us For Availability
7
WCI 309605603 WCI 309605603 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
8
WCI 309639701 WCI 309639701 Contact Us For Availability
8
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640402 Contact Us For Availability
8
Switch,selector ,7 posn,3 speed WCI 5304417447 Contact Us For Availability
8
WCI 309630602 WCI 309630602 Contact Us For Availability
8
WCI 5303295567 WCI 5303295567 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5303316597 WCI 5303316597 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
Blower-wheel,cavity 3&4 WCI 309608902 Contact Us For Availability
11
WCI 309606101 WCI 309606101 Contact Us For Availability
12
WCI 309343502 WCI 309343502 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303002169 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5304419796 WCI 5304419796 Contact Us For Availability
13
WCI 5303291523 WCI 5303291523 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
14
WCI 5303285199 WCI 5303285199 Contact Us For Availability
14
WCI 5304419798 WCI 5304419798 Contact Us For Availability
14
WCI 5304414123 WCI 5304414123 Contact Us For Availability
15
WCI 309111901 WCI 309111901 Contact Us For Availability
15
WCI 309605702 WCI 309605702 Contact Us For Availability
15
WCI 5304415072 WCI 5304415072 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
16
WCI 5304414102 WCI 5304414102 Contact Us For Availability
17
WCI 309640302 WCI 309640302 Contact Us For Availability
17
Cord-service WCI 309343104 Contact Us For Availability
17
Tube-process WCI 5304417604 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309344501 WCI 309344501 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
WCI 5304417582 WCI 5304417582 Contact Us For Availability
20
WCI 309605802 WCI 309605802 Contact Us For Availability
21
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
WCI 309639601 WCI 309639601 Contact Us For Availability
43
WCI 309639501 WCI 309639501 Contact Us For Availability
NI
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
NI
WCI 5304402119 WCI 5304402119 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
WCI 309313205 WCI 309313205 Contact Us For Availability
NI
WCI 309313304 WCI 309313304 Contact Us For Availability
NI
WCI 5303301572 WCI 5303301572 Contact Us For Availability
NI
WCI 5304426447 WCI 5304426447 Contact Us For Availability
× ![]()
