Model Electrolux FAL096P1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

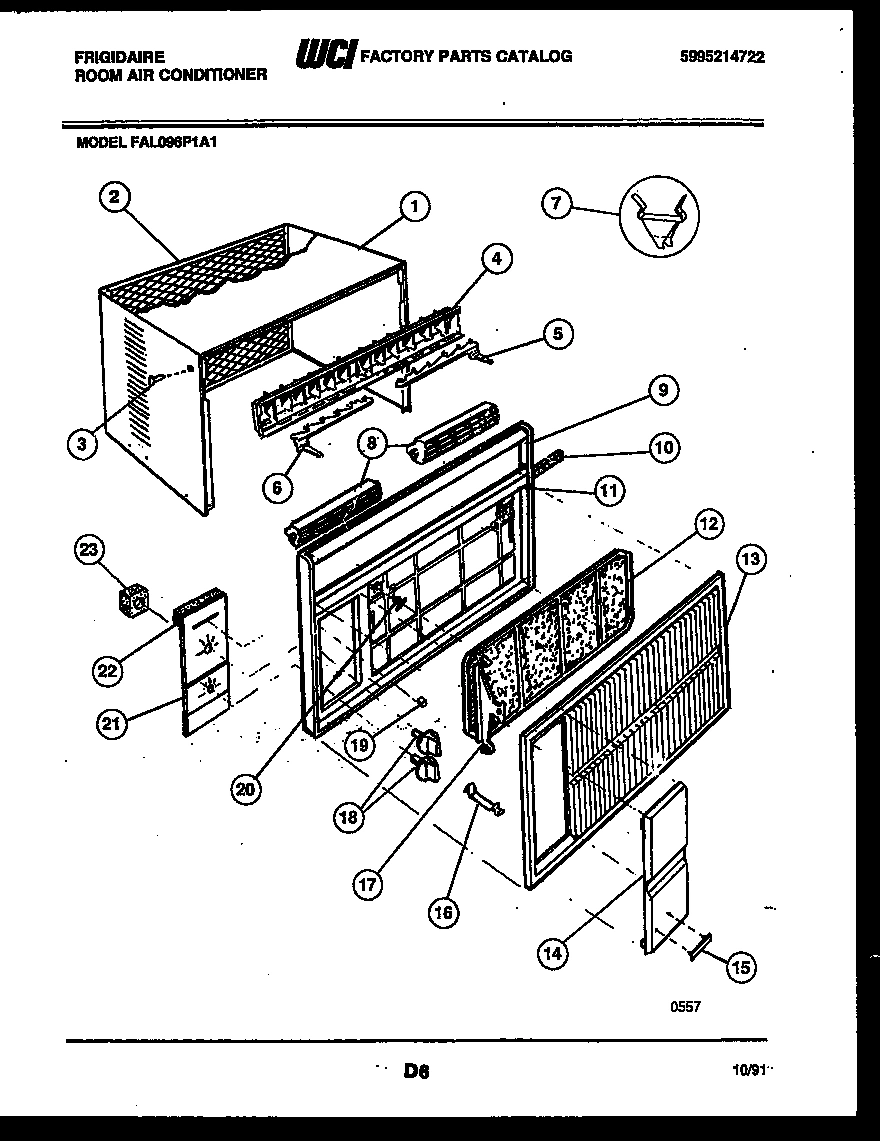

02 - CABINET PARTS

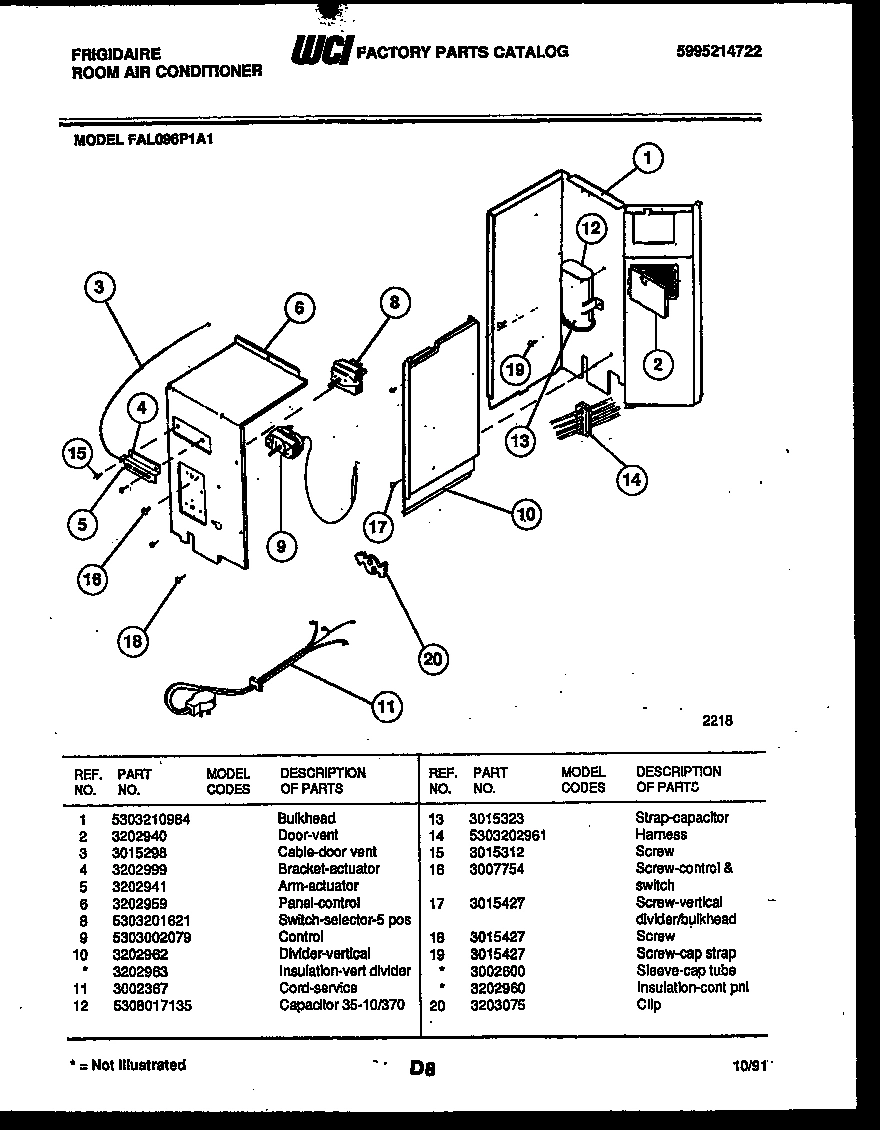

03 - ELECTRICAL PARTS

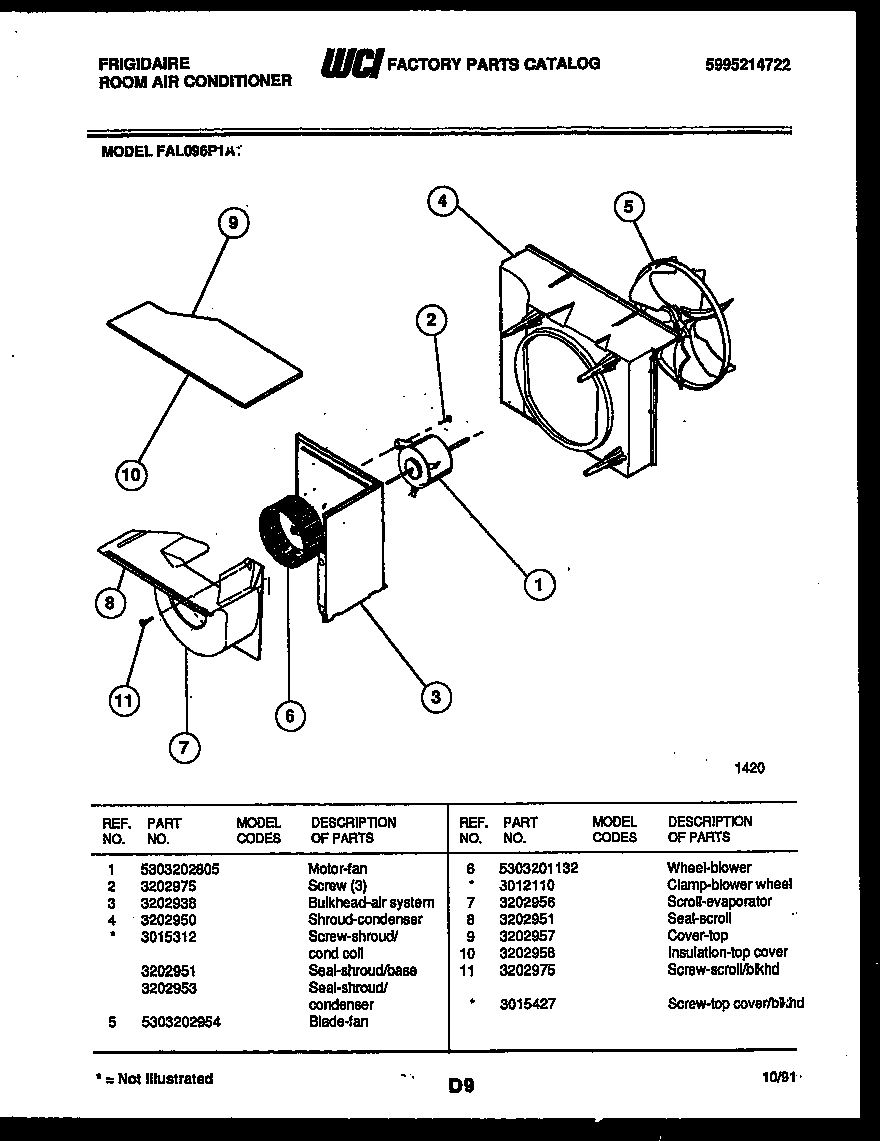

04 - AIR HANDLING PARTS

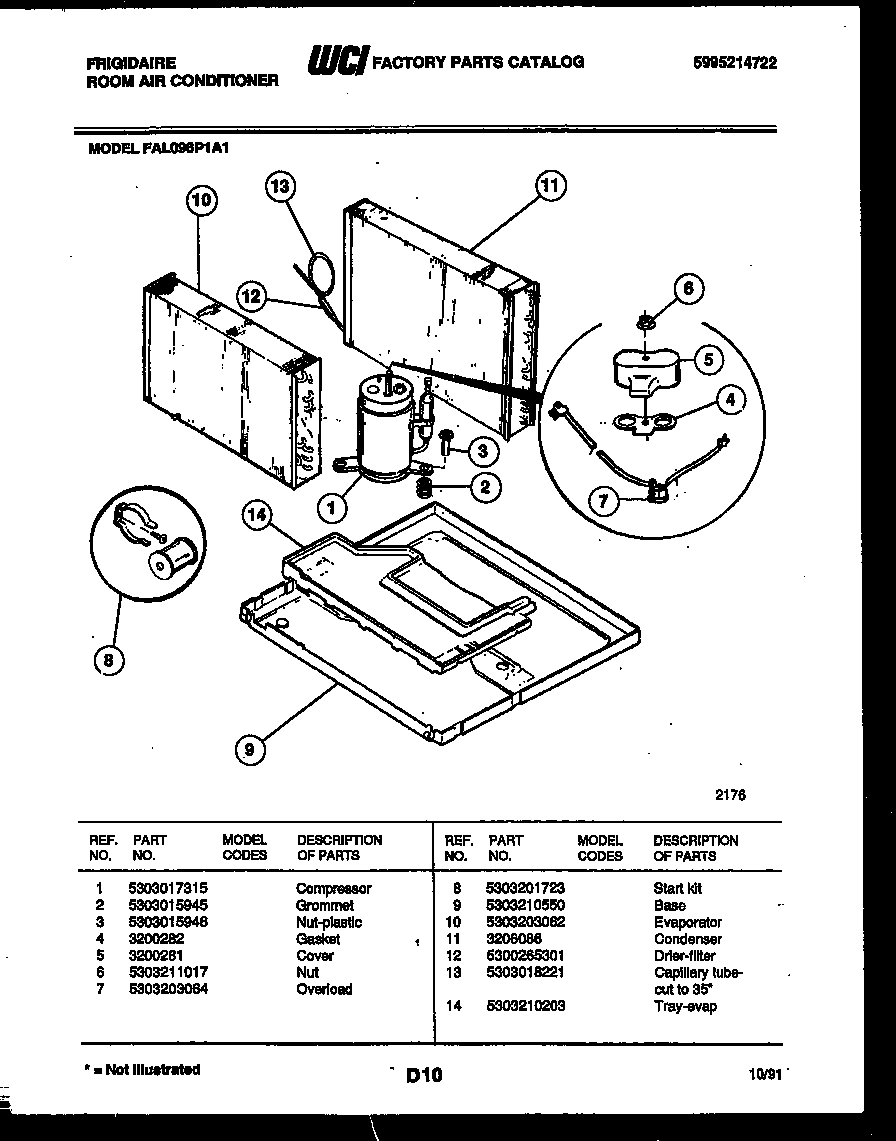

05 - SYSTEM PARTS

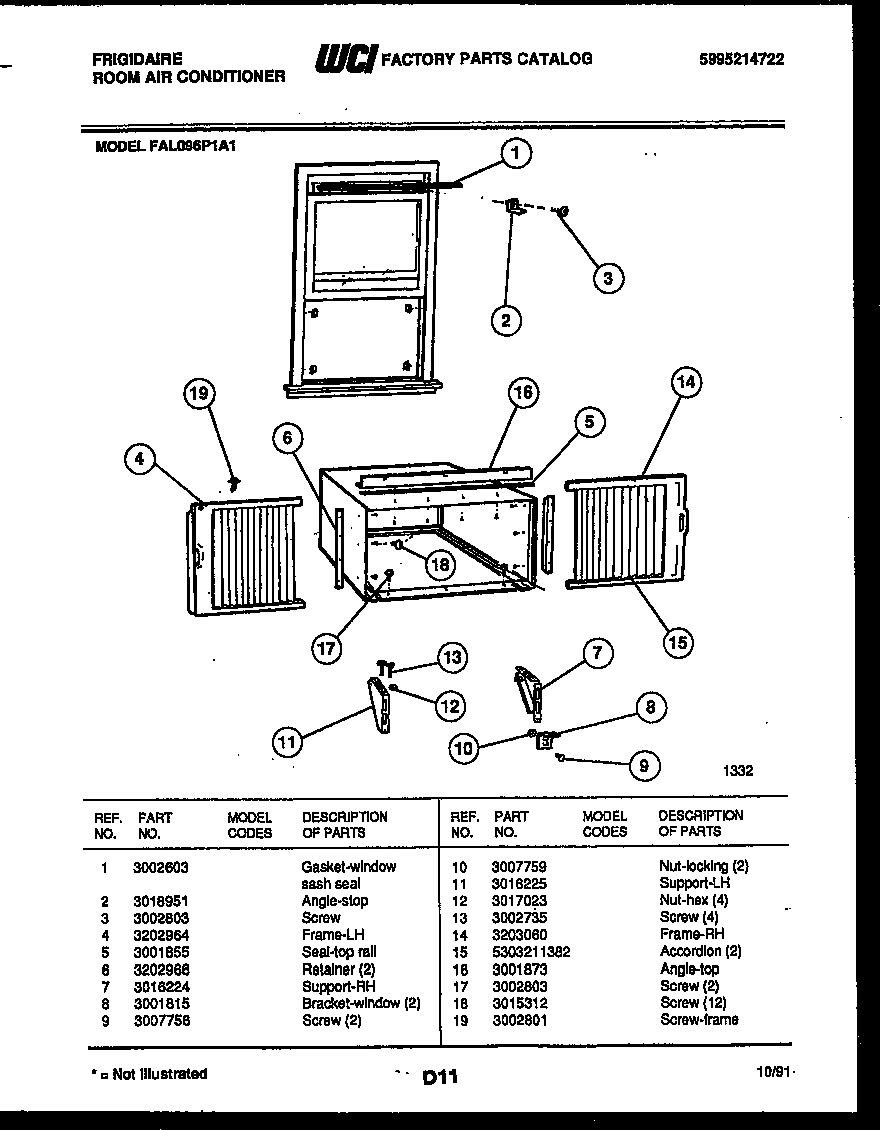

06 - WINDOW MOUNTING PARTS
Common parts from model Electrolux FAL096P1A1 ROOM AIR CONDITIONER
1
BULKHEAD WCI 5303210984 Contact Us For Availability
1
WCI 5303202805 WCI 5303202805 Contact Us For Availability
1
WCI 5303017315 WCI 5303017315 Contact Us For Availability
2
GRILLE-REAR WCI 5303210207 Contact Us For Availability
2
WCI 3202940 WCI 3202940 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
2A
WCI 5303271903 WCI 5303271903 Contact Us For Availability
3
PLUG BTN WCI 5303271902 Contact Us For Availability
3
WCI 3015298 WCI 3015298 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
4
WCI 5303002458 WCI 5303002458 Contact Us For Availability
4
WCI 3202999 WCI 3202999 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 3200282 WCI 3200282 Contact Us For Availability
4
WCI 3202964 WCI 3202964 Contact Us For Availability
4C
WCI 3202953 WCI 3202953 Contact Us For Availability
5
WCI 5303002164 WCI 5303002164 Contact Us For Availability
5
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 3200281 WCI 3200281 Contact Us For Availability
5
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
6
WCI 5303002165 WCI 5303002165 Contact Us For Availability
6
WCI 3202959 WCI 3202959 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
NUT WCI 5303211017 Contact Us For Availability
6
RETAINER (2) WCI 3202966 Contact Us For Availability
6A
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
7
CLIP WCI 5303001844 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 5303203064 WCI 5303203064 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
LOUVER (2) WCI 5308017244 Contact Us For Availability
8
SWITCH-SELECTOR-5 POS WCI 5303201621 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
CONTROL WCI 5303002079 Contact Us For Availability
9
FRONT & PANEL COMPLETE WCI 3204214 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
WCI 5303210550 WCI 5303210550 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
WCI 5308014101 WCI 5308014101 Contact Us For Availability
10
WCI 3202962 WCI 3202962 Contact Us For Availability
10
WCI 3202958 WCI 3202958 Contact Us For Availability
10
WCI 5303203062 WCI 5303203062 Contact Us For Availability
10
NUT-LOCKING (2) WCI 3007759 Contact Us For Availability
10A
INSULATION-VERT DIVIDER (NON-ILLUSTRATED) WCI 3202963 Contact Us For Availability
11
INSERT WCI 08016330 Contact Us For Availability
11
WCI 3002367 WCI 3002367 Contact Us For Availability
11
WCI 3206086 WCI 3206086 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
FILTER WCI 5308017249 Contact Us For Availability
12
CAPACITOR 35-10/370 WCI 5308017135 Contact Us For Availability
13
PANEL & DOOR WCI 5303016551 Contact Us For Availability
13
WCI 3015323 WCI 3015323 Contact Us For Availability
13
WCI 5303018221 WCI 5303018221 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
DOOR WCI 5308016198 Contact Us For Availability
14
WCI 5303202961 WCI 5303202961 Contact Us For Availability
14
TRAY-EVAP WCI 5303210203 Contact Us For Availability
14
WCI 3203060 WCI 3203060 Contact Us For Availability
15
NAME PLATE WCI 08017126 Contact Us For Availability
15
ACCORDION (2) WCI 5303211382 Contact Us For Availability
16
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
16
SCREW-CONTROL & SWITCH WCI 3007754 Contact Us For Availability
16
ANGLE-TOP WCI 3001873 Contact Us For Availability
17
TRACK (2) WCI 5308017294 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
WCI 5308016109 WCI 5308016109 Contact Us For Availability
19
WCI 5303002189 WCI 5303002189 Contact Us For Availability
19
SCREW-FRAME WCI 3002801 Contact Us For Availability
19A
SLEEVE-CAP TUBE (NON-ILLUSTRATED) WCI 3002600 Contact Us For Availability
19B
INSULATION-CONT PNL (NON-ILLUSTRATED) WCI 3202960 Contact Us For Availability
20
SCREW-FRONT WCI 5308008175 Contact Us For Availability
20
CLIP WCI 3203075 Contact Us For Availability
21
WCI 3202876 WCI 3202876 Contact Us For Availability
22
WCI 5303001984 WCI 5303001984 Contact Us For Availability
23
WCI 5303001775 WCI 5303001775 Contact Us For Availability
× ![]()
