Model Electrolux FAK123J1V4 ROOM AIR CONDITIONER – Common Parts & Diagrams

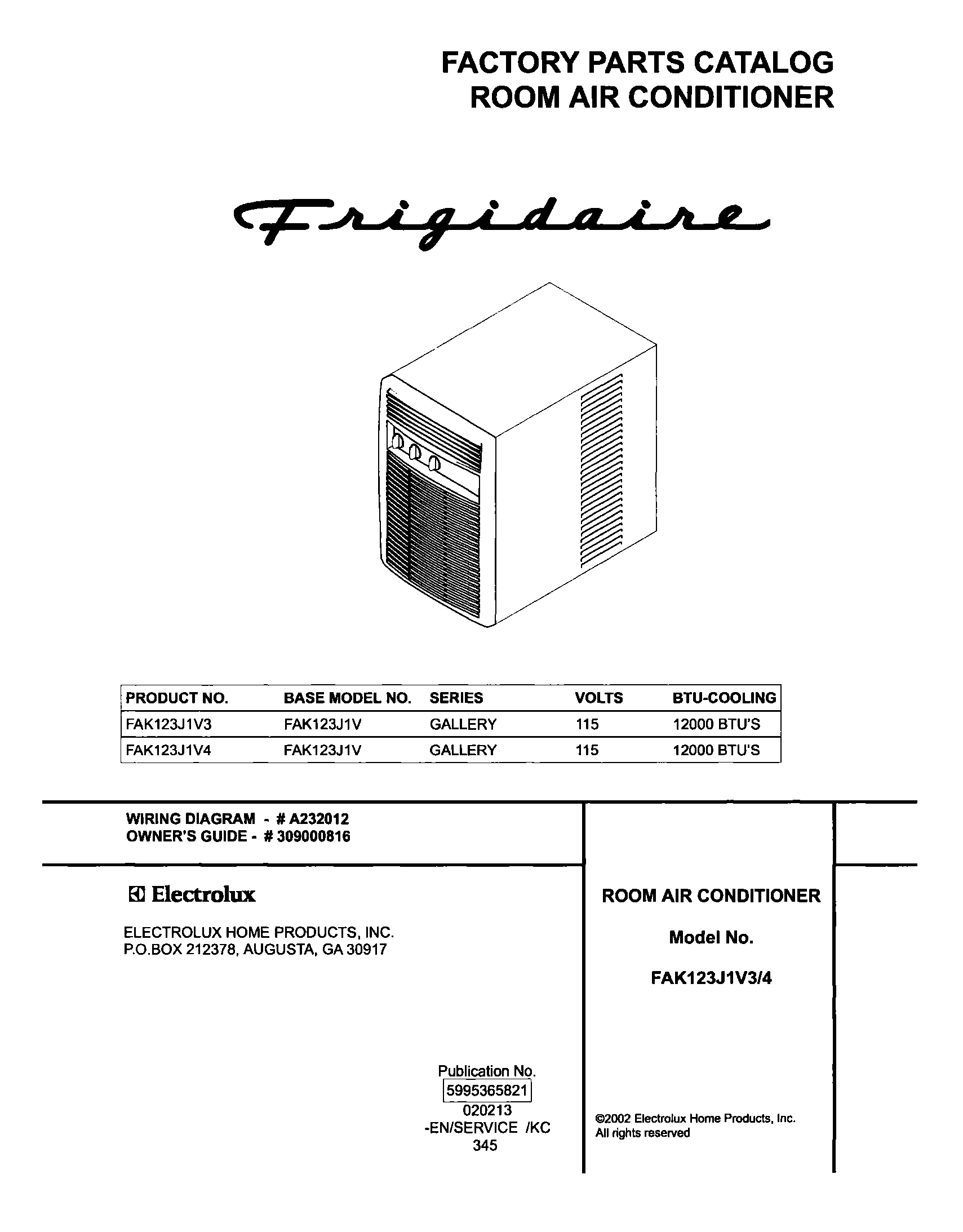

01 - COVER

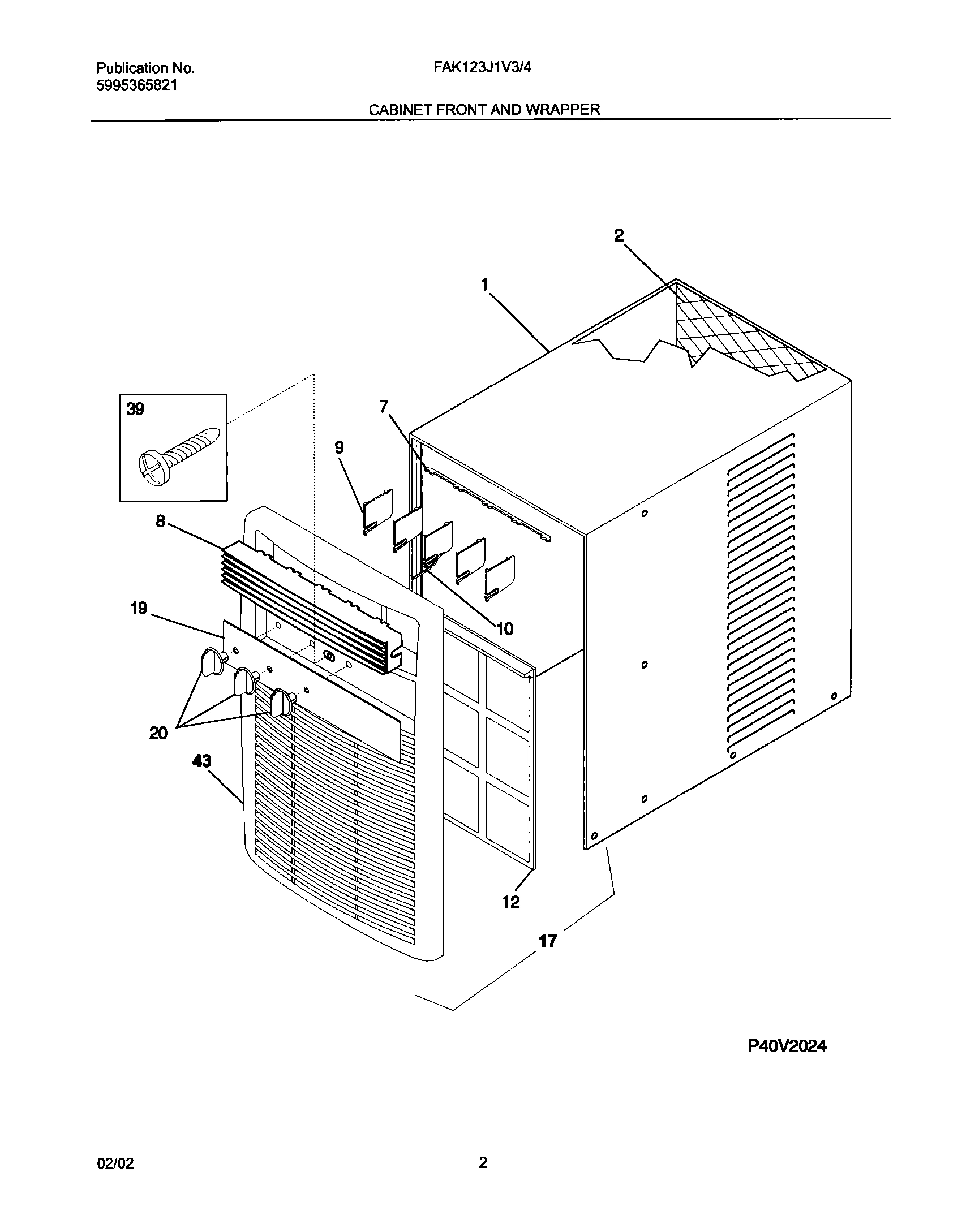

03 - CABINET FRONT AND WRAPPER
05 - CONTROLS
07 - AIR HANDLING PARTS
09 - COMPRESSOR PARTS
11 - MOUNTING PARTS
12 - WIRING DIAGRAM
Common parts from model Electrolux FAK123J1V4 ROOM AIR CONDITIONER
1
WCI 309626001 WCI 309626001 Contact Us For Availability
1
WCI 309603111 WCI 309603111 Contact Us For Availability
1
WCI 5303313968 WCI 5303313968 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
WCI 5303317604 WCI 5303317604 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309642301 WCI 309642301 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
WCI 5304414087 WCI 5304414087 Contact Us For Availability
7
WCI 309606501 WCI 309606501 Contact Us For Availability
7
Cover-terminal,compressor WCI 5304416126 Contact Us For Availability
8
Louver horizontal WCI 309622204 Contact Us For Availability
8
Louver Assy,Incl-7,8,9,10 WCI 309622504 Contact Us For Availability
8
WCI 5303323284 WCI 5303323284 Contact Us For Availability
8
WCI 309646001 WCI 309646001 Contact Us For Availability
8
WCI 5304419795 WCI 5304419795 Contact Us For Availability
8
Support,mounting plate WCI 5304414113 Contact Us For Availability
9
Louver,vertical WCI 309622103 Contact Us For Availability
9
WCI 5303321674 WCI 5303321674 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
Louver,vertical ,w/handle WCI 309622104 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309625201 WCI 309625201 Contact Us For Availability
11
WCI 309617007 WCI 309617007 Contact Us For Availability
12
Filter air front WCI 309622304 Contact Us For Availability
12
WCI 309321201 WCI 309321201 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 309617207 WCI 309617207 Contact Us For Availability
13
WCI 5304426452 WCI 5304426452 Contact Us For Availability
13
WCI 309624101 WCI 309624101 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309624801 Contact Us For Availability
16
Capillary Tube,cut to length WCI 5308017120 Contact Us For Availability
17
Front assy,complete ,7,8,9,10,12,43 WCI 309622404 Contact Us For Availability
17
Cord-electric power,type A ,14 AWG WCI 309343106 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309622609 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
23
Base,compressor WCI 309614106 Contact Us For Availability
25
PANEL-WINDOW,PLASTIC WCI 5308047516 Contact Us For Availability
28
Door Opener,vent mechanism WCI 309625301 Contact Us For Availability
29
WCI 309606402 WCI 309606402 Contact Us For Availability
29
Adapter,scroll/housing ,front WCI 309624901 Contact Us For Availability
30
Plate,scroll/housing ,back WCI 309624601 Contact Us For Availability
33
Frame,expander slide WCI 5304414118 Contact Us For Availability
34
WCI 5304414112 WCI 5304414112 Contact Us For Availability
35
Plate,mounting ,grey WCI 5304414114 Contact Us For Availability
36
SEAL,MOUNTING PLATE WCI 5308047524 Contact Us For Availability
37
Screw,pan head `8-32D x 0.75 ,slotted WCI 5308047558 Contact Us For Availability
38
Screw,adjusting ,1/4-20 x 6.00 ,mounting plat WCI 5308047562 Contact Us For Availability
39
WCI 5303313967 WCI 5303313967 Contact Us For Availability
40
Bracket,safety WCI 5304414085 Contact Us For Availability
41
Screw,pan head `10-12A x 1.00 `slotted WCI 5300125233 Contact Us For Availability
42
Screw,pan head `10-12A x 1.75 ,slotted WCI 5300507212 Contact Us For Availability
43
Frame,cabinet front WCI 309621804 Contact Us For Availability
43
Screw,flat head wood ,10-12A x 2.50 ,slotted WCI 5300507693 Contact Us For Availability
44
Nut,bracket support ,1/4-20 ,locking WCI 3007759 Contact Us For Availability
48
Channel,slide ,side mt. ,(2) WCI 309305302 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
Window Mounting Kit WCI 309625802 Contact Us For Availability
NI
Seal,slide channel WCI 5314930813 Contact Us For Availability
× ![]()
