Model Electrolux FAK103J1V2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER

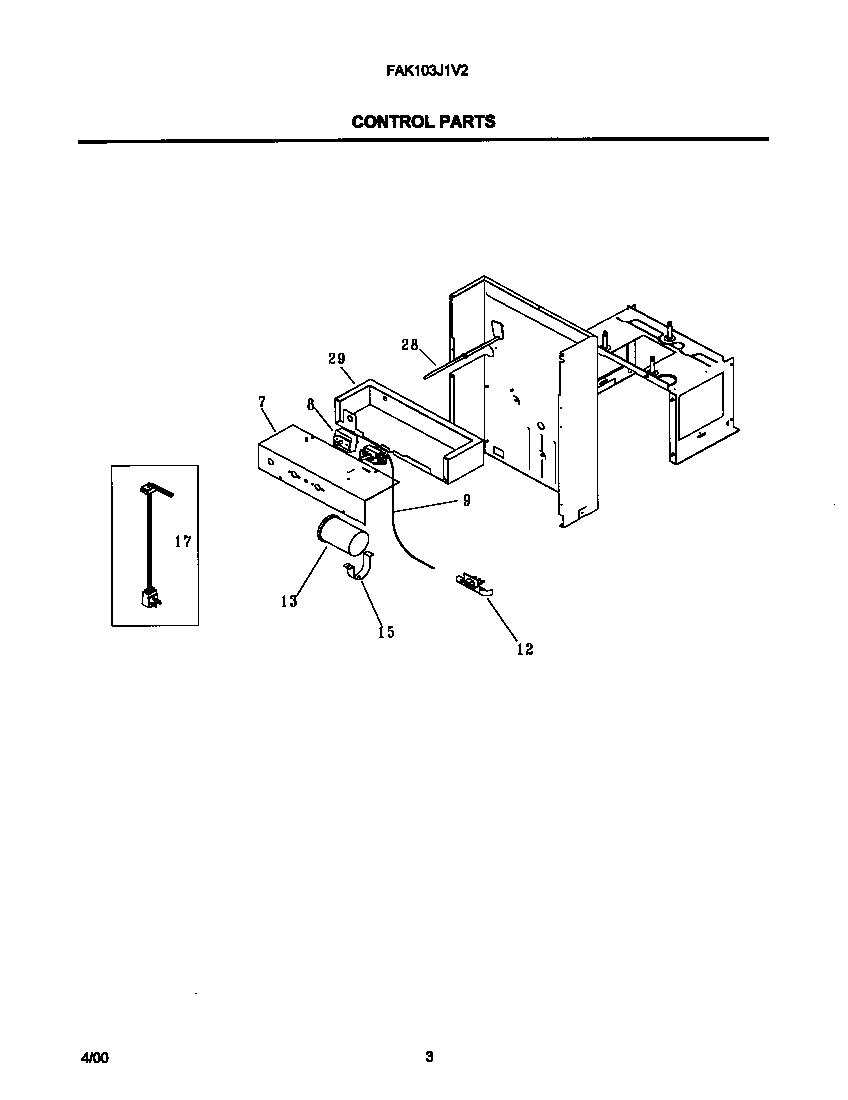

03 - CONTROL PARTS

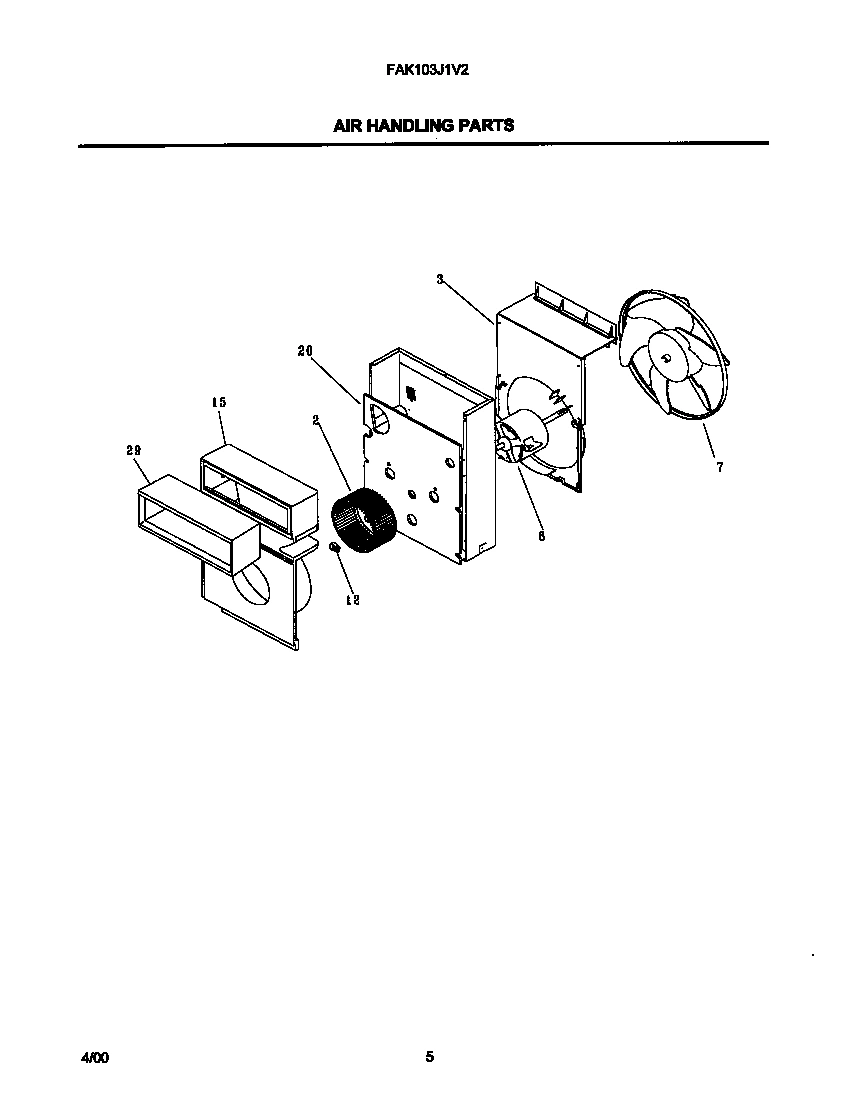

04 - AIR HANDLING PARTS

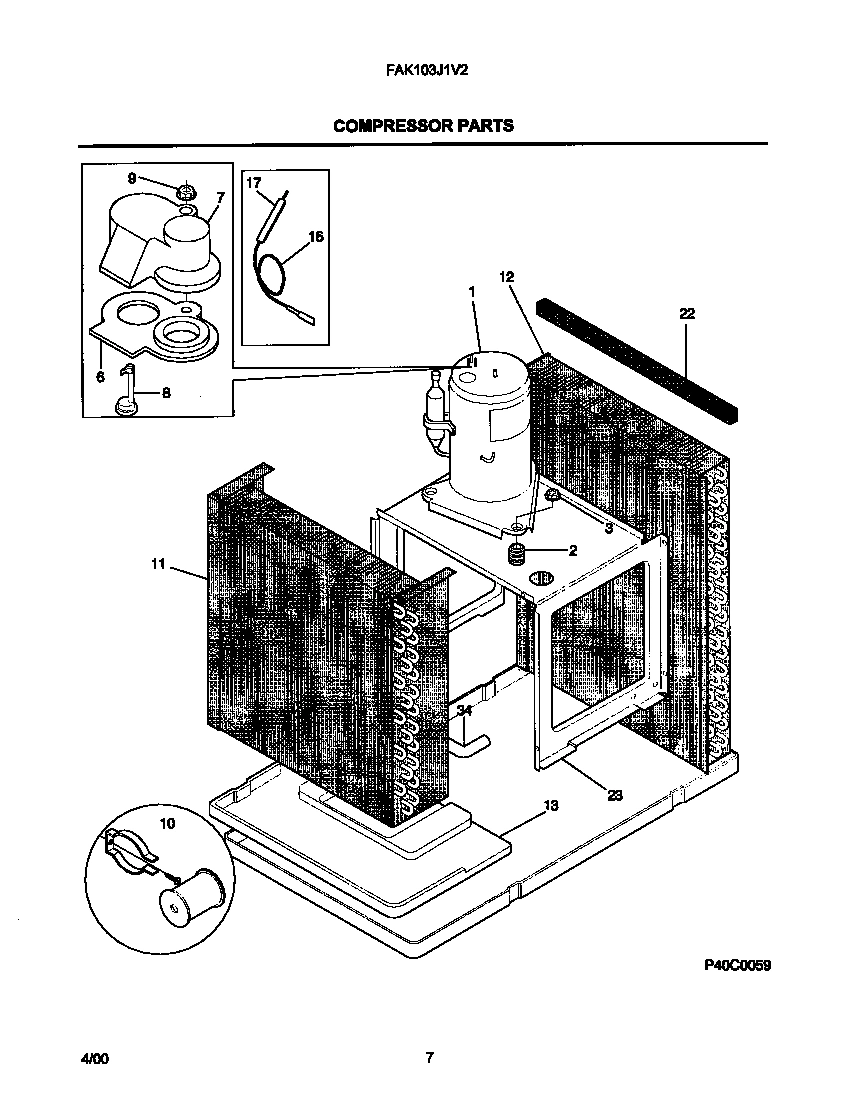

05 - COMPRESSOR PARTS

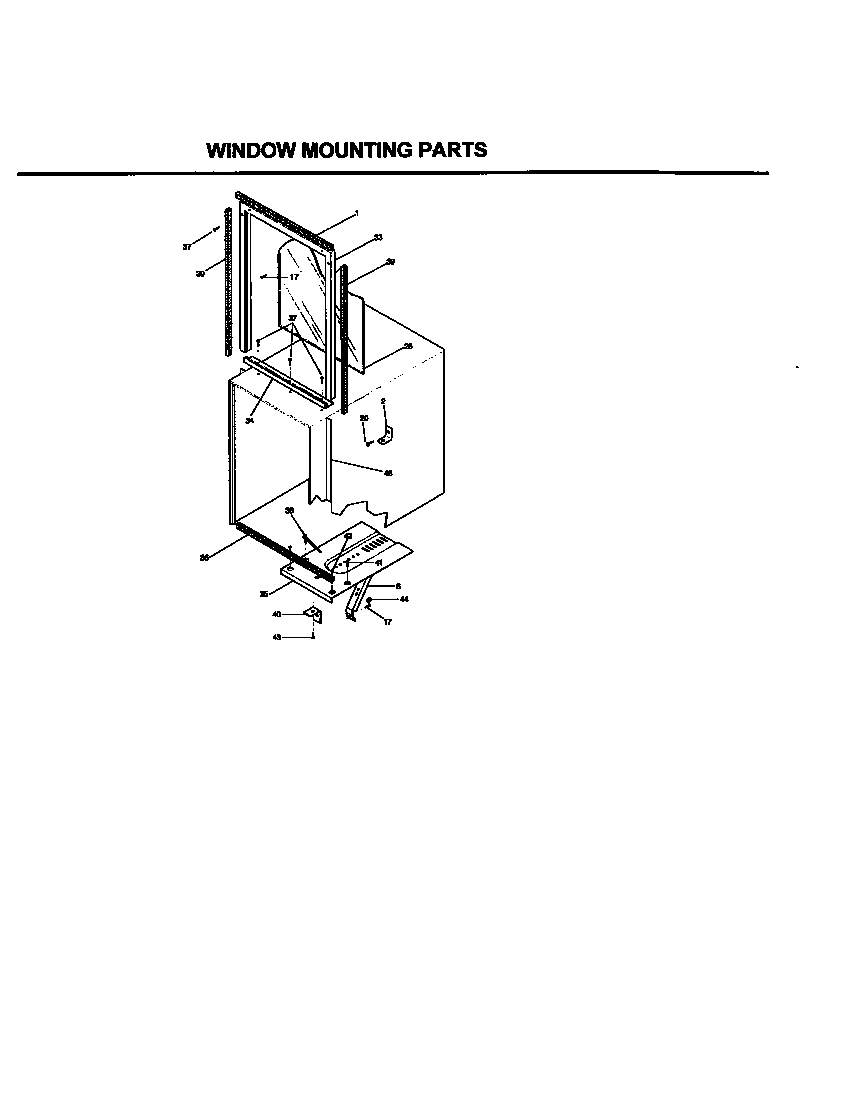

06 - WINDOW MOUNTING PARTS

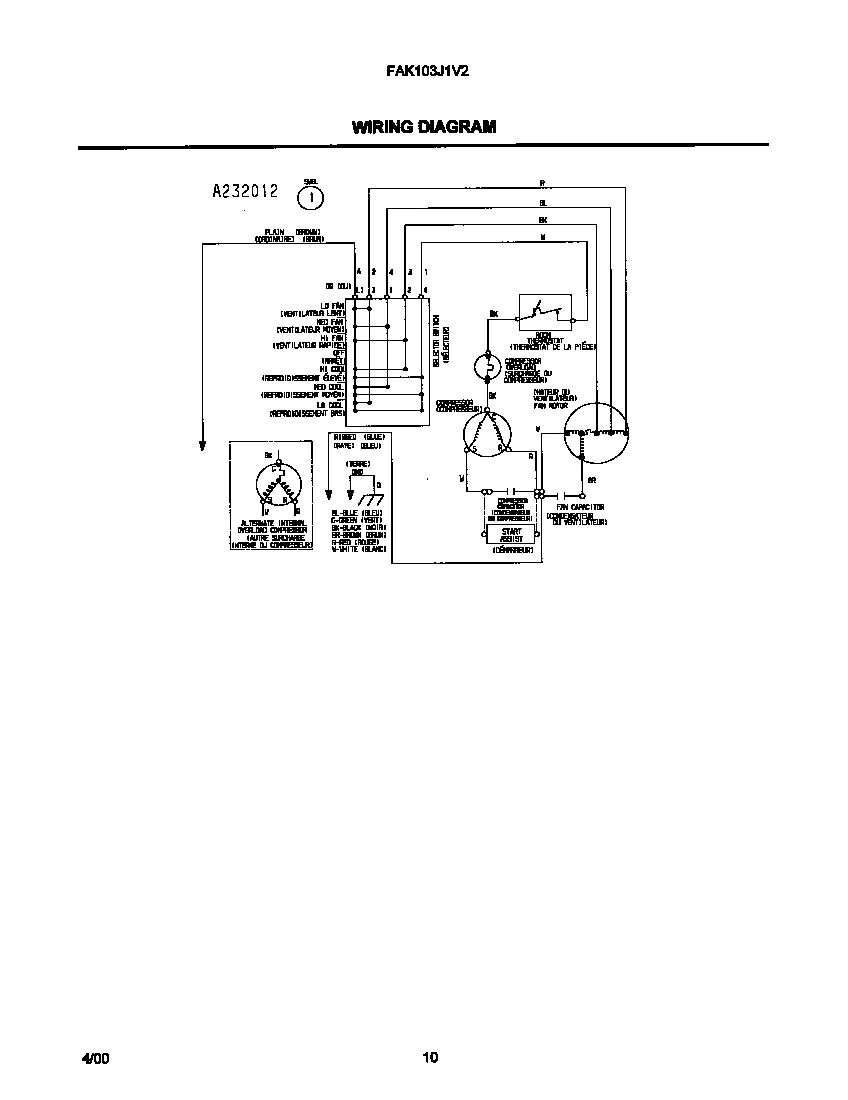

07 - WIRING DIAGRAM
Common parts from model Electrolux FAK103J1V2 ROOM AIR CONDITIONER
*85201
WCI 309627602 WCI 309627602 Contact Us For Availability
*85202
WCI 309625802 WCI 309625802 Contact Us For Availability
*85203
WCI 309000903 WCI 309000903 Contact Us For Availability
*85204
WCI 309313602 WCI 309313602 Contact Us For Availability
1
WCI 5304414964 WCI 5304414964 Contact Us For Availability
1
WCI 5303313968 WCI 5303313968 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 5303317604 WCI 5303317604 Contact Us For Availability
2
GROMMET COMPRESSOR (3) WCI 5303015945 Contact Us For Availability
3
WCI 309620501 WCI 309620501 Contact Us For Availability
3
Nut,plastic ,compressor ,(3) WCI 5303015946 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
7
LINK-VERT LOUVER NCS1403 WCI 5304414087 Contact Us For Availability
7
WCI 309606501 WCI 309606501 Contact Us For Availability
7
WCI 309626001 WCI 309626001 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
8
WCI 309617703 WCI 309617703 Contact Us For Availability
8
WCI 309622204 WCI 309622204 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
OVERLOAD ASM-MRA 98623-443 WCI 5303203064 Contact Us For Availability
8
WCI 5304414113 WCI 5304414113 Contact Us For Availability
9
WCI 309622103 WCI 309622103 Contact Us For Availability
9
WCI 5304409252 WCI 5304409252 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
10
WCI 309622104 WCI 309622104 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309625201 WCI 309625201 Contact Us For Availability
11
WCI 309617007 WCI 309617007 Contact Us For Availability
12
WCI 309622304 WCI 309622304 Contact Us For Availability
12
WCI 309321201 WCI 309321201 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 309617307 WCI 309617307 Contact Us For Availability
13
WCI 5304414729 WCI 5304414729 Contact Us For Availability
13
WCI 309624101 WCI 309624101 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309624801 WCI 309624801 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
17
WCI 309622404 WCI 309622404 Contact Us For Availability
17
WCI 309343105 WCI 309343105 Contact Us For Availability
17
SCREW-WOOD,ROUND HEAD ,8-15A X 0.750 WCI 5308013771 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309622609 WCI 309622609 Contact Us For Availability
20
KNOB-CONTROL(1403,W/6502) WCI 309307011 Contact Us For Availability
20
WCI 5303295750 WCI 5303295750 Contact Us For Availability
22
WCI 5303313964 WCI 5303313964 Contact Us For Availability
23
WCI 309614105 WCI 309614105 Contact Us For Availability
25
PANEL-WINDOW,PLASTIC WCI 5308047516 Contact Us For Availability
28
WCI 309625301 WCI 309625301 Contact Us For Availability
29
WCI 309606402 WCI 309606402 Contact Us For Availability
29
WCI 309624901 WCI 309624901 Contact Us For Availability
30
WCI 309624601 WCI 309624601 Contact Us For Availability
33
WCI 5304414118 WCI 5304414118 Contact Us For Availability
34
RETAINER-WINDOW PANEL (1403) WCI 5304414112 Contact Us For Availability
35
WCI 5304414114 WCI 5304414114 Contact Us For Availability
36
SEAL,MOUNTING PLATE WCI 5308047524 Contact Us For Availability
37
Screw,pan head `8-32D x 0.75 ,slotted WCI 5308047558 Contact Us For Availability
38
Screw-adjusting,mounting plate WCI 5308047562 Contact Us For Availability
39
WCI 5303313967 WCI 5303313967 Contact Us For Availability
40
WCI 5304414085 WCI 5304414085 Contact Us For Availability
41
Screw,pan head `10-12A x 1.00 `slotted WCI 5300125233 Contact Us For Availability
42
Screw,pan head `10-12A x 1.75 ,slotted WCI 5300507212 Contact Us For Availability
43
WCI 309621804 WCI 309621804 Contact Us For Availability
43
Screw,flat head `10-12A x 2.50 `slotted WCI 5300507693 Contact Us For Availability
44
NUT,HEX FLANGE ,1/4-20 WCI 5300516543 Contact Us For Availability
48
WCI 309305302 WCI 309305302 Contact Us For Availability
× ![]()
