Model Electrolux FAK083J7V3 ROOM AIR CONDITIONER – Common Parts & Diagrams

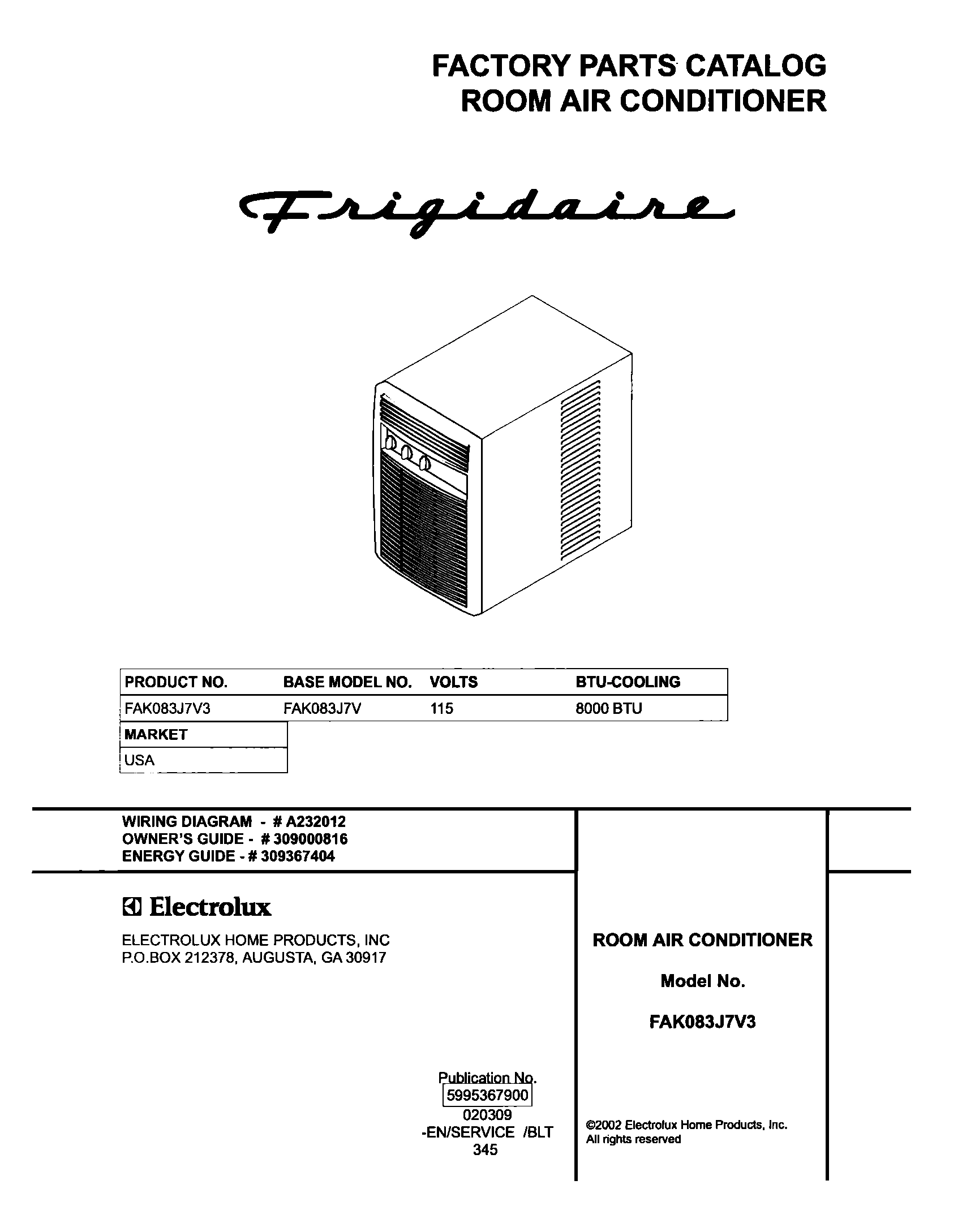

01 - COVER

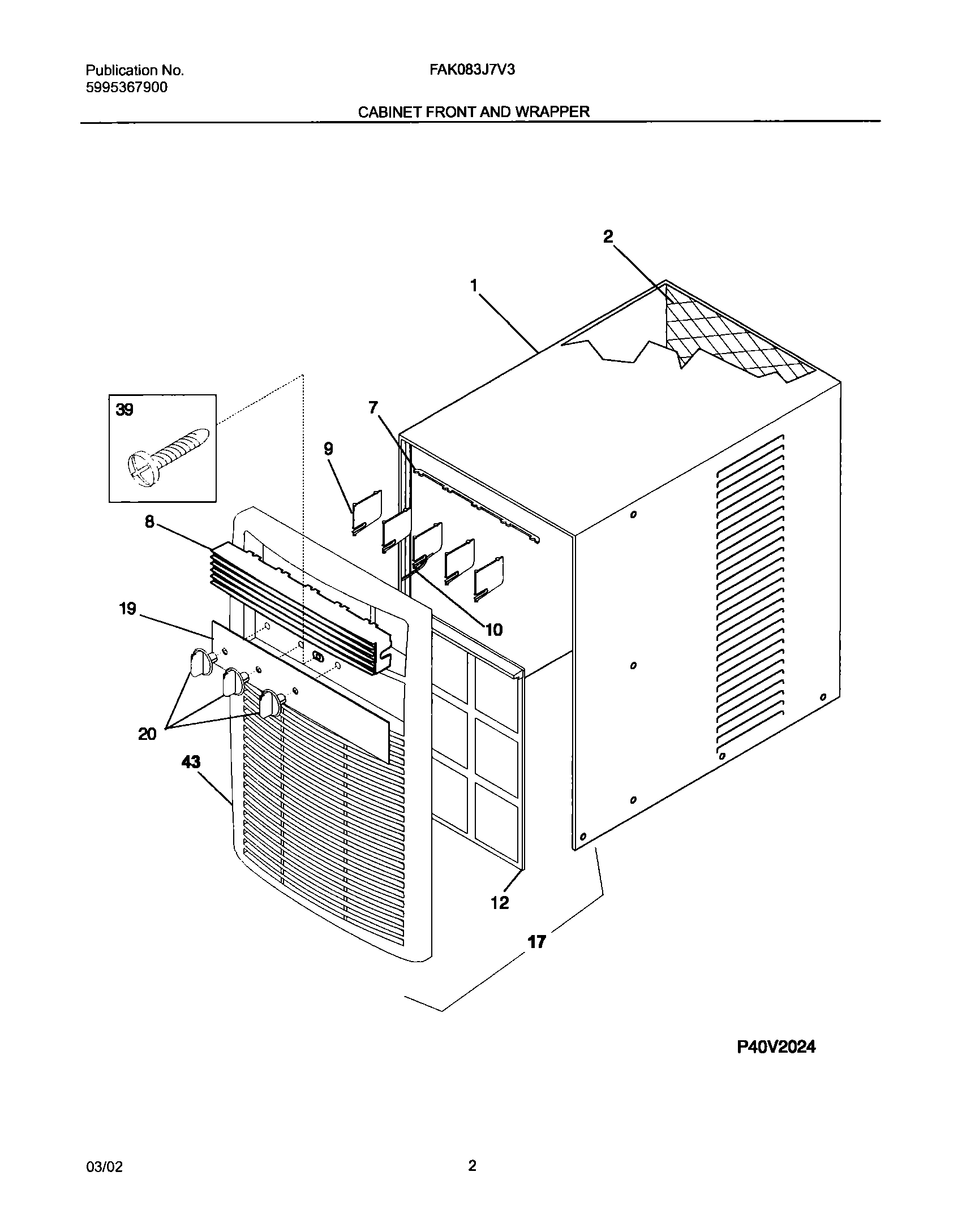

03 - CABINET FRONT AND WRAPPER
05 - CONTROLS
07 - AIR HANDLING PARTS
09 - COMPRESSOR PARTS
11 - WINDOW MOUNTING PARTS
12 - WIRING DIAGRAM
Common parts from model Electrolux FAK083J7V3 ROOM AIR CONDITIONER
1
WCI 309626001 WCI 309626001 Contact Us For Availability
1
Compressor WCI 5304406829 Contact Us For Availability
1
WCI 5303313968 WCI 5303313968 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
WCI 5303317604 WCI 5303317604 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309642301 WCI 309642301 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
6
GASKET-TERMINAL COVER WCI 3200282 Contact Us For Availability
7
WCI 5304414087 WCI 5304414087 Contact Us For Availability
7
WCI 309606501 WCI 309606501 Contact Us For Availability
7
Cover,compr terminal WCI 3200281 Contact Us For Availability
8
Louver horizontal WCI 309622204 Contact Us For Availability
8
Louver Assy,Incl-7,8,9,10 WCI 309622504 Contact Us For Availability
8
WCI 5303323284 WCI 5303323284 Contact Us For Availability
8
WCI 309646002 WCI 309646002 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 3202920 Contact Us For Availability
8
Support,mounting plate WCI 5304414113 Contact Us For Availability
9
Louver,vertical WCI 309622103 Contact Us For Availability
9
Control temperature WCI 5304409252 Contact Us For Availability
9
Nut,terminal cover ,compressor elec WCI 5303211017 Contact Us For Availability
10
Louver,vertical ,w/handle WCI 309622104 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309625201 WCI 309625201 Contact Us For Availability
11
WCI 309617003 WCI 309617003 Contact Us For Availability
12
Filter air front WCI 309622304 Contact Us For Availability
12
Clip,temp sensor mtg ,thermostat WCI 309321201 Contact Us For Availability
12
Clamp,blower wheel mt WCI 5303012110 Contact Us For Availability
12
WCI 309617203 WCI 309617203 Contact Us For Availability
13
WCI 5304427231 WCI 5304427231 Contact Us For Availability
13
WCI 309624101 WCI 309624101 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
15
WCI 5303303077 WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309624801 Contact Us For Availability
16
WCI 5303303064 WCI 5303303064 Contact Us For Availability
17
Front assy,complete ,7,8,9,10,12,43 WCI 309622404 Contact Us For Availability
17
Cord-electric power,type A ,16 AWG WCI 309343105 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309622609 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
23
Base,compressor mt. WCI 309627602 Contact Us For Availability
25
WCI 309335103 WCI 309335103 Contact Us For Availability
28
Door Opener,vent mechanism WCI 309625301 Contact Us For Availability
29
WCI 309606402 WCI 309606402 Contact Us For Availability
29
Adapter,scroll/housing ,front WCI 309624901 Contact Us For Availability
30
Plate,scroll/housing ,back WCI 309624601 Contact Us For Availability
33
Frame,expander ,sliding WCI 5304414118 Contact Us For Availability
34
WCI 5304414112 WCI 5304414112 Contact Us For Availability
35
Plate,mounting ,grey WCI 5304414114 Contact Us For Availability
36
SEAL,MOUNTING PLATE WCI 5308047524 Contact Us For Availability
37
Screw,pan head `8-32D x 0.75 ,slotted WCI 5308047558 Contact Us For Availability
38
Screw,adjusting ,1/4-20 x 6.00 ,mounting plat WCI 5308047562 Contact Us For Availability
39
WCI 5303313967 WCI 5303313967 Contact Us For Availability
40
Bracket,safety WCI 5304414085 Contact Us For Availability
41
Screw,pan head `10-12A x 1.00 `slotted WCI 5300125233 Contact Us For Availability
42
Screw,pan head `10-12A x 1.75 ,slotted WCI 5300507212 Contact Us For Availability
43
Frame,cabinet front WCI 309621804 Contact Us For Availability
43
Screw,flat head wood ,10-12A x 2.50 ,slotted WCI 5300507693 Contact Us For Availability
44
Nut,lock ,1/4-20 ,support bracket WCI 3007759 Contact Us For Availability
48
Channel,slide ,side mt. ,(2) WCI 309305302 Contact Us For Availability
NI
WCI 309367404 WCI 309367404 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
Window Mounting Kit WCI 309625802 Contact Us For Availability
NI
Divider,expander frame WCI 5304414119 Contact Us For Availability
NI
Seal,slide channel WCI 5314930813 Contact Us For Availability
× ![]()
