Model Electrolux FAH12EJ2T2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT & WRAPPER

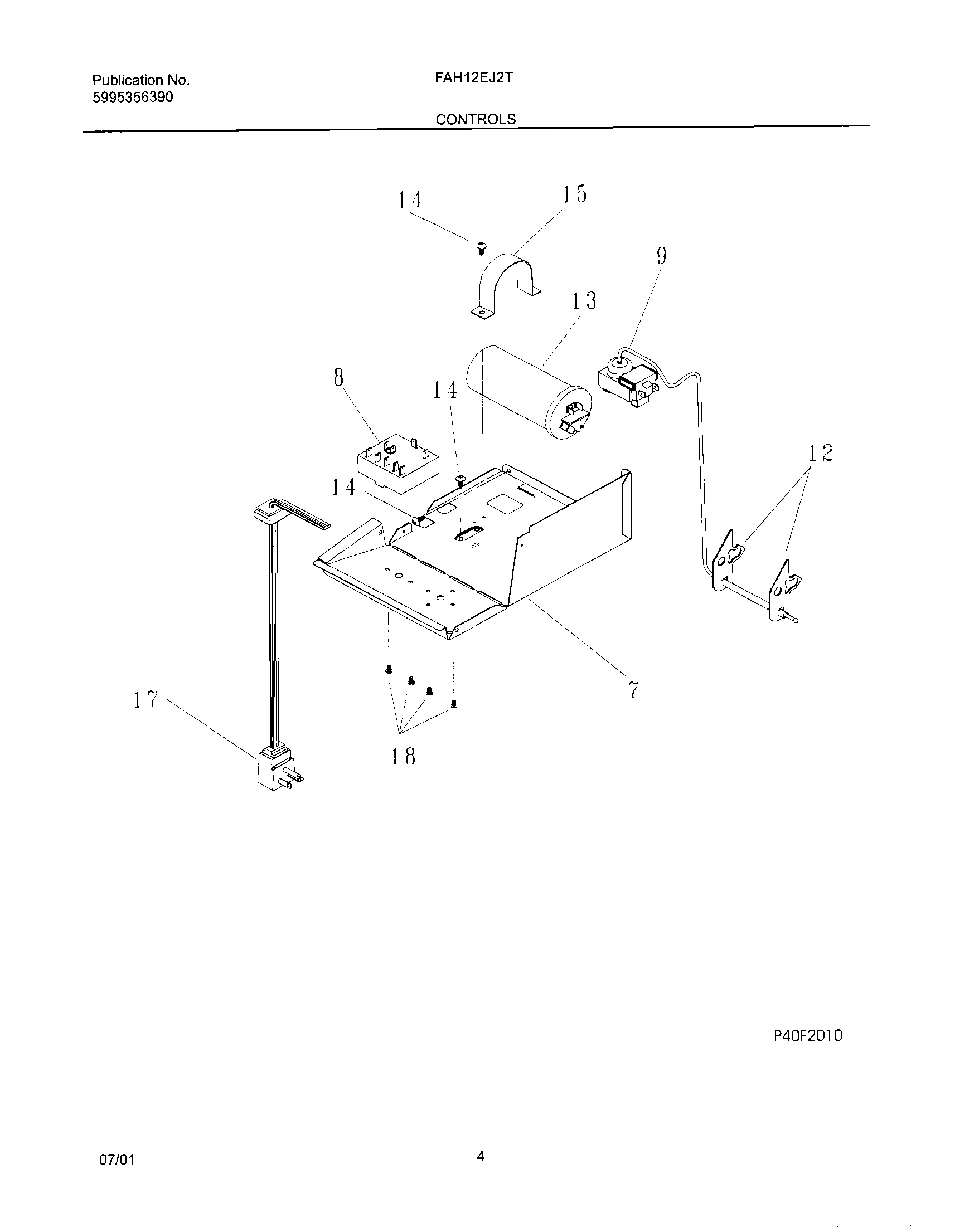

05 - CONTROLS

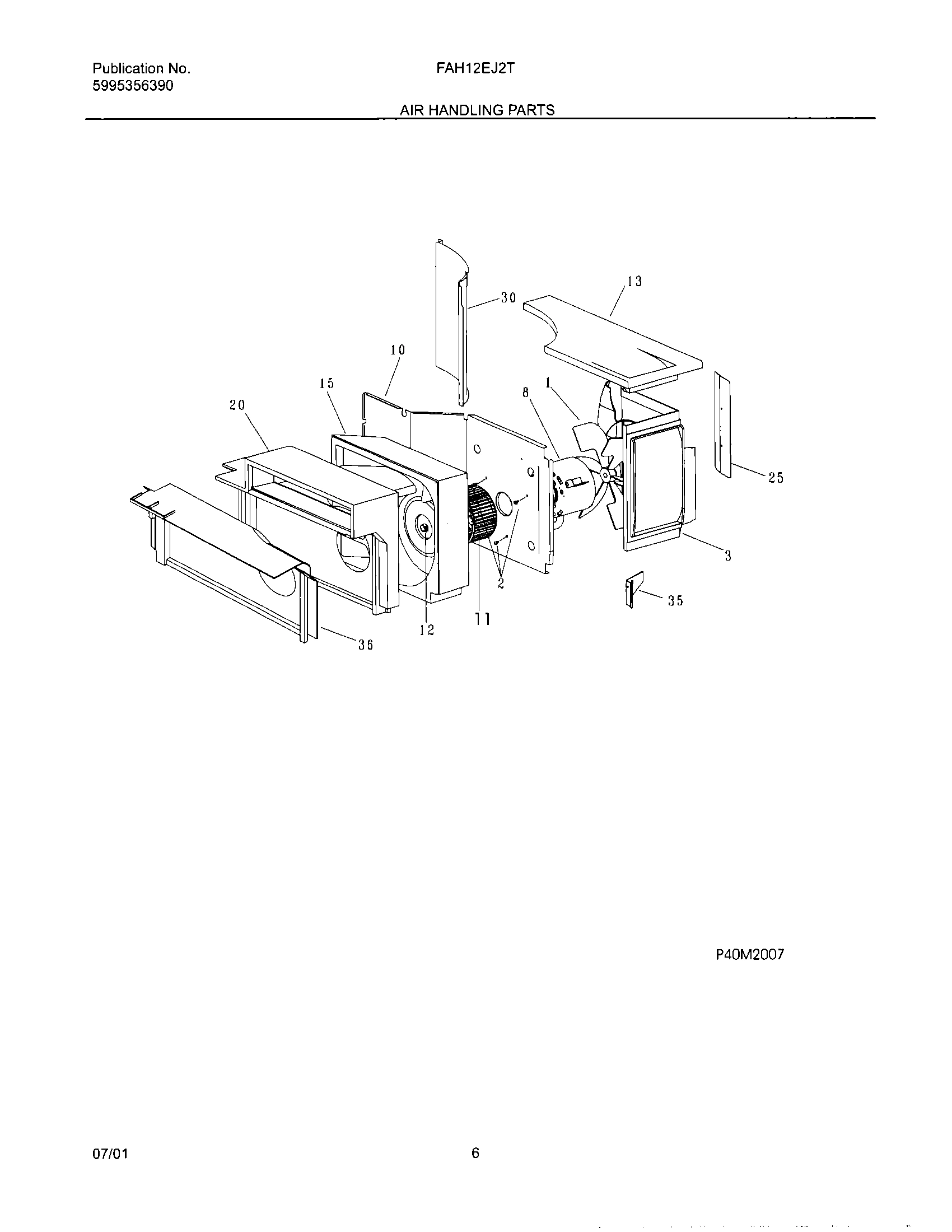

07 - AIR HANDLING PARTS

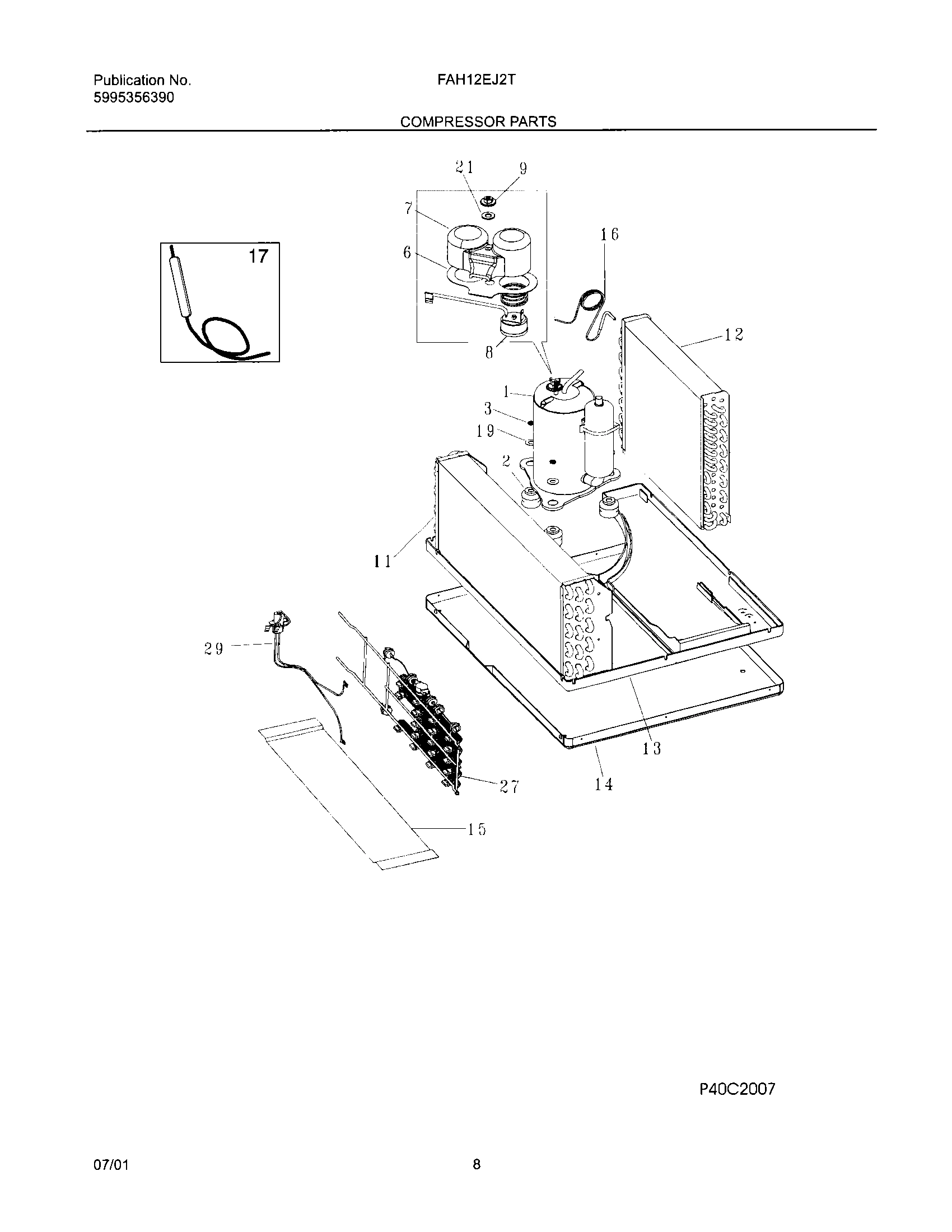

09 - COMPRESSOR PARTS

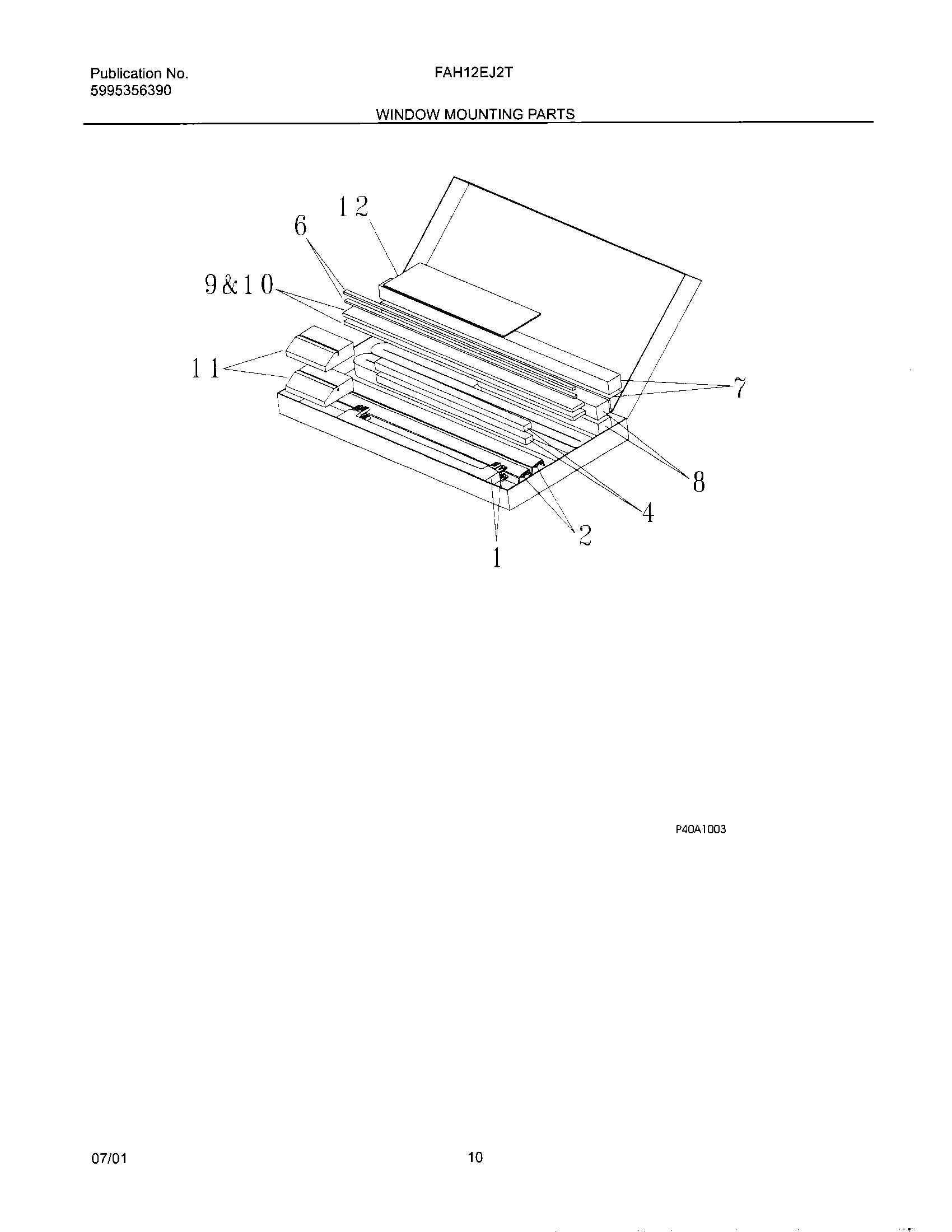

11 - WINDOW MOUNTING PARTS

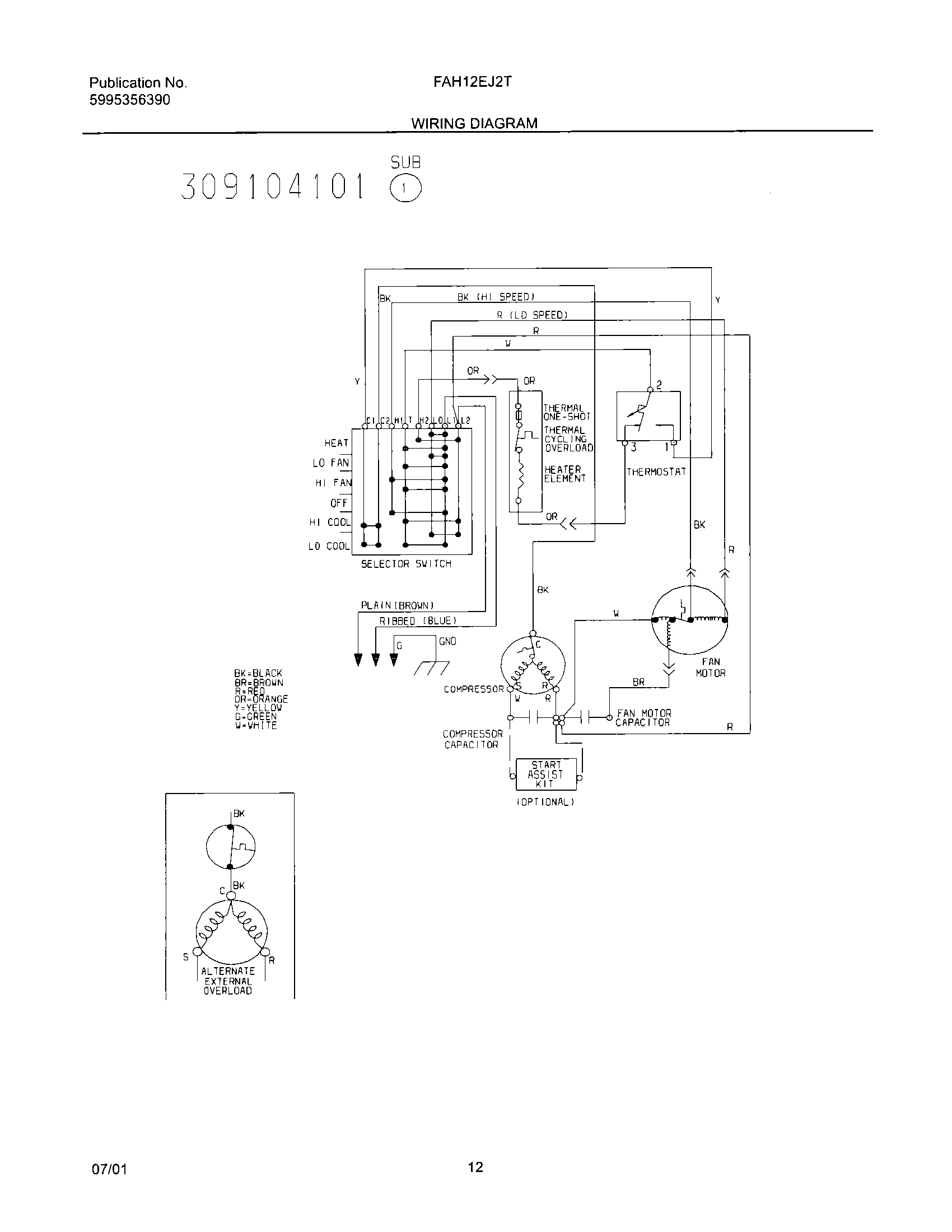

12 - WIRING DIAGRAM
Common parts from model Electrolux FAH12EJ2T2 ROOM AIR CONDITIONER
1
Cabinet-,U-bend 18.5BLD WCI 309627504 Contact Us For Availability
1
BLADE-FAN ASS`Y WCI 309629102 Contact Us For Availability
1
WCI 309603109 WCI 309603109 Contact Us For Availability
1
TRIM WCI 309628603 Contact Us For Availability
2
SCREEN-SAFETY 18.5BLD WCI 309636101 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2
TRIM FRAME-TOP & SIDES (2) WCI 309628604 Contact Us For Availability
3
Shroud-condenser WCI 309628901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
6
Seal-bracket end,cond WCI 5304409305 Contact Us For Availability
7
LINK-HANDLE WCI 309324004 Contact Us For Availability
7
Box-control WCI 309628502 Contact Us For Availability
7
Cover-terminal,compressor WCI 5304416126 Contact Us For Availability
7
Seal-rear panel,condenser WCI 5304409306 Contact Us For Availability
8
Switch-elect HT,2sp .75``shaft WCI 309329301 No Longer Available
8
WCI 309628004 WCI 309628004 Contact Us For Availability
8
WCI 5304409514 WCI 5304409514 Contact Us For Availability
8
WCI 5304420992 WCI 5304420992 Contact Us For Availability
8
Seal-rear pnl/sides,condenser WCI 5304409307 Contact Us For Availability
9
WCI 309628104 WCI 309628104 Contact Us For Availability
9
Control-temp WCI 5304409496 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
9
Seal-rear pnl top/botm,cond WCI 5304409308 Contact Us For Availability
10
WCI 309627401 WCI 309627401 Contact Us For Availability
10
Seal-rear pnl/sides,cond WCI 5304409309 Contact Us For Availability
11
WCI 309631701 WCI 309631701 Contact Us For Availability
11
WCI 309632403 WCI 309632403 Contact Us For Availability
11
Block-cabinet/chassis WCI 5304409310 Contact Us For Availability
12
WCI 309628204 WCI 309628204 Contact Us For Availability
12
Clip-sensor bulb WCI 309329801 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
WCI 309632507 WCI 309632507 Contact Us For Availability
12
WCI 309335101 WCI 309335101 Contact Us For Availability
13
WCI 5303317672 WCI 5303317672 Contact Us For Availability
13
Top-cover WCI 309628802 Contact Us For Availability
13
Tray-base WCI 309628704 Contact Us For Availability
14
WCI 3017804 WCI 3017804 Contact Us For Availability
14
Base/stud assy WCI 309632003 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
Scroll WCI 309622802 Contact Us For Availability
15
Heat sheild,20.94l WCI 309629502 Contact Us For Availability
16
Capillary Tube,55 inch long ,cut-to-length WCI 3203179 Contact Us For Availability
17
Front assy,18.5BLD EL HT WCI 309629406 Contact Us For Availability
17
WCI 309343107 WCI 309343107 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
Scroll plate WCI 309625501 Contact Us For Availability
21
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
25
WCI 309335201 WCI 309335201 Contact Us For Availability
27
WCI 309627002 WCI 309627002 Contact Us For Availability
29
WCI 5304409501 WCI 5304409501 Contact Us For Availability
30
WCI 309629001 WCI 309629001 Contact Us For Availability
35
WCI 309335001 WCI 309335001 Contact Us For Availability
36
Shield-heat WCI 309633401 Contact Us For Availability
43
Front/control,Label asmby WCI 309631806 Contact Us For Availability
73
Louver Assy,grey WCI 309629304 Contact Us For Availability
NI
WCI 5304408740 WCI 5304408740 Contact Us For Availability
NI
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
NI
WCI 3200761 WCI 3200761 Contact Us For Availability
NI
Harness assy,SW/cntrl box ,12AWG WCI 5304409509 Contact Us For Availability
NI
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
NI
NUT-HEATER WCI 3018695 Contact Us For Availability
NI
WASHER WCI 5303293809 Contact Us For Availability
NI
Kit-mtg complete WCI 309636002 Contact Us For Availability
NI
WCI 5303301038 WCI 5303301038 Contact Us For Availability
NI
Kit-wire grounding WCI 5304409303 Contact Us For Availability
NI
Kit-grille mtg WCI 5304409311 Contact Us For Availability
× ![]()
