Model Electrolux FAH126J2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams

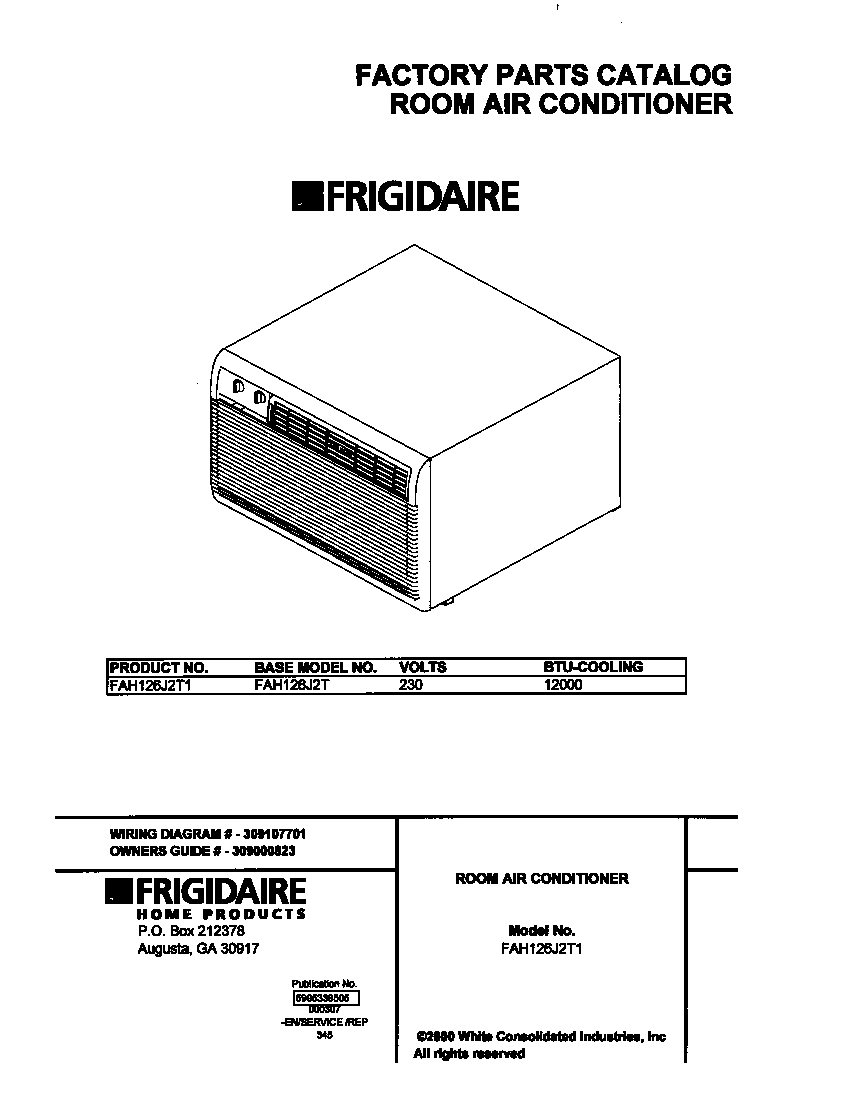

01 - COVER

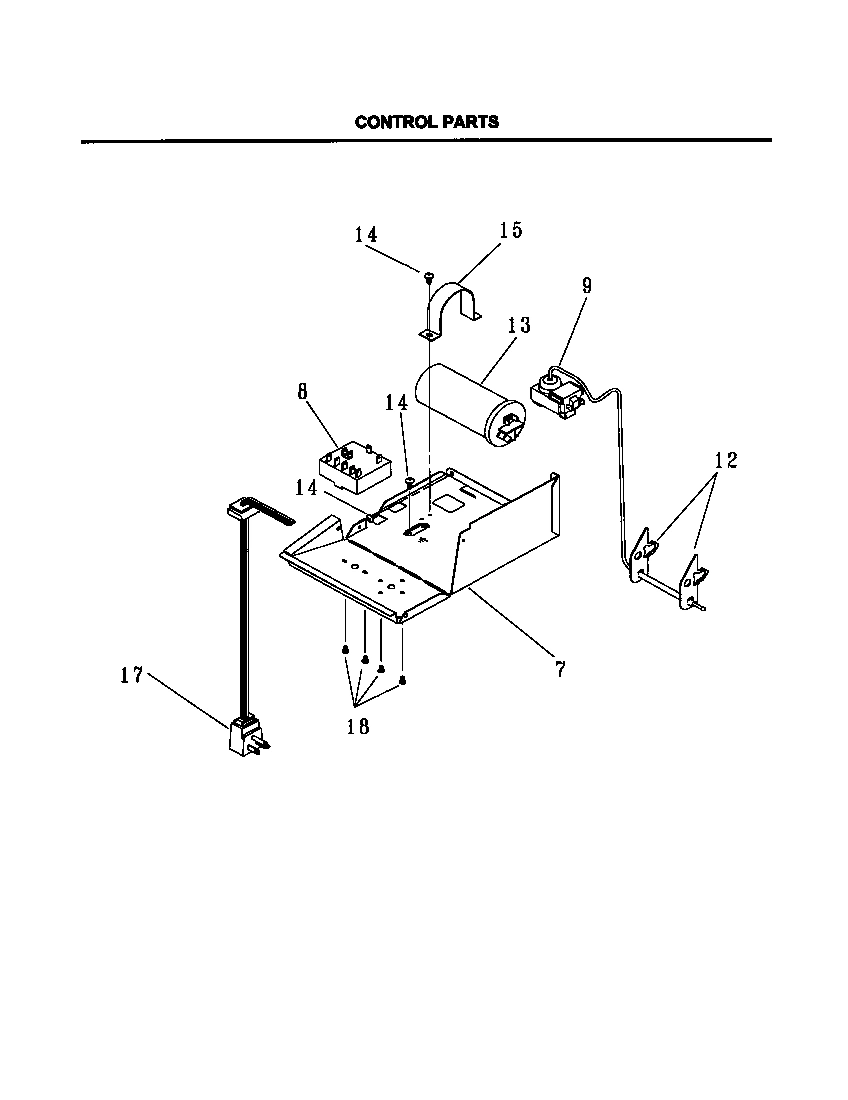

03 - CONTROL PARTS

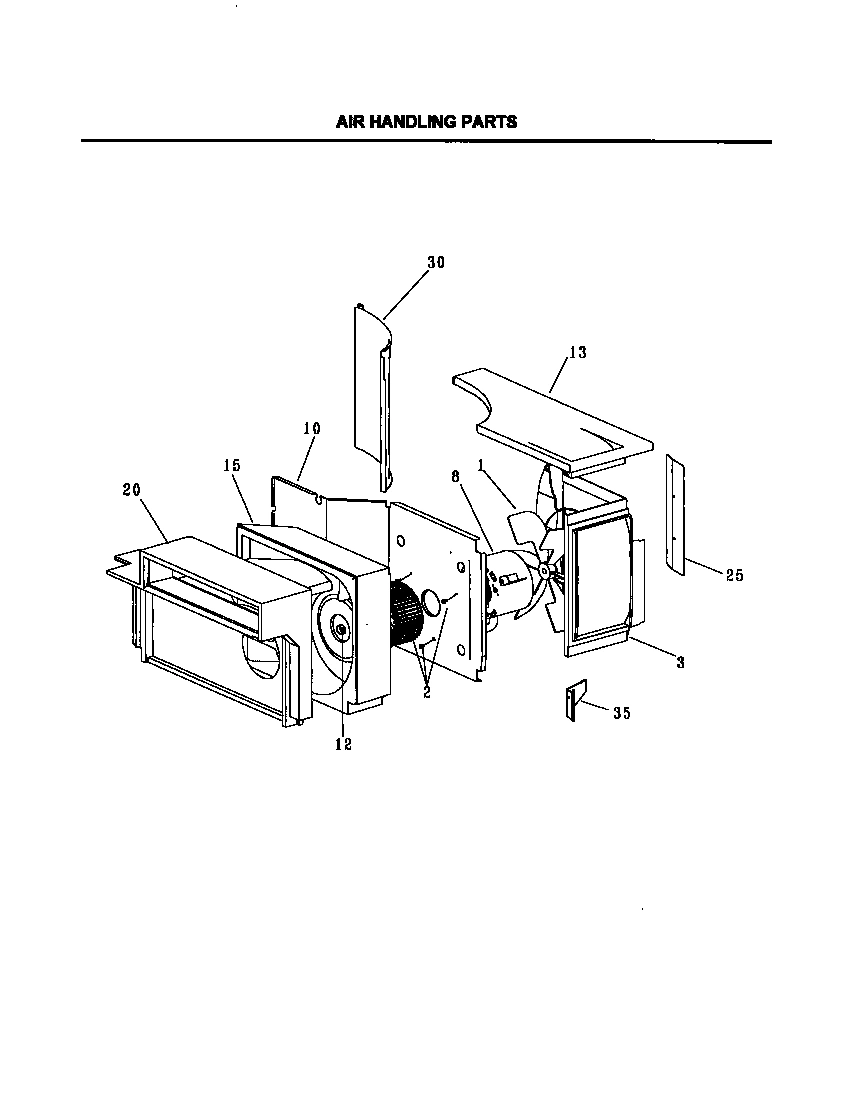

04 - AIR HANDLING PARTS

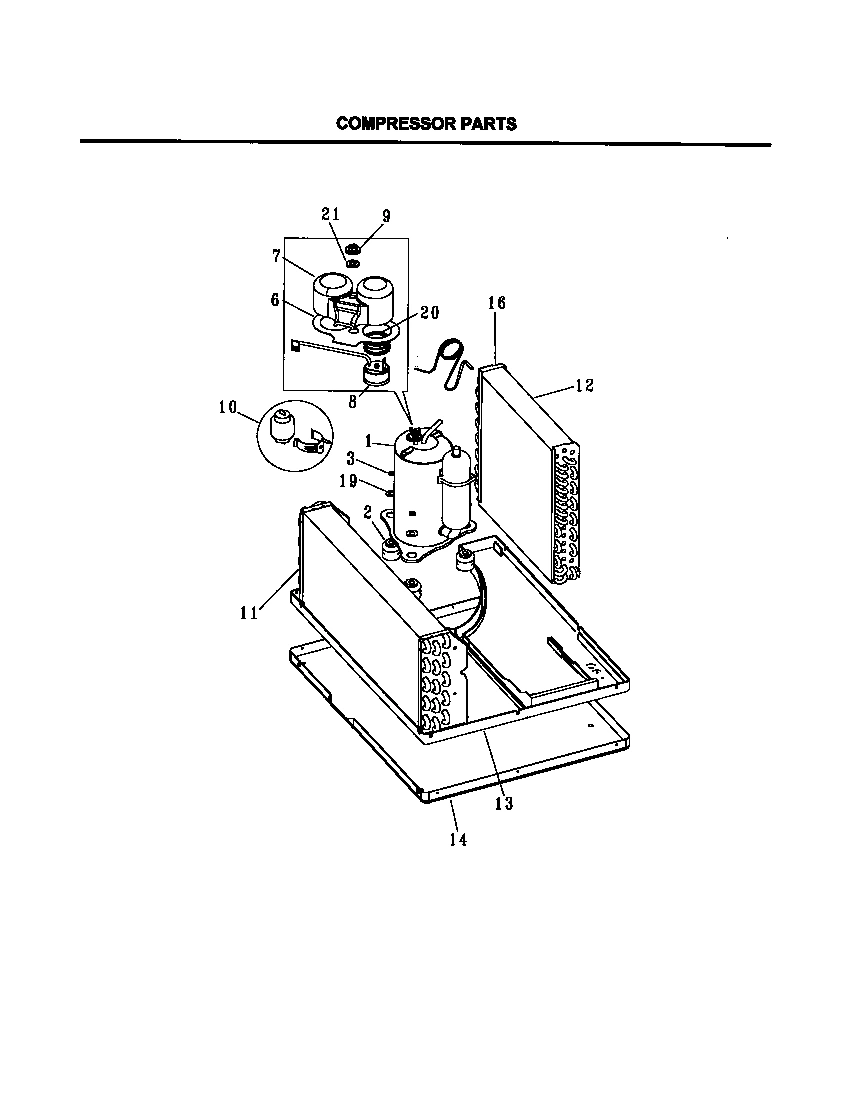

05 - COMPRESSOR PARTS

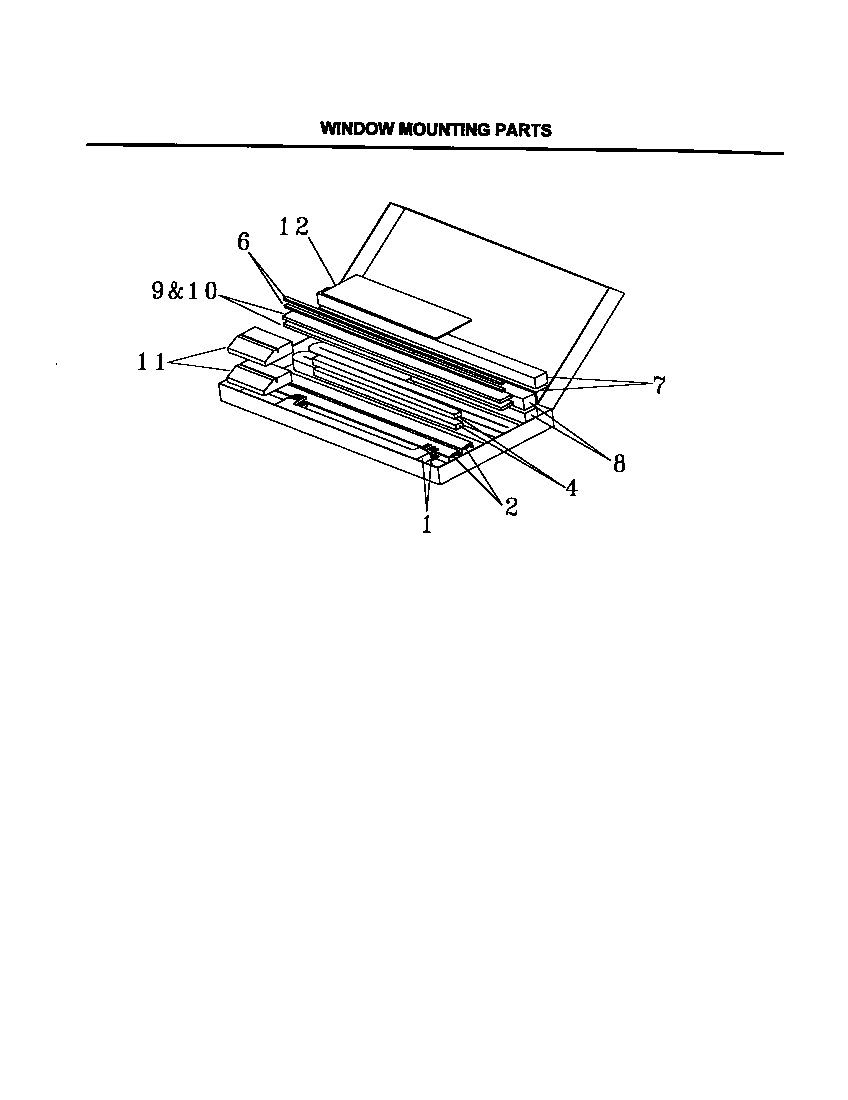

06 - MOUNTING PARTS

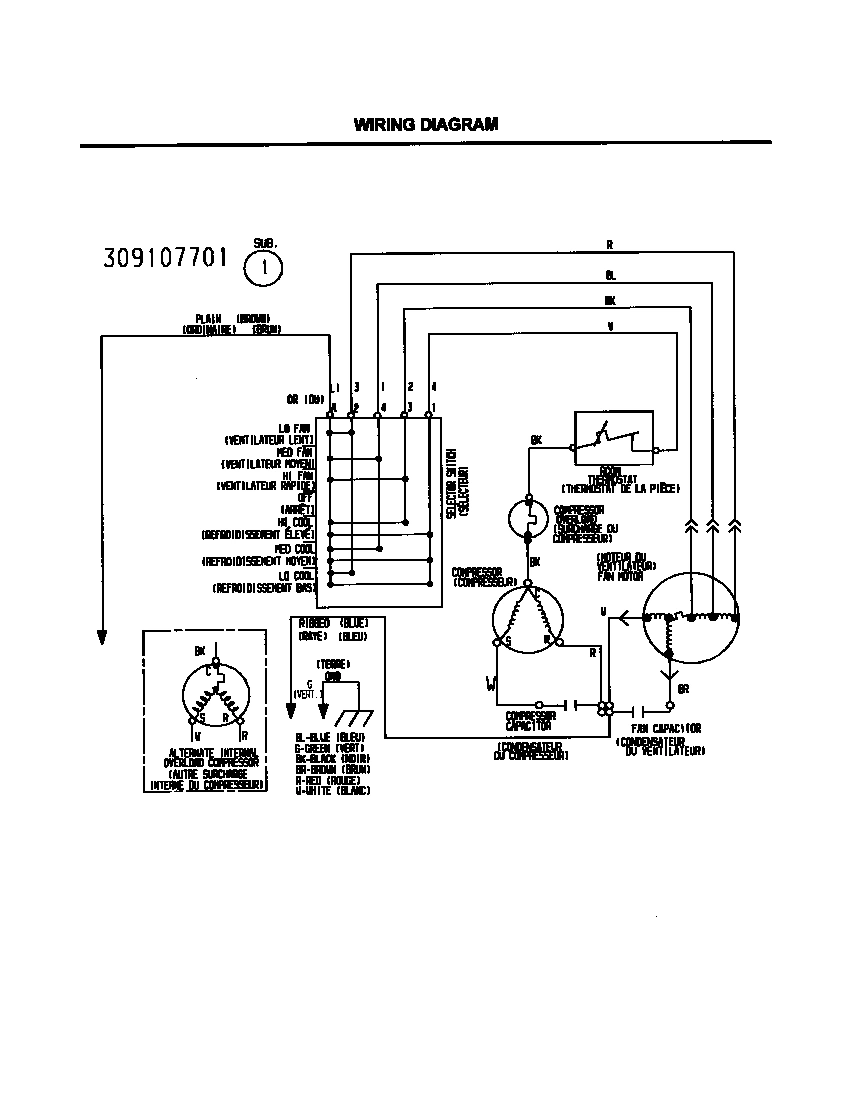

07 - WIRING DIAGRAM
Common parts from model Electrolux FAH126J2T1 ROOM AIR CONDITIONER
1
WCI 3200761 WCI 3200761 Contact Us For Availability
1
WCI 5304408198 WCI 5304408198 Contact Us For Availability
1
TRIM WCI 309628603 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2
TRIM FRAME-TOP & SIDES (2) WCI 309628604 Contact Us For Availability
3
SHROUD-CONDENSER 18.5 BLD WCI 309628901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5304409303 WCI 5304409303 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
SEAL,HOUSING-FAN ,BOTTOM WCI 3202951 Contact Us For Availability
5
SEAL-WRAPPER TO WRAPPER S/O WCI 5303301038 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
WCI 5304409305 WCI 5304409305 Contact Us For Availability
7
BOX-CONTROL 18.5TC ROT WCI 309628501 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5304409306 WCI 5304409306 Contact Us For Availability
8
SWITCH-7POS GE 3SP L WCI 5304408739 Contact Us For Availability
8
WCI 5304408765 WCI 5304408765 Contact Us For Availability
8
WCI 5304408199 WCI 5304408199 Contact Us For Availability
8
WCI 5304409307 WCI 5304409307 Contact Us For Availability
9
CONTROL-AIR TEMP BLD 12AMP WCI 5304408746 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
WCI 5304409308 WCI 5304409308 Contact Us For Availability
10
BULKHEAD-18.5CHASSIS (FLEX) WCI 309627401 Contact Us For Availability
10
WCI 5304409309 WCI 5304409309 Contact Us For Availability
11
BLOWER WHEEL-18.5 BLD WCI 309631701 Contact Us For Availability
11
WCI 309632401 WCI 309632401 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
RETAINING CLIP-SENS BULB WCI 309329801 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 309632505 WCI 309632505 Contact Us For Availability
12
WCI 309335101 WCI 309335101 Contact Us For Availability
13
WCI 5303319112 WCI 5303319112 Contact Us For Availability
13
TOP-CONDENSER 18.5 (NCS1403) WCI 309628802 Contact Us For Availability
13
TRAY-BASE EL HT WCI 309628703 Contact Us For Availability
13
WCI 5304409311 WCI 5304409311 Contact Us For Availability
14
WCI 309632003 WCI 309632003 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
SCROLL-18.5 TC BLD COOL WCI 309622801 Contact Us For Availability
15
KIT-MOUNTING-18.5BLD (1403) WCI 309636002 Contact Us For Availability
16
CAPILLARY TUBE WCI 3203179 Contact Us For Availability
17
WCI 309343109 WCI 309343109 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
SCROLL PLATE-18.5 T/C BLD WCI 309622901 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
25
BAFFLE-AIR 18.5`` WCI 309335201 Contact Us For Availability
30
PARTITION-SHROUD WCI 309629001 Contact Us For Availability
35
BAFFLE-CONDENSATE FOR MOTOR WCI 309335001 Contact Us For Availability
× ![]()
