Model Electrolux FAH10EM2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

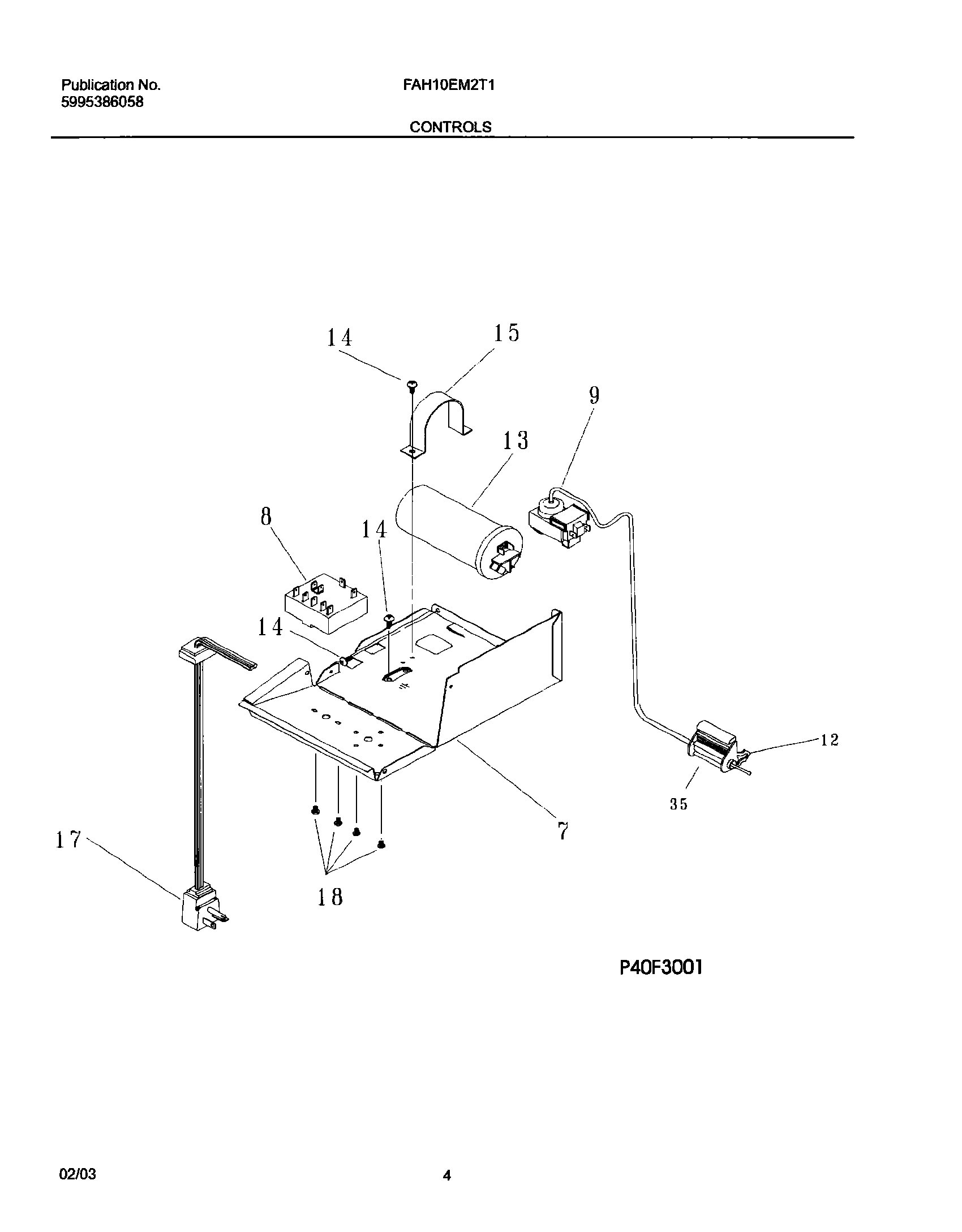

05 - CONTROLS

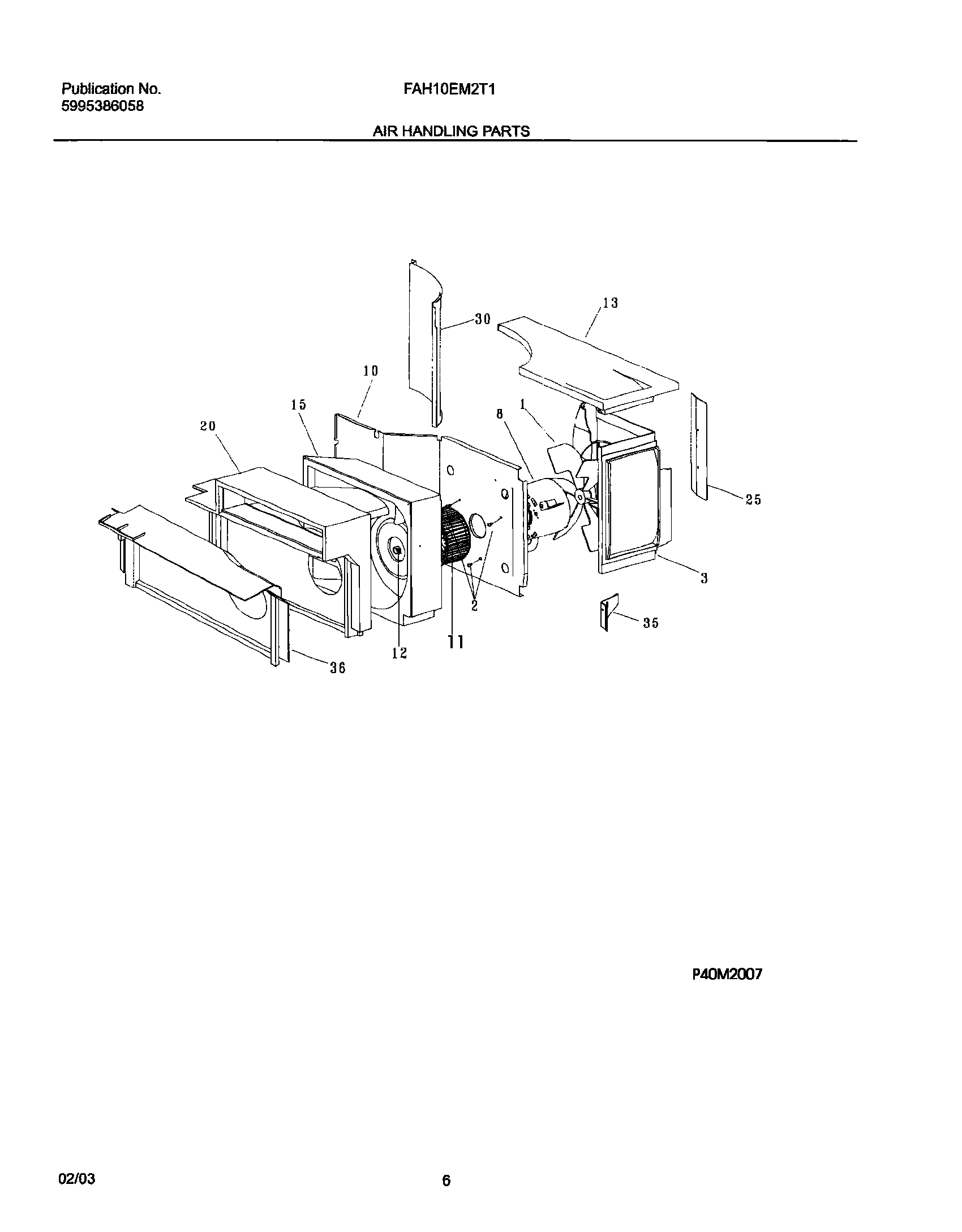

07 - AIR HANDLING PARTS

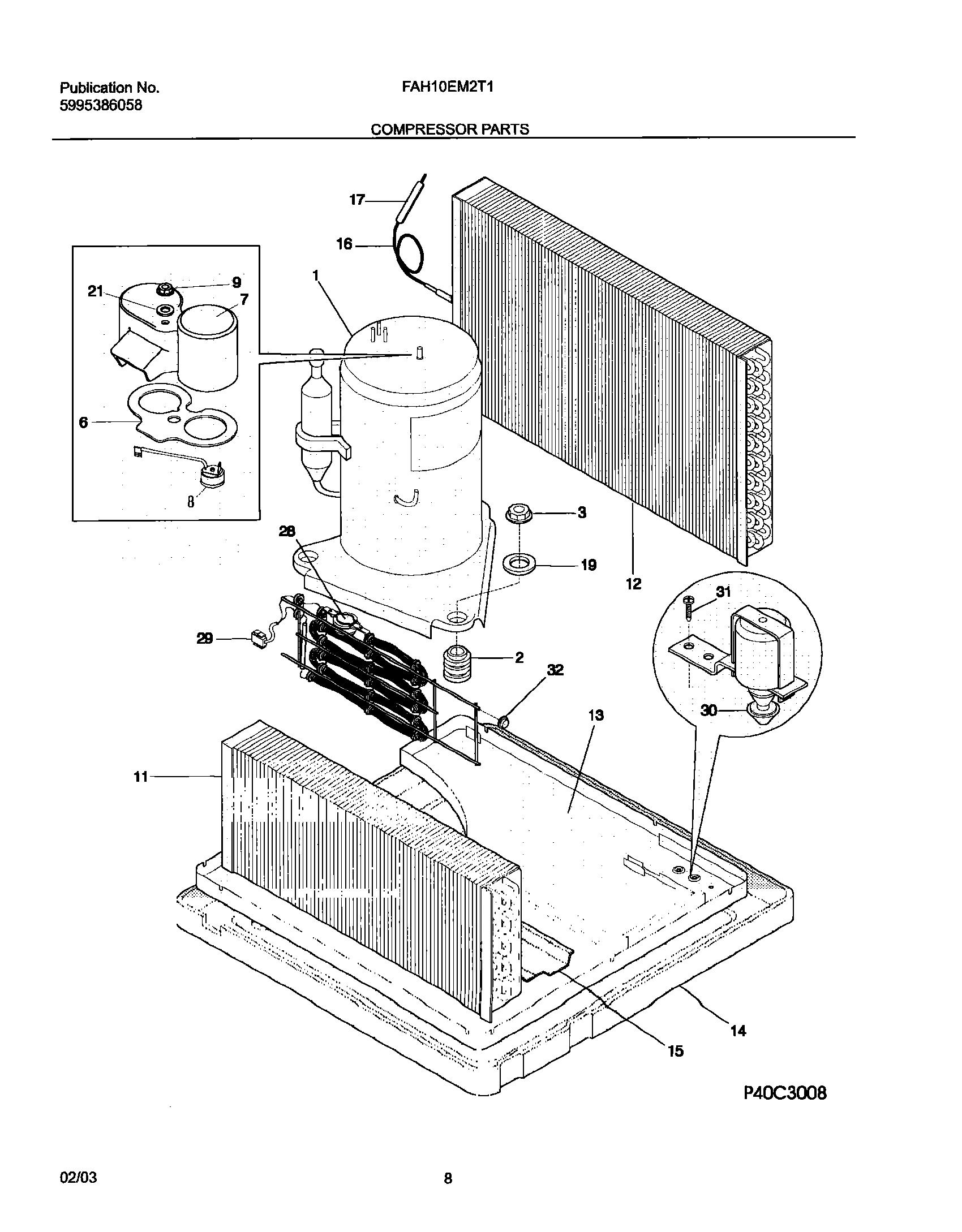

09 - COMPRESSOR PARTS

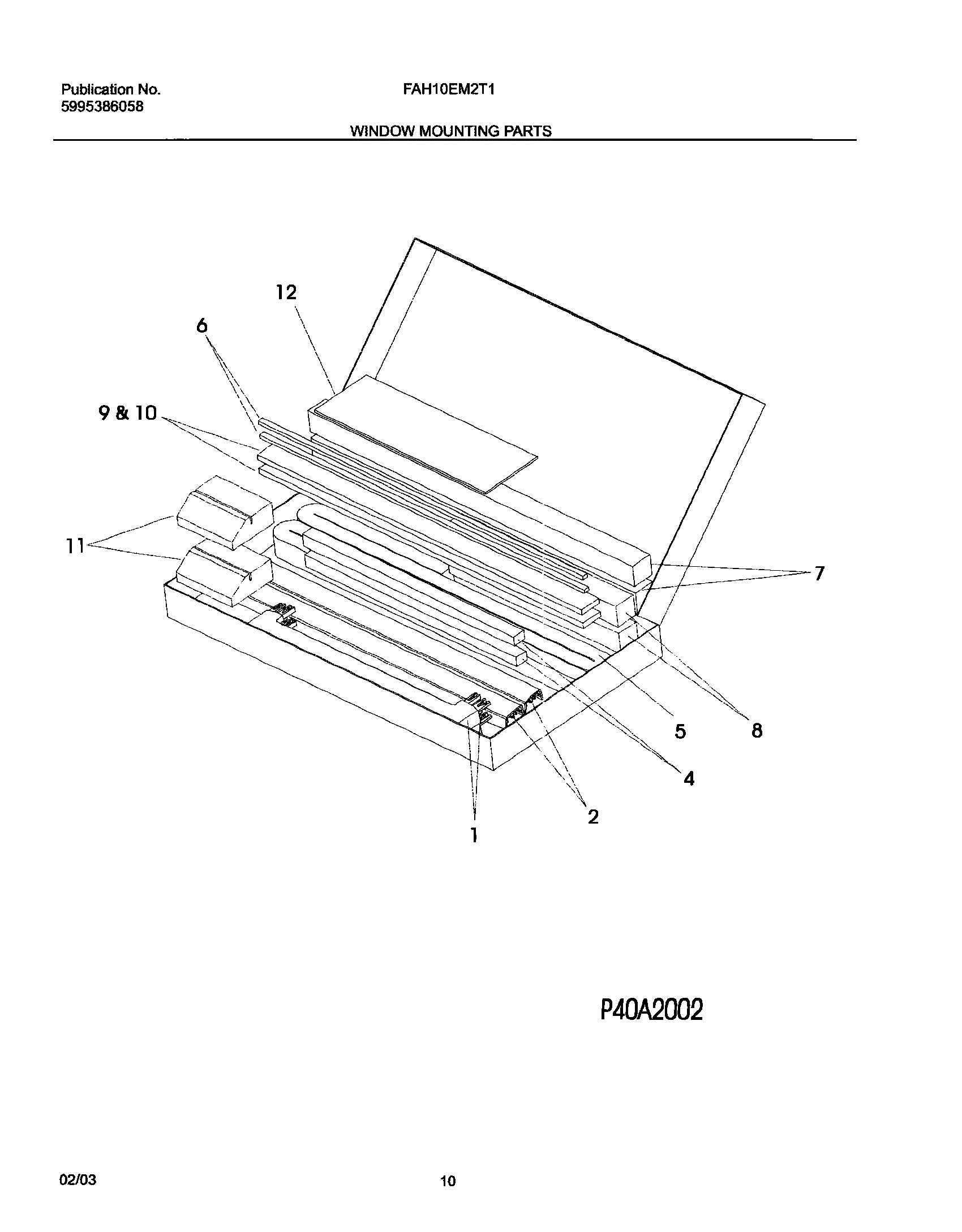

11 - WINDOW MOUNTING PARTS

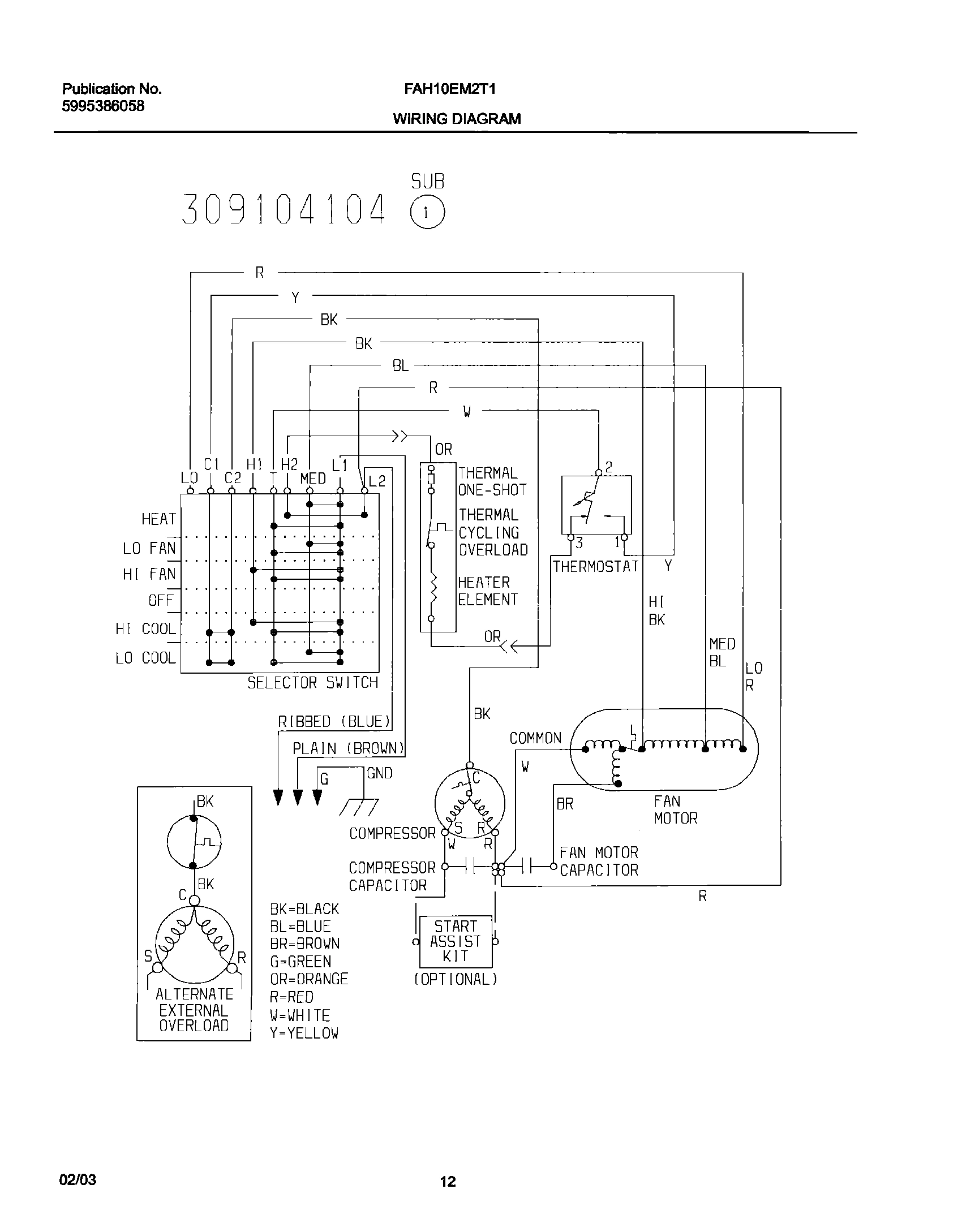

12 - WIRING DIAGRAM
Common parts from model Electrolux FAH10EM2T1 ROOM AIR CONDITIONER
1
WCI 309629102 WCI 309629102 Contact Us For Availability
1
WCI 309603119 WCI 309603119 Contact Us For Availability
1
WCI 309628603 WCI 309628603 Contact Us For Availability
2
WCI 309636101 WCI 309636101 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2
WCI 309628604 WCI 309628604 Contact Us For Availability
3
WCI 309628901 WCI 309628901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
Seal,stuffer ,wrapper WCI 5303301038 Contact Us For Availability
6
Louver Assy,grey ,Includes 7,8,9 WCI 309629304 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
6
Seal,cond. end brkt ,rear panel WCI 5304409305 Contact Us For Availability
7
WCI 309324004 WCI 309324004 Contact Us For Availability
7
Control Box WCI 309628502 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
7
Seal,condenser ,26.5 x 1.5 x1.5 ,rear panel WCI 5304409306 Contact Us For Availability
8
WCI 309647501 WCI 309647501 Contact Us For Availability
8
WCI 309628004 WCI 309628004 Contact Us For Availability
8
WCI 309329304 WCI 309329304 Contact Us For Availability
8
WCI 5304430632 WCI 5304430632 Contact Us For Availability
8
Seal,condenser ,14 x 1.5 x 1.5 ,rear panel/si WCI 5304409307 Contact Us For Availability
9
WCI 309628104 WCI 309628104 Contact Us For Availability
9
Control,temperature WCI 5304409496 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
9
Seal,condenser ,26.5 x 1.5 x.38 ,rear panel,t WCI 5304409308 Contact Us For Availability
10
WCI 309627401 WCI 309627401 Contact Us For Availability
10
Seal,condenser ,14 x 1.5 x 0.38 ,rear panel/s WCI 5304409309 Contact Us For Availability
11
WCI 309631701 WCI 309631701 Contact Us For Availability
11
WCI 309632307 WCI 309632307 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
WCI 309628204 WCI 309628204 Contact Us For Availability
12
Clip,sensor retainer ,3/8 inch WCI 309329801 Contact Us For Availability
12
Clamp,blower wheel mt WCI 5303012110 Contact Us For Availability
12
WCI 309632507 WCI 309632507 Contact Us For Availability
12
Divider,14 x 4.5 x .12 ,plastic ,gray/black,c WCI 309335101 Contact Us For Availability
13
WCI 5303306706 WCI 5303306706 Contact Us For Availability
13
WCI 309628802 WCI 309628802 Contact Us For Availability
13
WCI 309628704 WCI 309628704 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
14
WCI 309632006 WCI 309632006 Contact Us For Availability
15
WCI 5303303077 WCI 5303303077 Contact Us For Availability
15
Scroll WCI 309622802 Contact Us For Availability
15
WCI 309629502 WCI 309629502 Contact Us For Availability
16
Tube,capillary ,37 inch long ,cut to length WCI 5304417693 Contact Us For Availability
17
Front assy,18.5BLD EL HT WCI 309629406 Contact Us For Availability
17
Cord-electric power,Type-D ,12 AWG ,230 V WCI 309343107 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
Scroll plate WCI 309625501 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
25
WCI 309335201 WCI 309335201 Contact Us For Availability
28
WCI 309627002 WCI 309627002 Contact Us For Availability
29
Wiring Harness,heater WCI 5304409501 Contact Us For Availability
30
WCI 309629001 WCI 309629001 Contact Us For Availability
30
WCI 309363601 WCI 309363601 Contact Us For Availability
32
Nut,heater assy ,self-threading WCI 3018695 Contact Us For Availability
35
Spacer,control bulb ,rubber WCI 3200761 Contact Us For Availability
35
WCI 309335001 WCI 309335001 Contact Us For Availability
36
Shield-heat WCI 309633401 Contact Us For Availability
43
Front/control,Label asmby WCI 309631806 Contact Us For Availability
NI
WCI 309369935 WCI 309369935 Contact Us For Availability
NI
Seal,bottom WCI 3202951 Contact Us For Availability
NI
Panel,plastic mesh ,cabinet rear WCI 5304408740 Contact Us For Availability
NI
WCI 5304409509 WCI 5304409509 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309636002 WCI 309636002 Contact Us For Availability
NI
Grounding Kit WCI 5304409303 Contact Us For Availability
NI
Grille Mtg. Kit WCI 5304409311 Contact Us For Availability
× ![]()
