Model Electrolux FAH096J2T1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - WRAPPER & FRONT PANEL

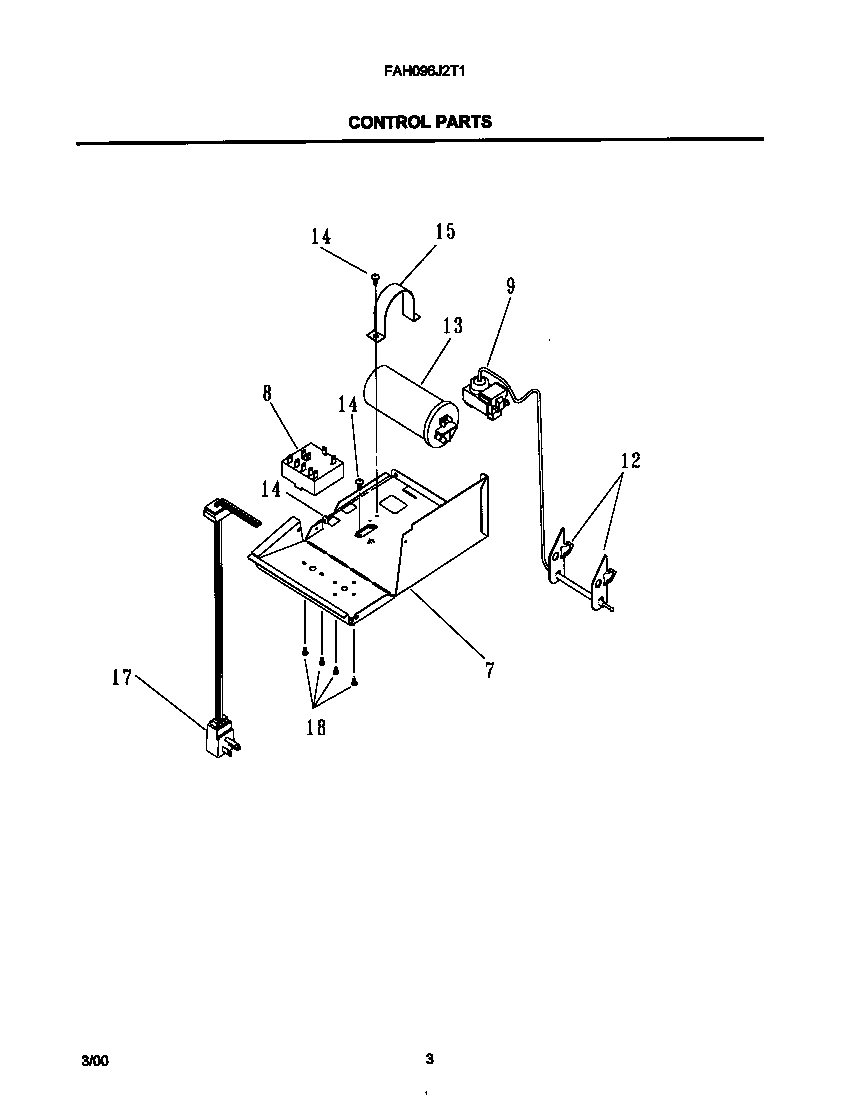

03 - CONTROL PARTS

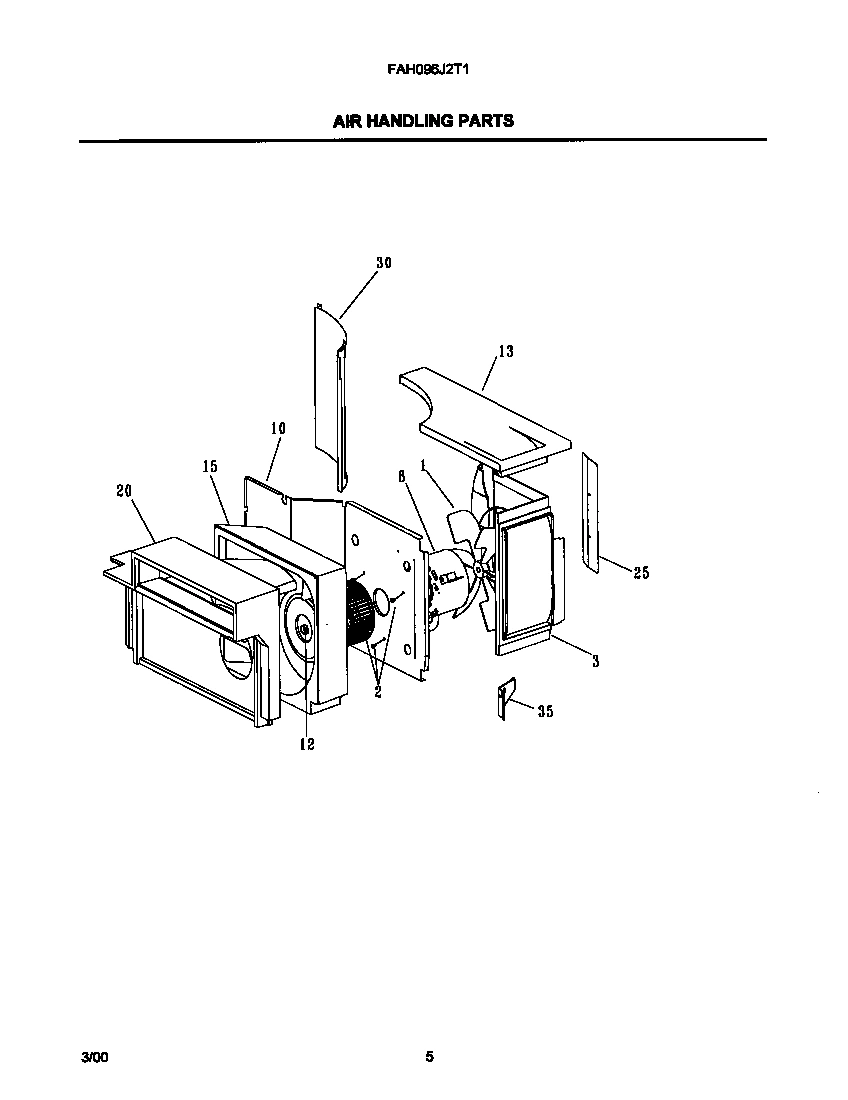

04 - AIR HANDLING PARTS

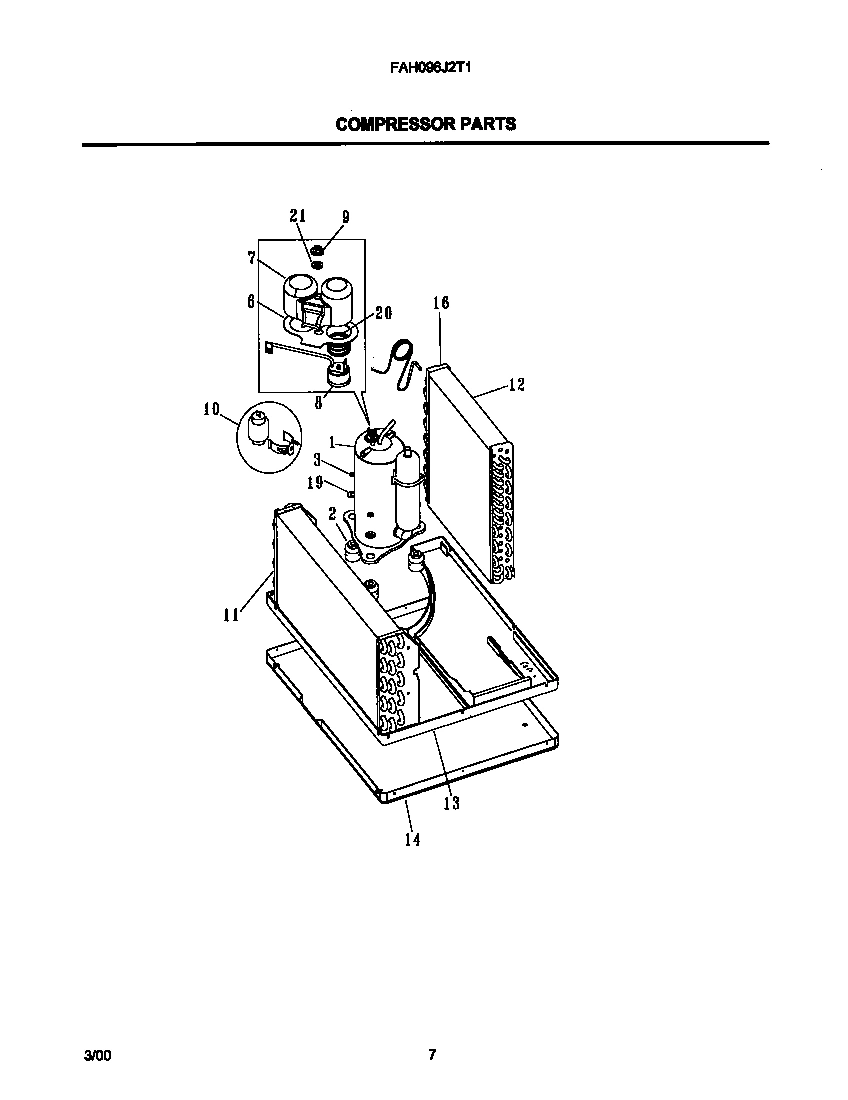

05 - COMPRESSOR PARTS

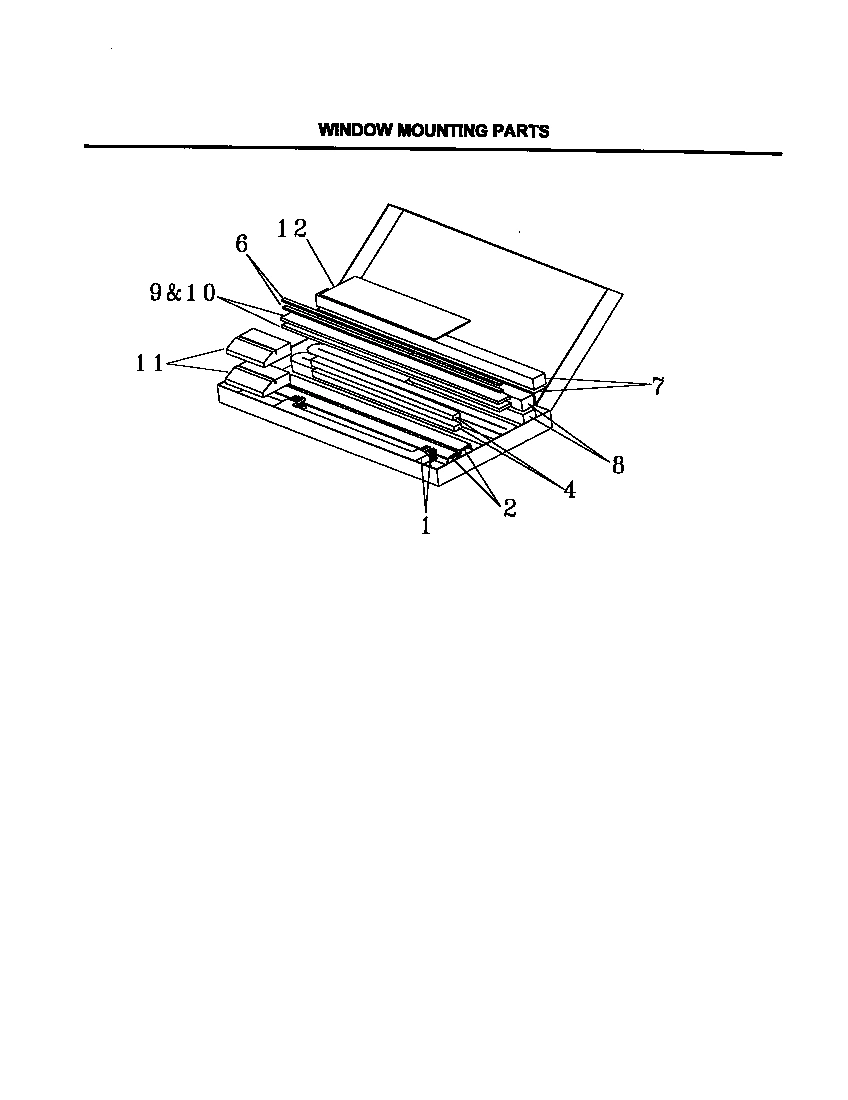

06 - MOUNTING PARTS
07 - WIRING DIAGRAM
Common parts from model Electrolux FAH096J2T1 ROOM AIR CONDITIONER
*74241
GROMMET-WIRES WCI 309111201 Contact Us For Availability
1
WRAPPER-U-BEND 18.5BLD (1403) WCI 309627504 Contact Us For Availability
1
WCI 3200761 WCI 3200761 Contact Us For Availability
1
WCI 5303285483 WCI 5303285483 Contact Us For Availability
1
TRIM WCI 309628603 Contact Us For Availability
2
SCREEN-SAFETY 18.5BLD WCI 309636101 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2
TRIM FRAME-TOP & SIDES (2) WCI 309628604 Contact Us For Availability
3
SHROUD-CONDENSER 18.5 BLD WCI 309628901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5304409303 WCI 5304409303 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
SEAL,HOUSING-FAN ,BOTTOM WCI 3202951 Contact Us For Availability
5
SEAL-WRAPPER TO WRAPPER S/O WCI 5303301038 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
WCI 5304409305 WCI 5304409305 Contact Us For Availability
7
LINK-HANDLE WCI 309324004 Contact Us For Availability
7
BOX-CONTROL 18.5TC ROT WCI 309628501 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5304409306 WCI 5304409306 Contact Us For Availability
8
LOUVER-HORIZ WCI 309628004 Contact Us For Availability
8
SWITCH-7POS GE 3SP L WCI 5304408739 Contact Us For Availability
8
WCI 5304408763 WCI 5304408763 Contact Us For Availability
8
WCI 5304408745 WCI 5304408745 Contact Us For Availability
8
WCI 5304409307 WCI 5304409307 Contact Us For Availability
9
CONTROL-AIR TEMP BLD 12AMP WCI 5304408746 Contact Us For Availability
9
WCI 309628104 WCI 309628104 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
WCI 5304409308 WCI 5304409308 Contact Us For Availability
10
BULKHEAD-18.5CHASSIS (FLEX) WCI 309627401 Contact Us For Availability
10
WCI 5304409309 WCI 5304409309 Contact Us For Availability
11
BLOWER WHEEL-18.5 BLD WCI 309631701 Contact Us For Availability
11
+EVAP ASSY-18.5 2RW/17FPI WCI 309632303 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
FILTER-MOLDED AIR 1403 GREY WCI 309628204 Contact Us For Availability
12
RETAINING CLIP-SENS BULB WCI 309329801 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
+COND ASSY-18.5NSL 3R/15FPI WCI 309632503 Contact Us For Availability
12
WCI 309335101 WCI 309335101 Contact Us For Availability
13
WCI 5304408737 WCI 5304408737 Contact Us For Availability
13
TOP-CONDENSER 18.5 (NCS1403) WCI 309628802 Contact Us For Availability
13
TRAY-BASE EL HT WCI 309628703 Contact Us For Availability
13
WCI 5304409311 WCI 5304409311 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
SCROLL-18.5 TC BLD COOL WCI 309622801 Contact Us For Availability
15
KIT-MOUNTING-18.5BLD (1403) WCI 309636002 Contact Us For Availability
17
FRONT ASSY-18.5 BLD COOL FAC WCI 309629405 Contact Us For Availability
17
WCI 309343109 WCI 309343109 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
KNOB-CONTROL(1403,W/6502) WCI 309307011 Contact Us For Availability
20
SCROLL PLATE-18.5 T/C BLD WCI 309622901 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
25
BAFFLE-AIR 18.5`` WCI 309335201 Contact Us For Availability
30
PARTITION-SHROUD WCI 309629001 Contact Us For Availability
35
BAFFLE-CONDENSATE FOR MOTOR WCI 309335001 Contact Us For Availability
43
FNT/CNTRL LBL ASM-18.5BLD FAC WCI 309631805 Contact Us For Availability
73
LVER ASSY-18.5BLD GREY FAC WCI 309629304 Contact Us For Availability
× ![]()
