Model Electrolux FAH08EJ1T1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - WRAPPER & FRONT PANEL

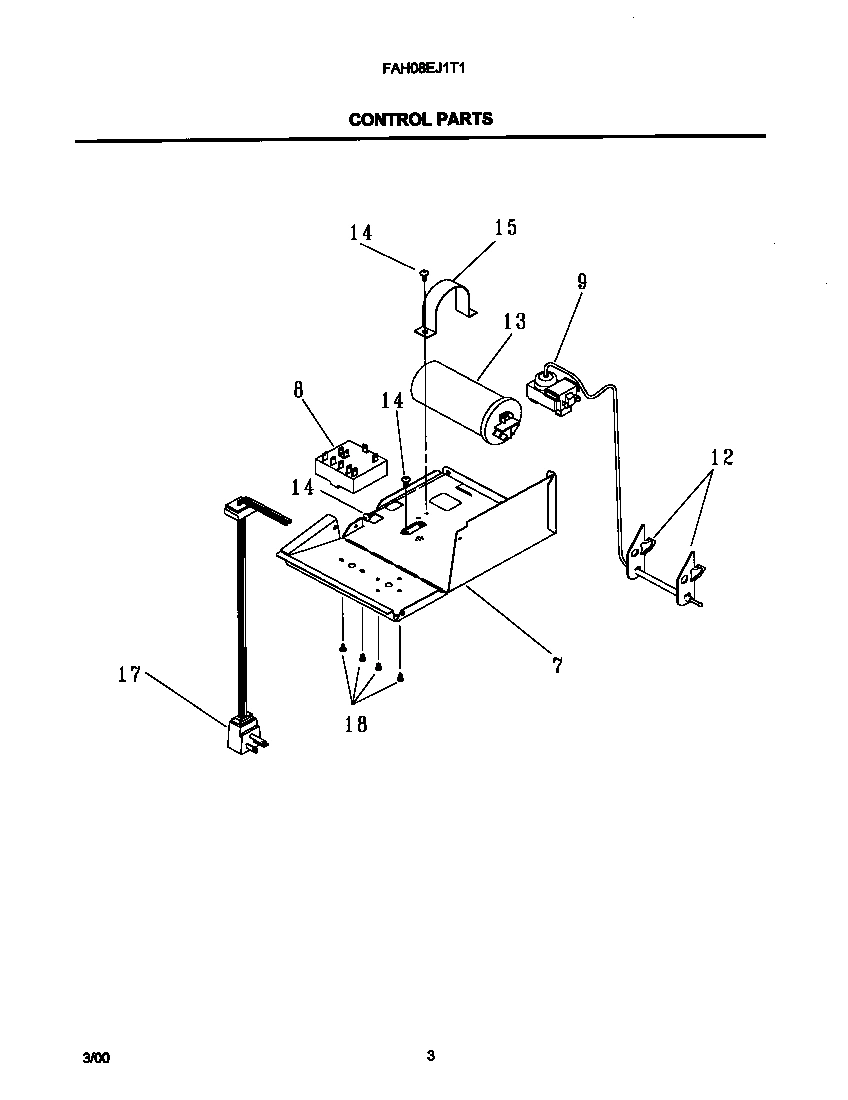

03 - CONTROL PARTS

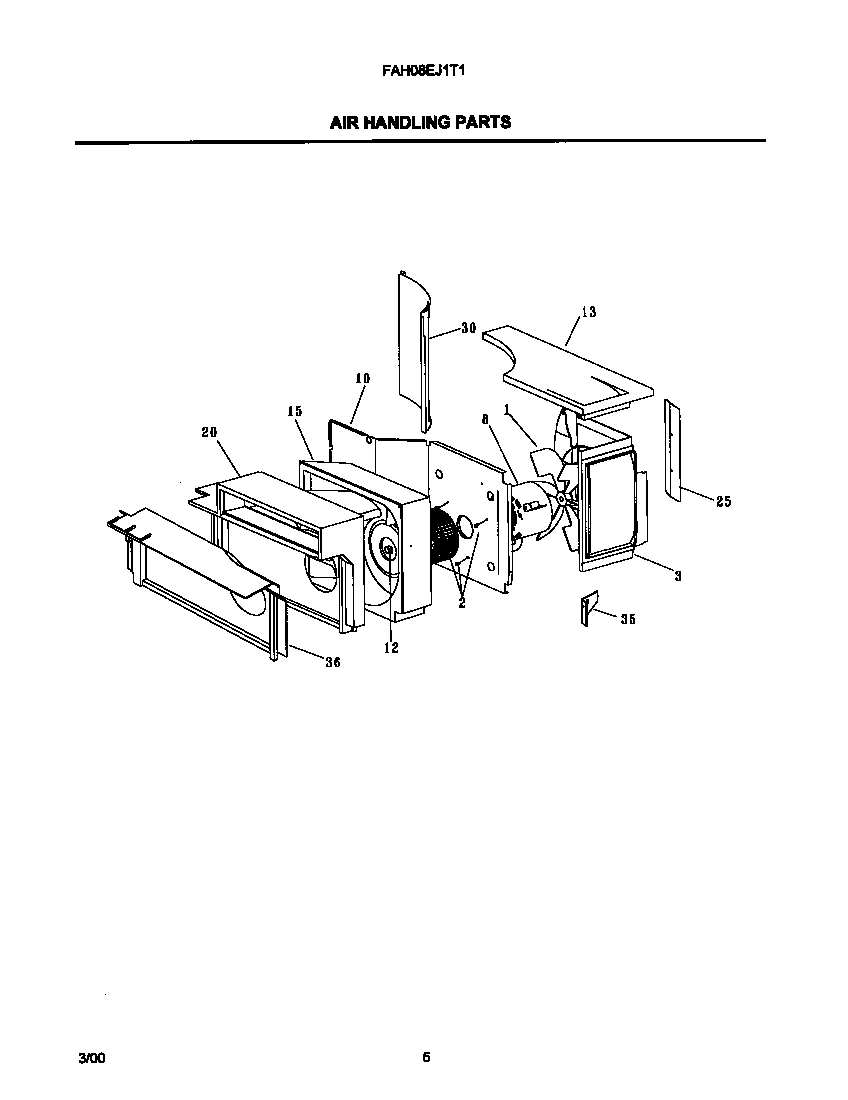

04 - AIR HANDLING PARTS

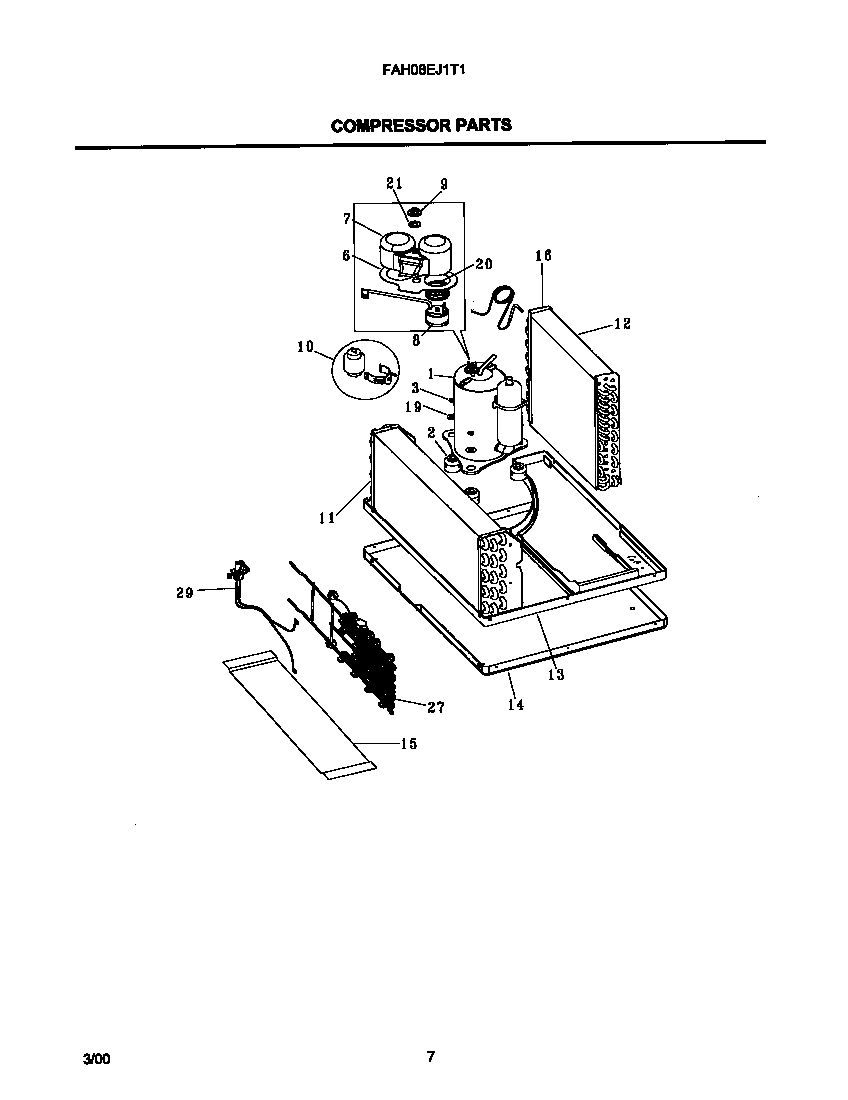

05 - COMPRESSOR PARTS

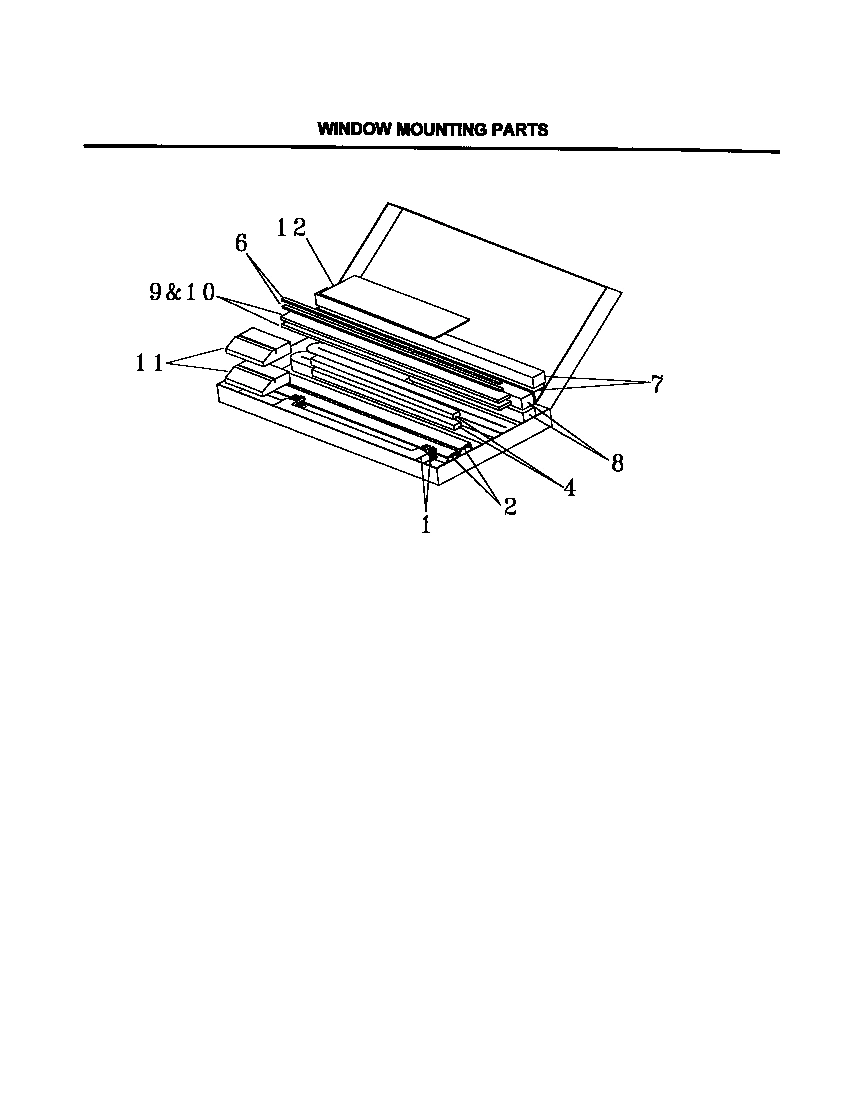

06 - MOUNTING PARTS

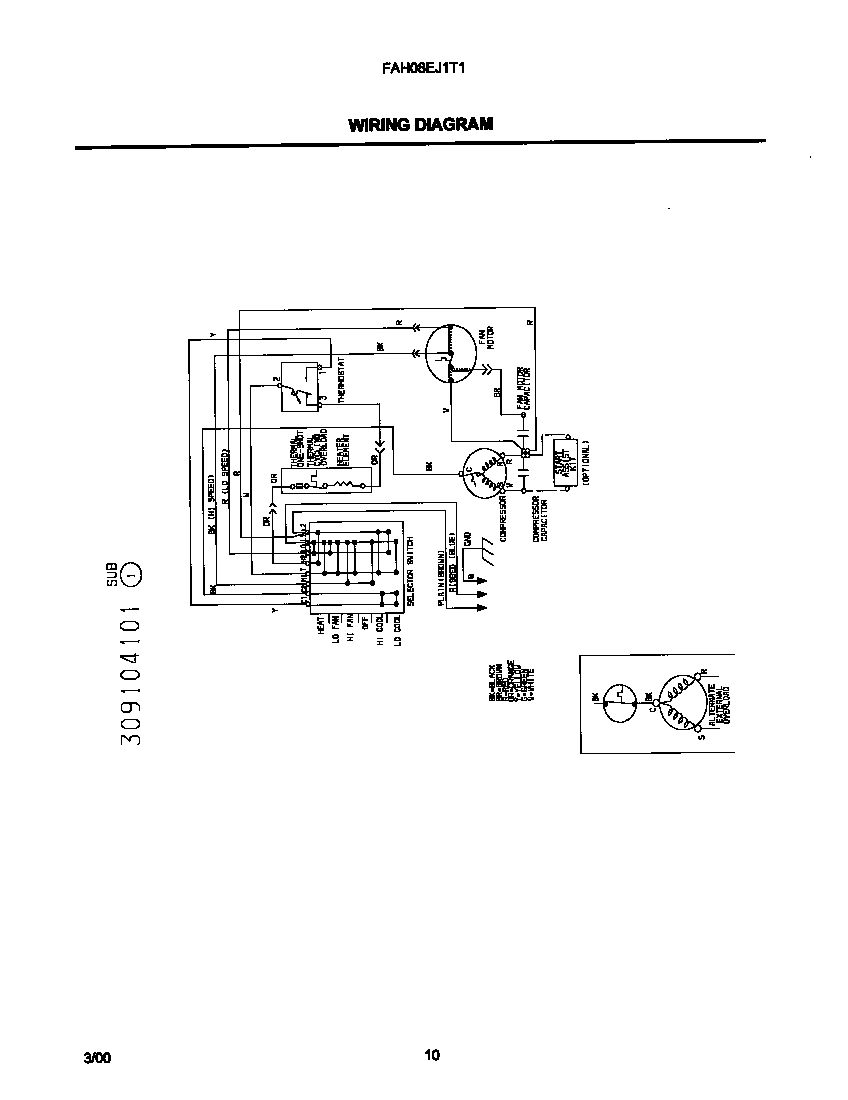

07 - WIRING DIAGRAM
Common parts from model Electrolux FAH08EJ1T1 ROOM AIR CONDITIONER
*34641
GROMMET-WIRES WCI 309111201 Contact Us For Availability
1
WCI 5303300200 WCI 5303300200 Contact Us For Availability
1
TRIM WCI 309628603 Contact Us For Availability
2
SCREEN-SAFETY 18.5BLD WCI 309636101 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2
TRIM FRAME-TOP & SIDES (2) WCI 309628604 Contact Us For Availability
3
SHROUD-CONDENSER 18.5 BLD WCI 309628901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
3
WCI 5304409303 WCI 5304409303 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
SEAL-WRAPPER TO WRAPPER S/O WCI 5303301038 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
WCI 5304409305 WCI 5304409305 Contact Us For Availability
7
LINK-HANDLE WCI 309324004 Contact Us For Availability
7
WCI 309628502 WCI 309628502 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
7
WCI 5304409306 WCI 5304409306 Contact Us For Availability
8
WCI 309329301 No Longer Available
8
LOUVER-HORIZ WCI 309628004 Contact Us For Availability
8
WCI 5304409513 WCI 5304409513 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303211026 Contact Us For Availability
8
WCI 5304409307 WCI 5304409307 Contact Us For Availability
9
WCI 309628104 WCI 309628104 Contact Us For Availability
9
WCI 5304409496 WCI 5304409496 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
9
WCI 5304409308 WCI 5304409308 Contact Us For Availability
10
BULKHEAD-18.5CHASSIS (FLEX) WCI 309627401 Contact Us For Availability
10
WCI 5304409309 WCI 5304409309 Contact Us For Availability
11
BLOWER WHEEL-18.5 BLD WCI 309631701 Contact Us For Availability
11
+EVAP ASSY-18.5 2RW/17FPI WCI 309632303 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
FILTER-MOLDED AIR 1403 GREY WCI 309628204 Contact Us For Availability
12
RETAINING CLIP-SENS BULB WCI 309329801 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
+COND ASSY-18.5NSL 3R/15FPI WCI 309632503 Contact Us For Availability
12
WCI 5304409311 WCI 5304409311 Contact Us For Availability
13
CAPACITOR, 370 V, 10+35 MFD WCI 5303303576 Contact Us For Availability
13
TOP-CONDENSER 18.5 (NCS1403) WCI 309628802 Contact Us For Availability
13
WCI 309335101 WCI 309335101 Contact Us For Availability
14
WCI 309628702 WCI 309628702 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309622802 WCI 309622802 Contact Us For Availability
15
WCI 309629501 WCI 309629501 Contact Us For Availability
15
KIT-MOUNTING-18.5BLD (1403) WCI 309636002 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209547 Contact Us For Availability
17
WCI 309629406 WCI 309629406 Contact Us For Availability
17
WCI 309343104 WCI 309343104 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
KNOB-CONTROL(1403,W/6502) WCI 309307011 Contact Us For Availability
20
WCI 309625501 WCI 309625501 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
25
BAFFLE-AIR 18.5`` WCI 309335201 Contact Us For Availability
27
WCI 309627004 WCI 309627004 Contact Us For Availability
29
WCI 5303307047 WCI 5303307047 Contact Us For Availability
30
PARTITION-SHROUD WCI 309629001 Contact Us For Availability
30
WCI 3017804 WCI 3017804 Contact Us For Availability
32
NUT-HEATER WCI 3018695 Contact Us For Availability
35
WCI 3200761 WCI 3200761 Contact Us For Availability
35
BAFFLE-CONDENSATE FOR MOTOR WCI 309335001 Contact Us For Availability
36
WCI 309633401 WCI 309633401 Contact Us For Availability
37
WCI 5304409500 WCI 5304409500 Contact Us For Availability
43
WCI 309631806 WCI 309631806 Contact Us For Availability
73
LVER ASSY-18.5BLD GREY FAC WCI 309629304 Contact Us For Availability
× ![]()
