Model Electrolux FAH086J1T2 ROOM AIR CONDITIONER – Common Parts & Diagrams

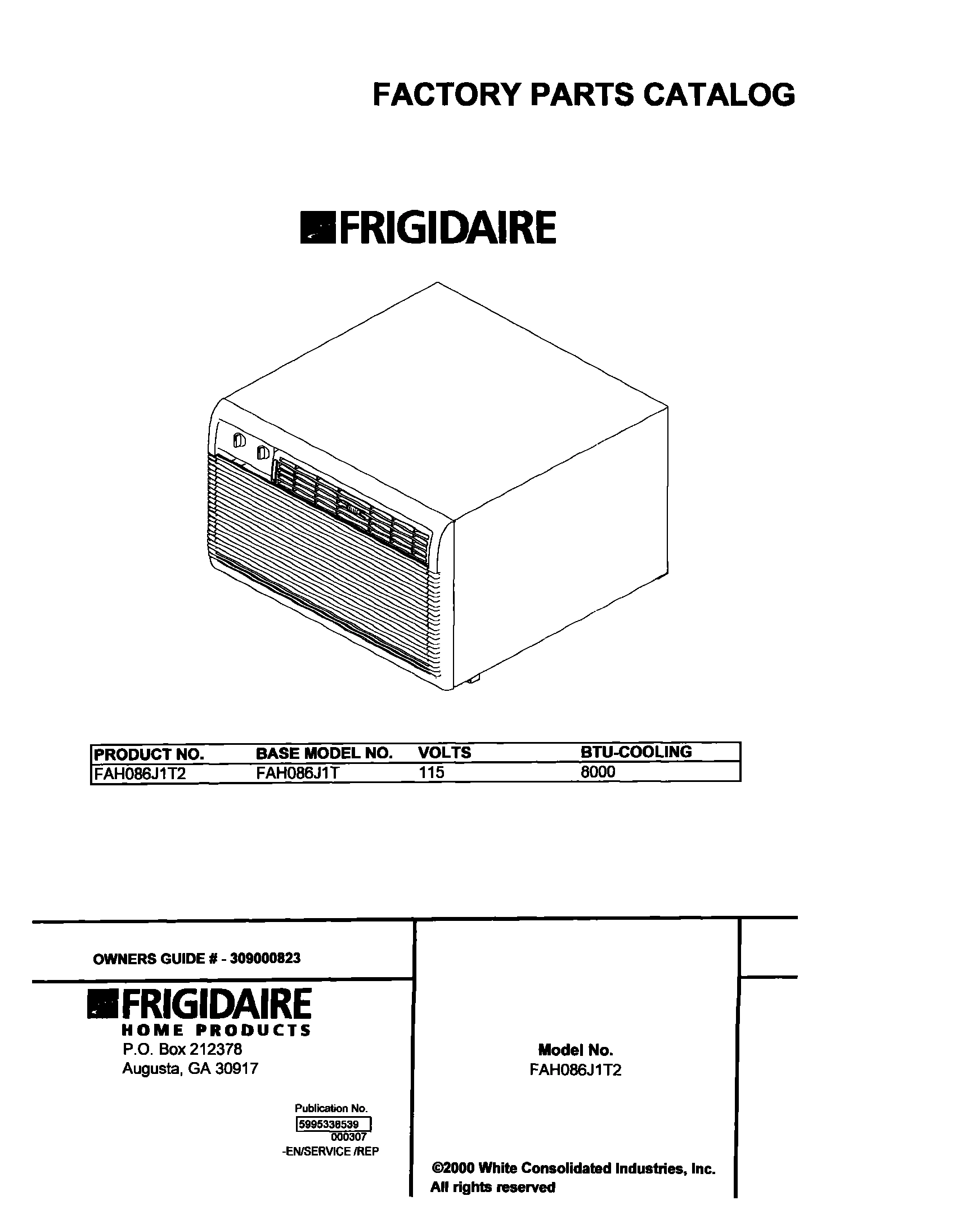

01 - COVER

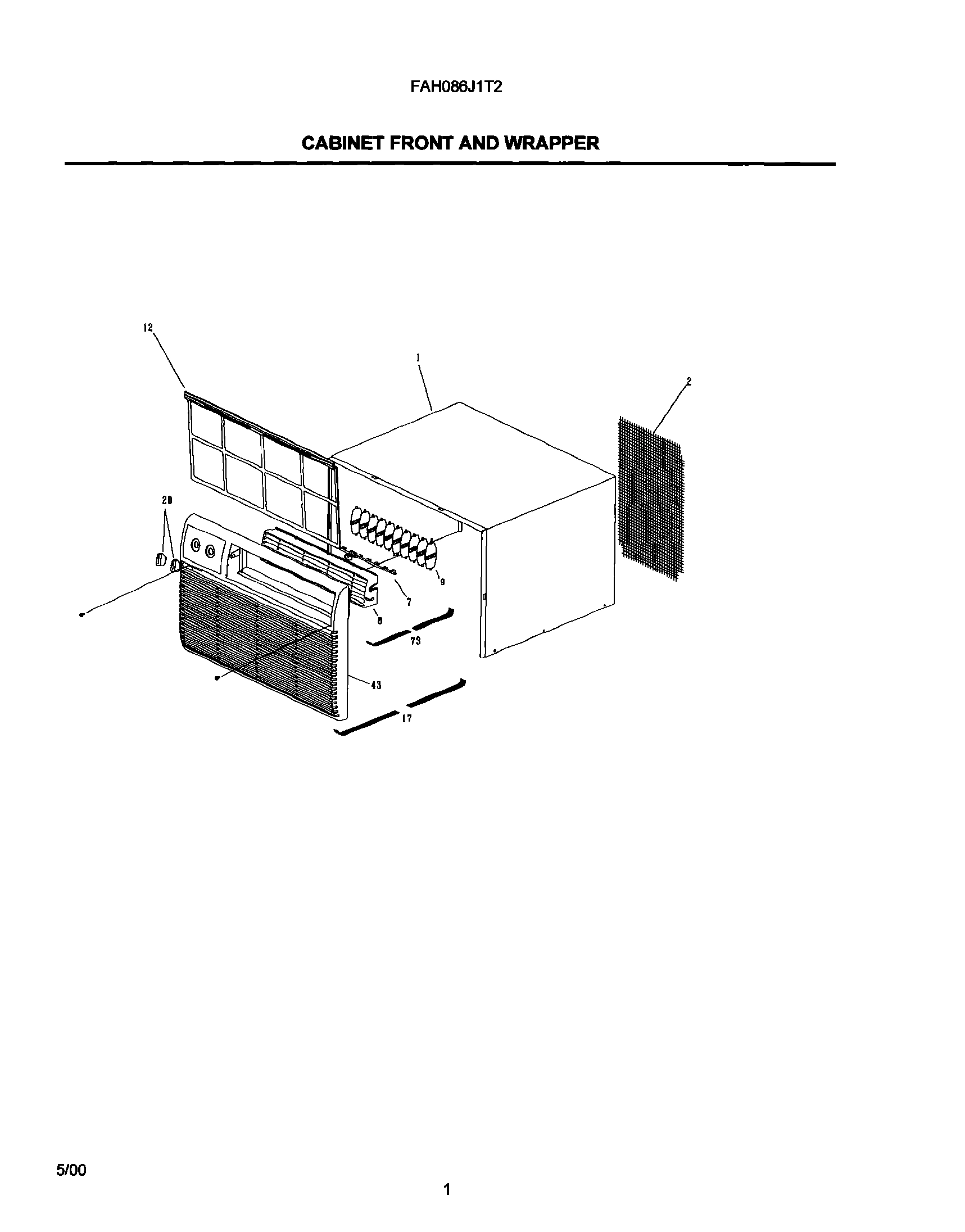

02 - FRONT AND WRAPPER

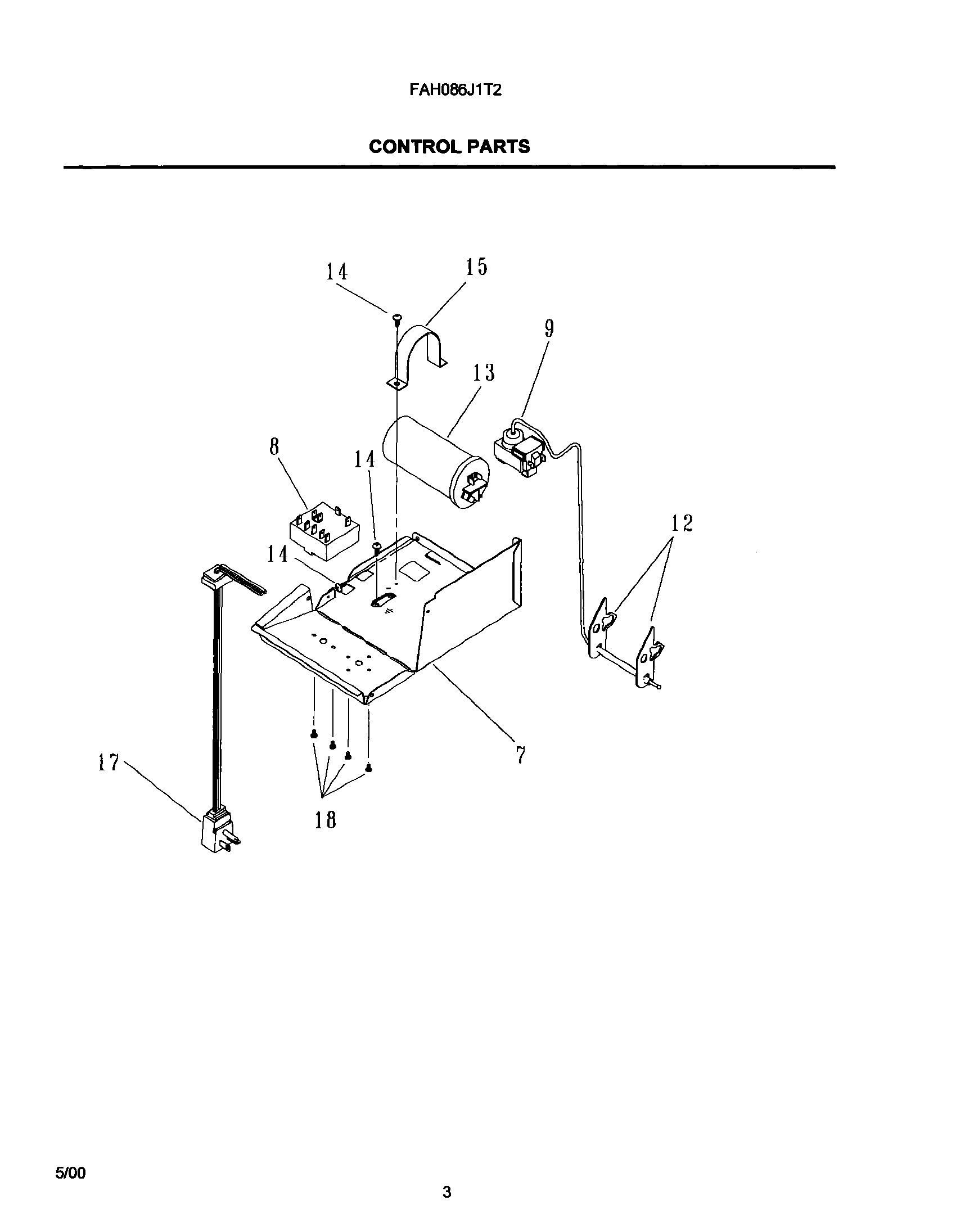

04 - CONTROL PARTS

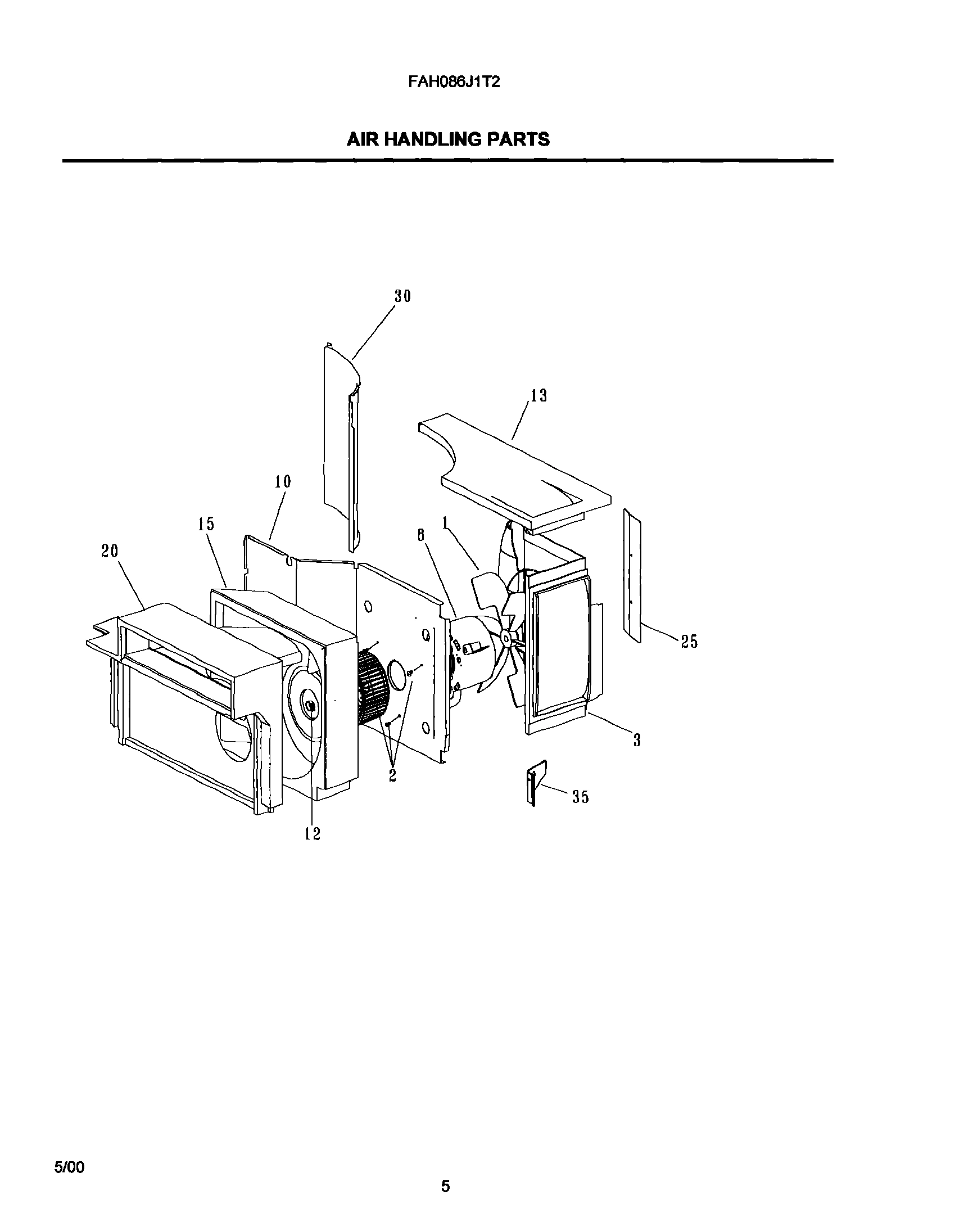

06 - AIR HANDLING PARTS

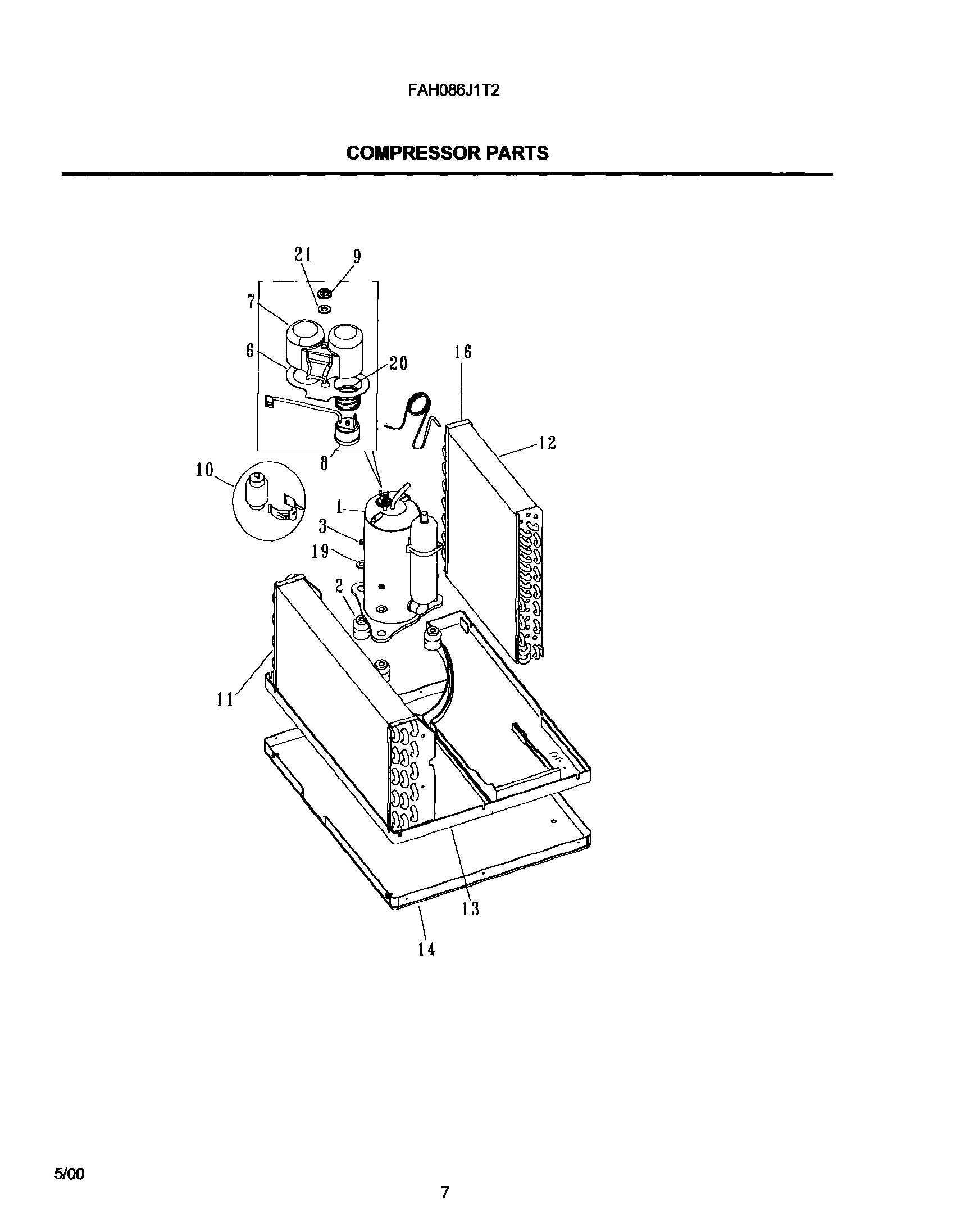

08 - COMPRESSOR PARTS

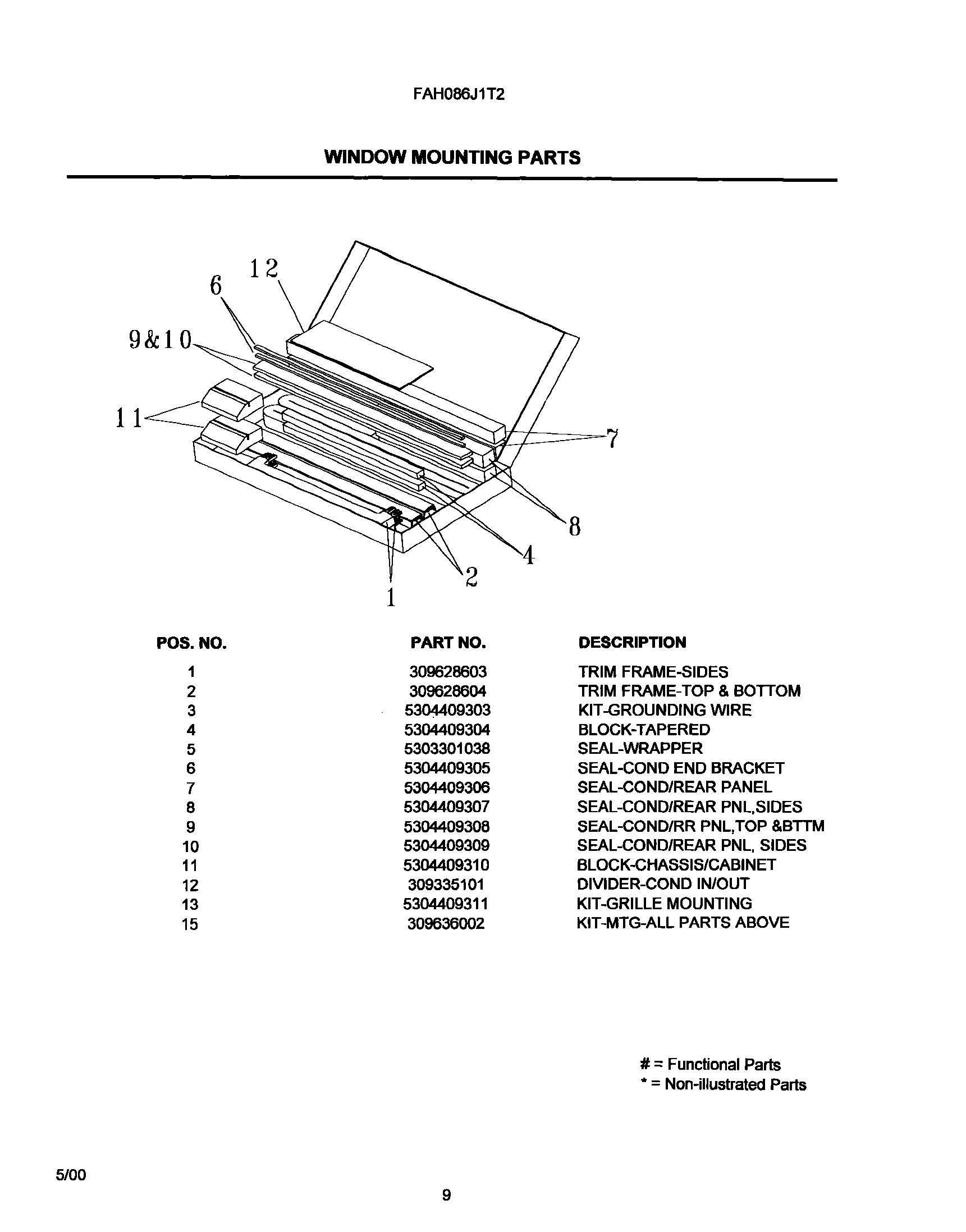

09 - WINDOW MOUNTING PARTS

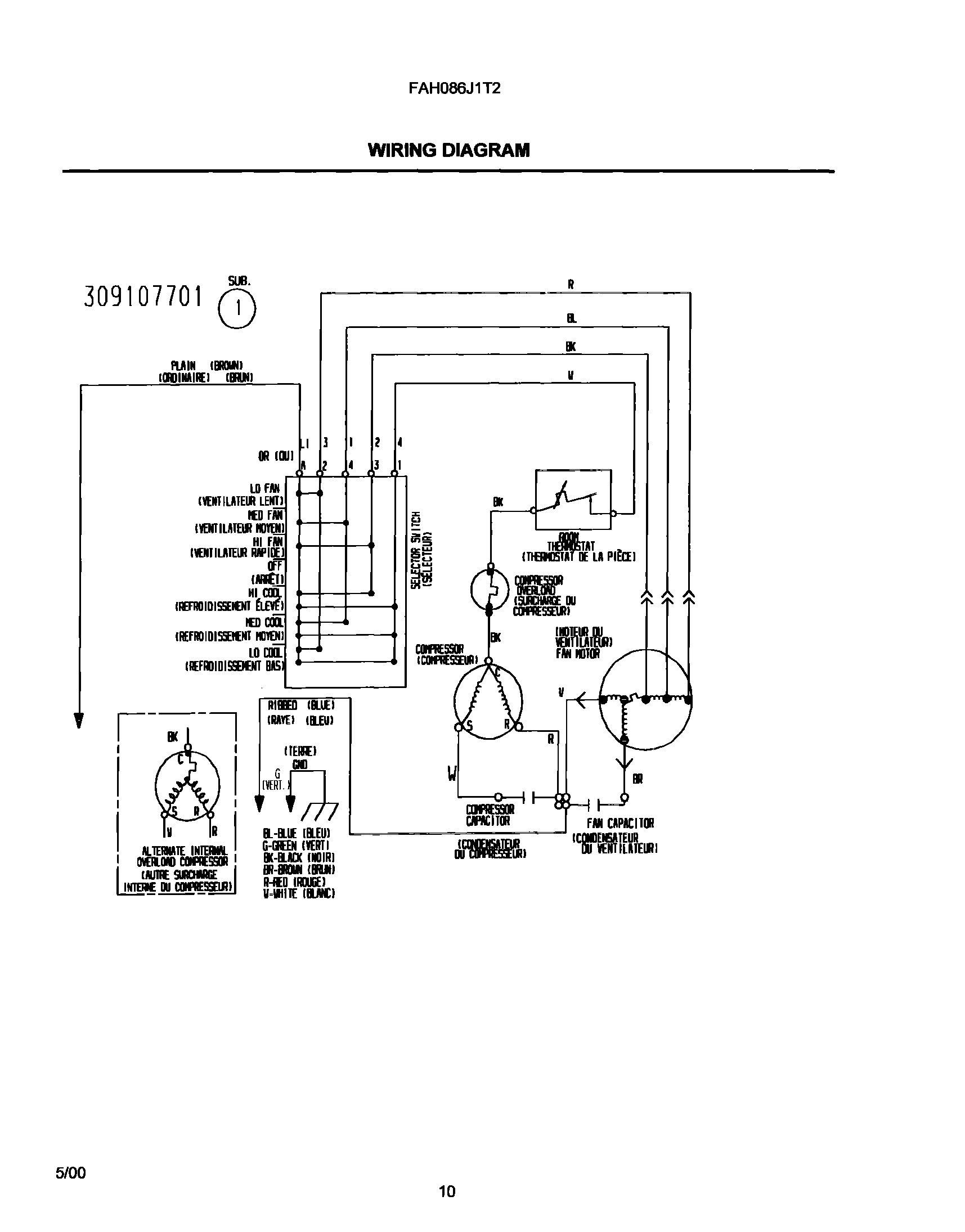

10 - WIRING DIAGRAM
Common parts from model Electrolux FAH086J1T2 ROOM AIR CONDITIONER
1
BLADE-FAN ASS`Y WCI 309629102 Contact Us For Availability
1
COMPRESSOR-SANYO WCI 5304406829 Contact Us For Availability
1
WCI 309628603 WCI 309628603 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
2
WCI 309628604 WCI 309628604 Contact Us For Availability
3
Shroud-condenser WCI 309628901 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
3
WCI 5304409303 WCI 5304409303 Contact Us For Availability
4
WCI 5304409304 WCI 5304409304 Contact Us For Availability
5
WCI 5303301038 WCI 5303301038 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
WCI 5304409305 WCI 5304409305 Contact Us For Availability
7
WCI 309324004 WCI 309324004 Contact Us For Availability
7
Box-control WCI 309628501 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
7
WCI 5304409306 WCI 5304409306 Contact Us For Availability
8
LOUVER-HORIZ WCI 309628004 Contact Us For Availability
8
WCI 5304408739 WCI 5304408739 Contact Us For Availability
8
WCI 5304408764 WCI 5304408764 Contact Us For Availability
8
OVERLOAD-MRA 98869-443 WCI 3202920 Contact Us For Availability
8
WCI 5304409307 WCI 5304409307 Contact Us For Availability
9
WCI 5304408746 WCI 5304408746 Contact Us For Availability
9
WCI 309628104 WCI 309628104 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
9
WCI 5304409308 WCI 5304409308 Contact Us For Availability
10
BULKHEAD-18.5 CHASSIS WCI 309627401 Contact Us For Availability
10
WCI 5304409309 WCI 5304409309 Contact Us For Availability
11
WCI 309631701 WCI 309631701 Contact Us For Availability
11
Evaporator-assy,2RW/17FPI WCI 309632303 Contact Us For Availability
11
WCI 5304409310 WCI 5304409310 Contact Us For Availability
12
FILTER-MOLDED AIR WCI 309628204 Contact Us For Availability
12
WCI 309329801 WCI 309329801 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
CONDENSER, 2RW/15FPI WCI 309641901 Contact Us For Availability
12
WCI 309335101 WCI 309335101 Contact Us For Availability
13
CAPACITOR, 370V, 30 + 7.5 WCI 5303303576 Contact Us For Availability
13
Top-cover WCI 309628802 Contact Us For Availability
13
WCI 309628703 WCI 309628703 Contact Us For Availability
13
WCI 5304409311 WCI 5304409311 Contact Us For Availability
14
WCI 5303285199 WCI 5303285199 Contact Us For Availability
14
WCI 309632004 WCI 309632004 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
Scroll WCI 309622801 Contact Us For Availability
15
WCI 309636002 WCI 309636002 Contact Us For Availability
16
WCI 5304415472 WCI 5304415472 Contact Us For Availability
17
WCI 309629405 WCI 309629405 Contact Us For Availability
17
CORD-SRV 115V/16GA TYPE A WCI 309343108 Contact Us For Availability
18
WCI 530300754 WCI 530300754 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309307011 WCI 309307011 Contact Us For Availability
20
Scroll plate WCI 309622901 Contact Us For Availability
21
WASHER, COVER WCI NOT REQUIRED Contact Us For Availability
25
WCI 309335201 WCI 309335201 Contact Us For Availability
30
PARTITION-SHROUD WCI 309629001 Contact Us For Availability
35
WCI 3200761 WCI 3200761 Contact Us For Availability
35
BAFFLE-CONDENSATE WCI 309335001 Contact Us For Availability
43
Front assy,control/label WCI 309631805 Contact Us For Availability
73
WCI 309629304 WCI 309629304 Contact Us For Availability
NI
WCI 5304408740 WCI 5304408740 Contact Us For Availability
NI
GROMMET-WIRES WCI 309111201 Contact Us For Availability
× ![]()
