Model Electrolux FAFS4073NW1 LAUNDRY, WASHER, FRONT-LOAD – Common Parts & Diagrams
01 - COVER SHEET

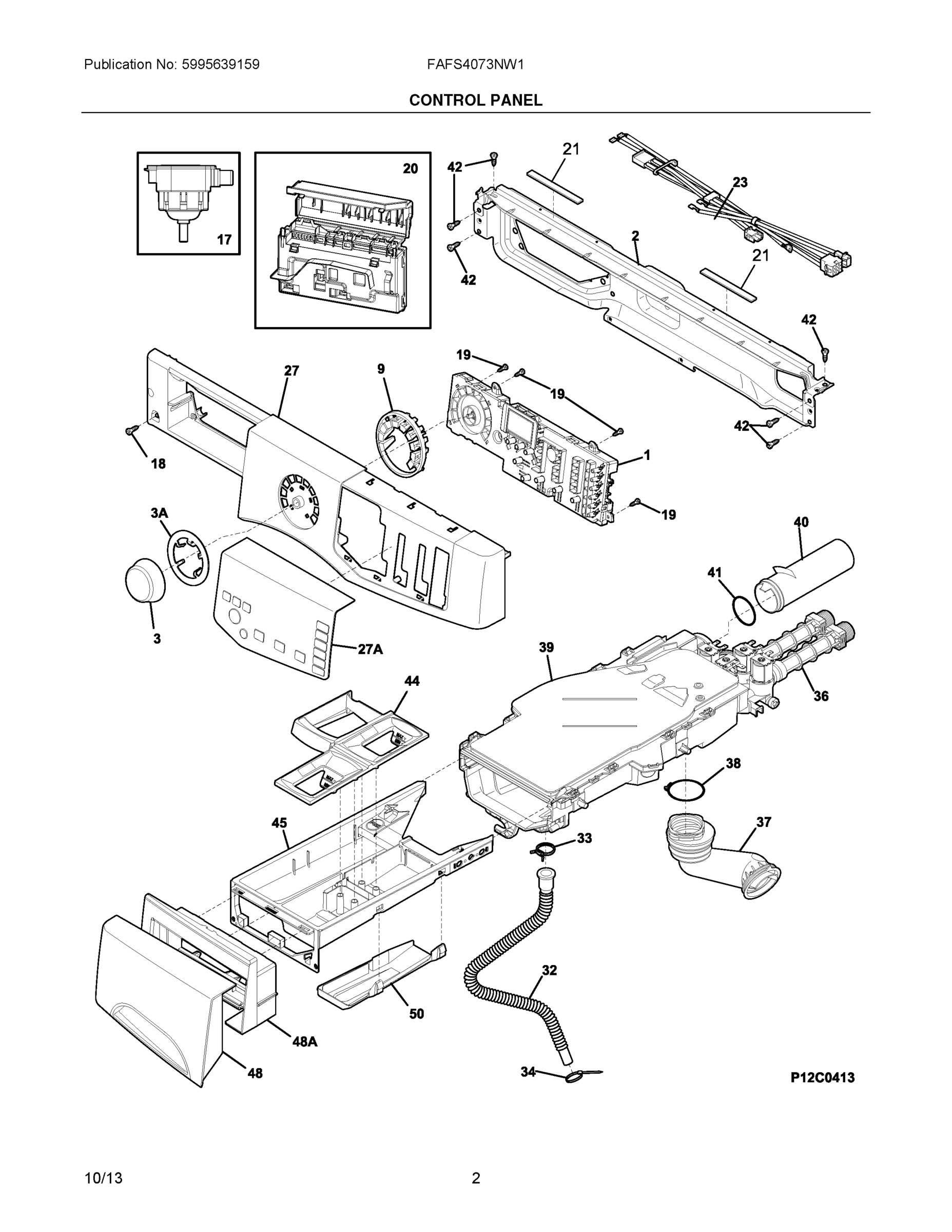

02 - CONTROL PANEL
03 - CABINET/TOP
04 - MOTOR/TUB
05 - WIRING DIAGRAM
Common parts from model Electrolux FAFS4073NW1 LAUNDRY, WASHER, FRONT-LOAD
1
CONTROL BOARD, PRINTED CIRCUIT, WITH HOUSING WCI 137260860 Contact Us For Availability
2
SCREW, PAN HEAD, 8-18B X 0.31 WCI 131168200 Contact Us For Availability
2
BRACKET, CONTROL PANEL, MOUNTING WCI 134887400 Contact Us For Availability
3
KNOB, CONTROL WCI 137286500 Contact Us For Availability
3
BOLT, CARRIAGE, 1/4-20 X 2.60 WCI 131793303 Contact Us For Availability
3A
LENS, CYCLE INDICATOR WCI 137296900 Contact Us For Availability
5
COVER, MOTOR CONTROL, HOUSING WCI 134649700 Contact Us For Availability
6
COUNTERWEIGHT, ONE PIECE WCI 134362210 Contact Us For Availability
7
SPRING, BELLOWS CLAMP, RETAINER WCI 134365300 Contact Us For Availability
8A
VENT, DOOR, COMPLETE ASSY WCI 137279900 Contact Us For Availability
9
PIPE, CYCLE LIGHT WCI 137286600 Contact Us For Availability
10
WCI 137086500 WCI 137086500 Contact Us For Availability
11
WASHER, BELLVILLE, SPRING STEEL WCI 131276900 Contact Us For Availability
12
FRAME, INNER DOOR, GRAY WCI 137280302 Contact Us For Availability
13
SHELL, TUB, FRONT WCI 134955100 Contact Us For Availability
13
SCREW, 10-16 X 0.750 WCI 131302901 Contact Us For Availability
14
SPRING ASMY, SUSPENSION WCI 134957000 Contact Us For Availability
15
HINGE, DOOR, WITH BUSHINGS WCI 134550800 Contact Us For Availability
15
SCREW, HEX WASHER HEAD, 1/4-10A X 2.165 WCI 131303900 Contact Us For Availability
16
WCI 134950400 WCI 134950400 Contact Us For Availability
16
SCREW, 10-16 X 0.750 WCI 131205300 Contact Us For Availability
17
SWITCH, PRESSURE WCI 134762010 Contact Us For Availability
17
WCI 134952702 WCI 134952702 Contact Us For Availability
17
CLIP, ASSEMBLY WCI 134638700 Contact Us For Availability
18
SCREW, QUADREX PH, 10-16AB X 0.5 WCI 131302800 Contact Us For Availability
19
SCREW, PHILLIPS, 6-19 X 0.650 WCI 134402900 Contact Us For Availability
20
SCREW, 12-14AB X 1.50, MOTOR MTG. WCI 131303500 Contact Us For Availability
21
DAMPENER, VIBRATION WCI 134407900 Contact Us For Availability
22
SHELL, OUTER TUB, REAR, WITH BEARING WCI 134956200 Contact Us For Availability
22
BRACKET-SPRING, RETAINER WCI 134648500 Contact Us For Availability
23
WCI 137503600 WCI 137503600 Contact Us For Availability
23
PANEL, LEFT/RIGHT SIDE, WHITE WCI 134958010 Contact Us For Availability
24
PANEL, WORK TOP, WHITE WCI 134638510 Contact Us For Availability
25
BELT, DRIVE, POLY-V WCI 134616700 Contact Us For Availability
25
WCI 134646000 WCI 134646000 Contact Us For Availability
26
PULLEY, DRUM DRIVE, REAR, LARGE WCI 137317100 Contact Us For Availability
27
BRACKET, HINGE, REINFORCEMENT WCI 134550900 Contact Us For Availability
27A
PANEL, DISPLAY, DECORATED WCI 137501710 Contact Us For Availability
28
PANEL, SERVICE, BACK WCI 134646200 Contact Us For Availability
29
SCREW, 10.9 CLASS, M10 X 25 MM WCI 134408400 Contact Us For Availability
29
PANEL, FRONT, WHITE WCI 137021811 Contact Us For Availability
31
PIN, SHOCK MTG. WCI 131268300 Contact Us For Availability
31
POWER CORD, ELECTRIC SVCE, 120 16A WCI 137011400 Contact Us For Availability
32
HOSE, DISP-TO-BELLOWS WCI 134586500 Contact Us For Availability
32
BRACKET, SHOCK MTG. WCI 134363200 Contact Us For Availability
32
BUSHING, STRAIN RELIEF WCI 5303209428 Contact Us For Availability
35
WCI 137311900 WCI 137311900 Contact Us For Availability
35
BRACKET, TOP PANEL MTG., REAR WCI 134713100 Contact Us For Availability
35A
PAD, VIBRATION, PUMP MOTOR WCI 134618100 Contact Us For Availability
36
VALVE, DISPENSER, NON NTC WCI 134959330 Contact Us For Availability
36
LEVELING LEG, SCREW WCI 134639100 Contact Us For Availability
36
HOSE, VENT WCI 137322400 Contact Us For Availability
37
HOSE, DISP-TO-TUB WCI 134372300 Contact Us For Availability
37
BUSHING, LEVELING LEG WCI 134617600 Contact Us For Availability
37
SCREEN, VENT WCI 137322500 Contact Us For Availability
38
NUT, LEVELING LEG, BUSHING WCI 134639200 Contact Us For Availability
38
CLAMP, TUB HOSE WCI 134372400 Contact Us For Availability
39
HOUSING, DISPENSER, VALVE, COVER WCI 134446130 Contact Us For Availability
40
FILTER, PUMP WCI 134640200 Contact Us For Availability
40
TUBE, DISP-TO-OVERFLO WCI 134372100 Contact Us For Availability
40A
COVER, FILTER WCI 134640300 Contact Us For Availability
41
HOSE, COIN TRAP, TUB-TO-PUMP WCI 134639920 Contact Us For Availability
41
O-RING, OVERFLOW TUBE WCI 134372200 Contact Us For Availability
41A
DAMPER, VIBRATION, FOAM WCI 137340800 Contact Us For Availability
42
CLAMP, HOSE WCI 134737300 Contact Us For Availability
42
WCI 137380600 WCI 137380600 Contact Us For Availability
44
COVER, DISPENSER WCI 134370200 Contact Us For Availability
45
DRAWER, DISPENSER WCI 134370000 Contact Us For Availability
45
CLAMP, HOSE WCI 137087500 Contact Us For Availability
48
CLAMP, HOSE, WIRE WCI 131306234 Contact Us For Availability
48A
FRAME, DISPENSER, DRAWER WCI 137286005 Contact Us For Availability
49
CLAMP, BELLOWS, SPRING HELD WCI 134527100 Contact Us For Availability
50
BRACKET, TUB SUSPENSION WCI 134645600 Contact Us For Availability
51
PROTECTOR, TUB SUSPENSION, SPRING HOOK, (2) WCI 134655800 Contact Us For Availability
52
SCREW, 10-16AB X 0.625 WCI 131202300 Contact Us For Availability
52
DAMPENER, VIBRATION, FOAM WCI 131931202 Contact Us For Availability
53
RING, DOOR TRANSITION WCI 137266700 Contact Us For Availability
55
WCI 137628100 WCI 137628100 Contact Us For Availability
56
WCI 137578120 WCI 137578120 Contact Us For Availability
56
CABLE TIE, PUSH MOUNT WCI 137003500 Contact Us For Availability
57
BRACKET, DRAIN HOSE MTG, REAR WCI 134641100 Contact Us For Availability
60
HEATING ELEMENT, (1000W) WITH NT WCI 137488301 Contact Us For Availability
60
GROMMET, DISPENSER, BACK PANEL WCI 134372000 Contact Us For Availability
62
SUPPORT, HEATING ELEMENT WCI 134642300 Contact Us For Availability
64
SUP WCI 134644600 Contact Us For Availability
NI
PLUG ASSY, SHIPPING HOLES, BACK WCI 134591500 Contact Us For Availability
NIA
GASKET, DISP-TO-VALVE WCI 134371300 Contact Us For Availability
NIA
DAMPER, SOUND WCI 134926600 Contact Us For Availability
NIA
WIRING HARNESS, DOOR SWITCH WCI 137288600 Contact Us For Availability
NIA
SCREW, 8-18AB X 0.455 WCI 134178901 Contact Us For Availability
NIA
WCI 137290700 WCI 137290700 Contact Us For Availability
× ![]()
