Model Electrolux FAC103J1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

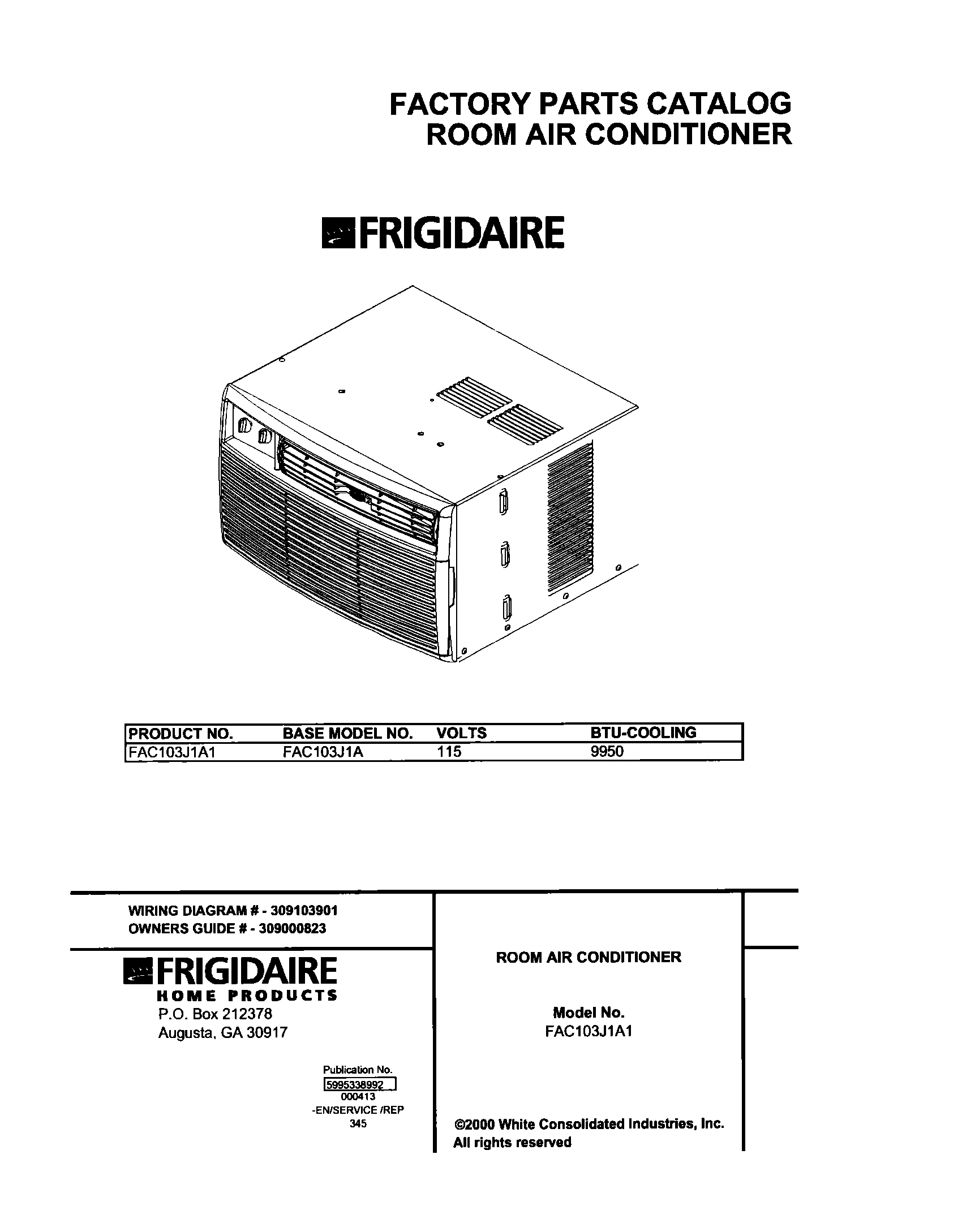

01 - COVER

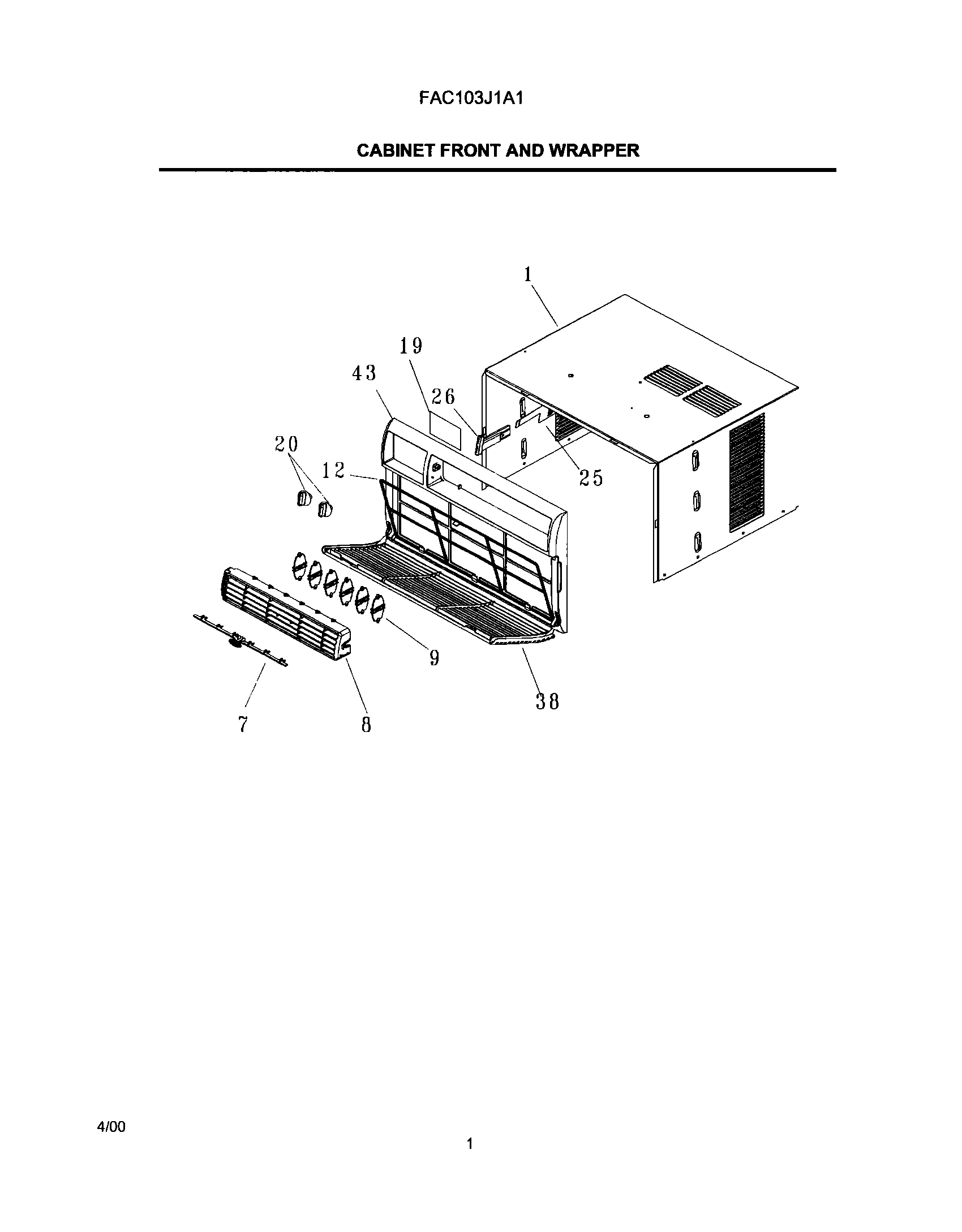

03 - CABINET FRONT AND WRAPPER

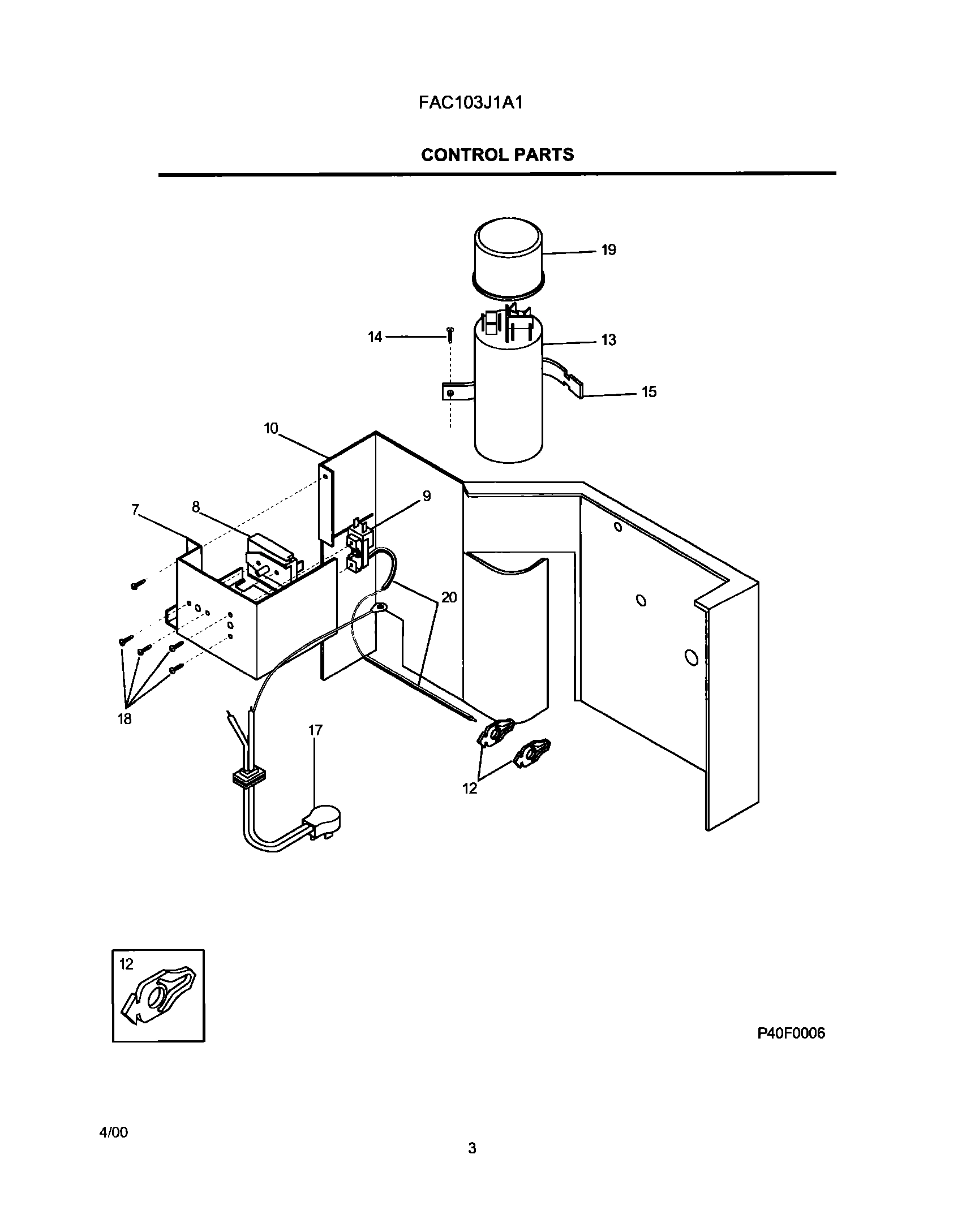

05 - CONTROL PARTS

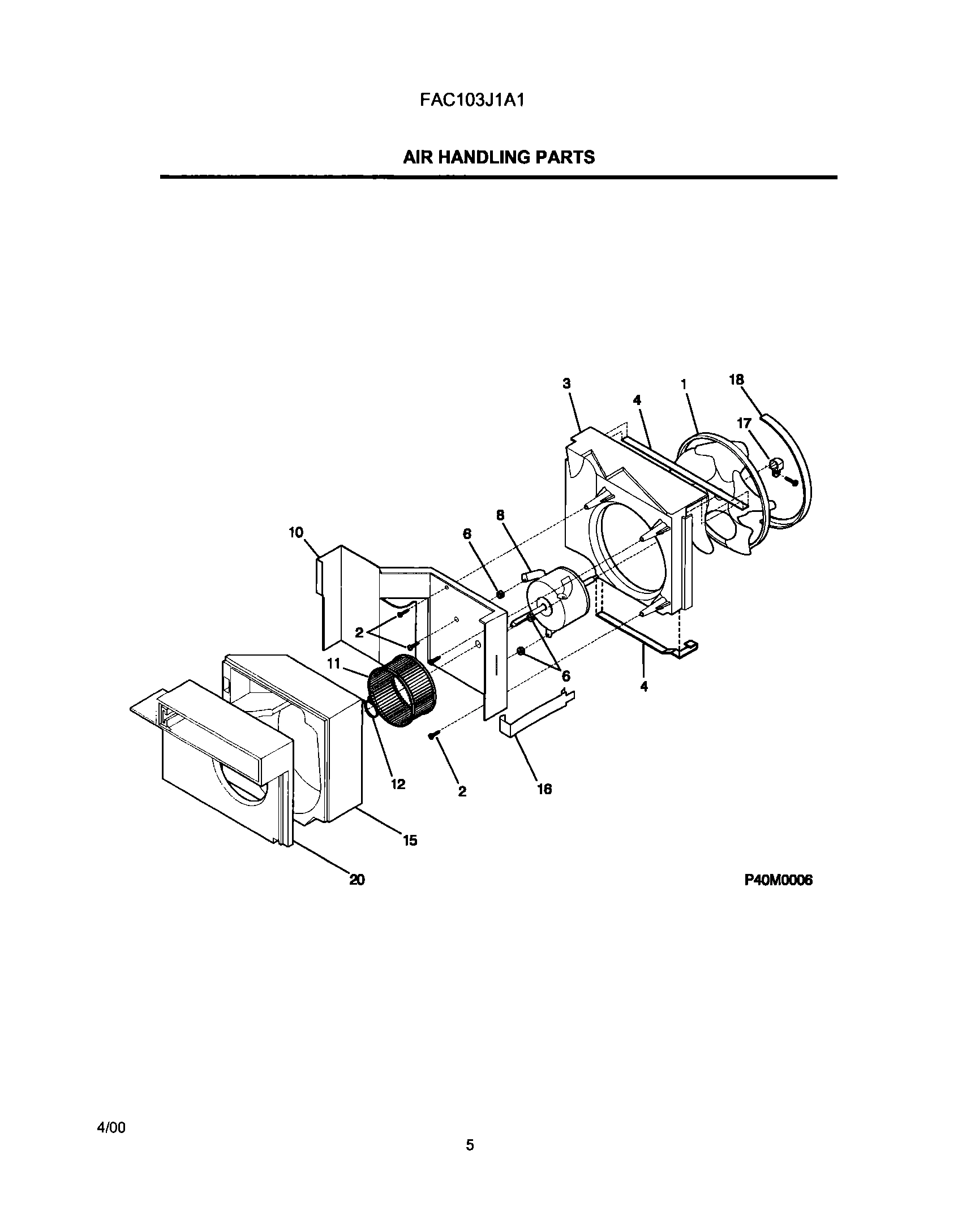

07 - AIR HANDLING PARTS

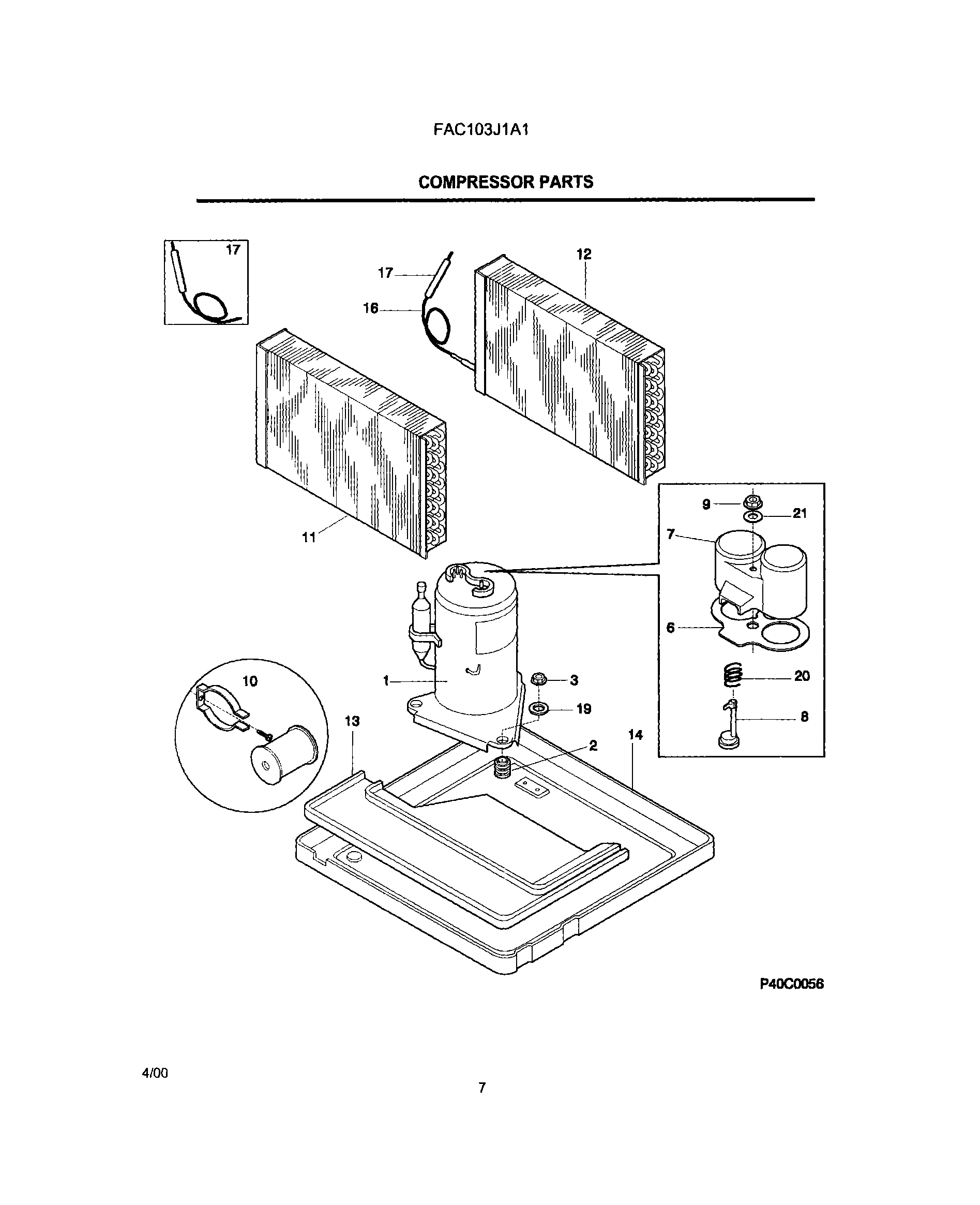

09 - COMPRESSOR PARTS

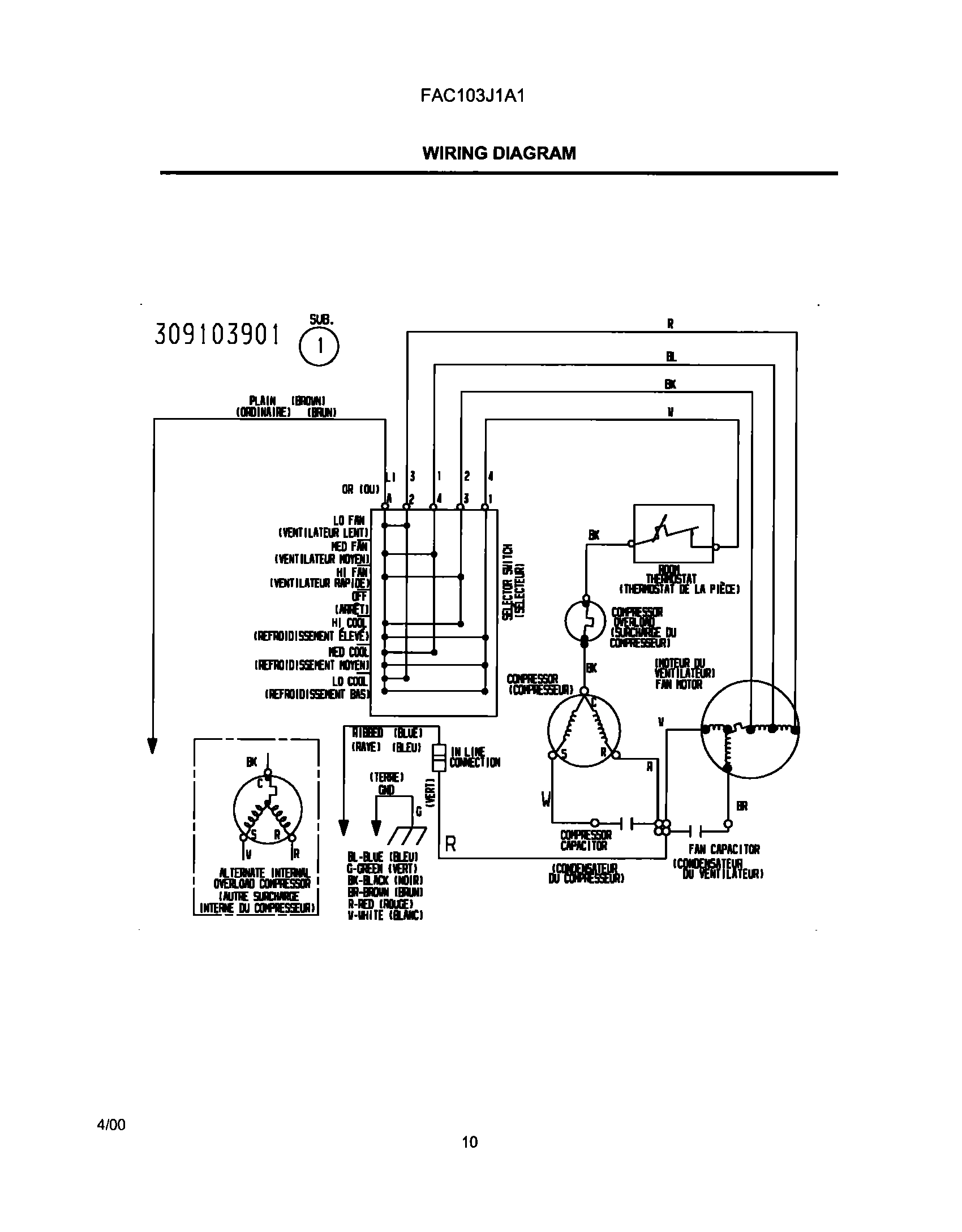

10 - WIRING DIAGRAM

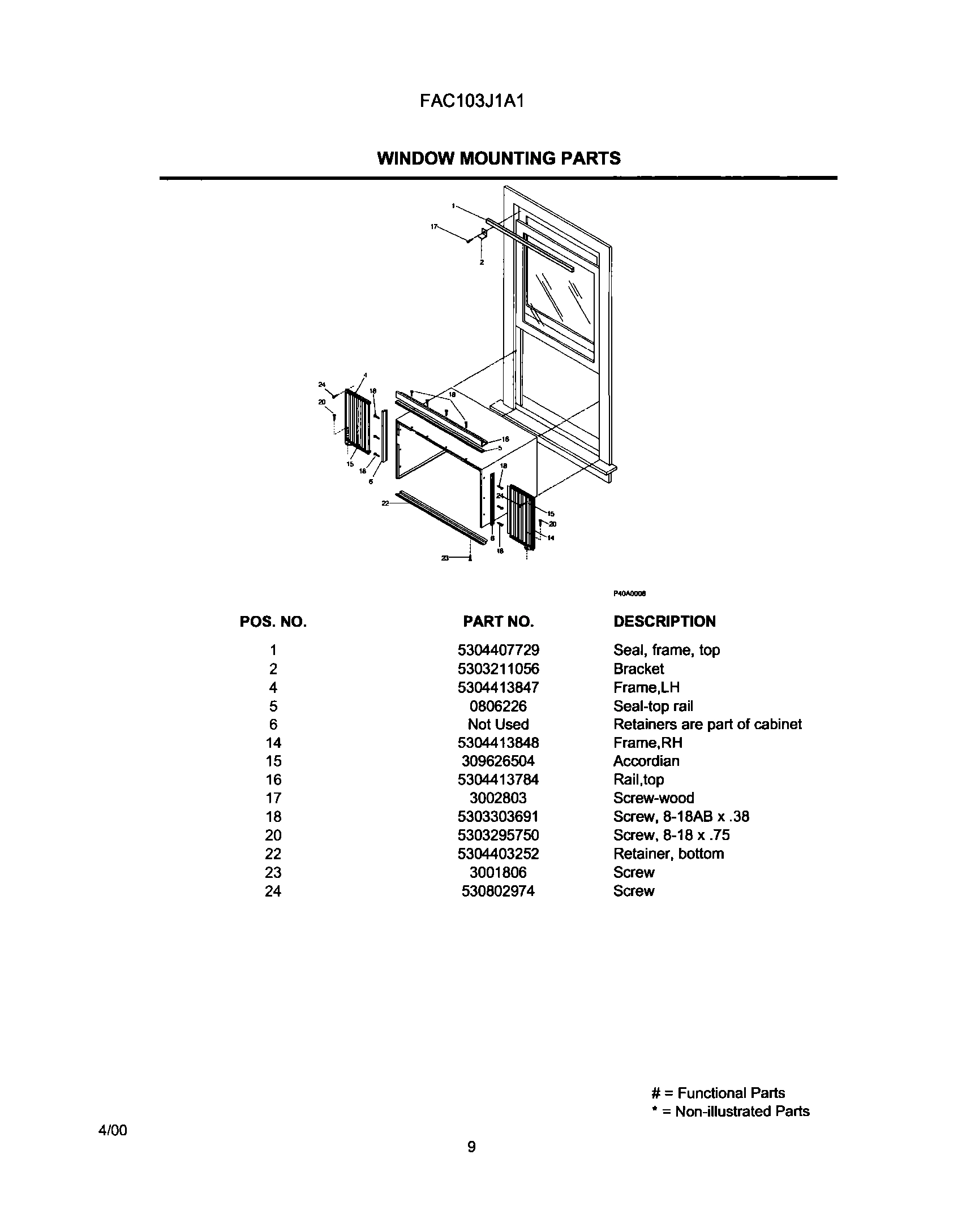

11 - WINDOW MOUNTING PARTS
Common parts from model Electrolux FAC103J1A1 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 309603103 WCI 309603103 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2A
SCREW,INDT HEX HEAD ,10-16 ,(3) WCI 5303317224 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
7
WCI 309340401 WCI 309340401 Contact Us For Availability
7
COVER-TERMINAL,GS CMPR355OU-L WCI 5304416126 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
WCI 309627307 WCI 309627307 Contact Us For Availability
8
WCI 5304403166 WCI 5304403166 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5303302852 WCI 5303302852 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309617101 WCI 309617101 Contact Us For Availability
11
WCI 309619303 WCI 309619303 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303303195 WCI 5303303195 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
WCI 5304414133 WCI 5304414133 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626504 WCI 309626504 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209547 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
Rail,top WCI 5304413784 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640102 Contact Us For Availability
17
WCI 5304417516 WCI 5304417516 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
17No.
WCI 309343102 WCI 309343102 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309342903 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
Knob-control,rotary WCI 309306811 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
21
WASHER WCI 5303293809 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
38
WCI 309639201 WCI 309639201 Contact Us For Availability
43
WCI 309639101 WCI 309639101 Contact Us For Availability
NI
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
NI
WCI 5304414891 WCI 5304414891 Contact Us For Availability
NI
WCI 5304414892 WCI 5304414892 Contact Us For Availability
× ![]()
